Limewashing over Cement Stucco: Prep That Sticks

Limewash is a calcium hydroxide–based pigment that carbonates to lime, creating a breathable mineral film rather than a non‑porous, film‑forming coating. On cement stucco, this chemistry hinges on a clean, sound substrate that has been dampened slightly and abraded enough to reveal a rough, dust‑free surface, with cracks repaired and efflorescence removed so the limewash can grip the pores. Adhesion is not about a hard outer layer; it comes from the film infiltrating the substrate’s microtexture and the surface energy of the limewash working with the porosity to hold the finish in place while still letting moisture escape.

Breathability matters because vapor and capillary moisture can migrate through limewash, reducing the risk of trapped moisture that can cause spalling or mildew on cement stucco over time. The mechanism is practical for DIYers: apply thin, even coats, plan for multiple passes, and monitor humidity and temperature windows to avoid premature drying or salt accumulation. Be mindful of compatibility: don’t apply over sealers, waxes, or old paints, test for salts and damp pockets, and expect possible salt cycles and occasional efflorescence; a careful patch test and a documented drying/curing timeline will save rework and help you judge when the finish has properly set.

Limewash chemistry and breathability

Limewash starts as slaked lime — quicklime mixed with water — that forms a soft, alkaline putty. Once applied it slowly reacts with carbon dioxide in the air in a process called carbonation, turning back into a hard, stable calcium carbonate finish.

That chemical set is different from cement. Limewash stays slightly porous and allows moisture vapor to pass through. That breathability helps prevent trapped moisture in stucco, which is why many pros choose limewash over impermeable paints on cementitious walls.

How limewash bonds to cementitious surfaces

Limewash grabs hold mainly by mechanical keying. A clean, rough, and absorbent stucco surface gives the lime particles something to lock into as the coating dries and carbonates. Smooth or glazed cement will not key well without preparation.

Chemical bonding is limited on true Portland-cement mixes, so surface porosity is your ally. Proper cleaning, removing loose material, and opening the pores allows the limewash to penetrate and adhere. If the substrate is too weak or contaminated, use a primer or repair the stucco first to get reliable adhesion.

Back to top ↑

Limewashing should be postponed until moisture and structural concerns are resolved. Look for rising damp, active leaks, and spalling or delaminating stucco, which undermine adhesion and longevity. Quick on-site checks include visual damp staining, efflorescence, soft or hollow plaster, and simple water tests to reveal leaks.

If tests show ongoing moisture or structural instability, postpone limewashing and document findings while you plan repairs. Implement a remediation plan that fixes leaks, addresses rising damp with proper barriers, repairs spalled stucco with compatible materials, and allows ample drying time before coating. DIY moisture readings can guide timing, using acceptable interior moisture targets as a practical threshold for proceeding.

Simple moisture tests for stucco

Start with an electrical moisture meter run over several spots: base of walls, near grade, and under eaves. Readings above the manufacturer’s recommended range are a red flag — don’t limewash until the source is fixed.

Do a plastic-sheet (tape) test: tape a 12″ square of clear plastic to the wall for 24–48 hours and check for condensation or darkening underneath. If moisture shows up, you have active damp that will ruin limewash adhesion.

Also look for visible signs: white salty deposits (efflorescence), peeling paint, or dark stains. These are quick jobsite clues that should send you back to diagnostics rather than straight to limewashing. Use the meter and sheet test together for a clear picture.

Structural issues that block limewash success

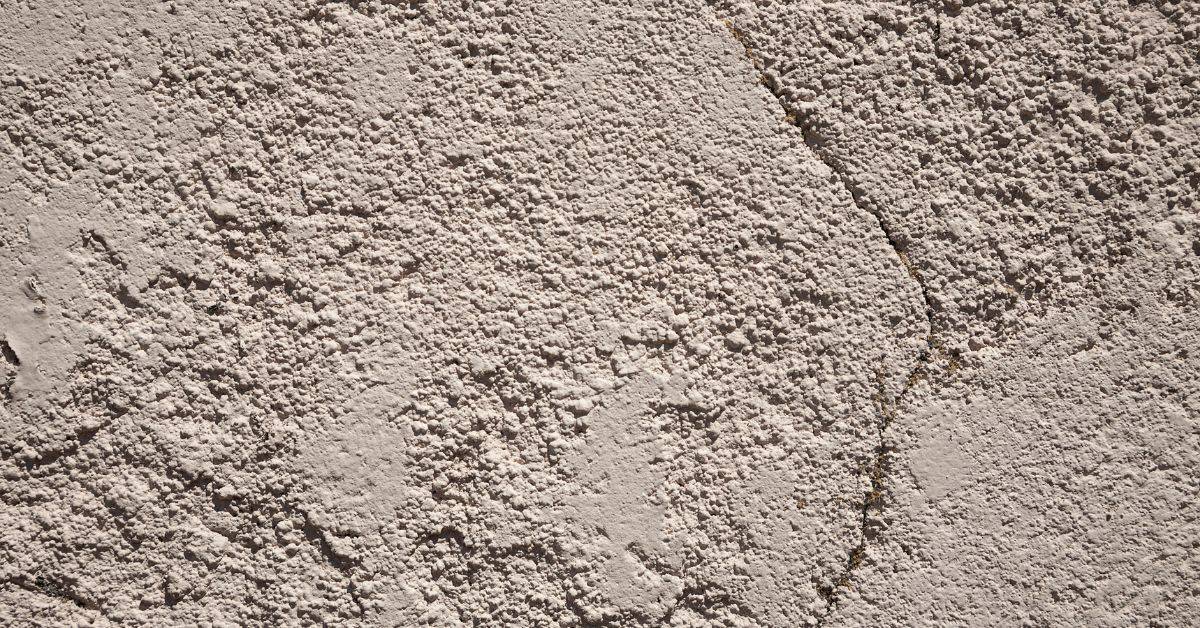

Hairline cracks are usually cosmetic; they can often be filled and prepped before limewashing. Active cracks — ones that widen after temperature changes or that leak water — mean movement or ongoing structural problems. Don’t limewash over those.

Watch for delamination where stucco is flaking or separating from the substrate. Limewash needs a sound surface to bond to; loose stucco must be removed and repaired. If you see multiple problem areas or large cracks, call a structural pro to diagnose before you paint.

Rule of thumb: if the wall won’t sit still or is shedding material, repair first. Limewash is a finish, not a fix for underlying structural or moisture failures.

Back to top ↑

A complete tools and materials checklist for a stucco limewashing job covers subcategories like brushes in varieties for surface texture, rollers and extension poles, primers compatible with limewash and cement stucco, cleaners suitable for lime-based finishes, PPE, buckets, mixing paddles, and paint strainers. It also includes surface prep tools and sundries such as scrapers, stiff-bristle brushes, a pressure washer or hose with a spray nozzle, masking tape, drop cloths or plastic sheeting, tarps, and painter’s tape for edge delineation. Mixing and application gear, breathable limewash or mineral-based paint, any color and consistency additives, trowels or plastering brushes for edge work, and temperature or adhesion aids are essential to cover as well.

Having this list on hand supports orderly planning, efficient work, and safer, cleaner execution on site. It helps you quantify quantities based on wall area, plan for extra brushes and rollers for reuse or replacement, and keep a sample board to test limewash appearance and finish before full application. With clear gear and PPE in place, you reduce surprises, speed up prep, and maintain quality control while protecting workers and the project from messy mistakes.

Recommended brushes and applicators

For most limewashing you’ll want a good box brush for broad, even passes on flat stucco. It lays the wash quickly and gives a consistent look on smooth surfaces. Use medium to large sizes depending on wall height.

For rough or heavily textured stucco reach for a stiff masonry brush. The stiffer bristles push the lime into crevices and grab texture so the finish bonds properly. For delicate detail or corners use a smaller masonry brush to control coverage.

When you want a more rustic, pulled texture use a texture brush or a coarse fibre block brush. These are for finishing passes only — they create streaks and variation rather than a uniform film. Keep one brush for applying and one for finishing to avoid muddying the effect.

Safety and PPE

Lime is caustic. Always wear a fitted respirator when mixing powdered lime or working in dusty conditions to avoid inhalation. A P2/P3 or N95-type mask is the minimum for DIY jobs.

Wear long nitrile or chemical-resistant gloves and splash-proof eye protection. Lime can burn skin and eyes on contact. Keep a change of clothes and a water source nearby for quick drench if you get splashed.

Have basic first-aid on site: sterile eyewash, saline, and clean water. If lime contacts skin, rinse thoroughly and seek medical help for prolonged irritation. Stop work immediately for any eye exposure and get urgent care.

Back to top ↑

The objective of surface cleaning for limewashing over cement stucco is to remove grime, mineral salts (efflorescence), and other contaminants that can inhibit limewash adhesion, while distinguishing between gentle surface cleaning and more aggressive salt or mold removal and using poultices for efflorescence without harming the substrate. It covers step-by-step methods such as pre-wetting or dampening surfaces, applying mild detergents for organic grime, selecting pressure washing parameters (appropriate psi, nozzle type, and distance) to avoid surface damage, and finishing with thorough rinsing and controlled drying to prepare a stable, receptive surface.

Poultice options for efflorescence are described with guidance on composition, consistent application, dwell time, and removal, with repeats for stubborn deposits and safety considerations to maintain limewash compatibility. Preparation checks and tests emphasize substrate dryness, pH verification, moisture assessment, and a test patch to confirm adhesion and finish compatibility before scaling cleaning, helping DIYers avoid failures. Safety and sustainability notes highlight personal protective equipment, weather considerations, environmental impact of cleaners, and proper wash water disposal to protect surrounding materials and ecosystems.

Treating efflorescence and salts

Efflorescence shows up as white powder or streaks. Start with mechanical removal — brush or low‑pressure wash to knock off loose salts. That gets most of the mess without chemicals.

For stubborn deposits use a mild acid cleaner made for masonry, applied exactly to the manufacturer’s instructions. Rinse thoroughly and allow the wall to dry. If you plan to limewash or paint, neutralize any acid residues and test a small patch first so the finish bonds correctly.

Biocide and mold treatment

For algae, moss or fungal staining use a labeled masonry biocide or bleach solution. Pick products intended for exterior masonry and follow PPE and dilution instructions. Apply evenly and let the product sit — typical dwell times are 10–20 minutes, longer for heavy growth.

Rinse well and allow the surface to dry completely before any further work. Repeat treatment for recurring spots and address moisture sources to prevent regrowth. Use one careful application at a time and avoid over‑saturating adjoining plants or woodwork.

Back to top ↑

Repairing and preparing damaged stucco means methodically assessing moisture and damage, selecting lime-friendly patching and reattachment strategies, and guiding the work toward a stable, breathable surface that will hold limewash long term. Start by identifying signs of cracking, bulging, water intrusion, efflorescence, and delamination, then verify the substrate is dry and stable before any patching; clean loose material, remove efflorescence, dust, and laitance, test for moisture, and plan a weather window to prevent new damage during limewash; choose patching materials compatible with limewash, and determine if delaminated sections require backing or reattachment, feathering edges to blend with surrounding stucco and avoiding rigid fixes that trap moisture.

Understanding the why behind each step helps DIYers avoid common pitfalls: selecting patching methods that breathe, using backer materials or mesh for larger areas, and ensuring proper curing and a final light scuff so limewash adheres evenly with uniform porosity. This careful preparation reduces risk of future cracks and delamination and improves finish longevity, saving time and rework. In practice, it supports a predictable, durable result by balancing moisture control, material compatibility, and proper curing before the limewash is applied.

Patching small holes and spalls

Clear loose material and knock back feathered edges so the patch has sound substrate. Use a wire brush and a damp rag; don’t over-soak the area. For hairline cracks and dime-to-palm sized spalls, a pre-mixed stucco patch or a cement-lime tuckpoint mix works best.

Fill the void in thin lifts, pressing the material in to eliminate voids. Tool the patch to match the surrounding contour while it’s still plastic. If the original finish has texture, stipple or float the patch to match before it skins over.

Tip: Keep patches slightly proud of the surface; they’ll settle when they cure and you can shave or sand lightly for a final blend. Wait full cure before limewashing for long-term adhesion.

Re-skim and texture-matching options

When larger areas are thin or patched frequently, a full skim coat gives the best uniform base for limewash. A 1/8 to 1/4″ finish coat of cement-lime or polymer-modified skim will hide old repairs and provide consistent porosity for the limewash to bite into.

If you want to preserve existing texture, match it instead of skimming smooth. Mix a finish coat to the same aggregate and apply small test patches. Use the same float, brush, or sponge technique the original installer used to mimic the look.

Quick rule: skim for continuity and long runs; texture-match for small, visible façades where character matters. Let the finish fully cure before applying limewash so the coating adheres evenly.

Back to top ↑

Priming limewash on cement stucco is essential in some situations to promote reliable adhesion while preserving breathability, and the choice of primer directly influences how the limewash bonds and how moisture moves through the mass. Mineral-based primers, masonry primers, and PVA each behave differently with limewash, so the best option depends on surface condition, porosity, and whether you need a stronger grip or more open pores for moisture to escape. When in doubt, run a quick porosity test (see “Primer application tips and dry times” below) and document substrate condition to guide your choice.

Before priming, clean and remove loose paint or dust, address efflorescence or laitance, and ensure damp conditions are resolved, since surface prep controls how well any primer performs. In practice, expect mineral or masonry primers to offer better breathability with limewash and more predictable adhesion on porous substrates, while PVA can reduce porosity and may require careful mixing and thinner coats; then apply the recommended coat thickness, note mixing and priming ratios, and allow adequate drying time, finishing with quick adhesion and moisture tests to confirm a reliable base before limewashing. Implement a concrete decision path: test porosity, assess substrate condition, select primer type, apply at the recommended rate (and dilutions if applicable), and confirm readiness with a water-absorption test.

Mineral-based primers vs. acrylic primers

Mineral-based primers (silicate or lime-compatible) bond chemically with masonry and stay breathable. They match the alkalinity of limewash, so adhesion is good and you avoid trapping moisture behind the finish. Use them when preserving the wall’s vapor transmission matters. Check product compatibility with your specific limewash batch and substrate; for example, look for primers labeled “lime-compatible” or “silicate-based.”

Acrylic or masonry acrylic primers block more vapor and form a plastic film. They give a strong, uniform substrate and are forgiving on difficult surfaces, but they can reduce breathability and affect how limewash absorbs and looks. For limewash over sound, porous stucco a mineral primer is the safer choice; for sealed or dusty surfaces an acrylic primer may be necessary. If you must use acrylic, limit film thickness and avoid over-priming very porous areas to prevent flaking later.

Bottom line: pick mineral-compatible primers when breathability and authentic limewash appearance matter; use acrylics only when surface stability or contamination forces it.

Primer application tips and dry times

Brush, roller, or low-pressure sprayer all work. Hold back thinning unless manufacturer calls for it—most primers are ready to go. Aim for even, full coverage and work in consistent sections so the surface soaks uniformly.

Typical coverage is 200–400 sq ft per gallon depending on porosity. One coat often suffices on sound stucco; two coats may be needed on very porous or patched areas. Allow full cure, not just surface dry—most mineral primers need 24–48 hours, acrylics can be touch-dry in a few hours but may need 24 hours to fully set.

Practical rule: wait the recommended cure time and do a small water-drop test—if water beads, the primer hasn’t cured enough for limewash; if it absorbs evenly, you’re ready.

Decision tree and practical steps to choose and apply primer (porosity tests, substrate checks, dilutions, and compatibility):

• Porosity test (quick field check):
  • Clean a small area and apply 2–3 drops of water. If water beads and sits on the surface for more than 1–2 minutes, the area is low porosity (slower moisture movement). If water is absorbed within 30–60 seconds, the area is high porosity (needs more open pores).
  • Record results by zone (high/medium/low porosity) to guide primer choice and coat thickness.
• Substrate condition check:
  • Look for cracks, laitance, efflorescence, or loose render. Repair cracks per substrate guidelines and ensure laitance is removed before priming.
  • If the surface is sound but dusty, mineral primers are preferred; if debris is contaminating the surface, a masonry/ Bonding primer may help.
• Primer selection guidance (based on porosity and condition):
  • High porosity or very dusty surfaces: choose a mineral-based primer; apply two thin coats if needed, allowing the first coat to react and dry as per product data.
  • Low porosity or sealed surfaces: you may use an acrylic masonry primer to improve adhesion, but test breathability and limewash uptake first.
• Primer product compatibility and dilutions:
  • Use mineral-based primers that are explicitly compatible with limewash (look for lime-compatible or silicate formulations). Typically apply at full strength unless the product specifies thinning for spraying; if thinning is allowed for spray, do not exceed 5–10% water.
  • Acrylic primers: if thinning is recommended for spray or to improve bonding on dusty surfaces, limit to 5–10% water and test an inconspicuous area first to monitor breathability.
• Application and coat strategy:
  • Apply in thin, even coats, maintaining a wet edge. For porous zones, use a second coat after the first has imparted a uniform substrate without pooling.
  • Spray: if using a sprayer, keep nozzle low-pressure and maintain even distances to avoid splotches; back-roll to ensure film uniformity.
• Drying, cure, and readiness for limewash:
  • Follow product-specific cure times; do not limewash until the primer is fully cured. Use the water-drop test: beads indicate insufficient cure; even absorption indicates readiness.
  • Document cure times and environmental conditions (temperature, humidity) to predict limewash performance.

Back to top ↑

Choosing the right limewash product means understanding the differences between ready-mixed limewash, slaked or powdered lime, and limewash tints, including their main ingredients, binder types, and typical uses on cement stucco. It also means weighing the practical pros and cons for DIY homeowners versus professionals—covering cost, ease of use, color control, working time, and the risk of common mistakes—while noting surface prep needs such as porosity, pH, efflorescence, and primer requirements to ensure proper adhesion and durability. Finally, it requires a clear set of practical selection criteria, including coverage rate, curing time, available mineral colors, tinting capabilities, weather resilience, and maintenance considerations, plus a concise decision guide and essential safety, mixing, and application tips tailored to prepared versus powder products.

For a jobsite reader, this means you’ll gain concrete guidance on how each product type behaves in real-world scenarios, so you can choose based on project size, climate, and timeline without overcomplicating the process. You’ll learn what to test on a small area, which questions to ask suppliers, and how to verify limewash compatibility with lime-over-cement-stucco before committing to a finish. It also clarifies the practical steps for prep, mixing, and application, including whether sealers or waxes are advisable and how to manage color control and cleanup to maximize long-term performance.

Ready-mix vs. site-mixed slaked lime

Ready-mixed limewash comes premixed to a consistent strength and is ready to roll. It’s the easiest option on a small job or if you want predictable coverage without fuss.

Site-mixed slaked lime gives you control over dilution, texture and working time. It takes more skill and stable mixing to avoid weak spots, but it can be tailored for breathability and finish.

Choose ready-mix for convenience and repeatable results. Pick site-mixed if you want to tweak the look, or if you’re matching historic work and need flexibility.

Colorants, pigments, and VOC considerations

Use mineral pigments designed for lime systems; they bond well during carbonation and won’t bleed or fade as quickly. Earth pigments (iron oxides, umbers) are the safest bet for lasting colour and compatibility.

Avoid organic dyes and solvent-based tints that can interfere with carbonation or emit high VOCs. Look for low-VOC or water-based tints labeled safe for lime—those keep the wall breathable and healthier to work on.

Tip: Test pigment strength on a small patch and let it cure. Colour depth changes as limewash carbonates, so allow a full dry cycle before final decisions.

Back to top ↑

Mixing limewash for cement stucco means selecting between slaked lime and pre-mixed limewash, then preparing a consistent base and viscosity to achieve reliable adhesion, uniform color, and predictable penetration through varying stucco textures. Use a pigment-free base, precise water quantity, and optional lime putty or binder, and decide when to use full-strength versus diluted mixes; keep a drum or bucket, paddle mixer, drill with a mixing attachment, a sieve or sifter, and a clean water source ready, and follow a defined mixing order with specified mixing times and rest periods.

This approach covers adjustments for smoother or rough finishes, different porosity levels, and environmental factors such as ambient temperature, humidity, and sun exposure that influence how quickly the mix opens up, how it clings to the surface, and how deeply it penetrates. Employ viscosity targets with practical tests—draw-down, trail, or brushability checks—after pre-wetting the surface, and document the results to calibrate subsequent batches and avoid over-thinning or premature stiffening. Prep and cleanup tips matter: calibrate measuring tools, track pot life, reuse rinse water safely when possible, and dispose of waste responsibly to keep the jobsite efficient, protect adhesion, and extend the life of your mixing equipment.

Adjusting water dilution for finish effects

More water thins the mix, so you get greater coverage and a more translucent look. That helps when you want a washed or soft mottled finish rather than a heavy opaque coat.

Less water keeps the color stronger and the texture more pronounced. For crisp rake or trowel marks, use a stiffer mix and apply in thinner lifts.

Tip: Always test a small mock-up on the actual wall. Small changes in dilution change how the stucco lays and how the pigment reads in sunlight.

Batch consistency and color control

Make large batches when you can. If you must mix multiple batches, measure water and pigment by volume or weight each time to keep them uniform. Note ambient temperature and humidity—those affect how much water the mix needs.

Keep a log: record the exact recipe for each batch and label buckets. When touching up, pull from the same batch or reblend partial batches together to avoid visible seams.

Tip: Stir pigment into the water first for even color, then add dry mix. Match and photograph a sample area so you and any helpers can reproduce the look later.

Back to top ↑

Preparing cement stucco for limewash means matching surface porosity and moisture to the chosen application method, then choosing the right tool—brush, roller, or sprayer—while adjusting limewash viscosity to prevent pinholes, peeling, or uneven absorption. Use a brush for detail work and texture, a roller for broad coverage in sections, and a sprayer with low pressure and a suitable nozzle for rapid, even coats, finishing with a back-roll or light brush pass to lock in texture and minimize lap marks.

This matters on the job because it helps you achieve a durable, uniform finish that resists weathering and color changes over time, while still respecting the stucco’s texture. Following proper prep, timing, and curing conditions reduces run-downs, blotching, and soap-like smoothing, so you get a consistent matte look that stays stable across seasons. DIY readers gain confidence knowing how to troubleshoot edge blends, adjust technique to different textures, and plan multiple coats for optimal color depth and longevity.

Traditional box-brush technique

Start with a clean, slightly damp stucco surface. Load the box brush generously, then work in consistent, overlapping strokes. Think of a square box pattern: horizontal, vertical, then a short diagonal pass to break up obvious lines.

Keep pressure even — too hard and you flatten the texture, too light and coverage is thin. Use short, confident strokes at the edge of each pass to build depth and movement across the wall. Finish by stepping back and blending any heavy marks while the limewash is still open.

Spraying vs. brushing: trade-offs

Spraying covers fast and is great for large, even surfaces. It can overspray on trim and produce a thinner film, so use a coarse nozzle and low pressure for limewash. When speed matters, spraying gets you there but plan for more masking and cleanup.

Brushing gives control and visible texture. If you spray, always back-brush while the material is wet to work the limewash into the pores and match the hand-brushed look. Back-brushing is the key to adhesion and unified texture when combining methods.

Back to top ↑

Set up a clear layering sequence: start with a base coat to seal the porous cement stucco, apply a second coat for uniform color and coverage, and reserve an optional third coat to deepen texture, enhance durability, or achieve a deliberate mottled look, while keeping each layer thin and even so the impression remains like a light glaze rather than a heavy film. Target typical wet film thickness carefully, gauge with a pen mark or finger test, and pause between coats based on temperature, humidity, and surface drying so you know when the surface is ready for the next application rather than guessing.

Practically, assess coverage with visual cues such as uniform color and sheen, a consistent texture, and a tactile check by lightly dragging a gloved finger to confirm evenness, then decide whether a second or third coat is warranted by porosity and previous finishes, noting that high-porosity or limewashed surfaces often need extra passes. Understanding the stopping points helps you avoid overcoating and ensures predictable results, while documenting each coat and protecting adjacent areas gives you a reliable reference for future maintenance, touch-ups, or color stabilization, all of which matter on a DIY jobsite where conditions and materials vary and the goal is a durable, even finish.

Wet-on-wet vs. wet-on-dry coats

Wet-on-wet means you lay the next coat before the previous one skins over. It speeds the job and helps tape down brush marks. But it can trap solvents and leave a softer finish if you overdo it.

Wet-on-dry waits until the first coat has dried. That gives stronger adhesion and cleaner visuals. It also reduces the risk of runs and sagging when you need a heavy build.

Pick wet-on-wet for light, fast builds and when the finish calls for blending. Choose wet-on-dry for thicker coats, high-traffic areas, or when you want the toughest surface. Use your judgment from the earlier layering guidance to decide which suits the job.

Drying and cure times between coats

Follow the product’s minimum recoat time, but don’t treat it as an exact gold standard. Temperature and humidity change everything: cooler temps and high humidity slow drying; heat and good airflow speed it up.

On a typical day expect touch-dry in a few hours and full recoat readiness in 8–24 hours, depending on product and thickness. If you applied a heavy coat, add more time. If you need to speed things, raise temperature and ventilation—never force-dry with high heat that could cause cracking.

Judge readiness by feel and appearance. A light touch should not leave a mark and the surface should look uniform. If solvent smell is still strong or the film feels tacky, wait longer before the next coat.

Back to top ↑

This section outlines three finish styles for cement stucco—mottled textures, subtle washes, and deliberate texture effects—and explains the visual outcomes each delivers, plus practical criteria for choosing based on architectural style, climate, surroundings, and the feeling you want the surface to convey. It also covers thorough prep and dilution protocols, including surface cleaning and patch testing, humidity and temperature guidelines, mortar compatibility, base-coat expectations, and precise limewash ratios for each effect, followed by a clear step-by-step flow from base coat to initial pass for uniformity, and then subsequent passes to build mottling or washes with controlled edge work and appropriate drying times between coats.

For a DIY or jobsite reader, the practical takeaway is a repeatable, controllable application sequence that minimizes brush marks and lap lines, with troubleshooting tips for common issues like uneven absorption, streaking, color bleed, masking challenges, and how weather and curing influence the final texture while preserving limewash breathability. Understanding why each finish matters helps you match a building’s character and environment, enabling durable, breathable finishes that age gracefully and stay repair-friendly over time through targeted touch-ups, careful dilution, and mindful maintenance without compromising the plaster-like appearance you’re aiming for.

Layered mottled look

Start by planning your layers: a thinned base coat, one or two mid-tones, and a stronger accent color. Work with watery limewash for the first pass so the surface soaks in and the tone sits soft.

Apply the mid-tones with varied brush pressure and short, random strokes. Let each layer dry partially so the edges blur slightly. Use a stiffer brush for the final accents to create crisp spots of depth.

Tip: Keep your dilutions consistent for each color so the layers read as one surface, not separate patches. If a spot gets too heavy, soften it quickly with a damp brush before it sets.

Achieving a smooth, even flat finish

Get the substrate right: fill hollows, sand rough nibs, and apply a breathable primer made for lime or mineral paints. A uniform absorbency prevents blotchy color later.

Use a quality natural-bristle brush or a short-nap roller and keep a wet edge. Work in consistent passes and maintain the same dilution in your mix for every batch you apply.

Finish control: Light sanding between coats and a final thin glaze or wash will even out small variations and give a professional, flat look without hiding the stucco’s character.

Back to top ↑

Visual checkpoints guide you through each stage of application, focusing on lap marks, runs, color gaps, thickness uniformity, and edge sharpness around trim, doors, and corners to catch subtle flaws early. Watch environmental and substrate cues like surface moisture, temperature, humidity, dust, surface contaminants, and curing times to see flaws clearly and decide if you need to pause. Use real-time signals and quick fixes such as re-wiping, feathering edges, blending color, adjusting spray or brush technique, refining pass count, and pausing for a recoat when needed.

A standardized spot repair workflow helps you contain issues on the fly, maintain a consistent finish across areas, and document what was done for future jobs. By detailing local recoat techniques, blending into surrounding areas, and the required waiting times, you can save time without sacrificing quality, while minimizing edge buildup. A clear signaling system with checklists, defect-marking diagrams, color maps, and escalation triggers keeps the crew aligned, reduces rework, and speeds up decision-making when a lead needs to authorize a larger correction.

Identifying and fixing lap marks

Watch the wet edge. Lap marks show up when a new pass overlaps a partly dry one. They look like darker bands or ridges and they grab your eye once the coat evens out.

If you catch them while the paint is still wet, blend the edge. Lightly feather the overlap with a clean brush or a damp roller, working from the dry area into the wet. Don’t overwork—short, smooth strokes are all you need.

If the seam has dried, sand the ridges smooth with fine paper, clean the dust, then spot-prime and recoat. For large areas, backrolling after blending helps hide the repair and evens cross‑texture.

Tack tests and adhesion checks

Do a quick tack test as you go. Lightly touch the surface with a fingertip or the back of your hand; you want slight tack during the recoat window, not a dry film. If it’s powdery or peels, bonding is poor.

For adhesion, cut a small cross hatch into a discrete area, press strong tape over it, then pull sharp. If flakes come off, stop and prep: clean, sand, or use a primer designed for that substrate. Fixing adhesion early saves a lot of rework later.

Repeat checks in different spots—high traffic areas, edges, and repairs—to make sure the job will hold up once it’s dry.

Back to top ↑

Troubleshooting stucco begins by clearly identifying four common problems—flaking, powdering, salt bloom, and poor adhesion—and by using quick diagnostic cues such as surface feel, moisture signs, and texture to tell which issue you’re facing and how urgent the fix must be, taking into account humidity history and observed substrate conditions. Plain-language root causes follow, including moisture intrusion, efflorescence, improper substrate prep, laitance, and incompatibility between lime finishes and older cement finishes, so you can target the remedy rather than guess. Each issue then has a practical remediation workflow: clean and remove loose material, perform selective patching, manage moisture, and re‑prep before applying limewash or a lime-based finish, with attention to minimal disturbance of sound structure.

We also outline surface-prep best practices designed to prevent recurrence—breathable cleaning methods, proper curing, compatible primers or sealers, and substrate stabilization that supports moisture movement rather than blocking it, while establishing a breathable microenvironment during cure. For a DIY or jobsite, the payoff is clearer adhesion, longer-lasting finishes, and fewer callbacks when you run test patches, dial in limewash consistency and dilution ratios, and follow a sensible coat sequence while deciding when to repair, scrub, prime, or postpone limewashing due to ongoing moisture or structural issues, keeping timelines realistic and practical.

Why limewash flakes or powder

Limewash that flakes or turns to powder usually points to adhesion failure or damp in the substrate. Common causes are painting over incompatible primers, applying limewash to a greasy or poorly cured surface, or trapped moisture pushing the finish off.

Start by testing adhesion with a simple scrape. If the limewash comes off in dusty powder, remove the loose material back to a sound surface. Fix any moisture sources first — leaks, poor drainage, or rising damp — before you touch the finish.

Prepare the wall right: clean, let it dry, and use a breathable primer recommended for limework. Where the damage is deep, repoint or repair the substrate, then reapply thin coats of limewash. Do not seal with non-breathable paints; that will trap moisture and bring the problem back.

Dealing with color variation and streaks

Uneven color or streaking can come from inconsistent application, uneven suction in the wall, or using different batches of limewash. Small streaks are often fixed by feathering edges while the wash is still damp.

For larger patches, apply a full additional coat across the whole face to even things out. Match batches by mixing containers together before use. If staining or old finishes under the limewash cause dark spots, you may need to strip or neutralize those areas and repaint.

When touching up, feather the edges and keep coat thickness uniform. For a long-term fix on badly mottled walls, remove the finish and restart with proper substrate prep and consistent mixing ratios. Patience with thin coats wins every time.

Back to top ↑

Safety, handling, and first aid for slaked lime focus on practical, on-site guidance for PPE, dust control, ventilation, and immediate first-aid steps when skin, eye, or inhalation exposure occurs during handling and mixing. It emphasizes wearing proper protection such as a respirator or dust mask, safety goggles, splash-resistant gloves, long sleeves and pants, closed-toe shoes, and a head covering where dust is present, plus ensuring proper fit and filtration and keeping work areas as airtight as feasible to minimize airborne dust.

Why this matters to DIY and jobsite readers is that slaked lime can irritate skin and eyes and irritate the respiratory system if dust is inhaled, so following disciplined handling practices reduces injury, cleanup time, and downtime. It also explains how to minimize dust through wet-down methods, local exhaust or ventilation strategies, containment of the work area, and safe storage and mixing practices to prevent moisture damage, spontaneous clumping, or spills that would complicate cleanup and exposure management.

Safe mixing and dust control

Keep the bag closed until you’re ready to mix. Do your mixing outside or in a well ventilated area and point any fans so dust blows away from people. If indoors, use exhaust ventilation or a dust extractor to pull particles out.

Mix slowly and add lime to water, not the other way around, to cut down on airborne powder. Wear a dust mask or respirator and goggles while mixing. For extra protection use a dampening technique on the pile edges to limit clouding—refer back to the PPE and handling notes above for full gear guidance.

First-aid for lime burns and inhalation

If lime gets on skin, brush off dry powder first, then rinse immediately with plenty of water for at least 15 minutes. Remove contaminated clothing while rinsing. For eye contact, hold eyelids open and flush gently but continuously with water; seek medical help right away. Do not use creams or neutralizers unless directed by a clinician.

If you inhale dust and feel coughing, chest tightness, or difficulty breathing, move to fresh air and stay calm. If symptoms persist or worsen, get medical attention. Keep the product container or label handy to tell responders what you were using—see the earlier first-aid summary for more on when to call emergency services.

Back to top ↑

Exterior stucco faces more moisture, UV exposure, wind-driven rain, and temperature swings, so limewash must be formulated and applied for durability, while interior plaster or cement stucco benefits from products and prep tailored to a sheltered environment. Expect faster wear and faded color on exterior surfaces and more subtle issues like humidity-related staining or microcracking on interiors, so plan for maintenance intervals accordingly. Prep, primers, and limewash formulations differ to optimize adhesion, breathability, and longevity for each surface, including surface cleaning, pH adjustment, and appropriate sealers when needed.

Why this matters for a DIY or jobsite reader is simple: choosing the right approach reduces rework, guards against moisture problems, and lowers long-term maintenance costs. For exterior work, emphasize thorough cleaning, proper curing, breathable coatings, and moisture management strategies that resist cracking and efflorescence; for interiors, prioritize humidity control, vapor transmission, and ventilation during application to protect indoor air quality and finish. Ongoing maintenance becomes easier when you match product choice and prep to the environment, with clear signs of deterioration and practical reapplication steps to keep color, texture, and protection intact.

Weather windows for exterior work

Pick a calm stretch of weather. Ideal air temps sit around 50–80°F. Avoid work if temperatures might drop below freezing or spike above 85°F during the first 24 hours.

Keep humidity moderate. High humidity slows curing and heavy sun or hot, dry winds speed it too fast. Aim for winds under 10–15 mph so spray and dust don’t mess up the finish.

Start in the morning when surfaces are cool and not baking in direct sun. That gives the limewash time to bond before evening temperatures change.

UV and rain protection strategies

Always check the forecast before you mix. You want at least 24–48 hours of dry, stable conditions after application. If rain or strong sun is likely in that window, reschedule.

Use temporary covers when needed. A quick scaffold tarp or plastic sheeting gives immediate protection from surprise storms and afternoon UV. Cover quickly and keep edges sealed so wind doesn’t blow water under the protection.

Monitor the work through the first two days. Remove covers once the surface is set but still breathable. Don’t seal the limewash—temporary protection, not permanent coatings.

Back to top ↑

Limewash on cement stucco lightens with sun and weather, may exhibit mottling or micro-cracking over time, and that behavior helps determine when to wash, recolor, or recoat while signaling where breathability remains intact or becomes stressed. Expect gradual fading, color shifts, and surface texture changes between applications, and plan maintenance cycles around visible wear, staining, and dirt buildup rather than a fixed calendar. Recoating without stripping involves careful surface prep, choosing a limewash product suited to the existing finish and climate, and applying evenly to restore color, texture, and breathability without harsh adhesion.

Regular cleaning, dampening, and crack repair extend life, while monitoring moisture, UV exposure, efflorescence, and seasonal temperature swings informs when a touch-up is needed and whether a full recoat is warranted. A practical maintenance calendar and checklist help you time washing, inspection, and recoat to match your climate and finish, avoiding premature failures and keeping your stucco looking even and protected. Avoid common mistakes like sealing limewash, skipping prep, or applying on damp or dirty surfaces; use careful patching and breathable touch-ups between full coats, and address issues promptly to prevent repairs from escalating.

When to refresh vs. when to strip and start over

Look first at adhesion and the look. If the limewash is chalky but still bonded and only thin in spots, a refresh coat will usually do the job. If large flakes pull away, or whole areas detach in sheets, that signals a deeper adhesion failure and you need to remove loose material.

Check for underlying damage. Hairline cracking and minor staining are often fixed with surface prep and a fresh coat. Significant substrate failure, salt efflorescence pushing the finish off, or repeated peeling after past recoats means strip and repair the stucco before reapplying limewash.

Quick test: scrape a small area. If the limewash scrapes cleanly down to sound stucco and stays tight, refresh. If you get powder, delamination, or loose stuff beneath, plan for removal and repair.

Seasonal maintenance checklist

Do a walkaround each spring and fall. Look for new cracks, areas where the limewash has thinned, algae or dirt build-up, and any flashings or rooflines that have been letting water run onto the wall. Catching problems early saves labor later.

Keep it simple: clean gently with a soft brush and low-pressure rinse to remove dirt and biological growth. Re-touch thin spots with a light recoat after surfaces dry. Replace any failed sealant at windows and trim to stop moisture behind the limewash.

Once a year check for efflorescence and address its source. Every 5–10 years expect a more thorough assessment for recoating or repairs depending on exposure and climate.

Back to top ↑
