Prevent DIY Concrete Coating Failures in Humid Summer Weather

Why humid weather causes concrete-coating failures

Humid summer weather can expose a weak DIY concrete coating because moisture may be inside or beneath the slab, may condense on a cooler concrete surface, or may push application and cure conditions outside the coating’s technical-data-sheet (TDS) limits. The result can be bubbling, blistering, whitening, haze or blush, tackiness, peeling, and delamination. Related guidance: Concrete Sealer Whitening: Moisture Trapping vs Application Errors.

A floor can look dry and still be unsuitable for coating. Check the selected product’s current TDS and SDS first, then evaluate the concrete, the jobsite conditions, and the full cure period—not just the hour when you begin rolling.

Why humidity matters: moisture, temperature, and curing

Summer humidity is not one moisture problem. Ambient relative humidity (RH) describes water vapor in the air. Internal concrete RH describes moisture within the slab. Moisture-vapor emission describes moisture leaving the concrete surface when measured by an accepted method. Surface condensation is liquid water that forms when the slab is at or below the air’s dew point.

These conditions can overlap, but one does not prove another. High outdoor humidity alone does not mean moisture is moving upward through concrete; moisture movement depends on conditions within and below the slab, temperature and vapor-pressure gradients, drainage, and whether a vapor retarder is present. A cool slab can condense water at its surface even if its internal moisture condition has not been established.

Relative humidity vs. dew point — the practical difference

RH changes with air temperature. Dew point is the temperature at which that air begins depositing moisture. For coating work, measure air temperature/RH and the actual slab-surface temperature. If the surface approaches the dew point, pause: invisible or visible condensation can interfere with wetting and adhesion.

Use the dew-point margin stated in the selected coating’s TDS. Many systems call for the substrate to remain at least 5°F (3°C) above dew point, but that is common manufacturer guidance, not a universal pass/fail rule. Keep the conditions within the product limits through application and the specified initial cure period.

Moisture sources to correct before coating

Look for recent rain, wet cleaning, irrigation runoff, plumbing leaks, poor exterior drainage, damp perimeter walls, missing or ineffective under-slab vapor protection, and residual moisture in newer concrete. Do not try to solve an active water problem by coating over it. Coating manufacturers commonly require concrete to meet system-specific age, preparation, and moisture limits; this guidance on coating concrete with residual moisture also explains why a surface that appears dry may not be ready.

Back to top ↑

How DIY coatings respond to humidity

Do not choose or reject a coating based on its chemistry name alone. Epoxy, polyurea, polyaspartic, waterborne, and solventborne products vary by formulation, film thickness, mixing requirements, substrate tolerance, and cure window. High humidity, condensation, a damp slab, or temperatures outside the individual product limits can affect cure, appearance, or adhesion.

Epoxy: common humidity-related problems

Some epoxies can develop amine blush during cure in humid conditions. Blush may look like haze, whitening, discoloration, loss of gloss, or a waxy/greasy film; its appearance and cleanup depend on the formulation. Do not identify blush by color alone or rely on a water or alcohol wipe as a definitive diagnosis. Follow the manufacturer’s troubleshooting instructions before washing, abrading, or recoating.

Epoxy can also remain soft or tacky longer than expected, develop bubbles or pinholes, or lose adhesion when applied to unsuitable concrete or cured under unsuitable conditions. A topcoat applied before the prior coat has cured or been prepared as required can add an intercoat-adhesion problem.

Polyurea and polyaspartic: fast cure does not equal moisture tolerance

Fast-setting systems leave less working time and can be less forgiving of poor mixing, incorrect film build, or a changing jobsite. They may cure quickly, but they still need the slab, ambient conditions, and cure period to meet the specific TDS. Do not assume that a fast cure allows coating over condensation or high internal slab moisture.

Select a complete, documented system

Confirm that the primer, repair material, base coat, flakes or aggregate, and topcoat are approved together. A primer described as moisture tolerant may still have limits and may not be appropriate for liquid water, condensation, or an active moisture source. Never substitute an alkyd primer, sealer, or solvent based on general advice.

Back to top ↑

Visual signs and diagnostics of humidity-related coating failure

Inspect before attempting a repair. Condensation may appear as droplets during cool nights or in shaded areas. Efflorescence is generally a white, dry, powdery salt deposit from concrete. Blush and other coating-surface residues vary by product. Blisters, pinholes, whitening, soft areas, lifting edges, and peeling can result from moisture, contamination, inadequate profile, incorrect mixing, or cure conditions, so appearance alone does not establish the cause.

Localized defect or system-wide failure?

A few defects near a repair, tire path, drain, door, or contaminated area can point to local preparation or damage. Widespread blistering, recurring whitening, multiple delaminated layers, or failure that returns after a patch suggests a broader substrate-moisture, preparation, or system-compatibility problem. Remove enough failed material to inspect the concrete rather than simply coating over the symptom.

Record what you find

Photograph cracks, salt deposits, bubbles, and peeling before removal. Record product name, batch information if available, application date, mix ratio, weather conditions, slab-surface temperature, and any test results. This helps compare failed and sound areas and gives the manufacturer or contractor useful information.

Back to top ↑

Proper slab prep and moisture mitigation before coating

Start with a sound substrate. Identify active leaks and drainage issues, remove weak or incompatible coating, and mechanically prepare the concrete to the surface profile specified for the selected system. Many coatings use a concrete surface profile (CSP) around 2 or 3, but the required CSP is system-specific; higher-build systems may require more profile. The International Concrete Repair Institute emphasizes matching substrate evaluation and surface preparation to the coating requirements rather than applying one profile to every job. Related guidance: Polyaspartic Coatings: Cure Times, Surface Prep, and DIY Reality Check.

Preparation sequence

1. Read the complete TDS, SDS, mixing instructions, cure requirements, and required moisture-test method before renting equipment or buying a primer.
2. Correct leaks, runoff, standing water, and drainage problems. Let cleaning water dissipate; do not coat a surface that has been washed but not verified ready.
3. Remove loose, failed, or incompatible coating. Grind or shotblast to the specified profile, using suitable dust control.
4. Vacuum thoroughly. Remove oil, grease, curing compounds, salts, and dust by methods allowed by the coating system.
5. Evaluate cracks, spalls, and joints. Use only repair materials compatible with the coating system and allow their required cure time.
6. Conduct the required moisture tests on representative exposed concrete, then apply any approved moisture-mitigation system exactly as specified.

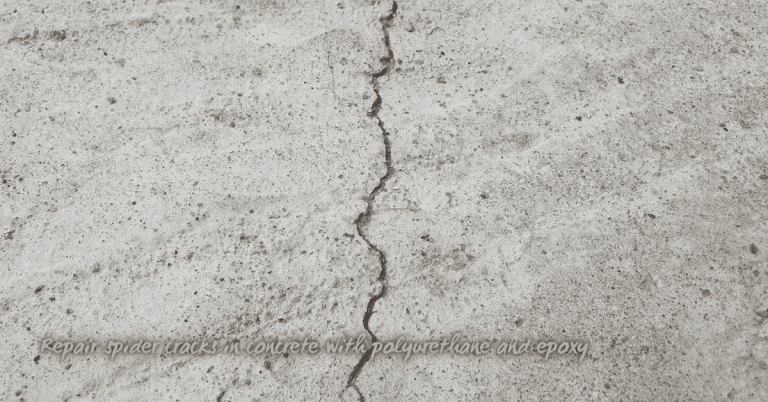

Cracks and pits are not all cosmetic

Do not assume a crack can be routed and filled. Cracks can reflect drying shrinkage, settlement, slab movement, structural distress, or joint movement. A coating filler is not a structural repair. Stop for professional assessment if cracks are widening or recurring, have vertical displacement, admit water, accompany unusual slab deflection, or suggest foundation movement.

For stable, nonstructural defects, remove unsound material, clean the repair area, use the system-approved filler or repair mortar, and feather only as the repair product permits. Confirm cure, profile, and compatibility before priming.

Back to top ↑

How to properly test slab moisture: methods, tools, and common mistakes

Bare concrete: test representative, prepared areas using the method and limits accepted by the coating manufacturer. In-situ RH testing and calcium-chloride moisture-vapor-emission testing may be specified, but they measure different conditions. Follow the current test method, product instructions, slab details, and required number and location of tests; do not apply a universal probe depth, reading count, or threshold.

Existing coating: first determine whether it is sound, bonded, and compatible. A meter reading through an intact coating may not represent the concrete beneath. Expose representative concrete where necessary, especially at damaged, cool, shaded, perimeter, low, or damp-looking areas. A handheld concrete moisture meter is useful for screening and locating possible variation, but it does not automatically establish coating readiness unless the manufacturer accepts that instrument and method.

Use results correctly

Values such as 75% or 85% internal RH and 3 lb/1,000 sq. ft./24 hours are sometimes cited in coating discussions, but they are examples used by particular systems—not universal limits. The selected TDS determines the acceptable test method and result. If results vary or fail, do not average them away: investigate the high area, correct the source if possible, and obtain system-specific advice.

Run a small-patch test

1. Choose a representative prepared area, not the easiest-looking spot.
2. Record the product, batch, mix ratio, preparation method, moisture-test results, air temperature/RH, slab temperature, and dew point.
3. Apply the complete proposed system at the specified thickness and within its stated application conditions.
4. Leave it undisturbed through the manufacturer’s cure and recoat intervals.
5. Inspect for haze, whitening, blush, pinholes, bubbles, soft or tacky film, lifting, edge delamination, and adhesion loss. Use only a manufacturer-approved tape, knife, or pull-off check where applicable.

A failed patch is a stop signal. Identify and correct the cause before coating the floor. A passing patch supports the plan but does not prove that every untested area or future moisture condition will perform identically.

Back to top ↑

Environmental windows: timing your application to avoid failure

Use the product TDS—not generic epoxy, polyurea, or polyaspartic temperature and RH bands—to decide when to work. Before mixing, measure ambient temperature/RH, slab-surface temperature, and dew point. Confirm that the forecast and your ability to control the space will keep conditions within limits through the required initial cure period, including overnight. Related guidance: Painting a Garage Floor: Epoxy vs Polyurea vs Polyaspartic Systems Compared.

Fans can help remove vapors or dry a space when used appropriately, but they do not solve an active slab-moisture problem and can carry dust onto wet coating. Dehumidification may help in a controllable enclosure, but do not assume it changes internal concrete RH immediately. Do not work late merely because the air feels cooler; falling slab temperature and rising nighttime RH can create a condensation risk.

Back to top ↑

Step-by-step remediation for humidity-related failures

1. Stop and inspect. Document the defect and check for water entry, condensation, failed adhesion, contamination, or moving cracks.
2. Decide whether a patch is appropriate. Patch only isolated failures where surrounding coating is sound and testing supports a local cause. Widespread failure calls for broader removal and diagnosis.
3. Remove unsound material mechanically. Cut back loose coating to firmly bonded edges and prepare exposed concrete to the system requirement. Do not seal active blisters.
4. Clean and repair. For suspected blush or residue, use the coating manufacturer’s recommended cleaning and preparation method. Repair stable pits or cracks with compatible material and let it cure as required.
5. Retest and test-patch. Recheck representative exposed concrete and complete a patch with the intended primer and topcoat.
6. Recoat only under compliant conditions. Follow mix ratio, induction time if required, pot life, film build, recoat window, and cure restrictions in the TDS.

Do not use unspecified solvents or removers. Identify the existing coating and the removal product, read both SDSs and labels, eliminate ignition sources where applicable, provide the required ventilation and PPE, and collect residues. The EPA advises keeping paints and solvents out of drains, soil, and storm sewers; use local household-hazardous-waste or solid-waste rules for disposal.

Back to top ↑

Safety, ventilation, and health when working in warm, humid summers

Grinding concrete can create respirable silica dust, and coating components, solvents, and removers can create skin, eye, inhalation, and fire hazards. Wear the gloves, eye/face protection, protective clothing, and respiratory protection specified by the SDS for the work being performed. A disposable dust mask is not a substitute for a properly selected respirator where a respirator is required.

Do not rely on a fixed air-changes-per-hour number or on open doors alone. Ventilation must suit the product, room, contaminant, and task, while preserving safe egress and avoiding ignition sources. If respirator use is necessary, selection, fit, medical requirements where applicable, and cartridge replacement must follow the product hazards and an objective change schedule. OSHA advises that odor must not be the primary basis for cartridge replacement; if you notice odor, taste, or irritation, leave the area and address the protection before returning.

Keep containers closed when not in use, keep rags and absorbent waste in suitable labeled containers, and follow the SDS for spill response and tool cleanup. Take breaks and stop work for dizziness, irritation, heat illness symptoms, inadequate ventilation, or any condition you cannot control safely.

Back to top ↑

The six-question “can I coat today?” checklist

Before mixing, answer all six questions. A “no” means delay, correct the condition, or get product-specific help.

1. Do I have the current TDS, SDS, and complete-system instructions for this exact coating?
2. Is the concrete sound, clean, mechanically prepared to the specified profile, and free of visible condensation?
3. Have I corrected active leaks, runoff, drainage, or water-entry problems?
4. Do the manufacturer-required moisture tests on representative exposed concrete meet this product’s limits?
5. Are ambient temperature/RH, slab temperature, and dew-point margin within the TDS limits now?
6. Can those conditions, ventilation, and traffic restrictions be maintained through the specified initial cure period?

Also confirm that tools are ready: a hygrometer/thermometer, a way to measure slab-surface temperature, manufacturer-accepted moisture-testing equipment, preparation and dust-control tools, compatible repair materials, and SDS-specified PPE.

Back to top ↑

When to call a professional

Get a qualified coating contractor, concrete-repair professional, or building professional involved before recoating if there is active water intrusion, suspected hydrostatic pressure, repeated moisture failures, widespread blistering or delamination, unknown existing coating, hazardous-material concerns, or a failed moisture, adhesion, or patch test.

Also stop for assessment when cracks widen, recur, have vertical displacement, leak, or appear tied to settlement or slab movement. The durable fix is to identify the moisture or substrate cause, then use a compatible system under its documented conditions—not to add more coating over a failure.

Back to top ↑
