Shower Tile Installation Problems Explained: Causes, Testing, and Fixes

Efflorescence is a white, powdery salt that migrates to the tile surface with moisture movement. It differs from soap scum, mineral deposits, mold, and cleaner residues in appearance and origin. Look for a powdery film on grout lines, tile edges, or corners to spot it early.

Showers are high risk because they stay moist, warm, and subject to frequent wet/dry cycles. Cement-based substrates, porous grout, and backer units can act like sponges for salts. Symptoms include a powdery coating, a powder that rubs off, staining, or recurring patches plus a musty odor where mold could be present.

Efflorescence vs. Soap Scum, Hard Water Stains, and Mold

Efflorescence is a white, powdery salt deposit that appears on tile surfaces due to moisture movement. It’s distinct from other common shower issues:

Soap scum is a grayish residue left by soap and body oils. Unlike efflorescence, it’s removable with regular cleaning and doesn’t reappear after drying.

Hard water stains are brown or yellow deposits from mineral buildup. They’re usually found around faucets and fixtures, not on tile surfaces, and can be removed with descalers.

Mold appears as dark spots or patches, often accompanied by a musty odor. It grows in damp environments and can cause health issues if left untreated.

Installation Defects Mimicking Efflorescence

Improper installation can lead to symptoms similar to efflorescence. Here are common culprits:

Inadequate waterproofing allows moisture to penetrate and cause tile issues, mimicking efflorescence.

Wrong thin-set or grout choice can result in porous surfaces that absorb moisture and appear powdery. Ensure you use suitable products for your shower environment.

Uncured cementitious materials may release moisture over time, leading to efflorescence-like symptoms. Allow all materials to cure properly before exposing them to water.

Porous tile or grout can absorb moisture and appear powdery after drying. Choose non-porous materials for shower installations.

Water dissolves soluble salts in cementitious materials and carries them through porous substrates. As water evaporates, the salts are left behind as white crystalline deposits. Common salts include those found in cement matrices and wall finishes relevant to showers.

Salts come from cement, grout, thinsets, backer boards, waterproofing products, and finishes, each contributing soluble salts under the right conditions. Moisture pathways include capillary movement from substrates, joints, penetrations, vapor diffusion, and condensation in warm, moist zones. Hydrostatic pressure in wet areas can also push moisture toward the surface.

Sources of moisture: leaks, capillary action, and vapor

Efflorescence starts with moisture. Here’s where it comes from:

Leaks: Plumbing fixtures or pipes can drip or crack, letting water seep into your shower substrate.

Capillary Action: Moisture can rise from the subfloor or walls through tiny pores in porous materials like concrete or masonry.

Vapor: Warm, moist air from showers condenses on cool surfaces when ventilation is poor. This moisture can then be absorbed by your shower substrate.

Salt sources: substrate, mortar, grout, and external sources

Soluble salts come from various places:

Substrate: Concrete, sand, or cement additives can contain salts. Even contaminated mortars can introduce them.

Mortar & Grout: These are made with cement, which contains salt compounds like sodium and calcium sulfates, carbonates.

External Sources: Salts from pools or de-icing agents used outdoors can also enter your shower substrate given the chance.

Installation errors that increase risk

Avoid these common mistakes to prevent efflorescence:

• No Waterproof Membrane: Skipping this step leaves your substrate exposed to moisture.
• Improper Curing: Not giving mortar or grout enough time to set can lead to excessive water absorption.
• Cement-Based Grout: Using it without additives can increase salt content and water absorption.
• No Backerboard/Decoupling: This increases the risk of cracks and moisture penetration.

Each of these errors can exacerbate efflorescence, so ensure your installation is thorough and correct.

Back to top ↑

Noticeable efflorescence appears as white, powdery or crystalline bloom on tile or grout, often along joints or grout lines. Mold or mineral staining has different textures and may appear as spots or streaks, sometimes with a fuzzy edge. Soap scum tends to be film-like and varies with cleaner use.

DIY checks include wiping a damp cloth and watching for reappearance, or applying a mild acidic spot test with caution. Look behind tiles for dampness or moisture movement and map affected areas to moisture pathways. Consider moisture or salt sampling if patterns don’t match routine cleaning.

Simple on-site tests (water, vinegar, alcohol, and scraping)

Use these easy tests to distinguish efflorescence from other deposits in your shower.

• Wet test: Wipe deposit with a damp cloth. If it disappears, it’s likely efflorescence or soap scum.
• Vinegar test: Apply diluted vinegar (1:1 with water) to a small area. Efflorescence will fizz and dissolve; mold may darken.
• Alcohol test: Use rubbing alcohol on a cotton swab. If deposit comes off easily, it’s likely soap scum or mineral staining.
• Scraping test: Gently scrape deposit with a plastic scraper. Efflorescence should crumble; organic growth may be stringy.

Quick rule: If tests are inconclusive, consider using moisture meters or hiring a professional for further diagnosis.

When to hire a specialist and what to request

Know when to call in the professionals for hidden leaks or structural concerns, and which diagnostics to ask for.

• Hidden leaks: If moisture mapping indicates hidden leaks, request a pressure test or plumbing camera inspection.
• Structural concerns: If efflorescence is extensive or walls are bowed, consider hiring a structural engineer.
• Lab analysis: Ask for lab analysis of salts if mineral composition is unclear. This can help determine the best remediation path.
• Regular inspections: Request regular inspections to monitor moisture levels and prevent recurring issues.

Quick rule: Don’t hesitate to call a professional if you suspect hidden leaks, structural damage, or uncertain mineral composition.

Back to top ↑

Start with confirming the moisture source, ensuring the shower pan and ventilation are functioning, and identifying active intrusion. Establish a baseline by checking moisture levels in the area before heavy cleaning. Use a ladder approach from gentle to stronger cleaning if needed.

Remediate by replacing deteriorated grout, cleaning stained tiles, and choosing durable grout options. After cleaning, reseal porous grout and address any leaks or poor drainage. Plan repairs to stop recurrence by upgrading membranes and improving waterproofing behind tiles.

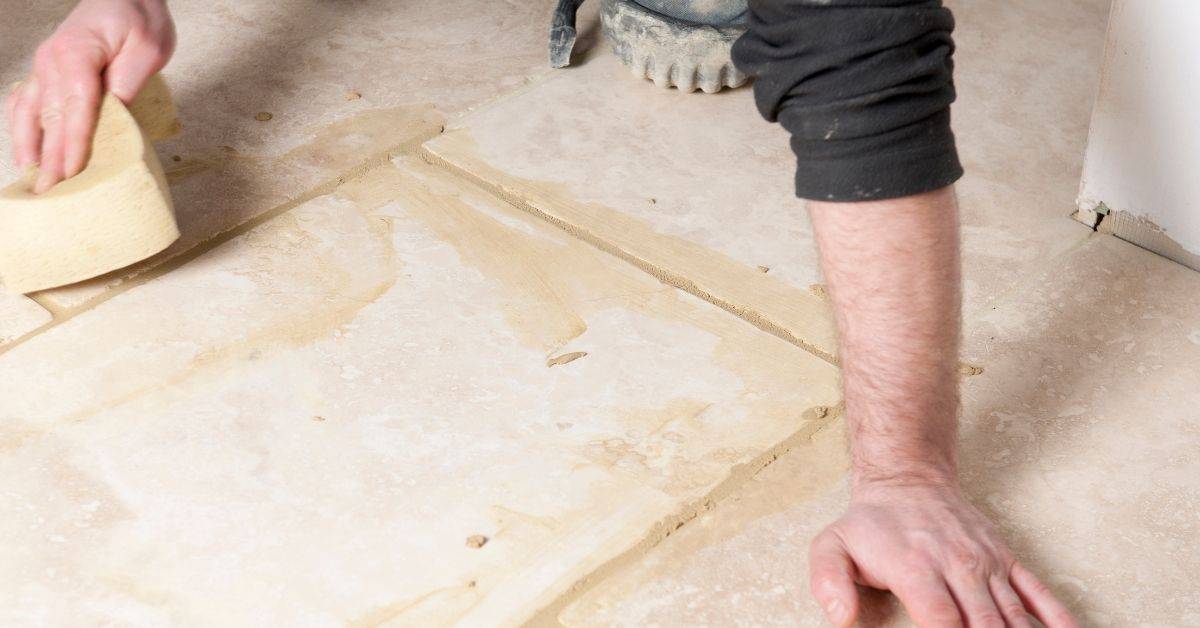

Safe cleaning methods and products, with precautions

Start by dry brushing and vacuuming to remove loose deposits. Then use a pH-neutral cleaner or mild soap with plenty of water for gentle scrubbing.

For tougher cases, consider using vinegar diluted with water (1:1 ratio) or approved salt-removing cleaners. Always test on a small area first to ensure it doesn’t damage your tiles.

Safety first: Wear gloves, eye protection, and a mask when using chemicals. Ensure proper ventilation in the work area.

Never use acids like muriatic acid on certain tiles like marble or travertine as they can cause damage.

Repairing grout and tile vs replacement decisions

If only a few areas are affected, spot repair might be sufficient. Remove deteriorated grout, clean the area, and replace with new grout.

For more extensive damage, consider regrouting. Remove all old grout, clean the tile surfaces, and apply fresh grout.

If tiles are porous or contaminated, they may need to be replaced. Efflorescence can indicate underlying issues that might recur if not addressed.

Evaluate each situation based on severity, substrate contamination, and tile porosity. If in doubt, consult a professional.

Fixing the source: waterproofing, membranes, and plumbing repairs

Check your shower pan. Ensure it’s sloped properly towards the drain. If not, you may need to replace or repair it.

Inspect plumbing fixtures. Leaky faucets or showerheads can cause moisture buildup. Repair any leaks promptly.

Install a proper waterproofing membrane behind your tiles if one isn’t already present. This will prevent water from seeping through to the substrate.

Ensure your drain and flashing are in good condition. If not, replace or repair them to prevent water intrusion.

Back to top ↑

Different patterns include white rings on floors or walls, localized spots, or deposits that appear only when the shower is dry. Link each pattern to likely causes such as efflorescence, hard water, or grout/Cement issues. Mold may require separate treatment if suspected.

Follow a diagnostic workflow that checks for moisture, pH, and salt deposits. Verify ongoing intrusion versus surface deposits and try to reproduce conditions to reveal hidden flaws. Map symptoms to installation faults and environmental factors to guide fixes.

New construction or recent remodel showing white deposits

White deposits appearing soon after installation are usually due to incomplete curing, residual salts from new mortar, or premature sealing. Don’t panic; these can often be cleaned off.

Wait at least 28 days before washing or sealing your new shower. This gives the mortar time to cure fully and release any excess salts. If deposits persist, use a solution of one part muriatic acid to ten parts water to clean them off. Rinse thoroughly and let it dry before resealing.

If you sealed too early, the sealant might be trapping moisture and causing efflorescence. Remove the old sealant, clean, and reapply after the shower has cured properly.

Localized spots around drains, benches, or niche areas

Moisture and salts tend to concentrate in low-slope areas like these. Inspect for cracks, gaps, or missing sealant that could be letting water in.

Check penetration points first. Ensure all drain, bench, and niche areas are properly sealed with a flexible, waterproof membrane. If you find any issues, repair them using appropriate sealants or membranes.

If the problem persists, test for moisture using a moisture meter. If it’s wet, you’ve likely got an ongoing leak that needs to be fixed at the source.

Pebble floors, small tiles, and textured surfaces

Natural stone, pebbles, and small tiles can be porous, making them more susceptible to staining and deposits. Textured surfaces can also trap dirt and moisture. Regular maintenance is key here.

Clean regularly with a mild acid-based cleaner like vinegar or a commercial product designed for natural stone. This helps remove any mineral buildup and prevents new deposits from forming.

For pebble floors, ensure grout hollows are filled properly to prevent water from pooling and causing issues. If you find any gaps, regrout them using a non-sanded grout that matches the color of your pebbles.

Back to top ↑

Pre-install choices should focus on substrate prep, proper waterproofing, and appropriate cementitious materials with low alkali content. Plan for proper slope, drainage, and humidity control during cure. These steps reduce future moisture and efflorescence risk.

Maintenance includes regular cleaning with pH-neutral products, timely resealing, and resealing cadence for grout. Monitor moisture in the niche and surrounding walls and keep a routine to catch issues early. Document findings and adjust plans as needed to avoid repeated problems.

Maintenance schedule and cleaning routine to prevent recurrence

Regular maintenance is key to preventing efflorescence. Here’s a simple routine:

After installation, dry the shower thoroughly after each use. Use a squeegee or towel if needed.

Ventilate the shower for at least 15 minutes after each use to remove excess moisture.

Every three months, clean the tiles and grout with a pH-neutral cleaner. This helps prevent salt buildup. Re-seal grout or tile as needed, usually every 2-3 years.

Monitor moisture levels in the shower niche and surrounding walls regularly to catch any issues early.

Outline a diagnostic workflow and note that costs vary by method and duration. Compare DIY checks to contractor-led assessments and consider how diagnostic costs may be rolled into repairs. Check what the label or manufacturer instructions say about tests and safety.

Expect a timeline that covers initial evaluation, testing, decision-making, and repairs, with factors like access and material delays affecting progress. Prioritize safety with proper PPE, ventilation, containment, and electrical/water hazard precautions during cleaning and repair work.

Cost ranges and timeframes to expect (diagnostics to repair)

Diagnosing shower tile issues can cost between $100 – $500 for DIYers, including moisture meters, mold swabs, and tile adhesion tests. Contractors may charge $200 – $800 for the same services, but their expertise can help offset costs by preventing expensive mistakes.

Repair costs vary greatly depending on the extent of demo, plumbing work, and tile types. Expect to spend $500 – $3,000 for repairs. Some contractors may roll diagnostic costs into repair estimates.

Timelines vary too. Initial evaluation takes 1-2 hours. Diagnostic testing can take a few days if moisture readings need time to stabilize. Decision-making and completed repairs typically take 1-4 weeks, but this can extend due to access issues, material delays, or permit requirements.

Safety and environmental precautions for cleaning and repair

PPE: Wear gloves, goggles, and a dust mask when handling chemicals or removing old grout/tile. For mold, use an N95 respirator.

Ventilation: Ensure proper ventilation when using chemicals or power tools. Open windows, use fans, or hire a professional to set up containment.

Disposal: Dispose of acid-based cleaners and other hazardous materials according to local regulations. Do not pour them down drains.

When cutting or removing old grout/tile, wet the surface first to minimize dust. Seal off adjacent rooms to prevent contamination.

When a problem is structural or beyond DIY

If you notice recurrent moisture after fixes, structural cracking, or pervasive substrate contamination, the issue may be beyond DIY repair. These are red flags for underlying structural problems or extensive mold growth.

In such cases, hire a licensed professional (plumber, tile installer, or mold remediation specialist) to assess and fix the problem. They have specialized equipment and training to handle complex issues safely and effectively.

Complex failures like leaking niches or subfloor damage may require structural work. Consult with a general contractor or architect for these cases. Always prioritize safety over DIY attempts when dealing with structural problems.
