Bentonite Waterstops: Controlling Swell, Preventing Gaps, and Common Mistakes

Waterstops are embedded barriers that run across concrete joints to block water paths. They come in passive forms like rigid or flexible non-swelling devices and hydrophilic systems that respond to moisture. Bentonite is an example of a swelling, hydrophilic option, while standard stops stay the same as the concrete cures.

Placement matters: waterstops should be positioned to cover control, construction, and expansion joints as designed. The seal works best when continuous, anchored, and compatible with reinforcing steel, with attention to corners and intersections to avoid gaps. Compare different types—mechanical stops, flexible membranes, and bentonite-based barriers—to choose the right fit for your joint and pour sequence.

Basic sealing mechanism

A waterstop’s job is simple: stop water from passing through concrete joints. It creates a hydraulic or physical seal inside the joint.

Here’s how it works:

Passive barriers, like rigid or flexible strips, block water flow by filling the joint space. They rely on continuous coverage and proper installation to work effectively.

Swelling systems, like bentonite, absorb moisture and expand to fill gaps. They actively respond to water presence, sealing as it enters the joint.

Typical applications and vulnerable locations

Waterstops are used in various structures where preventing water ingress is crucial:

• Foundations: To stop water from entering basements.
• Basins: For retaining liquids like water or chemicals.
• Retaining structures: To prevent water from seeping behind walls and causing instability.
• Tunnels: To protect against groundwater pressure.
• Pipe penetrations: To seal around utility lines passing through concrete.

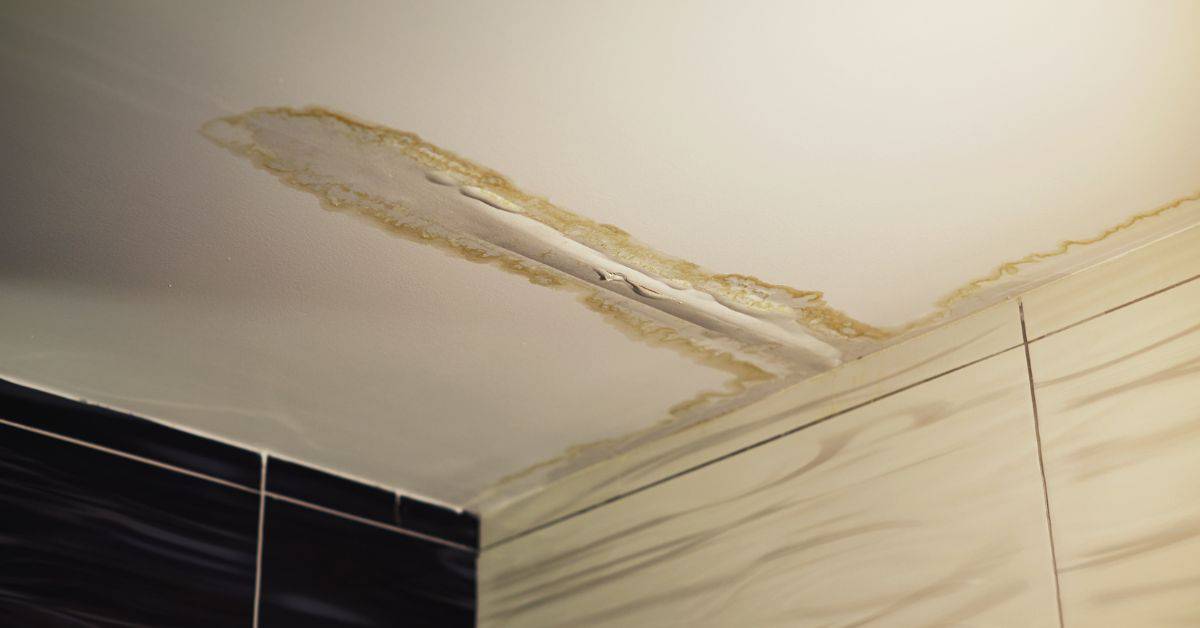

Joints and embedded items are high-risk areas for leakage due to:

• The natural movement of concrete, creating gaps over time.
• Concentrated water pressure at these points.
• Potential damage during construction or settlement.

Back to top ↑

Bentonite waterstops swell on contact with water, sealing joints and dramatically reducing water pathways into concrete and below-grade spaces. This swelling helps limit moisture ingress and supports long-term integrity. The key is ensuring the material activates with the right exposure to moisture.

Compared with no joint protection, bentonite can help protect reinforcement from corrosion and reduce the risk of chloride transport. Proper placement, curing, and integration with standard joint sizes matter for reliable performance. Look for signs of insufficient swelling or misalignment as maintenance indicators over time.

Benefits specific to bentonite

Bentonite waterstops offer unique advantages over other joint protection systems. Here’s why:

Self-sealing: When exposed to water, bentonite swells and seals joints, dramatically reducing pathways for water ingress.

Adaptability: Bentonite can adapt to irregular joints, making it ideal for complex or challenging installations. It’s also easy to retrofit into existing structures.

Ease of installation: Unlike some rigid systems, bentonite waterstops are flexible and simple to install, following standard construction schedules.

Limitations to be aware of

While bentonite waterstops offer many benefits, there are some limitations to consider:

Environmental factors: Bentonite may not be suitable for environments with contaminated water, high hydrocarbon exposure, or extreme chemical conditions. Always check product compatibility and manufacturer guidance.

Temperature extremes: Extreme temperatures, both hot and cold, can affect bentonite’s performance. Ensure the chosen waterstop is rated for your specific climate.

Mechanical damage: Like any joint protection system, bentonite waterstops are susceptible to mechanical damage during construction or throughout the structure’s life. Proper handling and installation practices are crucial.

Back to top ↑

The four main waterstop types are PVC, rubber/EPDM, hydrophilic bentonite, and metallic options. Each type has its own basic working principle and typical use. Consider how movement, exposure, and installation method affect performance.

Strengths and weaknesses vary: flexibility and movement capacity, chemical resistance, and durability under freeze–thaw cycles all play a role. Also note how formwork stripping can impact different materials and how each type is installed in joints. Use this as a planning guide to match your project needs.

PVC and Rubber Profiles

Flexible PVC and rubber/EPDM waterstops are extruded profiles that excel at accommodating movement in concrete joints. They’re made to bend, stretch, and compress without breaking.

Strengths: High flexibility for large movements, good chemical resistance with proper formulation, durable under freeze-thaw cycles.

Weaknesses: Susceptible to damage during formwork stripping if not protected, limited resistance to harsh chemicals and high water pressures.

PVC and rubber profiles are ideal for joints expecting significant movement, like those in slabs on grade or foundations. They’re also good where chemical exposure is moderate but not severe.

Hydrophilic (Bentonite) vs. Metallic Options

Bentonite waterstops swell when exposed to water, creating a tight seal in concrete joints. Metallic waterstops, on the other hand, form a mechanical barrier.

Bentonite: Excellent swelling action for long-term watertightness, good freeze-thaw durability, and resistance to most chemicals. However, it can be damaged during formwork stripping if not properly protected.

Metallic (e.g., stainless steel): High strength and durability, resistant to harsh chemicals and high water pressures. They’re ideal for joints exposed to severe conditions but have limited flexibility and can corrode in certain environments.

Bentonite is best for joints with moderate movement and exposure to normal soil and groundwater conditions. Metallic waterstops are preferred where strength and chemical resistance are paramount, despite their lower flexibility.

Back to top ↑

Bentonite expands when it contacts water, forming a gel that helps seal voids and joints. This swelling creates a barrier against seepage and improves joint tightness. The magnitude of swelling depends on confinement, water chemistry, temperature, and the specific formulation used.

Understand containment versus sealing roles: swelling may plug voids or create a continuous barrier, with behavior differing at horizontal versus vertical interfaces. Design decisions should account for expected swell without overstressing formwork or adjacent materials.

Factors that influence swelling performance

Bentonite’s swell isn’t set in stone. It changes based on what it’s up against.

Water chemistry plays a big role. Salty or acidic water, detergents – they all affect how much bentonite swells. Same goes for temperature. Warmer water makes bentonite swell more.

The space between surfaces – that’s your confinement. Less space means less swell. Too little, and you’ll restrict the swell needed to seal gaps. Too much, and it won’t swell enough.

Start with a decision framework: compare sodium-based bentonite versus modified bentonite and how each affects swell behavior, set time, and compatibility with joint design. The choice influences what joint geometry and sequencing you can use. Review product data sheets and confirm with the supplier for unusual site conditions.

Consider chemistry and joint geometry: assess water conditions, expected pH, chlorides, sulfates, and movement capacity. Also outline installation approaches and required attachments, along with applicable standards or certifications to verify suitability for the project. Document the field validation steps you will use.

Material specs and standards explained

The right bentonite product ensures your waterstop works as expected. Here’s what to compare in material specs.

• Composition: Sodium or modified? Each has different swell behavior, set time, and compatibility.
• Swelling behavior (under test conditions): Check how much it swells under expected water conditions. Too little swell means poor sealing; too much causes pressure damage.
• Recommended joint sizes: Ensure the product’s recommended joint size matches your project’s needs to avoid cracking or weak bond.
• Recommended adhesives/primers: Check which adhesives and primers work best with the chosen bentonite. Wrong ones can cause weak bond, staining, or poor adhesion.
• Test reports/certifications: Request these to confirm the product meets required standards (e.g., ASTM, EN) for your project’s conditions and long-term durability.

Start with substrate prep: clean, roughen where needed, and manage crack control; verify bend radii and overlaps per manufacturer guidance. Confirm compatibility with existing joints before placing the waterstop. Address any bends or penetrations early in the plan.

Next, align, anchor, and contain the waterstop: secure with approved supports and maintain correct alignment through tolerances. Follow safety rules: PPE, fall protection, and dust control, and isolate electrical equipment if applicable. Ensure the area stays clean and ready for concrete placement.

Pre-install prep and positioning

Before installing your bentonite waterstop, ensure the surface is clean and prepared for optimal adhesion. Measure and position the strip accurately to prevent gaps or misalignment.

Cleanliness: The substrate should be broom- and vacuum-cleaned, free of laitance, curing compounds, and debris. Verify that the concrete surface is glassy and dry before placement.

Dimensional checks: Confirm that the waterstop’s dimensions match your project’s requirements. Check manufacturer recommendations for bend radius and overlap to avoid damaging or misplacing the strip.

Alignment and spacing: Position the waterstop according to the joint plan, ensuring it aligns with existing joints and maintains recommended spacing or anchoring techniques. Be mindful of any penetrations, corners, or doors that may require special attention during installation.

Protection, curing, and early exposure control

Temporary protection is crucial to prevent premature wetting or damage to your bentonite waterstop before concrete placement. Follow these steps to ensure proper curing and avoid debonding.

Temporary protection: Cover the waterstop with a suitable material, such as plastic sheeting, to shield it from rain or early wetting. This helps maintain the strip’s integrity and prevents swelling before concrete placement.

Curing: Follow manufacturer guidelines for appropriate curing times and methods. Bentonite waterstops typically require a moist curing environment to activate their swelling properties effectively.

Early exposure control: Avoid exposing the waterstop to extreme temperatures or direct sunlight, as this can cause premature swelling or damage. Keep the area around the waterstop cool and shaded until concrete placement is complete.

Back to top ↑

Frequent errors include misalignment, gaps at bends, and inadequate overlaps or joint geometry awareness. These can lead to leakage or movement-related failures. Ensure proper matching to the joint shape and clearances before pouring.

Prep and adhesion mistakes matter too: poor surface cleaning, wrong bonding method, or roughness that’s insufficient can weaken the seal. When problems appear, reseat or realign, reprime or re-bed, and consider approved patching methods or consulting the manufacturer for repairs.

Repair and remediation strategies

If you’ve detected problems with your bentonite waterstop, don’t panic. There are several repair options available depending on the cause, access, and structural requirements.

Injectable sealants: For small gaps or voids, injectable sealants can be used to fill and seal the affected area. These are typically applied under low pressure to avoid damaging the waterstop or surrounding concrete.

Supplemental bentonite grouting: If the waterstop has debonded or there are large gaps, supplemental bentonite grouting may be required. This involves removing the damaged section, cleaning the area, and applying a new layer of bentonite grout before re-embedding the waterstop.

Mechanical repairs: In some cases, mechanical repairs such as welding or bolting may be necessary to secure the waterstop in place. However, these methods should be used sparingly and only when absolutely necessary, as they can compromise the integrity of the concrete.

Always consult with the manufacturer or a professional if you’re unsure about the cause of the problem or the best repair method. They can provide tailored advice based on your specific situation.

Back to top ↑

Define a maintenance philosophy based on structure criticality, noting which joints require tighter upkeep. For high-risk areas like basements, set a stricter inspection baseline. Keep records of findings to guide decisions.

Plan a practical inspection approach with visual checks for cracks and swelling, and targeted tests to verify waterstop integrity. Use standardized checklists and photo logs to support future maintenance and budgeting decisions.
