How to Add a Control Joint to Existing Stucco (Is It Possible?)

A control joint is a planned break in stucco that helps manage where cracks form. It differs from expansion and movement joints in purpose and placement. Learn to recognize the differences to decide when a joint is needed.

The goal is crack prevention and controlled cracking, while allowing substrate movement from temperature changes and moisture cycling. Use these joints to accommodate long wall spans, changes in plane, and openings without random cracking. Keep in mind typical problem areas and how joint depth, face coverage, and finish coats affect performance.

Purpose and benefits

A control joint in stucco is like a built-in stress relief valve. It’s designed to manage the natural movement of your walls, caused by temperature changes, moisture shifts, or even settling.

Without these joints, that stress builds up and can cause cracks. Control joints let your wall crack on purpose, in controlled places, so it doesn’t happen randomly where you don’t want it to.

Think of it like a dam. Without a controlled release point, the pressure will find its own way out – often not where you want it to. But with a control joint, you’re directing that release, keeping your stucco looking good and lasting longer.

Where control joints are typically placed

Control joints should be placed where walls are most likely to move. That’s usually every 6 to 8 feet on long wall spans, and at changes in plane – like where a wall meets the roof or another wall.

You’ll also want them near openings, corners, and along any discontinuities – that’s where two different materials meet. For example, where your stucco meets brick or stone.

If you’re seeing pattern cracks on your existing stucco, that’s a sign it needs more control joints. Movement indicators like bulging or warping also mean it’s time to add some.

Back to top ↑

Assess feasibility by considering structural movement, wall location, and the type of stucco on the surface. Determine if the existing substrate can accept a joint without weakening the wall. If the stucco is EIFS or has unusual backing, check manufacturer guidance before proceeding.

Retrofit requires evaluating crack patterns, moisture history, and the framing behind the stucco. Consider drainage, water management, and how the joint will interact with insulation. If any of these elements are compromised, retrofit may not be practical.

Situations that allow retrofit

Adding a control joint to existing stucco is feasible under certain conditions. Here are the situations where retrofitting can be done:

Minimal cracking: If your walls have minor hairline cracks, adding a joint can help prevent further cracking.

Stable substrate: The existing substrate behind the stucco should be stable and structurally sound. Traditional three-coat stucco systems (scratch, brown coat, finish) or EIFS with a solid backing are typically suitable.

No moisture issues: There should be no signs of widespread water intrusion, delamination, or penetrating moisture. Check for proper drainage and water management behind the stucco.

When to call a pro or opt for re-stucco

In some cases, adding a control joint might not be enough. Here are scenarios when you should consider hiring a professional or replacing the stucco:

Extensive cracking: If your walls have numerous cracks or large gaps, it may indicate structural movement. A pro can assess if there’s an underlying issue that needs to be addressed.

Delamination: When the stucco is peeling away from the substrate in large areas, it’s a sign of serious moisture intrusion or other problems. Re-stuccoing might be necessary.

Structural movement: If your walls are showing signs of bowing, leaning, or other structural issues, do not attempt to add control joints yourself. Hire a professional to assess and address the problem before it worsens.

Back to top ↑

Begin with a thorough wall assessment: note finishes, cracks, moisture damage, and substrate type. This helps decide where a joint will be most effective. Use this information to guide placement.

Create a layout that accounts for movement and visible expansion or contraction points. Prepare elevation references and templates to keep alignment consistent. Verify local permits or codes if applicable.

Layout and spacing guidelines

When planning your control joint layout, consider these rules of thumb. But always check local codes and manufacturer specs for precise guidance.

Panel size: Aim for panels no larger than 8′ x 10′. Larger panels can crack under stress.

Joint spacing: Space joints about 6-8 feet apart. This helps control cracking and allows movement.

Remember, these are just guidelines. Your specific situation might require different spacing or panel sizes.

Safety and site prep

Before you start, ensure your safety and protect nearby areas.

Personal protective equipment: Wear a hard hat, safety glasses, gloves, and sturdy boots. For dust control, consider a respirator or dust mask.

Scaffolding: If you’re working above ground level, use secure scaffolding. Ensure it’s properly set up and safe to work on.

Protect nearby finishes and landscaping with drop cloths or plastic sheeting. This prevents damage from debris or sealant splatter.

Back to top ↑

Confirm substrate compatibility and joint size to select the right beads and sealants. Match materials to the existing stucco and underlying lath. If in doubt, check product labels or manufacturer instructions for compatibility.

List essential hand and power tools, plus safety gear. Include joint beads, backer rod, sealants, and appropriate adhesives. Have finishing and prep tools and masking supplies ready for clean edges.

Tool list and rental tips

Gather the right tools for the job. Here’s a checklist of essentials, along with when to rent or buy.

Back to top ↑

Mark the joint location with clear lines and verify area integrity before cutting. Ensure correct depth and width per the stucco system being used. Double-check that the planned path avoids hidden wiring or plumbing.

Install the backer and joint bead, clean surfaces, and secure them per product directions. Apply the sealant with proper backing rod, then seal and embed the bead. Finish by texturing to blend with the existing wall and perform a water test if feasible.

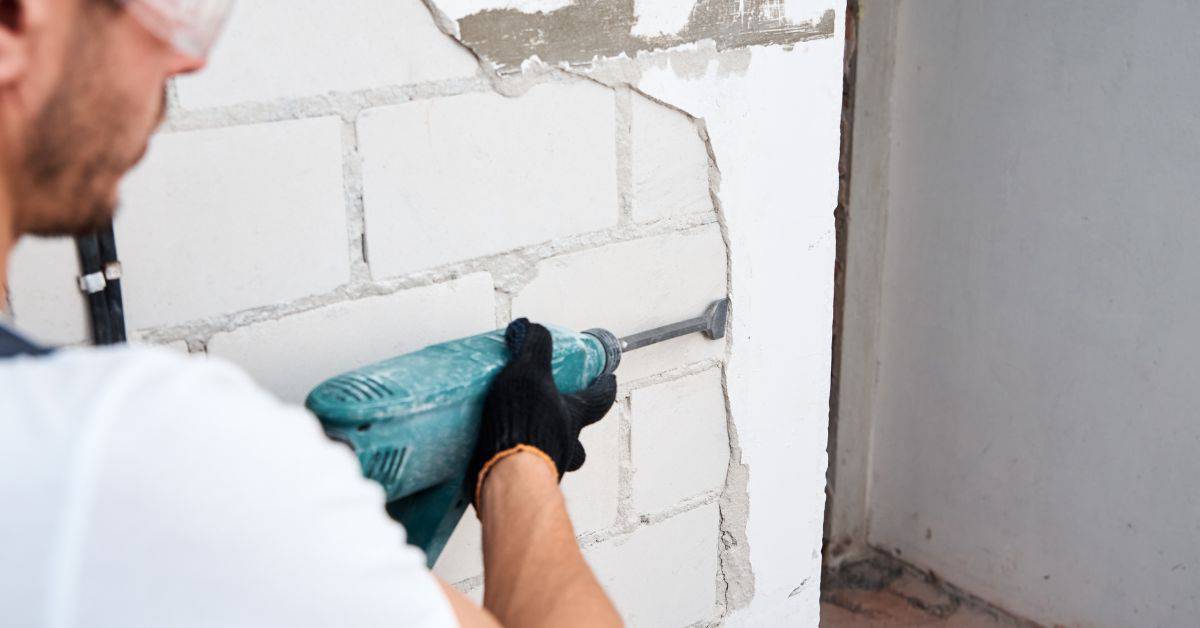

Cutting or removing existing stucco

Safely cut a clean vertical channel to the substrate without damaging lath or framing. Here’s how:

Wear safety gear, including gloves, goggles, and ear protection.

Use an angle grinder with a diamond blade or a carbide scoring tool. Keep the blade perpendicular to the wall for a clean cut.

Score or cut slowly and steadily, allowing the tool to do the work. Avoid applying excessive pressure that could cause hidden damage.

Installing joint bead, backer, and sealant

Properly place and fasten the bead, insert the backer rod, and apply sealant to accommodate movement:

Joint Bead: Position the bead along the scored line. Fasten it using appropriate adhesive or mechanical fasteners, ensuring a snug fit.

Backer Rod: Insert the backer rod into the joint, filling it completely and leaving no gaps.

Sealant: Apply low-modulus urethane/acrylate sealant along the joint using a caulking gun. Ensure proper coverage and depth.

Patch, texture, and curing

Match surrounding finish, allow for curing times, and determine when to paint:

Feathering: Apply new stucco along the joint edges, blending it with the existing texture. Use a trowel or float to create a smooth transition.

Texturing: Recreate the original texture using spray, brush, or stomp techniques. Ensure consistent application and coverage.

Curing: Allow the patched area to cure for at least 72 hours before performing a water test. Consult your stucco system’s specific curing requirements. Paint only after the stucco is fully cured to prevent moisture-related issues.

Back to top ↑

Common errors include incorrect joint depth or width and selecting the wrong sealant for exterior use. Inadequate substrate prep and poor adhesion lead to premature failure. Watch for signs during and after installation.

Look for cracking around the joint, soft or peeling sealant, or moisture intrusion. If failures appear, re-prep the area, choose a compatible sealant, and consider adjusting the joint location or size. Address underlying moisture issues first.

Fixing leaks or adhesion failures

If you’re seeing moisture intrusion around your control joint, it’s likely due to a leak or adhesion failure. Here’s how to diagnose and fix these issues:

Diagnose the problem: Inspect the area for any visible cracks, gaps, or soft spots in the sealant. Check for water stains on the surrounding stucco.

Use a moisture meter to confirm if there’s excess moisture behind the joint. If it reads high (above 15-20%), you’ve got a leak.

Repair approach: First, dry out the area completely. Then, re-prep the substrate by cleaning and lightly sanding the surface. Apply a compatible primer if needed. Use a caulking gun to apply a new bead of suitable sealant, ensuring it’s well-adhered and properly tooled.

If delamination is present, you’ll need to remove the loose stucco, prep the substrate, and reapply fresh stucco before resealing.

Dealing with mismatched texture or color

When adding a control joint to existing stucco, it’s common for the new area to not match the old. Here are some tips to blend textures and colors:

Texture: If your original stucco has a textured finish, try to replicate that texture on the patched area. Use a hawk and trowel to apply thestucco mix in thin layers, mimicking the existing texture.

If you can’t match the texture exactly, consider using an acrylic paint or texture additive to help blend the new stucco into the old.

Color: Matching colors can be tricky. Start by testing small patches of color on a scrap piece of stucco. Once you’ve found a close match, apply the color to your patched area using an acrylic paint or integral color additive in yourstucco mix.

Remember, it’s nearly impossible to make a patch invisible. Expect some variation and plan your joint placement accordingly.

Back to top ↑

Set up a simple inspection routine to monitor hairline cracks, water intrusion, and sealant condition. Document findings and address issues before they worsen. Use this to plan future maintenance.

Discuss reseal options, product choices, and environmental conditions that affect performance. Break down cost factors like materials and labor, and compare maintenance versus full replacement when evaluating long-term value.

Cost Factors and Budgeting Tips

Adding control joints to existing stucco involves several cost variables. Here’s what to consider:

Material choice: Different sealants, joint tapes, and backer materials have varying prices. Opt for quality products within your budget.

Labor costs can vary greatly depending on access (easy vs. hard-to-reach areas) and wall area. Get quotes from local contractors to get a accurate estimate.

DIY-ing can save labor costs, but you’ll need the right tools and skills. Consider your comfort level with power tools and working at heights before tackling the job yourself.
