Concrete Step Riser Cracks: Why They Appear and Which Fixes Are Real Fixes

A riser is the vertical face of a step. It is different from the tread, which is the horizontal surface you step on. This intro helps you see why cracks on the vertical face require a separate look.

Riser cracks are not the same as tread cracks, spalls, hairline fractures, or small settlement gaps. They relate to how the stair rises and bears load, and they can impact safety and visual integrity in unique ways. Recognizing the distinction guides the right repair path.

Types of riser cracks (hairline, shrinkage, structural, freeze-thaw)

Concrete step risers can crack in various ways. Understanding these types helps you assess the damage and plan repairs.

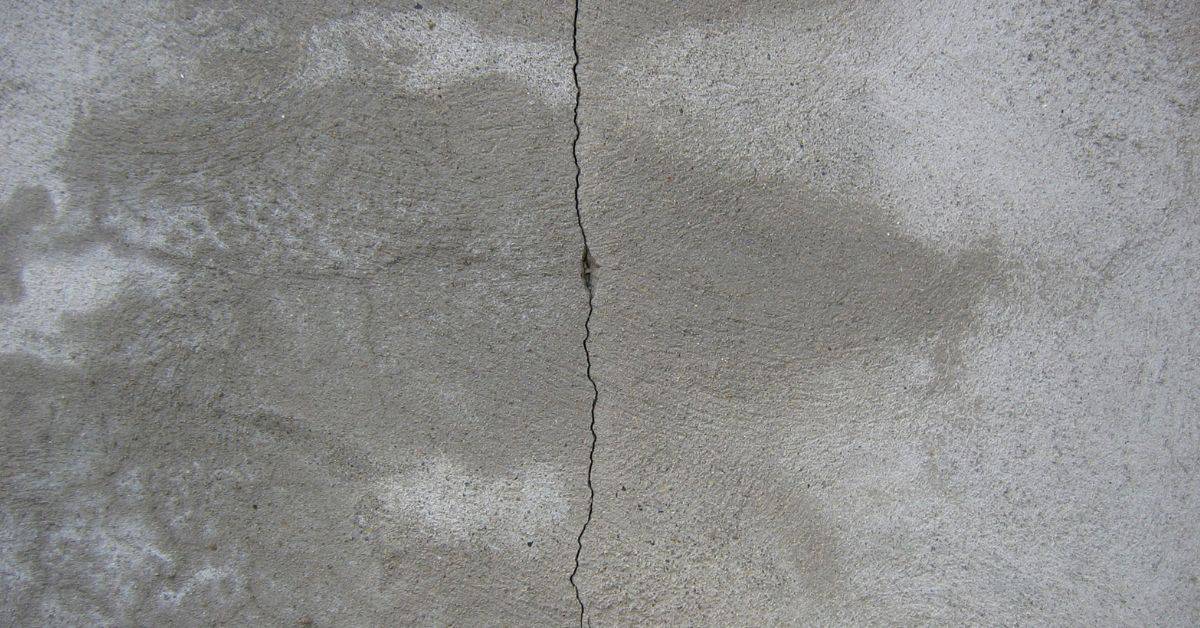

Hairline cracks are thin, usually less than 1/8 inch wide. They’re often cosmetic and caused by minor settling or shrinkage during curing.

Shrinkage cracks appear as wider gaps, typically in a map-like pattern. They result from moisture loss during the concrete’s early stages.

Structural cracks are wide (over 1/8 inch) and deep, often running diagonally or horizontally. These indicate serious issues like settling, excessive loading, or poor construction.

Freeze-thaw cracks result from water expanding as it freezes in tiny pores within the concrete. They’re usually hairline to moderate width but can worsen over time.

Common locations and patterns of failure

Riser cracks often appear in specific areas, indicating certain types of damage:

1. Corners and joints: Cracks here suggest improper curing, excessive loading, or poor mix design.

2. Connection to stringer: Vertical cracks at this point may indicate settling, inadequate support, or improper reinforcement.

3. Patterns: Diagonal or horizontal cracks signal structural issues. Map-like patterns suggest shrinkage. Hairline cracks in a straight line might indicate minor settling.

Back to top ↑

Poor mix or inadequate curing can leave the concrete more prone to cracking as it dries. Look for clues such as rough texture or surface crazing that point to this issue. Proper curing and mix quality are important for long term performance.

Other common causes include insufficient reinforcement, subsidence, and movement from temperature changes. Freeze thaw cycles and water intrusion can worsen cracks over time. Identify the likely driver by inspecting drainage, joints, and the surrounding soil condition.

Mix, placement, and curing issues

High water content in your concrete mix can lead to early shrinkage and cracking. Too much water weakens the concrete’s strength.

Insufficient curing is another culprit. Concrete needs moisture to cure properly. If it dries out too quickly, it can crack.

Thin covers over rebar can also cause issues. The concrete needs enough thickness to protect the steel and provide structural integrity.

Structural causes: footing settlement and support failure

Uneven settlement of your home’s foundation can cause steps to crack. Inadequate or improperly placed footings can lead to this problem.

Improper connections between the stringers (the supports for your stairs) and the concrete can also cause movement cracks that worsen over time.

Proper design and construction of footings and supports are crucial to prevent these issues.

Environmental and maintenance causes (freeze-thaw, deicing salts, water)

Freeze-thaw cycles can cause cracks to form and worsen. Water expands when it freezes, putting pressure on the concrete.

Deicing salts can also accelerate crack formation and surface scaling. They break down the concrete’s protective layer over time.

Water intrusion can weaken the concrete and lead to cracking. Ensure your steps are properly sloped to drain water away.

Back to top ↑

Start with a practical look at width, depth, and length. Narrow, hairline cracks often tolerate monitoring, while wider gaps may need action. Active movement is a red flag and calls for prompt evaluation.

Check for water penetration and any spalling or looseness in the riser material. If you notice ongoing widening or loose pieces, plan a repair. When in doubt, consult a professional for a concrete assessment.

Back to top ↑

Shrinkage and hairline cracks can sometimes respond to surface sealing or epoxy injections designed for small cracks. Follow the product instructions and protect adjacent surfaces during the repair. Do not expect a cosmetic fix to replace structural strength.

For surface cracks, you can feather the edge and recoat the riser with a compatible patch material. Keep expectations realistic and avoid heavy loads on a cracked riser during curing. Use proper ventilation and safety gear while working.

Epoxy and Polyurethane Crack Injections: When to Use Each

Both epoxy and polyurethane are effective for injecting concrete cracks, but they’re suited to different situations.

Epoxy is ideal for hairline cracks (less than 1/8 inch) and shrinkage cracks. It’s waterproof and provides excellent adhesion. Here’s how to apply:

1. Clean the crack with a wire brush.
2. Apply epoxy using a caulking gun or injection pump.
3. Let it cure for at least 24 hours before traffic.

Polyurethane is better for wider cracks (up to 1/2 inch). It expands as it cures, filling the crack completely. Apply like epoxy, but follow manufacturer’s cure time guidelines.

Surface Patching and Resurfacing Options

For cosmetic repairs, consider these surface treatments:

Cementitious repair mortars are easy to apply and match the existing concrete color. They’re suitable for small cracks and chips.

For larger areas or better protection, use thin overlays. These polymer-modified cement-based coatings provide a durable, seamless surface. Before applying:

1. Clean and prepare the surface.
2. Apply a bonding agent to improve adhesion.
3. Mix and apply the overlay according to manufacturer’s instructions.

Back to top ↑

Structural cracks may require underpinning or footing repair to stabilize the stair. This work should be planned by a licensed professional and tied to the building structure. Material selection depends on the assessment at the site.

Options may include replacement of riser panels, stainless reinforcement, or a complete re casting of the affected area. A contractor will determine if these steps are necessary based on movement and load considerations. Expect a plan that focuses on restoring safety and long term durability.

Replacing vs. repairing a riser: decision factors

When your step riser cracks, you’ve got two main options: repair or replace. But how do you decide? Let’s break it down.

Cost and Extent of Damage: Patching is cheaper but if the damage is extensive, it might not be worth it in the long run. Replacement ensures a fresh start but costs more upfront.

Visible Corrosion: If you see rust or corrosion, that’s a sign your riser’s reinforcement is compromised. In this case, replacement is usually best as patching won’t fix the underlying issue.

Long-term Durability: Replacement gives you a new, strong riser with no pre-existing cracks. But if the cause of cracking isn’t addressed (like settlement issues), even a new riser could crack again. So, consider the root cause too.

Reinforcement and stabilization techniques

Sometimes, just fixing the crack isn’t enough. You need to stop the movement that caused it in the first place. Here are some methods pros use:

Anchored Bracing: This involves installing steel braces with anchors into the existing structure to hold everything in place and prevent further movement.

Micro-piles and Helical Anchors: These are deep foundation elements driven into the ground below the footing. They transfer loads deeper, stabilizing the structure above.

Epoxy-bonded Carbon Fiber Plates: These high-strength plates are bonded to the surface of the riser with a structural epoxy. They reinforce the riser, increasing its capacity and preventing further cracking.

Back to top ↑

Good drainage around the steps helps prevent water from pooling and entering joints. Ensure slope directs water away from the risers and landing areas. Manage deicing strategies to avoid harsh freeze cycles.

Use proper mix and curing procedures from the start and consider control joints to accommodate movement. Apply a suitable waterproofing layer if the project allows. Regular inspection after winter helps catch early signs of trouble.

Design and construction best practices

When building your concrete steps, follow these best practices to minimize the risk of riser cracks:

Reinforcement: Place steel reinforcement in the middle third of the riser. This provides strength without causing stress that can lead to cracking.

Minimum Cover: Ensure a minimum concrete cover of 2 inches over the reinforcement. This protects the rebar from corrosion and maintains the structural integrity of the step.

Control Joints: Cut control joints every 6-8 feet on each riser. These allow the concrete to crack naturally along these lines rather than randomly, reducing the appearance of unsightly cracks.

Slope/Drainage: Ensure your steps have a slight slope (usually 1/4 inch per foot) towards the front for proper drainage. This prevents water from pooling and freezing, which can cause cracking.

Maintenance routines and seasonal care

Regular maintenance and seasonal care can help prevent riser cracks from recurring:

Keep Drains Clear: Regularly clean out any debris from drains to ensure proper water flow. Clogged drains can cause water to pool, leading to cracking.

Avoid Rock Salt: While deicing salts help melt ice, they can also damage concrete over time. Use sand or other alternatives when possible, and rinse steps with clean water after using salt.

Seal Surfaces: Apply a concrete sealer every 2-3 years to protect your steps from moisture intrusion, which can cause cracking.

Monitor for Movement: Keep an eye out for any signs of movement or shifting in your steps. Catching these early can prevent them from becoming larger cracks that require more extensive repair.

Back to top ↑

Keep a homeowner friendly checklist of basic patch products, epoxy or mortar options, and clean up supplies. Read the product label for application temperature, cure time, and compatibility with existing concrete. Matching the patch texture to the surrounding surface matters for a seamless look.

Understand the cracks width guidance for epoxy versus mortar repairs and verify the recommended crack widths on the data sheet. Check cure times, ventilation needs, and any required surface preparation steps on the label. Use appropriate safety gear during any repair.

Safety and PPE for Concrete Repair

Concrete repairs can expose you to hazards like dust, chemicals, and heavy lifting. Here’s what you need:

Personal Protective Equipment (PPE):

• Gloves to protect your hands from chemicals and sharp edges.
• Safety glasses or goggles to shield your eyes from debris.
• Respirator or dust mask for breathing protection, especially when grinding or mixing.
• Steel-toed boots to safeguard your feet from falling objects or heavy tools.

Safety Precautions:

• Avoid working alone in case of accidents.
• Wear ear protection if using power tools like grinders or drills.
• Keep a first aid kit nearby for minor injuries.
• Store materials and tools safely when not in use, out of reach from children or pets.

How to Choose Products and Read Labels

Reading product data sheets helps you pick the right materials for your repair job. Here’s what to look for:

Tensile Strength:

The tensile strength indicates how much force a material can withstand before breaking. For concrete repairs, look for products with high tensile strength to ensure durability.

Adhesion Strength:

Adhesion strength measures how well the repair material sticks to the existing concrete. Choose products with good adhesion to prevent peeling or flaking.

VOCs (Volatile Organic Compounds):

Some products emit VOCs, which can be harmful if inhaled. Check the label for low VOC content or no VOCs to ensure a safer working environment.

Cure Time:

The cure time is how long it takes for the repair material to harden and reach its full strength. Consider your project timeline when choosing a product with an appropriate cure time.

Freeze-Thaw Suitability:

If you live in an area with freezing temperatures, ensure the repair product can withstand freeze-thaw cycles. Look for products labeled as suitable for these conditions to prevent damage from expanding ice.

Back to top ↑

Repair projects vary with the extent of damage and the chosen method. Time frames depend on the work scope and curing requirements, so plan for a phased approach if needed. Gather a clear schedule before starting any major job.

Ask about warranty terms and what is covered for crack repairs or resurfacing. Compare multiple bids to understand price ranges and what is included. Clarify warranty length and what triggers coverage for future cracks.

Estimating Repair Scope and Scheduling Work

Before you start any concrete step riser crack repair, assess the damage thoroughly. Count the cracks, note their width and depth.

Once you’ve got a clear picture, estimate how long each repair will take. Remember to factor in prep work like cleaning and grinding, plus cure times for materials. A typical epoxy injection might need 24 hours to set before you can walk on it.

Weather plays a big role too. Most repairs need warm, dry conditions. Don’t start a job if rain’s in the forecast until it’s cured.

Questions to Ask a Contractor and What to Expect in a Quote

When getting quotes, don’t just compare prices. Ask these questions to understand the job better:

Methods: What repair techniques will they use? Will they match your existing concrete color?

Materials: What products will they use? Are they quality brands?

References: Can they provide references from past jobs? Ask to see before-and-after photos.

Permits: Will they handle any necessary permits?
Guarantees: What kind of warranty do they offer? How long does it last?
