Concrete Popouts: Why Small Cones Blow Out and How to Repair Them

Popouts are small cone-shaped fragments that detach from concrete surfaces and reveal a cavity beneath. They’re different from superficial spalling because you can typically tap or handle the cone and see a void behind it. This quick test helps you tell a true popout from other surface issues.

Look for the typical appearance: a rounded cone projecting from the surface with a visible void where aggregate or paste used to be. The surrounding area often looks intact but may show a color or texture change. Common causes include rebar corrosion, alkali-silica reaction, moisture infiltration, and freeze-thaw cycles, which you should understand as you plan repairs.

How popouts form

Popouts happen when internal stresses in concrete build up and cause pieces to break off. This can start with aggregate breakdown, especially if the concrete’s been around a while or went through freeze-thaw cycles.

Moisture plays a big role too. It gets trapped inside the concrete, then expands as it freezes. The pressure pushes against the surrounding material, weakening it until pieces pop out.

Corrosion of steel reinforcement can also cause popouts. As rebar rusts, it expands and puts extra stress on the concrete around it, eventually leading to popouts.

Types and sizes of popouts

Popouts come in different shapes and sizes. The most common are:

• Hairline chips: These are tiny, barely noticeable cracks that can grow into bigger problems if not addressed.
• Small cones: These are the typical popouts – 1 to 2 inches in diameter with a visible cavity where aggregate was exposed. They’re usually easy to repair.
• Larger voids: These are bigger than small cones, often over 3 inches across. They can be more challenging and urgent to fix due to the increased risk of further deterioration.

Size matters when it comes to repairs. Smaller popouts might just need a quick patch, while larger ones could require more extensive work.

Back to top ↑

First, define what counts as a small cone popout and how it differs from other defects. Quick checks include looking for a raised cone with a hollow underside and a nearby unsound area. This helps distinguish root causes from surface symptoms.

Air-entrainment and aggregate issues, moisture and curing factors, substrate conditions, and environmental or mix-related contributors all play a part. Often several factors act together, so use a simple checklist to compare what you see with common causes. Verify product labels, mix design notes, and curing histories as you diagnose.

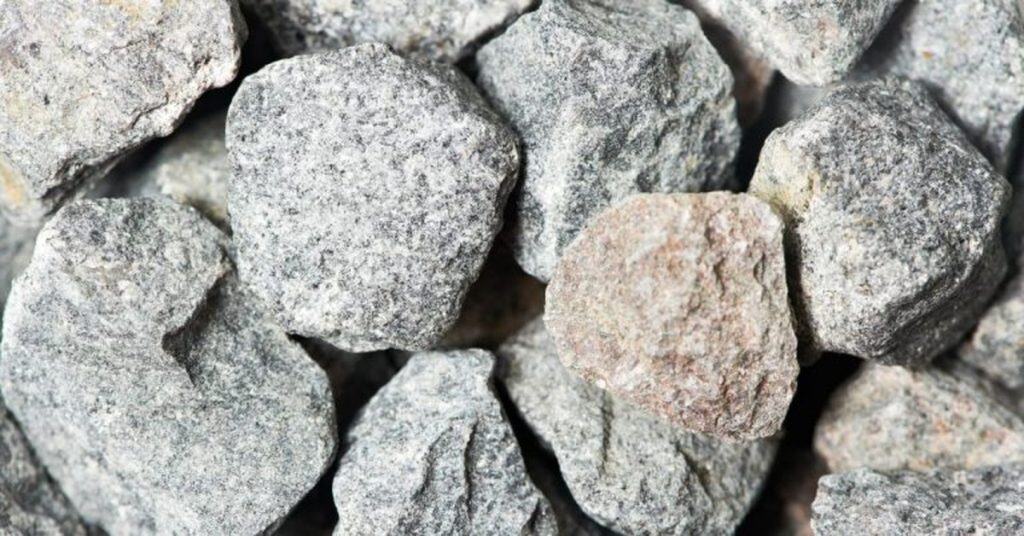

Reactive or Weak Aggregates

Small cone popouts often start with the aggregate. Some aggregates, like certain types of limestone or shale, react with water and expand over time. Others might be weak to begin with, crumbling under pressure.

Check your aggregate: Look for any discoloration or signs of deterioration. Ask your supplier about the aggregate’s reactivity and strength.

Poorly graded aggregates can also cause issues. Too much fine material can lead to weak mortar, while too much coarse material can leave voids that trap air and water.

Entrapped Moisture and Freeze-Thaw Cycles

Water trapped in the concrete matrix can cause popouts. When temperatures drop, this water freezes and expands, putting pressure on the surrounding concrete.

Poor drainage: If your slab sits in standing water or is poorly sloped, it’s more likely to trap moisture.

Air entrainment helps prevent this by creating tiny air bubbles that act as cushions against freezing. But if not enough air is entrained, or the concrete dries too quickly, these bubbles can become pathways for more water to enter.

Improper Finishing, Vibration, and Curing

Overworking the concrete surface with too much troweling or vibrating can bring weak mortar to the top. This mortar is prone to popping because it’s weaker than the rest of the slab.

Insufficient consolidation: If the concrete wasn’t properly consolidated, air pockets can form. These pockets trap water and create voids that pop out over time.

Proper curing is crucial too. Concrete needs to be kept moist and at the right temperature for it to gain strength evenly. Premature drying or improper curing temperatures can leave weak spots that pop out later.

Back to top ↑

Early visual cues include ball-like protrusions, edge rounding, faint cracks, moisture sheen, and subtle color changes. These cues help separate popouts from scaling, efflorescence, or shallow delaminations. Use these signals as your first screening tool.

Use your sense of touch to test integrity: a hollow sound usually means a loose cone, while solid feedback suggests better bonding. Document the location and measure protrusion height with a ruler or calipers if you have them. Keep a simple log with photos for trends over time.

Visual signs and measurement tips

Look for loose cones, shadow lines, or exposed aggregate to spot popouts. Use these basic measurement techniques:

Depth: Measure from the highest point of the protrusion to the lowest point using a ruler or calipers.

Diameter: Measure across the widest part of the popout at its base. This helps prioritize repairs based on size.

For loose cones, try gently pushing them back into place. If they stay in, it’s likely a small popout. Shadow lines or exposed aggregate around the edges can also indicate a popout.

When to call a professional

While DIY repairs are possible for many small popouts, there are times when you should seek professional help:

Widespread Popouts: If more than 10% of the surface area is affected, it’s best to consult a pro.

Exposed Reinforcement: If popouts have exposed reinforcement bars or wires, do not attempt repair yourself. Call a professional immediately.

Structural Cracks or Uncertain Causes: If you notice structural cracks, or the cause of the popouts is unclear (e.g., no visible signs of moisture, freeze-thaw cycles, or improper finishing), err on the side of caution and consult a pro.

Back to top ↑

Popouts alter the local micro-structure by creating stress concentrations and moisture pathways. These changes can accelerate spalling or scaling in future cycles if left untreated. Understand that not all popouts threaten structure, but larger or well-placed ones can matter over time.

Depth, width, and location help determine risk to load transfer, reinforcement cover, and joint performance. Ongoing deterioration may affect overlays and bond with patches or upgrades. Use a practical checklist to monitor signs and decide when to repair or retrofit.

Surface vs structural concerns

Popouts can range from minor cosmetic issues to serious structural problems. Shallow, small popouts on the surface might seem harmless, but they can hide deeper issues.

Cosmetic popouts: These are usually less than 1/4 inch deep and wide, with no visible cracks or signs of delamination. They don’t affect load transfer or reinforcement cover significantly.

Structural popouts: Anything deeper than 1/4 inch, especially those exposing rebar or showing signs of delamination, should raise alarm bells. These can compromise the structural integrity by reducing reinforcement cover and allowing water to reach steel, leading to corrosion.

How popouts accelerate deterioration

Popouts create pathways for moisture and chlorides to penetrate the concrete, setting off a chain reaction of damage. Here’s how:

1. Moisture ingress: Popouts allow water to seep in, especially during rain or snowmelt. This water can freeze and thaw, causing further damage.

2. Corrosion initiation: When moisture reaches the steel reinforcement, it can cause corrosion. This expands the steel, pushing against the concrete and creating more cracks and popouts.

3. Spalling and scaling: As corrosion progresses, it weakens the concrete around the rebar. This leads to larger pieces of concrete breaking off (spalling) or flaking away (scaling), exposing more steel and accelerating the deterioration process.

Back to top ↑

Start with a durable mix and proper aggregate gradation to minimize shrinkage and popout risk. Consider appropriate air-entraining agents and controlled set practices if you’re specifying retarders. Check labels and manufacturer notes to confirm guidance for your project.

Focus on curing, moisture management, formwork quality, and finishing sequence to avoid weak zones. Manage bleed water and timing of finishing, and keep an eye on honeycombing risks. Always reference code or product instructions and local requirements when planning the job.

Material selection and aggregate testing

Choosing the right materials is crucial to prevent popouts. Here’s what you need to consider:

• Aggregate quality: Use clean, hard, durable aggregates. Avoid reactive or weak ones that cause expansion and cracking.
• Gradation: Specify a well-graded mix for better compaction and strength. Avoid fine or coarse aggregates alone.
• Cement type: Use Type I or II cement for most jobs. Type III accelerates setting but may cause early-age cracking if not properly cured.
• Fly ash/slag: These can replace up to 20-30% of cement, improving durability and reducing heat of hydration.
• Air entraining agents: Add these to create tiny air bubbles that improve freeze-thaw resistance. Avoid over-air entrainment causing weak surfaces.

Proper mix design, placement, and curing

The right mix design and proper placement ensure a strong, durable concrete surface. Here’s how:

Mix design: Optimize the water-cement ratio (0.45-0.60) for strength and durability. Too much water weakens the mix.

Placement: Consolidate properly to remove air pockets that cause honeycombing and weak zones. Use a vibrator or poker vibe, but avoid over-vibration causing segregation.

Finishing: Finish at the right time (when bleed water has disappeared) to prevent exposing fine aggregates and creating weak surfaces. Use a broom or trowel finish as needed.

Curing: Keep concrete moist and cool during curing for proper hydration and strength development. Seal or use wet burlap covers for best results.

Back to top ↑

Establish a simple inspection cadence that fits your climate and usage, with seasonal pushes before winter and before wet seasons. Decide who will perform the checks, whether a DIY approach or a contractor is appropriate. Use clear criteria for when to escalate.

Look for signs like hairline cracks, small popouts, moisture intrusion, and staining around joints. Create a light recordkeeping template with dates, locations, and photos. Schedule repairs based on risk and urgency to prevent larger problems.

Inspection frequency and what to record

Check your concrete regularly to catch popouts early. Use this checklist for guidance.

Begin by defining scope: small popouts may need temporary patching before permanent repair, depending on size, depth, and movement. Assess the cause and inspect surrounding concrete for damage and moisture. Note whether the cone is loose or seated.

Move through preparation, then choose temporary options like quick-setting patch or epoxy-putty for short-term exposure. For permanent repair, select an injection or cementitious fill with texture matching, and plan a careful application sequence that includes curing management.

Temporary vs Permanent Repairs

Small popouts may not always require a full-blown repair. Sometimes, a quick temporary fix is all you need until you can schedule a proper repair.

Temporary patches are great for short-term exposure, like when you’re waiting for warmer weather or better access. They set quickly and can be done with minimal prep. But remember, they won’t last forever and shouldn’t be used as permanent solutions.

A permanent repair, on the other hand, is needed when the popout is deep, shows signs of movement, or you want a long-lasting solution. These repairs require more preparation but will give you peace of mind knowing your concrete is properly fixed.

Clarify what you need for assessment versus repair and flag items that typically require a contractor. Start with PPE and safety gear, then gather assessment tools and repair materials. Keep a short list so you’re ready to start.

Assemble the common items: chisels, hammers, brushes, moisture meters, level and tape, patch compounds, bonding agents, epoxies or polyurethanes, and curing supplies. Include tools for preparation and application, and note which items should be handled by a pro for safety or structural reasons.
