Bonding Old to New Concrete at Vertical Faces: Keys, Dowels, and Epoxy vs Cement Slurry

There are three practical ways to join old and new concrete on a vertical face: mechanical keys (stubs, grooves, and roughening), dowels/anchorage (inline or staggered pins grouted or epoxied into holes), and adhesive bonding (epoxy systems or cementitious slurry applied to the interface). Each works differently—keys give aggregate interlock and a local shear path, dowels provide reinforcement-like load transfer through embedded connectors, and adhesives create a thin bond layer that transmits shear and some tension if properly applied.

On a jobsite you decide by assessing surface condition, expected loads, and exposure: prep (clean, profile, control moisture) matters for every method, substrate compatibility varies with concrete age and porosity, and load-transfer mechanics differ (keys rely on aggregate interlock, dowels on bearing and shear through the pin, adhesives on bond-line shear). Check product data sheets or design documents for hole sizes, anchor diameters, and cure windows before you start, and plan safe sequencing and inspection points during and after cure.

Mechanical keys and chased profiles

Mechanical keys create interlocks between old and new concrete by forming grooves, saw cuts, or roughening the surface. This method works best when you need to transfer shear loads across the interface.

Grooves: Chased into the existing concrete, they provide a positive mechanical grip for the new concrete. Use them when you expect significant movement or heavy loads.

Saw cuts: Made with a diamond blade, these create deep, narrow slots that lock in the new concrete. They’re ideal for transferring tension forces and preventing delamination.

Roughening the surface with tools like shot blasting or scarifying increases the surface area and improves adhesion. It’s useful when you need to bond small areas or have limited access.

Dowel bars and connectors

Dowel bars are steel rods that transfer loads across the interface by creating a mechanical connection. They’re typically used in situations where you need to join large, heavy structures or expect significant movement.

Inline dowels: Placed in a straight line, they’re easy to install and suitable for simple, linear connections. Use them when you want to align two surfaces end-to-end.

Staggered dowels: Arranged in an offset pattern, they provide better load distribution and are ideal for complex or curved interfaces. They require careful planning and installation.

Dowel bars can be filled with grout or epoxy to improve their bond with the surrounding concrete. Always follow manufacturer’s guidelines for hole sizing and fill material selection.

Adhesive bonding: epoxy and cement slurry

Adhesives bond old and new concrete by creating a strong chemical link between the two surfaces. They’re useful when you need to join small areas, prevent water ingress, or want a smooth finish.

Epoxy adhesives: High-performance polymers that create a strong, durable bond. Use them for critical applications where strength and durability are paramount. They require careful surface preparation and precise mixing.

Cementitious slurries: A mixture of cement, sand, and water, they form a hydraulic bond with the concrete substrate. They’re easy to apply but offer less strength than epoxy adhesives. Use them for non-critical applications or when you need a quick, simple solution.

Always ensure surfaces are clean, dry, and free from contaminants before applying any adhesive. Follow manufacturer’s guidelines for mixing, application, and cure times to achieve the best results.

Back to top ↑

Mechanical keys are durable and simple to inspect but need clean, open profiles and may not handle large tensile loads; dowels offer reliable shear and tension transfer but require drilling, alignment control, and proper anchorage fill; epoxy bonds can deliver high bond strength when surfaces are clean and dry, while cementitious slurry tolerates wetter substrates and provides a monolithic cement-to-cement interface. Each option trades off ease of install, sensitivity to contamination, and suitability for outdoor exposure or freeze-thaw cycles.

When choosing, weigh durability, load type, and access: dowels excel under dynamic, high-shear conditions but add labor and equipment; keys are low-tech and good for retrofit finishes; epoxy gives high immediate strength but needs strict surface and moisture limits; slurry systems are more forgiving but slower to reach design strength. Consult manufacturer instructions and local codes for environmental resistance, and plan inspection intervals, likely maintenance, and repair strategies before committing to one approach.

Performance and durability trade-offs

Each method has its strengths and weaknesses when it comes to long-term performance. Let’s break down how keys, dowels, epoxy, and cement slurry hold up over time.

Keys and Dowels: These mechanical methods rely on interlocking with the new concrete. They’re robust but can be susceptible to corrosion if not properly protected. Bond strength is good but may degrade under prolonged stress or harsh environments.

Epoxy: Epoxy provides excellent bond strength and durability. It’s resistant to moisture ingress, freeze-thaw cycles, and chemical exposure. However, it can be sensitive to UV aging and requires careful surface preparation.

Cement Slurry: This method is more susceptible to environmental degradation. It can crack under tension or debond due to moisture ingress. Bond strength may not match epoxy or mechanical methods but is typically sufficient for many applications.

Cost, schedule, and labor considerations

The cost, time, and skill required vary significantly between methods. Here’s what to expect:

Keys and Dowels: These are typically the most affordable options but require more labor for installation. They don’t have a cure time like adhesives, so they can speed up project schedules.

Epoxy: Epoxy is usually mid-range in cost but requires skilled labor for application. Cure times can extend project durations, especially on vertical faces where gravity affects curing.

Cement Slurry: This method is often the most economical but also requires careful mixing and application. It has a longer cure time compared to epoxy, which can impact scheduling.

Compatibility and environmental limitations

Each method has its own set of compatibility and environmental limitations:

Keys and Dowels: These methods are generally compatible with most concrete types but may not be suitable for very thin walls. They’re robust to temperature changes but can corrode if not protected.

Epoxy: Epoxy is compatible with most substrates but requires a clean, dry surface. It’s sensitive to high temperatures during application and low temperatures during curing. UV exposure can degrade its performance over time.

Cement Slurry: This method is less discriminating in terms of substrate compatibility but is more susceptible to environmental factors like moisture ingress, freeze-thaw cycles, and chemical exposure. It’s not recommended for applications where these conditions are prevalent.

Back to top ↑

Start with a clear on-site assessment: look for delamination, cracking, laitance, coatings, contamination, and moisture paths, and record whether the substrate is recently cast or aged concrete. Note reinforcement exposure, existing repairs, and any foreign materials that will prevent a tight bond so you can decide whether mechanical removal or chemical cleaning is required.

Prepare the surface with the right method—scabbling, shot blasting, or grinding to open the profile, remove contaminants, and square edges for keys or dowels—and verify profile and cleanliness with a visual check or a surface-profile gauge as recommended by product data sheets. Measure substrate moisture and pH where required, follow the bonding product’s primer or slurry compatibility instructions, and document the condition with photos and sign-off before applying adhesive or installing anchors.

Cleaning, profiling, and substrate repair

Start by cleaning the surface. Pressure washing is usually enough, but you might need sandblasting or grinding for tougher jobs.

Profiling: You want a rough surface (Rz 5-10) for better bonding. Use a scabbling hammer or shot blasting machine to achieve this.

Repair any damaged areas before bonding. Patching compounds can help, but if the damage is severe, you might need to replace the concrete entirely.

Moisture, temperature, and timing considerations

Moisture can ruin your bond. Test both old and new concrete with a pre-wli or in-situ moisture test. If it’s too wet, wait for it to dry out.

Temperature: Ideal bonding temps are between 50-80°F (10-27°C). Too hot or cold can slow cure times or weaken the bond.

Time your work carefully. Once you’ve prepped the surface, apply the adhesive within 24 hours to maintain optimal conditions.

Back to top ↑

Define what the joint must carry—shear, tension, or both—and choose a method that matches those demands before you start work. For keys, cut or form grooves with clean sharp edges, ensure the substrate is free of dust and water, and place the new concrete or grout to achieve full contact without excessive adhesive thickness.

For dowels, drill to the specified depth and diameter, clean drilled holes thoroughly, use an alignment jig for straight placement, and fill with the correct in-fill material per the manufacturer’s instructions; for adhesives, follow mixing, pot life, and substrate moisture limits from the product data sheet and apply within the specified working window. Plan access and formwork for vertical surfaces, check alignment and embedment during installation, and perform bond checks after cure using the chosen verification method.

Installing keys and chased profiles

To create mechanical interlocks on vertical faces, you’ll need to install keys or chase profiles. Here’s how:

Keys: Cut grooves into the old surface using a diamond blade or cast them during new concrete placement. Grooves should be 1″-2″ deep, spaced 6″-12″ apart, and follow a consistent pattern (e.g., straight lines or herringbone). Ensure surfaces are clean and dry for proper adhesion.

Chased profiles: Chase profiles into the old surface using a chisel and hammer or a rotary hammer with a chisel bit. Fill grooves with grout, ensuring it’s level with the surface. Use temporary supports to keep vertical joints aligned during curing.

Dowel drilling, anchorage, and alignment

For shear load transfer, install dowels at the interface. Here’s how to drill and align them:

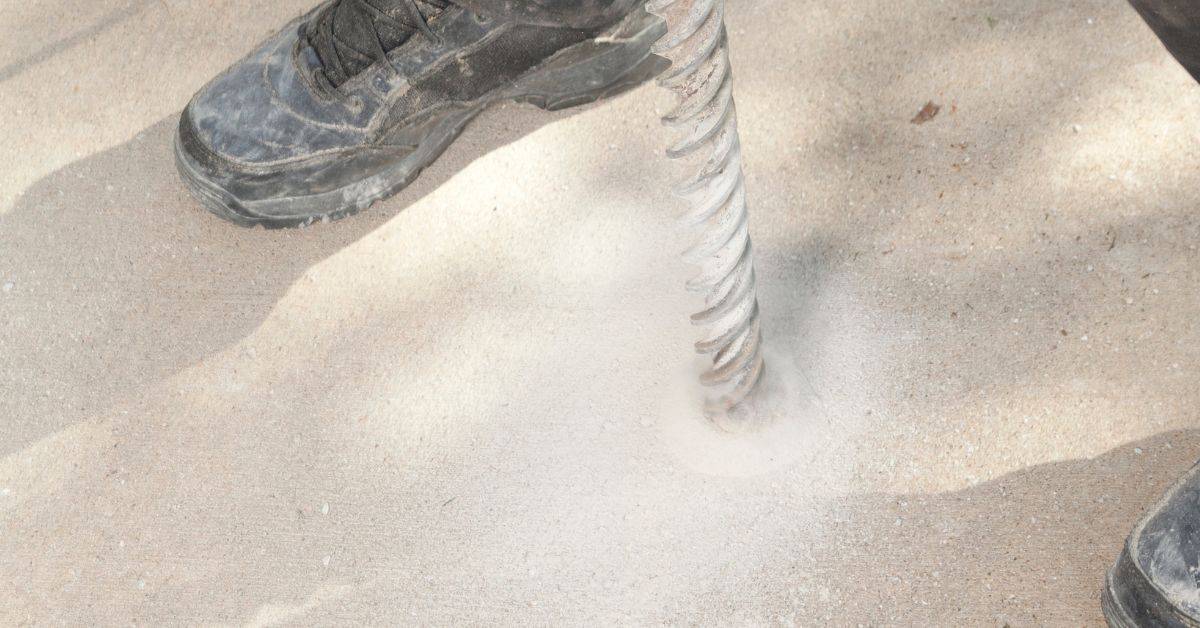

Drilling: Use a diamond core bit or a rotary hammer with a masonry drill bit to create holes in both old and new concrete. Keep holes clean by blowing out debris.

Alignment: Ensure dowels are aligned using alignment jigs. Drill holes to the correct depth, usually 2/3 of the dowel’s length. Insert dowels, either through-bolted or epoxy-bonded, and cure properly according to manufacturer guidelines.

Applying epoxy vs cement slurry on vertical surfaces

Epoxy adhesives and cementitious slurries are used for bonding vertical faces. Here’s how to apply them:

Epoxy: Mix epoxy resin and hardener according to the manufacturer’s ratio (usually 1:1 or 2:1). Apply using a notched trowel, ensuring even coverage. Use thixotropic products for vertical applications to prevent sagging. Protect from rain and direct sunlight during curing.

Cement slurry: Mix cement with water to form a thick paste (usually 3-4 parts cement to 1 part water). Apply using a trowel, ensuring even coverage. Use a primer on the old surface to improve adhesion. Protect from rain and excessive drying during curing.

Back to top ↑

Think of the bonded face as part of the load path: if the goal is monolithic behavior the interface must transfer axial, shear, and bending forces without creating a weaker plane. Use shear keys, dowels, or a specified adhesive that can handle the calculated actions, and bring an engineer in when load cases, span, or exposure elevate risk beyond routine retrofit work.

Assess old concrete condition and surface prep needs since bond quality ties directly to composite action; check product data sheets and structural criteria for dowel spacing, embedment, and adhesive performance under expected temperatures and moisture. Include verification—pull-off or shear tests, visual inspections, and documented acceptance criteria—and follow up with protection during curing to avoid thermal or moisture-induced bond loss.

Load transfer, spacing, and embedment fundamentals

When bonding old to new concrete at vertical faces, understanding load transfer is crucial. This happens through embedment of reinforcement from the new pour into the existing structure.

Embedment length: This is how far a dowel or reinforcing bar extends into the existing concrete. It’s usually specified in project drawings or local codes. Longer embedment means better load transfer and resistance to pullout.

Dowel spacing: Dowels should be spaced evenly across the bonding face. Too wide, and you risk weak points; too close, and you waste material. Check your project specs for recommended spacing.

Load path considerations: Ensure the combined member behaves monolithically where needed. Joint detailing can create weak links if not designed properly. Consult with a structural engineer if unsure.

Assessing residual capacity of existing concrete

Before bonding, ensure the existing concrete can handle the new loads. Here’s how:

Evaluate member capacity: Check if the existing member can bear the additional weight and forces. If not, reinforce or support it first.

Assess repair adequacy: If previous repairs were made, ensure they’re sound and won’t fail under new loads. If unsure, consult a structural engineer.

Supplemental support: If the existing member is weak, consider supplemental support before bonding to prevent failure.

Gather the right kit: surface prep tools (scarifier/shot blast or grinder), drills and bits for dowels, mixers and dispensing equipment for adhesives, trowels and placing tools, PPE, and access equipment. Match materials to the job—appropriate epoxy or cementitious slurry, grout for dowels, anchors or pins—and verify each product’s technical data sheet for compatibility, pot life, and application limits.

Consult relevant standards and manufacturer instructions for surface prep, moisture limits, and adhesive performance, and factor labor, equipment rental, and contingency for difficult prep or weather into estimates. Plan quality checks—surface profile measurement, clean hole verification, and cure confirmation—and document specs and test results so costs and risks are traceable if a rework or additional testing becomes necessary.

Material specs and compatibility to check

Choosing the right materials is crucial for a strong, lasting bond between old and new concrete. Here’s what to look for when selecting your supplies.

• Epoxy systems: Check manufacturer data sheets for type, pot life, cure time, and compatibility with your substrate conditions. Avoid using epoxy in high moisture or low pH environments without proper primers.
• Cementitious slurry: Look for ASTM C887/C938 ratings indicating bond strength and durability. Ensure it’s compatible with your existing concrete type and age.
• Dowels or mechanical anchors: Check spacing guidelines (usually 12-16 inches on center) and ensure they’re designed to bear the expected loads.
• Adhesion promoters: Use these to enhance bond strength, especially with challenging substrates. Follow manufacturer instructions for application and timing.
• Formwork and release agents: Choose formwork that’s sturdy enough to hold new concrete without warping or bending. Release agents should be compatible with your chosen concrete mix.

Cost and budgeting factors

Understanding the cost drivers for this project will help you create an accurate budget. Here are the major factors to consider:

Materials: The type of bonding agent (epoxy or cement slurry) and dowels used will significantly impact material costs. Expect epoxy to be more expensive than slurry but offer better performance.

Labor: Skilled labor for drilling, doweling, mixing, troweling, and curing can add up quickly. Plan for these tasks to take longer on vertical faces.

Access/formwork needs: If your project requires special access equipment or complex formwork, budget accordingly. Renting equipment may be cheaper than purchasing but consider potential downtime if rentals aren’t available.

Testing and contingencies: Allocate funds for testing the bond strength of your repair and set aside a contingency (around 10-15% of your total budget) for unexpected issues like tough prep or rain delays.

Back to top ↑

Implement a QC plan that covers substrate verification, mix and application checks, cure monitoring, and final bond testing; keep inspection records and photos at each step. Use pull-off or shear tests where required and perform visual inspections for voids, excessive adhesive thickness, or contaminated bond-lines before and after cure.

Common on-site mistakes include poor cleaning, incorrect primer choice, wrong mix ratios, misaligned dowels, and inadequate cure protection; each has practical remedies such as re-prep, re-drilling, or localized repairs guided by product instructions. Maintain fall protection, ventilation for solvent-bearing epoxies, and safe access practices, and learn from short case examples where correct prep and sequencing prevented failures while shortcuts produced costly rework.

Quality control and testing methods

On-site quality control is crucial for successful vertical concrete bonding. Regular checks ensure the bond’s integrity from start to finish.

Substrate Preparation Verification: Inspect surfaces before bonding. They should be clean, sound, and free of laitance or contaminants. Use a wire brush or vacuum to remove any debris.

Adhesive/Slurry Mix Checks: Follow manufacturer guidelines for mixing epoxy or cement slurry. Regularly check the mix’s consistency and pot life during application.

Cure Monitoring: Monitor curing progress closely. Maintain consistent temperature and humidity levels to ensure proper cure. Use a moisture meter to test cured surfaces before proceeding with further work.

Safety precautions, PPE, and access planning

Vertical concrete bonding presents unique safety challenges. Follow these guidelines to work safely:

Fall Protection: Use fall arrest systems when working at heights. Ensure all equipment is in good condition and used correctly.

Proper Ventilation: Epoxy and cement slurry can emit harmful fumes. Ensure adequate ventilation, especially in enclosed spaces. Use respiratory protection if necessary.

Safe Handling of Resins/Dust Control: Handle epoxy and concrete slurry carefully to prevent spills and exposure. Wear appropriate personal protective equipment (PPE), including gloves, safety glasses, and protective clothing.

Access Planning: Plan safe access to work areas. Use stable ladders or staging, and secure them properly before use. Install edge barriers where necessary to prevent falls.

Short case studies and lessons learned

Here are two brief case studies illustrating successful vertical concrete bonding:

Case Study 1 – Patching a Column Face: A construction crew needed to patch a damaged column face. They thoroughly cleaned the surface, applied a primer, and used epoxy to bond the patch. The patch was securely attached, and the repair was structurally sound.

Lessons Learned: Proper surface preparation and using the right adhesive are key to successful vertical bonding.

Case Study 2 – Bonding a Jacket: A homeowner wanted to bond a concrete jacket around an existing column. They ensured the surface was clean, applied a cement slurry, and used dowels for added strength. The jacket bonded successfully and increased the column’s load-bearing capacity.

Lessons Learned: Using dowels in conjunction with adhesives can enhance bond strength and durability.
