Chloride Penetration in Concrete: Why Coastal Slabs Fail and How to Slow It Down

Chloride penetration is the process by which chloride ions move from the environment into concrete. It involves physical diffusion, convection with moisture movement, and chemical binding that can trap some chlorides. Coastal sources include seawater spray, tidal splash zones, and marine air, all of which introduce chlorides to the surface and pores.

The main pathways in coastal concrete are diffusion through the pore solution, capillary rise, and moisture-driven transport along gradients. The pore structure, porosity, and saturation level of the concrete influence how fast chlorides move. Coastal-specific conditions such as salinity and wetting-drying cycles elevate the risk and can affect how deep ingress occurs over time.

Sources of chlorides in coastal environments

Coastal settings expose concrete to various chloride sources. The primary ones are:

Sea spray: Salt-laden droplets carried by wind can travel kilometers inland, depositing chlorides on surfaces.

Tidal splash zones: Areas frequently splashed by seawater in tidal cycles absorb chlorides directly into concrete.

Airborne salts: Marine atmospheres carry salt particles that settle and penetrate concrete over time.

Contaminated materials: Incorporating chloride-contaminated aggregates or using seawater for mixing can introduce chlorides initially.

Transport mechanisms: diffusion, capillary suction, and migration

Chloride ions move into concrete through several processes:

Diffusion: Chlorides spread from high to low concentration areas within the pore solution. Moisture cycles accelerate this.

Capillary suction: Water, along with dissolved chlorides, is drawn upward through tiny pores in concrete, especially during drying-wetting cycles.

Migration: Chloride ions are driven deeper into concrete due to electrical fields generated by moisture movement and temperature changes.

Environmental and material factors that affect penetration

Material choices and environmental conditions significantly impact chloride penetration. Here are key factors:

• Permeability: Lower permeability reduces ingress. Use denser mixes, lower water-to-cement ratios.

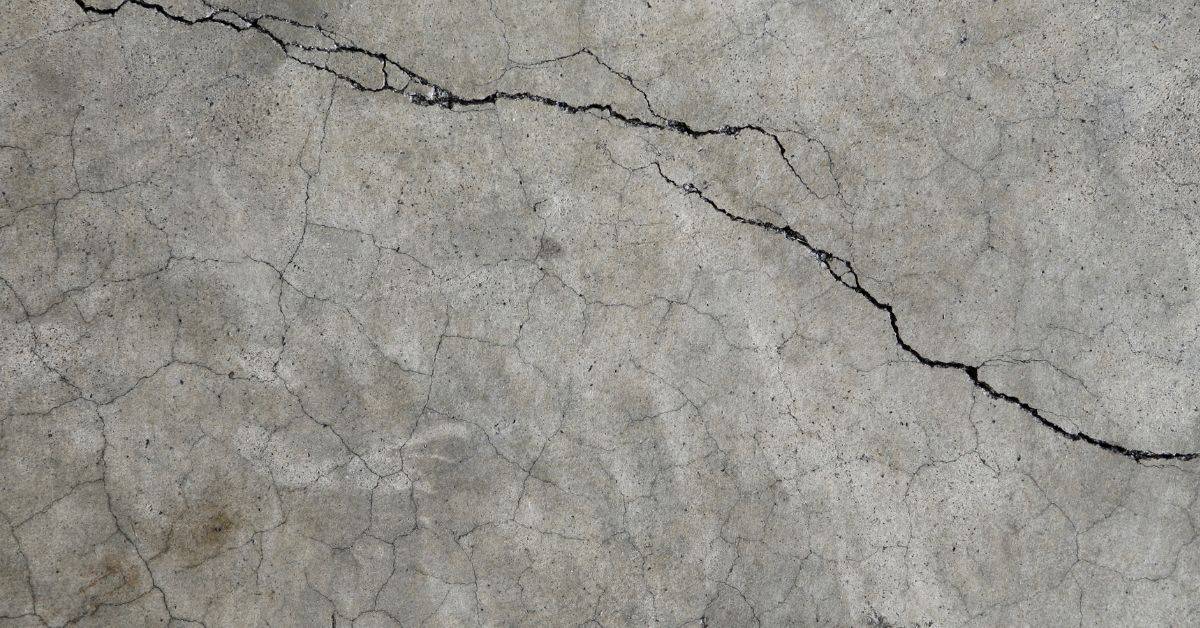

• Cracking: Cracks act as direct pathways for chlorides. Prevent cracking with proper reinforcement and joint detailing.
• Cover depth: Thicker cover slows penetration. Design for adequate cover, especially in splash zones.
• Curing quality: Proper curing reduces permeability. Follow recommended curing practices.
• Exposure severity: Harsh coastal conditions accelerate ingress. Use more durable mixes and protective coatings in severe exposures.

Back to top ↑

Chlorides reach the reinforcing steel mainly through diffusion and pore connectivity in coastal concretes, where marine aerosols and splash can play a role. They undermine the protective passive layer on steel, initiating corrosion at vulnerable locations. The process of corrosion then propagates through the steel and surrounding concrete, with rust exerting expansive pressure that can crack and spall the concrete.

Linking micro- to macro-scale effects, chloride-induced corrosion reduces service life and can alter stiffness, ductility, and crack control. This leads to wider crack widths and degraded load transfer in slabs and columns. Over time, exposure can drive serviceability concerns and raise the possibility of premature member deterioration in coastal structures such as slabs, piers, and foundations.

Corrosion initiation and propagation of steel reinforcement

Chlorides can trigger corrosion even without full carbonation. Here’s how:

Initiation: Chlorides break down the passive film on steel, exposing it to oxygen and moisture. This starts a corrosion cell process.

Propagation: Pitting occurs where chlorides concentrate. Active corrosion begins, even if carbonation is not complete. Rust forms, expanding and cracking concrete.

Concrete deterioration modes (spalling, delamination, reduced bond)

Chloride-induced corrosion causes typical failure symptoms:

Spalling: Rust expands, cracking and pushing off concrete cover. This exposes more steel to further corrosion.

Delamination: Corroded steel loses bond with concrete. Layers peel away, reducing structural capacity.

Service life and safety implications

Chloride penetration reduces service life and increases maintenance needs:

Corroded steel weakens concrete. Cracks widen, deflections increase, and load-transfer capacity drops.

Safety: Spalling and delamination create hazards. Falling debris can injure passersby. Structural failure could cause collapse.

Back to top ↑

Design mixes should aim for low permeability by controlling the water-to-cement ratio and incorporating supplementary cementitious materials to reduce capillary porosity. Proper curing is essential to minimize microcracking and early permeability. Selecting appropriate water-reducing admixtures helps maintain workability without sacrificing durability.

Admixtures and surface treatments should be chosen with coastal exposure in mind, including air-entraining agents, corrosion inhibitors, and sealers or hydrophobic treatments. Use surface-applied membranes or penetrating sealers based on exposure and maintenance plans. Cover, reinforcement, and detailing must provide adequate protection, with attention to continuous capillary breaks and joints to limit chloride pathways.

Concrete Mix Design and Admixtures

A good concrete mix is your first line of defense against chloride penetration. Aim for low permeability by keeping the water-to-cement ratio low.

Use supplementary cementitious materials like fly ash or slag to reduce capillary porosity. These pozzolans react with the lime in cement, forming additional hydration products that fill voids and improve durability.

Select appropriate water-reducing admixtures to maintain workability without increasing water content. Corrosion-inhibiting admixtures can also be added to slow down reinforcement corrosion if chlorides do penetrate.

Follow standards like ASTM C 457 or ACI 201 for mix design guidelines, and always consult with your cement supplier for specific recommendations.

Cover Depth, Reinforcement Detailing, and Crack Control

Adequate concrete cover over reinforcing steel is crucial to protect rebars from chlorides. Specify a minimum cover of 2 inches (50 mm) for coastal exposure.

Protect the cover with corrosion-resistant coatings or wraps at construction joints and other vulnerable areas. Detail capillary breaks, joints, and penetrations to limit chloride pathways.

Control cracking by proper consolidation, vibration, and timing during placement. Avoid cold joints and through-cracks that can act as highways for chloride migration.

Seal construction joints with a flexible sealant or membrane to prevent water and chlorides from entering. Ensure barriers at interfaces are continuous where chlorides are likely to migrate.

Alternative and Corrosion-Resistant Materials

The right reinforcement material can significantly extend your slab’s service life in coastal environments. Here are some options:

• Stainless Steel Rebar: Highly corrosion-resistant, but expensive. Specify 201 or 304 grades for coastal exposure.
• Epoxy-Coated Rebar: Provides a protective barrier against chlorides. Ensure the coating is intact and continuous during installation.
• Fiberglass/FRP Reinforcement: Non-corrosive, but less stiff than steel. Use in combination with steel for best results.
• Galvanized Rebar: Offers temporary protection. Not recommended for severe coastal exposure due to rapid zinc loss.
• Corrosion-Resistant Coatings: Applied on-site, these coatings protect exposed reinforcement and reduce the risk of corrosion.

Back to top ↑

Protective approaches include surface treatments (penetrating sealers or hydrophobic coatings), integral systems (corrosion-inhibiting admixtures or cementitious barriers added during mix), and membrane systems (applied coatings). Each method has a role in reducing chloride ingress, with effectiveness dependent on exposure and substrate condition. Coastal scenarios benefit from pairing approaches to address both surface pore blocking and internal diffusion pathways.

Mechanisms differ: surface treatments block moisture ingress, integral systems slow ion movement, and membranes provide a physical barrier. Durability under marine splash, salt spray, and freeze–thaw varies, so select based on anticipated service life and maintenance capacity. Installation should follow proper surface prep, curing, and substrate conditions, with attention to compatibility with rebar coatings and repairs.

Surface Sealers and Protective Coatings

Surface treatments are the first line of defense against chloride ingress. They work by either blocking pores or creating an electrochemical barrier.

Penetrating silanes/siloxanes soak into concrete, lining pore walls to prevent water and chlorides from entering. They’re great for new, sound surfaces with low moisture content.

Topical coatings, like acrylics or urethanes, form a physical barrier on the surface. They’re versatile but need proper surface prep and can degrade over time.

Epoxies are heavy-duty, high-performance coatings that penetrate deep into concrete. They’re ideal for repairing damaged slabs and providing long-term protection, but they require careful application and have a strong odor.

Integral Waterproofing and Crystalline Technologies

Integral systems are added during the concrete mixing process, providing protection from within. They reduce permeability and self-seal microcracks as they form.

Corrosion-inhibiting admixtures slow down corrosion by chemically blocking it at the steel-concrete interface. They’re easy to use but don’t physically prevent chloride ingress.

Crystalline waterproofing uses proprietary chemicals that react with concrete’s free lime to form crystals, filling capillaries and microcracks. It’s effective in both new construction and remediation, but it can be more expensive.

Integral systems are best for new slabs where you have control over the mix design. They’re not suitable for retrofits or repairs.

Membranes and Barrier Systems

Membrane/barrier systems provide a physical separation between concrete and the external environment. They’re ideal for complex geometries, below-grade structures, and overlays.

Liquid-applied membranes, like polyurethane or modified bitumen, are sprayed or rolled onto surfaces to form a seamless barrier. They’re flexible, allowing for movement, but need careful application and curing.

Sheet membranes, made from PVC, EPDM, or other materials, are laid out in sheets and bonded together. They’re quick to install but can be susceptible to punctures during installation if not handled carefully.

Continuous barrier strategies use overlapping sheets or liquid-applied membranes to create a seamless, watertight layer. They’re ideal for overlays and retrofits, providing immediate protection against chlorides.

Back to top ↑

Focus on practices that enhance designed chloride resistance in coastal slabs, including careful mixing, placement, curing, and inspection. Emphasize mix design choices that reduce permeability while keeping workability. Document batch details and adjust processes as needed for weather and site conditions.

On-site quality control checks should verify batch consistency, correct water content, clean aggregates, and stable temperatures. Standardize curing conditions and protección strategies to minimize premature drying. Use a consistent set of tests and visual checks to catch issues early during a pour.

Coastal slabs face failure drivers from chloride ingress, splash zone exposure, and moisture fluctuations that accelerate reinforcement corrosion and spall. Establish a practical inspection cadence that targets surface integrity and delaminations. Map ingress visually and with targeted nondestructive methods when available.

Monitoring should track progression over time and guide timely interventions. Remediation options include crack sealing, surface treatments, repair of delaminations, and protective coatings. Build a maintenance routine around seasonal cycles, joint resealing, and drainage improvements to minimize standing water near treated areas.

Develop a framework to compare upfront costs with long-term lifecycle expenses, using a consistent planning horizon. Consider material choices, installation, protection systems, and ongoing maintenance in the analysis. Document assumptions clearly to support comparisons.

Economic drivers include anticipated exposure level, cover thickness, and maintenance intervals. Use a decision framework that weighs preventive measures against remediation needs, and consider scenarios that reflect coastal conditions. Provide practical checklists for stakeholders and note any warranties or regulatory considerations that may apply.

Comparing upfront prevention vs remediation lifecycle costs

Investing in high-quality materials or treatments now can save you from recurring repair costs later. But how do you decide?

Prevention: Upfront cost is higher, but it’s a one-time investment. It keeps your slab protected for its entire service life.

Remediation: Cheaper upfront, but repairs can add up over time. Plus, you risk downtime and disruption to your property.

Evaluate the trade-offs: How much will recurring repairs cost? What’s the expected lifespan of your slab with prevention vs remediation?

Key cost drivers and risk-based prioritization

Not all slabs are created equal. Some need more attention than others.

Exposure severity: Slabs in direct contact with saltwater or tidal zones face higher risks. Prioritize these areas.

Asset criticality: If a slab supports a critical structure, it’s worth investing more to keep it safe and functional.

Accessibility: Easy-to-reach slabs can be maintained or repaired quickly. Remote ones might need extra planning and resources.

Expected service life: Slabs with shorter expected lives may not warrant high-end treatments, but consider the risk of frequent repairs.

Tools for decision-making and procurement tips

Use these tools to make informed decisions when procuring materials and contractors.

• Condition assessments: Inspect your slabs regularly. Identify weak points, cracks, or signs of corrosion. This helps target repairs and prioritize prevention.
• Simple lifecycle models: Estimate upfront costs vs long-term expenses. Consider inflation, maintenance intervals, and expected service life.
• Clear specifications: When procuring materials, be specific about mix designs, protective measures, and workmanship quality. This ensures you get what you need.
• Optional tools: Rentable equipment like moisture meters or cover meters can help assess your slab’s condition. Prices vary but expect to pay around $50-$100 per day.
• Price cues: Get quotes from multiple suppliers and contractors. Ask about discounts for bulk purchases or long-term contracts.

Back to top ↑

Safety and PPE are essential when applying treatments or working near water. Plan for ventilation, proper handling of chloride-based products, and emergency procedures for spills or exposure. Environmental precautions should address runoff containment and protection of nearby soils and vegetation.

Regulatory guidance includes relevant standards, codes, and permits, with reminders to verify them before work begins. Document best practices for surface prep, curing, and environmental windows, and establish QA checks to catch common mistakes. Keeping records of products, dates, and approvals helps with accountability and future maintenance.

Safety and environmental precautions during application

Protecting yourself, your crew, and the environment is crucial when applying chloride penetration treatments. Here’s what you need to know:

Personal Protective Equipment (PPE): Wear gloves, safety glasses, and a long-sleeved shirt. For spray applications, use a respirator with a particulate filter.

Ventilation: Ensure adequate ventilation in enclosed spaces. If possible, work outdoors or use fans to keep the area well-ventilated.

Spill containment and MSDS: Have spill kits ready and follow Material Safety Data Sheet (MSDS) guidelines for safe handling and disposal of spills. Consult local environmental regulations before applying treatments near water sources.

Codes, standards, and when to consult specialists

Follow local codes and industry standards to ensure your treatments are applied correctly and safely. Here’s where to find relevant information:

Local codes and standards: Check with your local building department for applicable codes and standards. The American Concrete Institute (ACI) and the American Society of Civil Engineers (ASCE) also publish relevant guidelines.

Specialist consultation: For complex projects or high-value assets, consider engaging corrosion specialists or structural engineers. They can provide tailored advice and ensure your treatments are applied effectively.

Regularly review and update your knowledge to stay current with best practices and new standards.
