Movement Control at Material Changes: Preventing Cracks Where Walls Meet

Introduction

Movement control at material changes means allowing tiny shifts where different building materials meet to prevent cracks.

Key takeaways

  • Align movement joints at material change lines to control crack paths.
  • Use proper backing and sealant systems suited to substrate movement.
  • Follow manufacturer guidelines and local codes for joint spacing and materials.
  • Backer rods prevent sealant slump and ensure proper profiles.
  • Install flashings and sealant at transitions to avoid water intrusion.
  • Inspect joints after curing and keep monitoring for cracking.
  • Wear eye/hand protection during sealant application and clean tools promptly.
Table of Contents

Why Cracks Form at Material Change Lines

Cracks at material change lines happen when different wall assemblies move differently. Differential movement creates stress where surfaces meet and where patchwork joints don’t align with the rest of the structure. Look for vulnerable spots at corners, window openings, and transitions between masonry, concrete, and framing.

Common scenarios include shifts from temperature and moisture cycles, settling, and seasonal movement. These forces concentrate along the interfaces, especially where substrates have different stiffness or drying histories. Always check the project plans and site conditions to locate likely trouble zones before you start work.

Differential movement mechanisms

Cracks at material change lines happen due to different parts of your structure moving at different rates. This is called differential movement.

Thermal expansion is a big player here. As temperatures rise, materials expand. If one part expands more than another, it causes stress and can lead to cracking.

Moisture also plays a role. When materials absorb water, they swell. If they dry out, they shrink. This movement isn’t uniform across different materials, so cracks can form where they meet.

Shrinkage is another culprit. Concrete, for instance, shrinks as it cures. If it’s restrained by a stiffer material, like brick, the stress can cause cracking.

Elastic modulus differences also matter. Stiffer materials resist bending more than flexible ones. This means they take up less space when bent, putting extra strain on the connection with the more flexible material.

Typical weak points and intersections

Cracks often start where different materials meet. Here are some common trouble spots:

Corners are particularly vulnerable. The change in direction concentrates stress, making it easier for cracks to form.

Control joints can also be weak points. If they’re not properly detailed or installed, they may not control cracking as intended.

Floor-to-wall transitions are another common crack site. The different movements of the floor slab and wall can cause stress that leads to cracking.

Abrupt substrate changes can also cause problems. For instance, if you have a thick layer of concrete on soft soil, the differential settlement can cause cracks where the concrete meets the wall above it.

Environmental and loading contributors

Temperature cycles, humidity changes, structural settlement, wind, and seismic movement all increase the demand on your joints. Here’s how:

Temperature cycles cause materials to expand and contract repeatedly. This repeated movement can lead to fatigue and cracking.

Humidity changes affect moisture-induced movement. In humid conditions, materials absorb water and swell. When it dries out, they shrink. These movements aren’t uniform across different materials, so cracks can form where they meet.

Structural settlement happens over time as the structure settles into its foundation. If one part settles more than another, it causes differential movement that can lead to cracking.

Wind and seismic movement put extra load on your structure. This increased loading can cause stress that leads to cracking at material change lines.

Back to top ↑

Design Principles for Movement Joints at Wall Interfaces

Start with a design-first mindset: decide the type and location of joints before you lay out surfaces. Place joints where movement is expected and where they won’t compromise structure or weather sealing. Align joint positions with framing lines and visible architectural cues when possible.

Size joints to accommodate anticipated movement and coordinate with structural and architectural plans. Verify that the joint layout follows any local rules or manufacturer guidance. If in doubt, review labels and data sheets for compatible systems before proceeding.

Choosing joint types (control, expansion, isolation)

When it comes to wall interfaces, you’ve got three types of movement joints to choose from: control, expansion, and isolation. Each has its own job, so let’s keep ’em straight.

Control Joints – These are your everyday, run-of-the-mill joints. They’re used where you want to control where cracking occurs. You’ll find ’em in slabs on grade and exterior walls. To size ’em right, check the manufacturer’s guidelines or local building codes.

Expansion Joints – Now, these are for when you’ve got big movements happening. Think: long spans of concrete or changes in temperature that’ll make your slab dance. They let your concrete move without cracking its pants. Again, check the manufacturer’s advice or local rules to size ’em right.

Isolation Joints – These are for when you want to keep things separate. Like when you’ve got a big ol’ expansion joint, but you don’t want it cracking your fancy new tile floor. They isolate the movement so your pretty stuff stays pretty. You’ll usually find ’em in interior walls or where there’s a change in material.

Now, here’s where some folks mess up: they don’t align their architectural joints with the structural ones. Don’t be that guy. Make sure your fancy lines match up with the movement joints. It’ll save you a world of hurt down the road.

Placement and layout strategy

Plan your movement joints early, it’s cheaper and easier than fixing problems later. Here’s how to place ’em right:

Keep joints away from corners. Corners are stress points, so avoid starting or ending a joint there. Start joints 1-2 inches from corners.

At openings like doors and windows, place joints at least 6 inches away. This stops stress transfer and keeps your opening square. Check manufacturer’s instructions for specific requirements.

When you’ve got different materials or stiffnesses, use isolation joints. These stop stress from one material affecting another. Plan these with your architect or engineer to get it right first time.

Sizing principles and verification

First off, you gotta figure out how much your walls are gonna move. This ain’t guesswork, it’s science. Check manufacturer data and local building codes to get a safe range for expected movement.

Start with a safety margin, say 10-20% more than expected movement. Better safe than sorry, right?

Now, pick your joint width. For most jobs, a joint width of 6 to 12 mm (1/4″ to 1/2″) is a good starting point. But remember, this is just a start. You gotta verify with product specs and standards. Don’t take my word for it, check the label and the manual.

Back to top ↑

Sealant Systems and Backing Materials

Choose sealants based on chemistry, movement range, adhesion, and durability at material interfaces. Consider compatibility with both substrates and environmental exposure where the joint is placed. Avoid generic choices that don’t handle the expected cycles of expansion and contraction.

Explain the role of backer rods and bond breakers clearly: they help form a predictable joint geometry and control adhesive depth. Always verify product data sheets and installation instructions to confirm backing material requirements for your joint profile.

Sealant performance characteristics

When selecting a sealant for your wall interfaces, consider these key properties to ensure it meets your site’s demands.

Movement capability (percent elongation): This determines how much the sealant can stretch without breaking. Match this with the expected movement at your joint.

Modulus: A measure of stiffness. Softer sealants have lower modulus, allowing more flexibility but less resistance to compression.

Adhesion, UV and moisture resistance, and service temperature range: These ensure the sealant sticks well, resists weathering, and performs within your site’s temperature extremes. Refer to technical data sheets for exact values.

Backer rods, bond-breakers, and priming

Backer rods control sealant depth, prevent three-sided adhesion, and support tooling. They’re essential for predictable joint geometry.

Use backer rods with a diameter slightly smaller than the joint width to allow space for the sealant. Primers or adhesion tests may be needed if surfaces are difficult to bond with. Always test adhesion on each substrate before applying sealant.

Bond-breakers, like polyethylene sheets or tapes, prevent three-sided adhesion and make sealant removal easier during maintenance. Apply these before installing backer rods.

Compatibility and material interactions

The materials you choose for your wall interfaces can significantly affect the result. Here’s what to consider:

  • Plasticizers: These can migrate from one material to another, weakening adhesion. Avoid using them near sealants.
  • Paints and coatings: Some can react with sealants, causing discoloration or weak bonds. Test compatibility before application.
  • Concrete sealers: These can interfere with sealant adhesion if not allowed to cure properly. Follow manufacturer’s guidelines for wait times.
  • Metal substrates: Some metals may corrode over time, affecting sealant performance. Use compatible primers and consider using non-corrosive materials.
  • Expansion joints: These can fill with debris or allow water intrusion if not properly sealed. Ensure they’re clean and dry before applying sealant.

Back to top ↑

Installation Best Practices to Prevent Premature Failure

Prepare surfaces thoroughly: clean, dry, and free of dust or contaminants before any sealant work. Create a clean edge to promote good adhesion. Plan the joint sequence so sealants are installed without contamination from other trades.

Profile the joint correctly and tool with a steady hand to avoid gaps, air pockets, or tearing of the sealant. Coordinate timing with other work so that primers, primers, and sealants cure under appropriate conditions per manufacturer guidance.

Surface preparation and cleanliness

Before applying sealant, ensure surfaces are clean and dry. Remove all contaminants like dust, grease, or paint residue.

For concrete, use a wire brush to scrub the surface. For metal, degrease with a suitable cleaner. Test adhesion with painter’s tape to check for any remaining residue.

Drying is crucial. Allow surfaces to dry completely before sealant application. Moisture can prevent proper adhesion and cause premature failure.

If you’re working with new or unusual materials, perform adhesion testing. Apply a small amount of sealant, let it cure, then pull off the tape. If the sealant stays on the surface, it’s ready for application.

Achieving correct joint geometry and tooling

The right joint size and shape distribute stress evenly, preventing cracking. Follow manufacturer instructions for depth-to-width ratios.

  • Joint width: Typically 1/4″ to 1/2″. Too narrow restricts movement; too wide weakens the structure.
  • Joint depth: Usually 1/3 to 1/2 of joint width. Too shallow may cause cracking; too deep wastes material.
  • Backer rod position: Centered in the joint. Use a backer rod installation tool (around $50 to rent) for consistent placement.
  • Sealant application: Apply sealant with a caulking gun ($10-$20). Smooth it out with a sealant smoother or putty knife (around $5) for a concave profile.

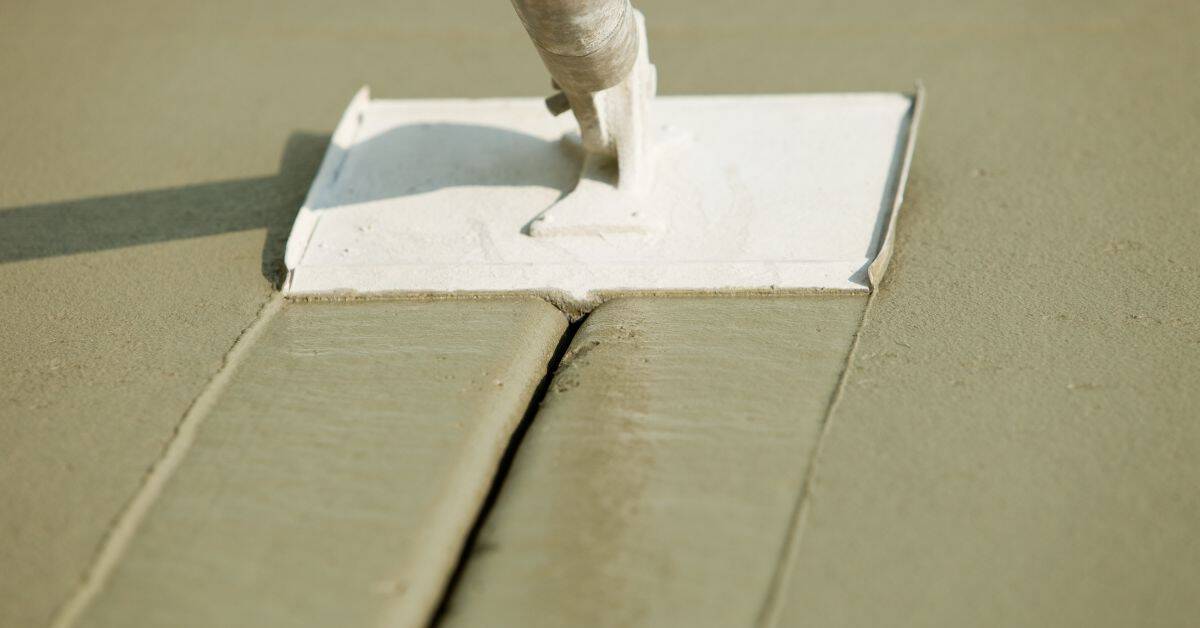

  • Tooling: Use a joint former (around $30 to rent) to create the desired joint shape. Tool immediately after application for best results.<
