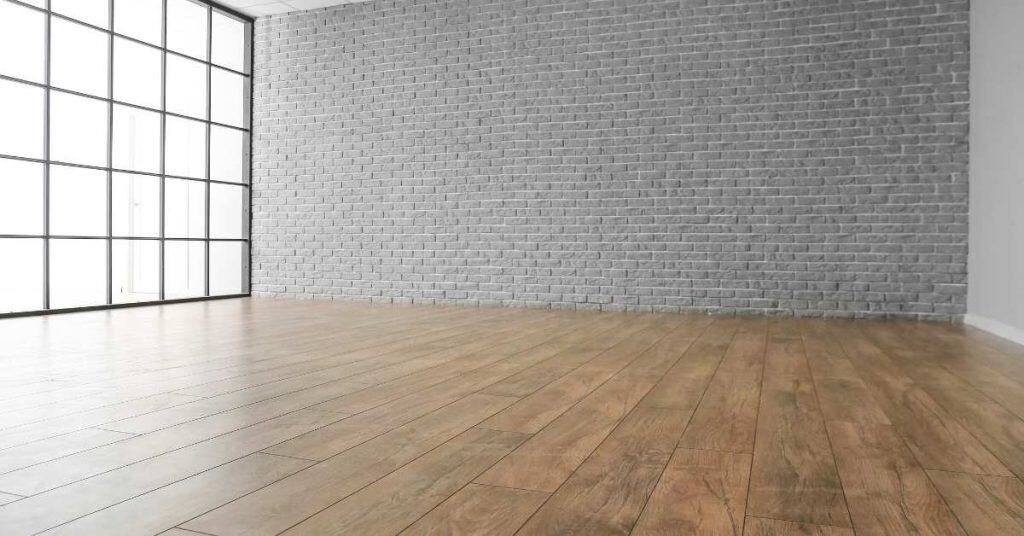

Empty room with wooden plank flooring and large window wall

Maple Flooring over a Radiant Floor Heating System – Causes, Tests & Fixes

/ Off-Topic / By

Introduction

Maple flooring over a radiant floor heating system is solid wood installed on a heated substrate where heat and moisture can make it cup, gap, or warp. Common causes include excess moisture, improper acclimation, and movement of the subfloor or framing. The goal is to understand how heat and moisture interact with maple so you can test and fix issues before they become problems.

Before installation, run moisture tests on the wood and the subfloor and follow the manufacturer’s guidance for acceptable ranges. Acclimate the maple in the installation space so it reaches a stable moisture level, and plan for gradual temperature changes during the first weeks of use. Choose installation methods that allow for natural expansion and avoid forcing the boards tight against heat sources or each other.

Key takeaways

  • Verify radiant heat system compatibility with maple flooring and finishing products per manufacturer instructions.
  • Test moisture in slabs and subfloor: check RH, surface moisture, and vapor barriers before install.
  • Acclimate maple in space-specific time following wood species guidelines and room conditions.
  • Plan installation method: floating or nailed/millwork per system; ensure expansion gaps.
  • Conduct DIY tests for moisture after install and before finishes; re-check RH.
  • Safety: turn off heat during major changes and follow electrical and wiring codes.
Table of Contents

Why Maple and Radiant Heat Require Special Attention

Maple behaves differently from many common hardwoods because of its species characteristics, hardness, and moisture behavior. It’s important to understand how these factors interact with radiant heating. This article will help you assess risks and plan fixes.

Expect guidance on tests to run, like moisture checks and acclimation, plus installation precautions, milling options, and sealing considerations. We’ll also cover planning steps, warranties to verify, and a homeowner checklist before you proceed with maple over radiant heat.

Maple vs. Engineered and Other Species

Solid maple’s dimensional stability is unmatched, but it needs careful handling over radiant heat. Let’s compare:

Solid Maple: Hard (1450 lbf on Janka scale), stable, hygroscopic – absorbs/losses moisture with humidity changes.

Engineered Maple: Stable core, maple top layer. Recommended for radiant heat due to reduced expansion/contraction. But, less durable than solid.

Other Species (e.g., oak, ash): Less stable, more prone to movement under heat. Choose based on your climate and heating system.

How Radiant Heat Changes the Wood Environment

Radiant floor heating dries out subfloors, reducing relative humidity. This speeds up moisture exchange in maple:

Warmer temperatures cause maple to release moisture faster. Drier air pulls more moisture from maple.

This accelerated movement can lead to cupping, crowning, or gaps if not managed properly.

Key takeaway: Radiant heat amplifies maple’s hygroscopic behavior, requiring careful acclimation and monitoring.

Common Failure Modes

Maple over radiant heat can exhibit several visible failures:

Cupping: Edges rise, center sinks. Caused by moisture loss at edges, more pronounced in solid maple.

Crowning (reverse cupping): Center rises, edges sink. Rare but possible if heat is too high or subfloor uneven.

Gaps: Boards separate due to moisture loss. More common in solid maple, less so in engineered.

End-checking/Splits: Cracks at board ends due to wood’s natural tension. Can widen with heat and dryness.

Back to top ↑

Cupping is a maple-specific moisture response that differs from other issues you might see. Visual cues and measurable thresholds help distinguish it from unrelated finish problems. Understanding these signs is the first step to a proper fix.

Root causes fall into four categories: substrate moisture, system design and operation, installation errors, and ongoing maintenance factors. For each, quick diagnostic questions guide you toward the source and a practical remedy.

Substrate and Construction-Related Causes

Cupping in maple floors over radiant heating systems often starts at the base – your subfloor. Here’s what to look out for:

Concrete Curing Moisture: Fresh concrete slabs release moisture as they cure. If not given enough time to dry, this can lead to cupping once heat is applied.

Slab Vapor Drive & Crawlspace Humidity: High humidity in crawlspaces or improper vapor barriers can drive moisture up into your subfloor and maple planks, causing issues.

Improper Moisture Barriers or Adhesives: Using the wrong barrier or adhesive can trap moisture beneath your floor, leading to cupping over time.

Radiant System and Operating Causes

The way your radiant heating system operates can also contribute to maple floor cupping. Here’s how:

Overheating & Uneven Heat Distribution: Hot spots or consistently high temperatures can cause excessive drying, leading to gaps and cupping.

Cycling Behavior: Frequent on/off cycling can create moisture movement within the slab, causing issues over time.

Hydronic vs. Electric Systems: Hydronic systems (water-based) can introduce more moisture into the slab than electric systems, affecting your maple floor’s stability.

Installation and Acclimation Mistakes

Proper installation and acclimation are crucial to prevent cupping. Here are common mistakes to avoid:

  • Inadequate Acclimation: Maple needs time to adjust to your home’s environment before installation. Skipping this step can lead to movement later on.
  • Incorrect Installation Method: Nailing, gluing, or floating maple planks without considering their expansion and contraction can cause cupping.
  • Insufficient Expansion Gaps: Not leaving enough space between walls and planks allows the wood to expand freely, reducing stress on the floor.
  • Plank Width/Grade Choices: Using inconsistent widths or grades can increase the risk of cupping due to varying expansion rates.

Remember, these mistakes can be prevented with careful planning and execution during installation.

Back to top ↑

Pre-Installation Checks and Planning (What to Test and Why)

Start with concrete and subfloor moisture protocols, using tests that inform maple over radiant decisions. Explain why in-situ, surface, and moisture barrier tests matter for a stable install. Know what to verify before you lay a single plank.

Temperature readiness, system commissioning, and wood acclimation are next. Outline how to stage the radiant and what ranges matter for maple movement, plus how to plan for a durable installation with proper moisture control.

Moisture testing protocols

Before you start any floor covering job, you gotta check for moisture. It’s the number one cause of failures. Here’s what to test and why:

Concrete Moisture Vapor Emission Rate (MVER) or Calcium Chloride Test: This tells you if your concrete slab is too damp. Too much moisture can ruin your new floor. Check the manufacturer’s limits, but generally, you want MVER below 3 lbs per 1000 sq ft per 24 hrs.

Relative Humidity (RH) In-Situ Probes: These check the humidity inside the concrete. Again, check the manufacturer’s guidelines, but aim for RH below 75% at 73°F (22°C).

Wood Moisture Content (Pin and Pinless Meters): If you’re installing over wood, use these to check moisture content. Aim for less than 12-14% for solid wood subfloors and 15-17% for plywood.

Temperature and system commissioning checks

Before you start laying your flooring, you need to make sure the slab and the heating system are ready. Here’s what you gotta do:

Check surface temperature. Your slab should be between 65°F (18°C) and 75°F (24°C). Too cold, and your flooring might not stick right. Too hot, and it could warp. Check the temp with an infrared thermometer.

Next, do a dry-run of your heating system. This means firing up the pipes without any water in ’em. You wanna make sure everything’s working right and there are no leaks. Let it run for at least 24 hours to warm up the slab gradually.

Lastly, verify even heat distribution. Walk around the room with your infrared thermometer. You’re looking for any cold spots or hot spots. If you find any, check your manifold and zoning valves to make sure they’re working right. You don’t want any surprises when you lay down your flooring.

Acclimation and site conditions checklist

Before you start installing your maple hardwood flooring, use this checklist to ensure the wood has acclimated properly and that your site conditions are ideal. This will help prevent issues like cupping, warping, or gaps.

  • Check acclimation period: Ensure the maple has been in the room where it’s being installed for at least 72 hours to a week. This allows the wood to adjust to your home’s temperature and humidity levels.
  • Verify indoor HVAC running: Make sure your heating, ventilation, and air conditioning (HVAC) system has been running for at least 24 hours before installation. This helps maintain a consistent environment in the room.
  • Inspect wood packaging: Check that all boxes are intact and undamaged to prevent moisture from entering or leaving the wood during storage.
  • Stack maple properly: Store boards flat on their broad faces, with stickers between layers to allow air circulation. Avoid stacking too high (no more than 4-5 layers) to prevent excessive weight and potential damage.
  • Check equilibrium moisture content (EMC): Use a moisture meter to test the EMC of the maple. Aim for an EMC within 2-3% of your home’s average EMC, which is typically around 6-8% in most U.S. regions.
  • Monitor room temperature: Maintain a consistent room temperature between 60-80°F (15-27°C) during acclimation and installation to prevent sudden changes that could affect the wood’s stability.
  • Avoid direct sunlight: Keep the maple away from direct sunlight, which can cause uneven drying and warping. Close curtains or blinds if necessary.
  • Check subfloor moisture: Before installing the maple, ensure your subfloor has been properly prepared and is dry. Consult your earlier moisture testing protocols for this step.

Quick rule: Always prioritize consistent temperature and humidity control during acclimation and installation to minimize the risk of wood movement issues.

Back to top ↑

Diagnostic Steps and DIY Tests for Installed Maple Floors

Begin with a visual inspection for cupping, gaps, grain shifts, and raised edges. Use moisture mapping across rooms to locate hotspots tied to the radiant system. This evidence-led flow keeps you focused on likely trouble spots.

Learn homeowner-friendly moisture tools and how to interpret readings in relation to maple. Use targeted tests to isolate sources and check how readings change when the heating schedule shifts.

Visual and physical inspection steps

Before you start any repair work on your installed maple floors, follow this checklist to identify issues accurately. Use this guide during daylight hours for the most accurate results.

  • Check patterns near walls, openings, or heat manifolds: Look for cupping or crowning along these areas where moisture levels may fluctuate. Cupping appears as a concave curve, while crowning is convex.
  • Measure cupping depth: Use a straight edge and feeler gauges to measure the gap between the floor and your tool at the deepest point of the cup. Record measurements in affected areas.
  • Document affected areas: Sketch or take photos of problem spots, noting their location for future reference during repairs.
  • Check for gaps between boards: Use a penny (or similar object) to check if it fits snugly between floorboards. Gaps wider than the coin may indicate moisture-related issues.
  • Feel for soft spots: Press firmly on the floor with your hand or knee to identify any spongy or soft areas, which could indicate delamination or rot.
  • Inspect for discoloration: Look for dark stains or yellowing, which can signal water damage or urine contamination (in case of pets).
  • Check for squeaks: Apply pressure to the floor at various points to identify any squeaking, indicating loose subfloor or joist issues.
  • Verify moisture content: Use a moisture meter to check the relative humidity (RH) of the floor and subfloor. Ideal RH is 35-50%.

Quick rule: Always address moisture-related issues before proceeding with any repairs or refinishing work to prevent further damage and costly rework.

Using moisture meters and interpreting results

Moisture meters are your best friend when checking maple floors. Here’s how to use ’em:

Where to take readings:

1. Top surface: Check the top of your floorboards. This tells you if there’s moisture in the wood itself.

2. Underside: Lift a board (be careful, don’t damage it) and check under it. This shows if there’s moisture between the boards or on the subfloor.

3. Subfloor: If you can access it, check your concrete or plywood subfloor. This helps spot any moisture coming from below.

Interpreting results:

Moisture meters show a reading in percentage. Here’s what different readings suggest:

– 0-5%: Dry as a bone. No worries here.

– 6-12%: Slightly elevated. Keep an eye on it, but probably okay for now.

– 13% and up: Too damp. Something’s wrong, and you need to figure out what’s causing the moisture.

Cautious interpretation:

Always check multiple spots. Moisture can vary across your floor. If readings are close to or over 12%, check manufacturer targets for your specific flooring and subfloor type. Better safe than sorry.

Isolating heat vs. water vapor problems

Alright, you’ve checked your maple floor with a moisture meter and found some readings that don’t sit right. Before you start ripping up floors or calling in the pros, let’s figure out if it’s heat or water vapor causing the issue.

Heat can cause expansion and cupping in your maple floor. To check for this:

  • Turn off your heating system.
  • Run a dehumidifier nearby to keep humidity levels steady.
  • Observe the floor over a few days. If the cupping or expansion improves, heat is likely the culprit.

Water vapor, on the other hand, can cause moisture issues at the subfloor level. To check for this:

  • Tape a large piece of plastic sheeting to the floor, creating a small tent.
  • Leave it there for a few days, then check underneath. If there’s condensation, water vapor is likely the problem.

If neither test gives clear results, you might have both issues at play. In that case, it’s time to check base compaction and consider professional help.

Back to top ↑

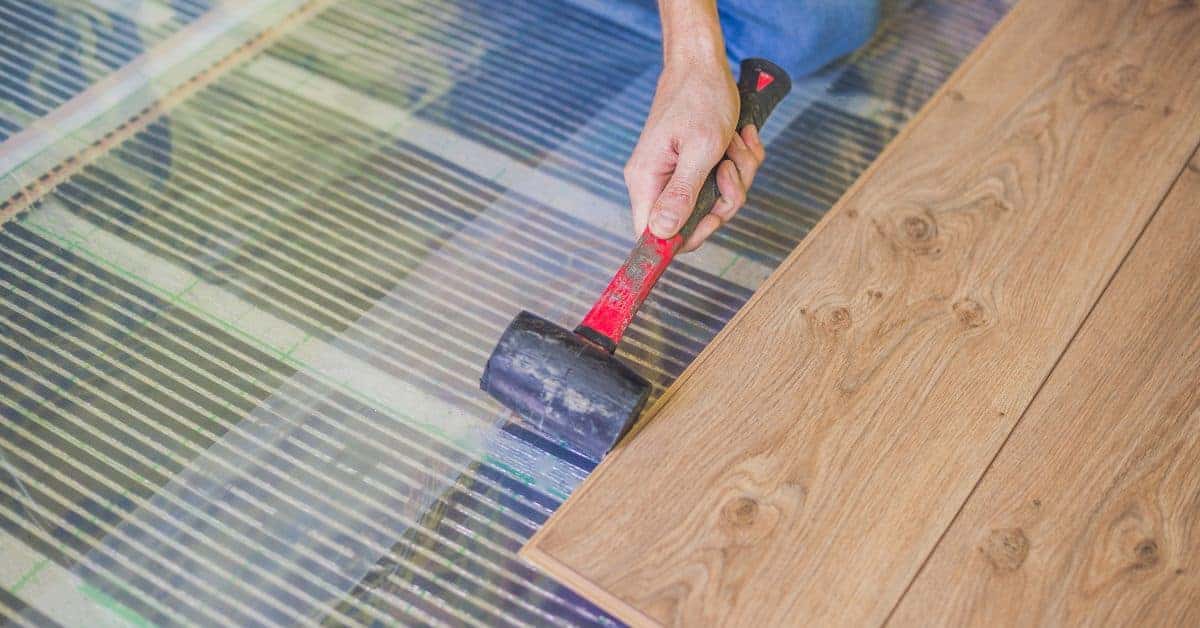

Hand with rubber mallet installing wood flooring over radiant heating

Fixes and Remediation Strategies by Severity

Follow a stepwise framework from reversible environmental tweaks to structural repairs. Start with adjusting heat settings, dehumidifying, and allowing acclimation, then move to non-structural fixes and finally deeper corrections if needed. Escalation should be guided by observable movement and moisture data.

Include a diagnostic checklist to determine severity and outline non-destructive options before considering major work. When issues persist, know when to bring in a professional for a thorough evaluation and remediation plan.

Environmental adjustments and temporary fixes

Start by adjusting your radiant floor heating system’s temperature. Gradually increase it to encourage the moisture in your maple flooring to evaporate. Be patient, this process can take time.

Control humidity using a humidifier or dehumidifier depending on your local climate and season. Aim for 40-50% relative humidity indoors.

Improve ventilation by opening windows or using fans to help dry out the floor. If cupping is localized, you can spot-dry the area with heat lamps or space heaters. Expect natural recovery within a few weeks if environmental conditions improve.

Installation corrections and localized repairs

If cupping persists, check your installation. Relieve fasteners that may be too tight by slightly backing them out. Replace any damaged boards with new ones of similar size and species.

Re-glue any lifted edges using a suitable wood flooring adhesive. If the subfloor vapor barrier is compromised, repair it to prevent further moisture intrusion.

Consider using engineered maple replacement planks for localized repairs. Their stability can help minimize future issues. However, avoid over-sanding or planing to maintain the floor’s structural integrity and aesthetic appeal.

When to remove and replace: full remediation

If cupping, warping, or other moisture-related issues persist despite your efforts, it’s time for full remediation. Remove the affected maple flooring carefully to avoid damaging the subfloor.

Assess the subfloor condition and make necessary repairs. Consider using engineered maple or alternative species for reinstallation due to their improved stability over radiant heat systems. Ensure proper acclimation before installation, following manufacturer guidelines.

Reinstall the flooring using safe methods suitable for radiant heating systems. This may include using appropriate fasteners, spacers, and expansion gaps. Consult with a professional if you’re unsure about any aspect of the process to avoid recurring issues.

Back to top ↑

Best Installation Methods and Material Specs for Maple over Radiant Heat

Choose installation methods that work well with maple and heat diffusion, emphasizing proper moisture control and panel stability. Consider how each method handles expansion and contraction under warm floors. Tailor your choice to the site conditions and manufacturer guidance.

List adhesive, underlayment, and moisture barrier options that align with maple and radiant setups. Note which combos to avoid and how to confirm compatibility with warranties and regional practices.

Glue-down vs. Floating vs. Nail-down: Pros and Cons

The method of installation can significantly impact the performance of your maple floor over a radiant heating system.

Pros

  • Glue-down: Provides excellent stability, reduces squeaks, and promotes even heat distribution.
  • Floating: Allows for expansion and contraction due to temperature changes. Ideal for larger rooms or areas with significant temperature fluctuations.
  • Nail-down: Offers good stability and can be used over plywood substrates. However, it may not be the best choice for heated concrete slabs.

Cons

  • Glue-down: More time-consuming and labor-intensive. May require specialized equipment and training.
  • Floating: Can squeak over time if not properly installed or if the subfloor is uneven.
  • Nail-down: Not recommended for heated concrete slabs due to potential moisture issues and lack of warranty compliance with some manufacturers.

The best method depends on your specific situation. For heated concrete slabs, glue-down or floating systems are generally preferred for stability and warranty compliance.

Material Specs and Safe Operating Ranges

The materials you choose should be able to withstand the heat and moisture conditions of your radiant floor heating system.

  • Maple Planks: Look for AC rating (hardness) of at least 1450. Janka hardness considerations are crucial for durability under heat.
  • Adhesives: Epoxy or urethane adhesives are typically recommended for heated slabs. Follow manufacturer cure times to ensure a strong bond.
  • Substrate RH: Maintain relative humidity levels between 35-50% to prevent excessive expansion and contraction of the maple planks.
  • Surface Temperature: Keep surface temperatures below 84°F (29°C) to minimize risk of warping or cupping. Check manufacturer limits for specific products.

Vapor Barriers, Adhesives, and Underlayment Selection

A proper vapor barrier is crucial to prevent moisture from the slab below from migrating into your maple floor.

Closed-cell foam or similar low-permeability materials are typically recommended. They allow heat transfer while limiting moisture migration.

Adhesives should be compatible with heated slabs and have low VOC emissions. Always follow manufacturer recommendations for use over radiant heating systems.

Underlayments should provide a stable, flat surface for the maple planks while allowing heat to pass through. Incompatible materials can trap moisture or prevent proper heat transfer, leading to issues like cupping or warping.

Back to top ↑

Operation, Maintenance and Long-Term Care to Prevent Recurrence

Set thermostat and zoning practices that minimize rapid temperature swings, helping maple stay stable. Plan for gradual heat changes and consistent distribution under the floor. These habits reduce movement over time.

Keep humidity and cleaning protocols in check, and monitor readings to catch drift early. Maintain a regular log of conditions and actions to guide future decisions or professional referrals.

Recommended temperature and humidity management

To keep your maple flooring stable over the radiant floor heating system, maintain consistent temperatures and manage indoor humidity levels. Here’s how:

Thermostat settings: Keep daily temperature swings minimal. Aim for a consistent 68-72°F (20-22°C) during occupied hours. At night or when away, drop the temp by no more than 5°F (3°C).

Seasonal adjustments: As seasons change, gradually adjust your thermostat setpoints to match. In winter, you might need higher temps; in summer, lower.

Humidity targets: Maintain indoor relative humidity (RH) between 35-45% year-round. In winter, use a humidifier if RH drops below 30%. In summer, run an air conditioner to keep RH under 50%.

Cleaning and routine inspection tips

Regular cleaning and inspections help maintain your maple flooring’s health. Use this checklist quarterly:

  • Spills: Clean immediately with a damp cloth and mild soap to prevent moisture intrusion.
  • Dirt and dust: Vacuum or sweep regularly, then mop with a maple-friendly cleaner.
  • Gaps between planks: Check for excessive gaps (more than 3mm) that could indicate drying out or movement.
  • Cupping or warping: Look for signs of uneven moisture distribution causing the floor to cup or warp.
  • Moisture meter readings: Spot-check subfloor and radiant system with a moisture meter. Ideal readings are 12-15% for wood, 0-3% for concrete.
  • Thermostat function: Ensure it’s working properly and maintaining set temperatures.
  • Radiant system operation: Listen for unusual noises or check for hot/cold spots on the floor.
  • Entry mats: Use absorbent entry mats to reduce moisture tracking onto your flooring.

Quick rule: If you notice any issues, address them promptly to prevent further damage.

Preventative monitoring and service actions

Regular monitoring helps catch potential issues early. Here’s a suggested schedule:

Monthly: Check floor surface for signs of movement, and thermostat function.

Quarterly: Conduct the full inspection checklist above, including moisture meter readings.

Annually: Have your radiant heating system professionally serviced to ensure optimal performance. If you notice any issues or have concerns about your flooring’s stability, consult a flooring or heating specialist promptly.

Every 3-5 years: Consider hiring a professional for a full moisture map of your subfloor and radiant system to identify any potential trouble spots early.

Back to top ↑

Safety, Warranty, and Cost Considerations

Safety checks should cover overheating risks and proper electrical and adhesive installations near the floor. Verify that components are installed to code and compatible with maple flooring. Documentation helps support safe operation.

Understand warranty implications and how radiant installation affects coverage. Weigh upfront material and prep costs against potential maintenance or replacement expenses, and know when to seek expert input for complex cases.

Warranty traps and documentation to collect

When installing maple flooring over a radiant floor heating system, it’s crucial to understand your warranty coverage. Most hardwood flooring warranties exclude damage caused by improper installation or operation of the radiant heat system.

Before you start, document everything:

  • Conduct moisture tests on the subfloor.
  • Obtain a copy of the radiant heating system’s commissioning report.
  • Record the make and model of your maple flooring and adhesives used.

Keep these records safe. They’ll be vital if you need to make a warranty claim later on.

Safety and code considerations

Safety is paramount when dealing with radiant floor heating systems. Here’s what you should check:

Electrical Safety: Ensure all electrical components near the floor are properly insulated and comply with local codes.

Hydronic Safety: For water-based systems, ensure there’s no risk of overheating. The maximum recommended surface temperature for maple flooring is around 85°F (29°C).

Always consult your local building code or a licensed contractor to ensure compliance.

Cost factors and decision guidance

Budgeting for maple flooring over radiant heat involves weighing upfront costs against long-term maintenance:

Preventative Measures: Using compatible adhesives, moisture barriers, and proper underlayment can prevent issues down the line. These might add to your initial cost but could save you money in the long run.

Repairs vs Replacement: If problems arise, consider whether it’s more economical to repair or replace sections of flooring. This depends on the severity of the issue and the type of maple flooring (solid or engineered).

Factor in potential energy savings from better insulation when deciding between solid and engineered maple.

Back to top ↑

Conclusion

Maple on radiant heat can be durable if you treat moisture, timing, and installation like critical components rather than afterthoughts. The right checks now protect safety, appearance, and long-term performance.

Do a careful, stepwise reality check: confirm moisture and temperature targets align with your system, verify acclimation and subfloor conditions, run the prescribed diagnostic tests in a small, controlled area, and follow proven installation methods and material specs. Only push beyond a tested zone after you’ve seen stable readings and a proper cure in your test area.

Common mistakes to avoid are skipping acclimation, ignoring moisture readings, and pairing incompatible woods or fasteners with your radiant system. Don’t skip safety steps or rush heat during curing. Always test in a small area first, use correct subfloor preparation, and adhere to the recommended temperature rise and one-way installation practices. If you ever encounter persistent cupping, mystery odors, or unexpected shifting, pause and re-check moisture, then consult a pro rather than forcing a fix that could void warranties or ruin the floor.

Back to top ↑

FAQ

What causes cupping in maple floors over radiant heat, and how can I spot it early?

Cupping happens when the wood on the edges pulls up while the center stays higher, usually from moisture imbalances. Look for gaps at the edges between boards and the wall or noticeable edge curling after installation. Keep an eye on consistent moisture levels across the subfloor and the wood during and after installation.

What tests should I run before installing maple over radiant heat to detect moisture issues?

Do moisture content tests on the subfloor and the acclimated maple. Use a reliable moisture meter and follow the manufacturer’s test locations and techniques. Compare readings to the wood’s and subfloor’s recommended ranges from the label or datasheet, and check local guidelines if available.

How should I acclimate maple for radiant heat installations?

Acclimate the wood according to the product instructions, usually in the environment where it will be installed. Keep the site at a steady temperature and humidity during acclimation. If in doubt, ask for the manufacturer’s acclimation window and conditions, and verify with the site’s HVAC plan.

What installation methods work best for maple over radiant heat, and how do I maintain it?

Floating or click-lock installations with a proper underlayment that allows for expansion work best in many radiant setups. Nail or staple methods might not suit every system, so follow the product label and radiant heat manufacturer instructions. For maintenance, control moisture, use place-appropriate cleaners, and inspect junctions and seams regularly.

Back to top ↑
