Stucco-to-Window Joint Leaks: Backer Rod Depth, Sealant Profiles, and Flashing Red Flags

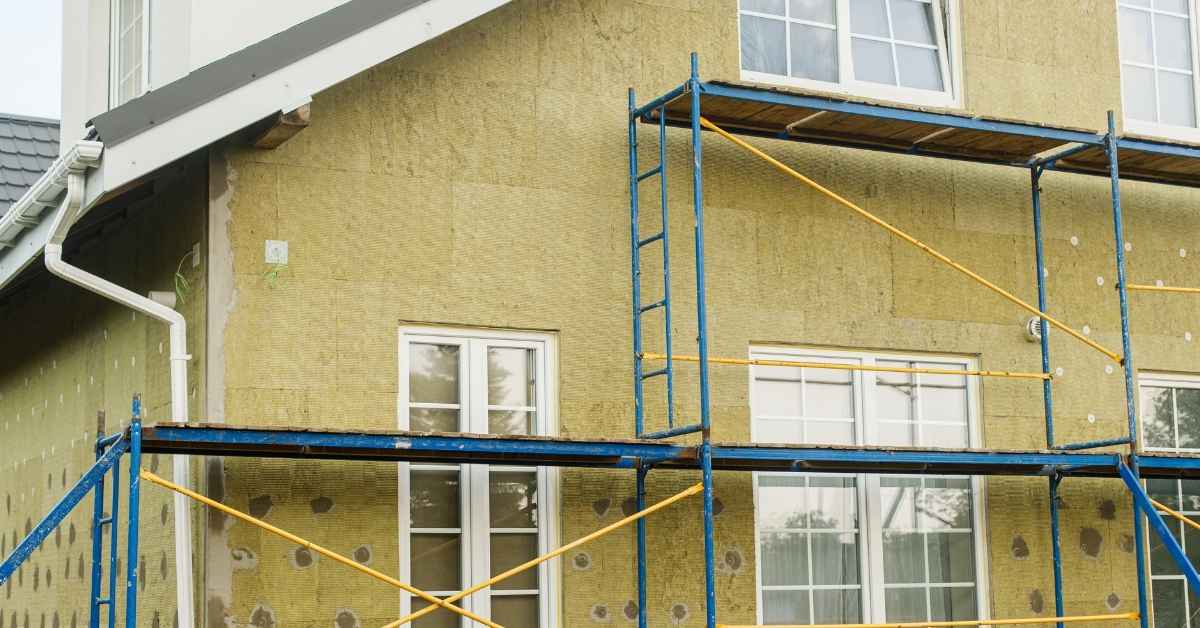

Leaks at the stucco/EIFS-to-window interface usually start where movement, poor detailing, or failed materials let water bypass the outer skin. Typical failure mechanisms are joint movement, insufficient or wrong backing, sealant breakdown, and flashing or drainage failures; each opens a path from the exterior cladding into the wall assembly.

Climate and assembly type change how those failures show up—freeze-thaw, thermal expansion, and wind-driven rain stress joints differently on stucco versus EIFS or hybrid systems. During an inspection, look for the usual installation mistakes (wrong backing depth, missing expansion joints, incorrect sealant profile, or flashing not tied-in) and follow up by checking product instructions or manufacturer guidance for any specific tolerances or sequencing requirements.

Common leak paths and failure modes

Water finds its way into stucco-to-window joints through several means. Capillary action draws water up from the bottom, while wind-driven rain can force water into gaps at the top. Trapped moisture between cladding and windows also contributes to leaks.

Sealants often fail first due to age or improper selection. Backer rods may degrade over time, losing their ability to maintain sealant depth. Flashing can corrode or become dislodged, allowing water to bypass the drainage plane.

Key failure points: Sealant joints, backer rod integrity, flashing, and drainage provisions.

Climate and regional considerations

Freeze-thaw cycles can cause expansion and contraction, cracking sealants. Heavy rain increases hydrostatic pressure on joints. Coastal regions with salt air require corrosion-resistant materials.

Sun exposure breaks down sealants over time, reducing their flexibility and adhesion. In hot climates, thermal expansion causes more movement at the joint interface.

Tailor your strategy to local conditions: Choose sealants suitable for your climate’s temperature extremes and moisture levels. Ensure flashing is compatible with your region’s corrosive elements.

Back to top ↑

Backer rod’s job is to act as a bond-breaker, control sealant depth, and compress to create the correct joint geometry; used wrong it causes three-sided adhesion or over-compression that shortens sealant life. Choose a rod diameter and material that seat snugly in the joint and confirm compatibility with the sealant—check the rod and sealant technical data sheets or manufacturer instructions for recommended combinations.

Install by pushing the rod to the correct inset depth so the sealant forms the desired profile, trim flush or slightly recessed, and avoid embedding rod in wet coatings or temporary mortar. After installation, perform a quick seating test (verify compression without gaps) and use a post-install checklist to spot under- or over-compression, mis-sizing, gaps, or poor seating that will affect flashing tie-ins and long-term performance.

Choosing backer rod material and diameter

The right backer rod ensures a snug, durable seal. It’s crucial to pick the correct material and size for your joint opening.

• Closed-cell polyethylene: Used in wet areas like showers or pools. Key spec: Waterproof. Tip: Avoid in dry areas; it won’t compress well.
• Open-cell polyurethane: Ideal for dry areas with small movements. Key spec: Flexible, good compression. Tip: Not suitable for wet areas; water can degrade it.
• Neoprene: Great for high-traffic areas and large joints. Key spec: Durable, resistant to abrasion. Tip: More expensive but lasts longer.
• Intumescent: Used in fire-rated assemblies. Key spec: Expands when exposed to heat. Tip: Only use where fire protection is needed.
• Fiberglass: Cheap, but not recommended for most jobs. Key spec: Low cost. Tip: Avoid; it’s less durable and doesn’t compress well.

The wrong material can lead to water damage or joint failure. Always check the product label and local building codes before purchasing.

Pro tip: Buy backer rod in bulk if you have multiple joints, but store it properly to maintain its shape and properties.

Back to top ↑

The sealant profile—backer rod placement, bead depth, and an hourglass tool finish—controls movement accommodation and adhesion longevity; a missing bond-breaker or incorrect thickness forces the sealant to fail prematurely. Match the profile to the joint width and movement expectations and follow the sealant manufacturer’s installation instructions for primers, temperature limits, and cure guidance.

Application steps are straightforward but exacting: prepare substrates, prime where required, set the backer rod to the prescribed depth, gun the bead to the correct cross-section, and tool to an hourglass finish to ensure full contact with vertical faces only. Watch for red flags like overfilled or underfilled joints, lack of bond-breaker, or incompatible sealant type—any of these can undermine flashing performance and lead to leaks.

Sealant depth-to-width ratios and profile examples

The sealant’s depth-to-width ratio is crucial for accommodating movement and preventing water intrusion. Most manufacturers recommend a depth of 1/4″ to 3/8″ for exterior joints like stucco-to-window transitions.

For instance, if your joint width is 1/2″, the ideal depth would be around 3/16″. This creates an hourglass profile with a narrow waist that allows for expansion and contraction without stressing the sealant.

To create this profile, use a bond-breaker or backer rod to prevent three-sided adhesion. Insert it into the joint, leaving about 1/8″ of the sealant’s depth exposed at the surface.

Comparative analysis: modern hybrid sealants vs silicone vs polyurethane

Each sealant type has its pros and cons:

Silicone: Excellent UV/weather resistance, paintable, but may not adhere well to some window frames. It’s less flexible than other options.

Polyurethane: Superior adhesion to various substrates, high movement capability, but less resistant to UV and weathering. Not typically paintable.

Hybrid sealants: Combine silicone and polyurethane properties, offering good UV resistance, adhesion, and flexibility. They’re often paintable and have excellent movement capabilities.

Surface preparation and tooling for durable bonds

Proper surface prep is key to a lasting seal:

• Clean the surfaces: Remove all dirt, debris, and contaminants using a wire brush or scraper. A degreaser may be needed if there’s grease or oil.
• Prime when required: Some sealants require priming to improve adhesion. Always follow the manufacturer’s instructions.
• Mask off areas: Use painter’s tape and paper to protect adjacent surfaces from sealant.
• Tooling: Use a bead of sealant applicator gun for even application. For tooling, use an hourglass tool or your finger, wearing a glove, to create the desired profile.
• Cure considerations: Most sealants require temperatures between 50°F and 90°F (10°C and 32°C) for proper curing. Avoid applying in extreme heat or cold.

Back to top ↑

A continuous drainage path depends on correctly sequenced sill pans, head flashings, kickout diverters, and tight WRB/air barrier transitions so water that gets past stucco or EIFS is directed out of the wall. Each component must be compatible with the cladding and window details and tied into the drainage plane without trap zones where water can accumulate.

Install flashings in proper order and connect them to EIFS or stucco drainage systems, ensuring sill pans provide slope and a clear outlet and that weeps or vents are unobstructed. During inspections verify flashing terminations, sealant joints where flashings meet windows, WRB continuity, and that drain provisions are present and functional; check manufacturer instructions for any specific tie-in requirements that affect depth or sealant choices.

Critical flashing components and installation sequencing

The first line of defense against water intrusion is proper flashing. Here’s what you need and how to install it in the right order.

Sill pans: These go at the bottom, under the window. They slope towards the exterior, directing water out. Make sure they’re deep enough (at least 1/2″ to 3/4″) and have drainage outlets.

Head flashings: These go above the window, lapping over the sill pan. They direct water down the sides of the wall. Install them after the sill pans, lapping over the top edge.

Kickout diverters: These are L-shaped pieces that go at the corners, directing water out and away from the wall. Install these last, overlapping the head flashings and sill pans.

Integrating flashing with EIFS, stucco, and window flanges

Flashing must work seamle
