Sonotube Footings: Keeping Tubes Plumb and Preventing Soil Collapse

Sonotubes come in a range of standard sizes used for residential footings. Look for outer diameters and wall thicknesses that fit your footing design and local code expectations. Always verify exact dimensions and tolerances with the manufacturer or supplier, and cross-check load-capacity notes on the product data sheet.

Material options include different cardboard substrates, moisture barriers, and coatings, plus any manufacturer-reinforced variants. Review how these choices affect strength, moisture resistance, and handling on site, and confirm specifications with the supplier or local code authority. Plan procurement by design, use, and potential lead times, and keep on-site checks to prevent tube deformation or misalignment during setup.

Common tube diameters and lengths

The most common Sonotube sizes for residential footings range from 12″ to 48″ in diameter. The wall thickness usually varies between 0.065″ and 0.125″. Here’s a quick rundown:

12″ – 30″: Ideal for small structures, decks, or light posts. They provide an inner usable space of around 11″ to 29″.

36″ – 48″: Suitable for larger structures like garages or homes. Offers an inner usable space of about 35″ to 47″.

Remember, sizes can vary by application and manufacturer. Always check size charts and structural drawings before ordering.

Materials, coatings, and wall construction

Material choices impact your footing’s strength and longevity. Here are some options:

• Paperboard/Fiber: Standard, affordable, and easy to work with. Look for ratings like 120 psi or higher. Avoid getting them too wet.
• Plastic: More durable but pricier. Offers better moisture resistance. Check UV stability if exposed to sunlight.
• Composites: High strength, low maintenance. Can be pricey. Verify they’re compatible with your concrete mix.
• Coatings/Laminates: Enhance water resistance and durability. Look for ratings like ‘waterproof’ or ‘moisture-resistant’.

Specs, compressive capacity, and code references

To ensure your footings meet load requirements, consult manufacturer data and building codes:

Manufacturer Data: Check sizing charts for exact dimensions and tolerances. Verify compressive strength ratings match your design needs.

Building Codes: Look up local code sections on foundation design (usually under ‘Residential Code’ or ‘International Building Code’). Ensure your footings comply with soil bearing capacity, frost depth, and other requirements.

Cross-check manufacturer specs against local codes. Don’t forget to consider lead times when ordering tubes.

Back to top ↑

Begin with raw materials such as fiberboard or paper pulp, plus wax or barrier layers to resist moisture. Selection here drives form strength, weight, and moisture behavior, so note how material choice aligns with your pour conditions. Expect documentation on material specs for reference on site.

Core forming involves gluing, rolling, and joining sections, with seam design impacting leak resistance and wall uniformity. Keep an eye on wall thickness consistency, straightness, end sealing, and surface finish as features that affect form performance during the pour. Factory curing and coating strategies help limit moisture uptake and swelling, and labeling and tolerances aid in proper sizing for your project. QA checks, random sampling, and batch records are typical, so review these before selecting tubes for footing work.

Raw materials and winding process

The choice of raw materials is crucial for the strength and performance of Sonotubes. Here’s how they’re layered and wound to create robust forms:

• Fiberboard/Paper Pulp: Main structural material. Look for high density (40-50 lb/ft³) to ensure form strength. Avoid low-density materials that can cause cracking and weak bonds.
• Wax Coatings: Applied between layers, it enhances bonding. Check for consistent coating application to prevent delamination. Inconsistent coatings can lead to weak points in the form.
• Barrier Liners: Prevents moisture ingress. Specify a good barrier liner to reduce swelling during pours. A poor barrier can cause staining and reduced form life.
• Glue: Binds layers together. Ensure the glue used is compatible with the materials for strong bonds. Incompatible glues can result in weak forms that disintegrate during use.
• Winding Process: Tight, even winding ensures uniform wall thickness. Check for consistent winding to maintain form integrity. Loose or uneven winding can cause leaks and weak spots.

Coatings, adhesives, and curing

Coatings, adhesives, and curing processes enhance moisture resistance and rigidity in Sonotubes.

Inner Barrier Coatings prevent water absorption. Look for coatings that minimize moisture uptake during pours. A poor barrier can cause swelling and reduced form life.

Wax or polymer lamination improves rigidity and leak resistance. Specify wax or polymer laminates to enhance form strength. Without proper lamination, forms may be prone to leaks and weak points.

Curing conditions in the factory minimize moisture uptake. Ensure the manufacturer follows proper curing procedures to preserve form quality. Improper curing can lead to weakened forms that absorb too much water.

Quality control and labeling to check

Before purchasing Sonotubes, confirm the following markings and labels to ensure you’re getting quality forms:

Manufacturer Label: Check for a reputable manufacturer. Ensure the manufacturer is known for producing high-quality forms. A lesser-known manufacturer may indicate lower quality products.

Size Markings: Verify dimensions are as required. Measure and compare to your project’s needs to avoid misfits. Incorrect sizes can lead to poor form performance and wasted materials.

Recommended Uses: Confirm the intended use matches your project. Ensure the forms are suitable for your specific application (e.g., footings, columns). Using forms incorrectly can result in structural issues and safety hazards.

Back to top ↑

Assess the site for soil type, bearing capacity, drainage, frost depth, groundwater, and nearby utilities. These factors drive footing depth, reinforcement needs, and tube placement strategies. Verify permit requirements, local code rules, and any HOA restrictions that could influence the design.

Decide footing width, depth, and tube diameter based on load and soil data, and determine whether extra reinforcement or thicker concrete is warranted. Use a pre-install checklist to confirm plumb, level, and spacing, and plan bracing to keep tubes stable during pour. Gather drawings and permits for the job file and be ready to document any changes.

Site, soil, and permit checks

Before you start, assess your site thoroughly. Soil type matters – clay expands when wet, shrinks when dry, causing movement. Check for expansive soils.

Water table affects footing depth. If it’s high, you’ll need deeper footings to prevent soil collapse. Locate the water table.

Frost depth varies by region. In cold areas, footings must extend below the frost line to prevent heaving. Determine your local frost depth.

Permits and inspections are crucial. Don’t skip them. Confirm required permits and inspection schedules.

Footing sizing, rebar, and concrete mix considerations

Size your footings right. They should be wide enough to distribute load evenly on soil, deep enough to avoid frost heaving. Calculate based on load, soil bearing capacity, and frost line.

Rebar reinforces concrete. More load? Use more rebar. Consult an engineer if unsure.

Concrete mix affects strength. For footings, use a strong mix – typically 3000-4000 PSI. Check local codes for required strength.

Thicker concrete means more time for curing. Plan accordingly. Consider concrete thickness in your schedule.

Establish verifiable plumb references with string lines or a laser, and check vertical alignment at multiple elevations. Use regular level checks to catch bowing or tilt early. Maintain alignment discipline from excavation through backfilling.

Stabilize the trench and tube supports with temporary braces and stake the tubes at intervals. Use rigid cross-bracing or wood supports to resist soil pressure and movement. Correct any misalignment before backfilling and keep measurements against reference points consistent as you work.

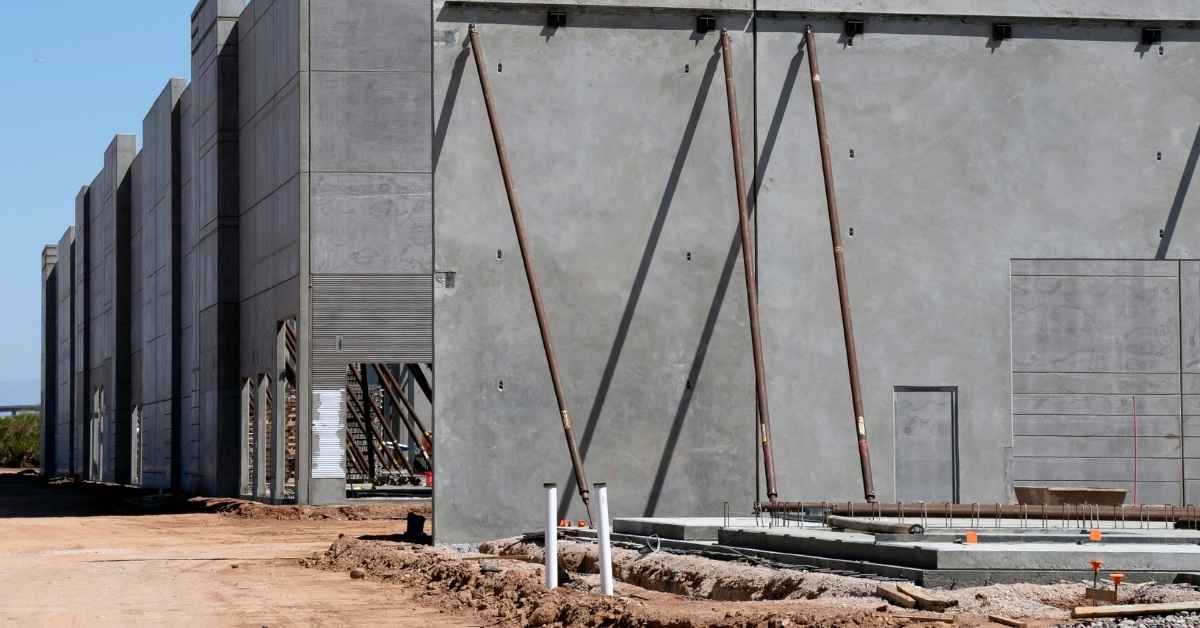

Bracing and Temporary Support Methods

Keeping sonotubes plumb during installation requires robust bracing. Here are some reliable methods:

Stake Bracing: Drive stakes into the ground at regular intervals around the tube, then attach them to the tube using adjustable braces or clamps.

Adjustable Braces: Use adjustable braces that can be tightened or loosened as needed. Attach these to the stakes and the tube to provide constant support.

Attachment Points: Ensure your braces are securely attached to both the stake and the tube. This could be via clamps, screws, or bolts.

Leveling and Alignment Tools

To keep sonotubes plumb, use these tools to check and maintain verticality:

• Levels: Use a 2′ or 4′ level to check for plumb at multiple heights. Ensure the bubble is centered in the vial.
• Laser Plumb Devices: These project a laser line onto the tube, showing if it’s plumb or not. They’re accurate and easy to use but can be pricey to buy.
• Plumb Bobs: A simple yet effective tool. Suspend a weight from a string, and if the string is vertical, so is your tube.
• Templates: For multiple tubes, create or rent a template that ensures each tube is plumb and spaced correctly.
• Laser Levels (optional): These project a laser line onto the ground, helping you position your tube accurately. They’re rentable but not necessary for small projects.

Handling Multiple Tubes and Spacing

Maintaining uniform spacing and alignment across a line or grid of footings is crucial. Here’s how:

Layout Strings: Stretch strings between stakes at the desired spacing to use as guides for your tubes.

Temporary Bracing: Use temporary bracing to connect multiple tubes, ensuring they stay in line and maintain their spacing.

Regular Checks: Regularly check each tube’s plumb and alignment. Small deviations can add up quickly across many tubes.

Back to top ↑

Set clear excavation stability goals, considering soil type, groundwater, and allowed movement during the project. Regularly verify that the hole remains plumb and true as work progresses. Check that the trench walls stay supported and undisturbed by backfilling actions.

Compare shoring methods such as trench boxes, hydraulic shoring, or timber sheeting based on soil conditions and trench depth. Plan dewatering with sump points or temporary discharge routes to keep the work surface dry and stable. Coordinate pour sequencing to minimize hydrostatic pressure on walls and monitor tube alignment during the pour.

Shoring and Trench Support Options

When digging for Sonotube footings, you’ll need to support the trench walls to prevent soil collapse. The choice of shoring depends on your site’s conditions.

Timber sheeting is good for shallow trenches in stable soils. It’s cheap but labor-intensive to install and remove.

Manufactured shoring, like trench boxes or hydraulic shoring, is better for deeper trenches or unstable soils. They’re quicker to set up but more expensive. Always consider soil friction angles, trench depth, adjacent loads, and your crew’s experience when selecting.

Here’s a simple setup sequence: Excavate, install shoring, backfill behind the shoring (if needed), then proceed with Sonotube installation. Inspect daily for any signs of shifting or damage.

Dewatering and Drainage Strategies

Keeping the footing area dry is crucial to prevent soil collapse and ensure a solid pour. Here are some dewatering methods:

Sump pumps can remove water from low-lying areas. Place them at the lowest point, and use temporary discharge routes that won’t cause erosion or flooding elsewhere.

Well points are perforated pipes with a pump at the end. They draw water out of the soil before it reaches your footing area. Temporary trenches can help direct water to these points.

Before pouring, ensure dewatering is continuous and effective. Check for any signs of water intrusion around the Sonotube forms. If you’re unsure, consult a pro to avoid costly mistakes.

Leaning tubes often arise from insufficient bracing, misread plumb lines, or disturbed trench walls. Quick fixes include re-bracing, realigning with a laser or string line, and re-digging if necessary. Address these before proceeding with the pour to avoid defects.

Watch for soil and trench issues that increase collapse risk, and apply preventive steps like proper shoring, adequate trench width, and controlled dewatering. Maintain tube alignment during handling, and secure tubes with adjustable braces to prevent movement during concrete placement.

On-site safety practices should cover PPE, bracing stability, ladder access, and fall protection. Regular checks for plumb and alignment help prevent accidents and delays. Develop a pre-job safety plan and keep a simple maintenance routine for reusable forms on file.

Compare costs against traditional formwork by tracking material use, labor time, setup and removal, backfill materials, and potential reuse value. Plan disposal or reuse options for damaged tubes and establish quick corrective actions for common issues to minimize downtime.

Safety best practices and PPE

Working with Sonotubes requires proper safety measures. Start by wearing the right personal protective equipment (PPE). That’s your hard hat, safety glasses, steel-toed boots, and gloves.

Wet concrete can cause serious burns. Keep your skin covered and rinse off any spills immediately. Excavation safety is crucial too. Ensure the trench is properly braced and supported to prevent collapse.

Use a ladder with secure footing for accessing elevated work areas. And don’t forget fall protection when working at heights. Safety first, always.

Cost factors to evaluate vs. traditional forms

When comparing costs with traditional forms, consider these factors:

Materials: Sonotubes are cheaper than wood or metal forms. But you’ll need additional materials like bracing and backfill.

Labor: Setup and removal of Sonotubes is quicker, saving labor hours. But you’ll still need help for excavation and backfilling.

Form rental: With traditional forms, there’s a rental cost. With Sonotubes, it’s a purchase, but they can be reused.

Disposal: Traditional forms may require disposal or recycling fees. Damaged Sonotubes might too, but undamaged ones can be resold or reused.

Reuse, disposal, and environmental notes

Sonotubes are designed for reuse. Inspect them after each use. If they’re not damaged, clean them up and store for the next job.

When removing forms, do so carefully to prevent damage. Damaged tubes should be disposed of responsibly, preferably recycled if possible.

Environmentally, Sonotubes have an edge over traditional forms. They use less wood and generate less waste. But they’re still plastic, so consider your local recycling options.

Always check local regulations for disposal or recycling. Some areas may have specific requirements for construction waste.
