Preventing Aggregate Shadowing in Thin Casts: Particle Size, Paste Content, and Vibration

Aggregate shadowing is when darker or larger particles sit at the surface of a cast, creating a shadowed appearance that can hide uniform strength. In thin casts, the contrast between surface and interior is more noticeable. The result can look like voids or segregation, even when the mix is well blended elsewhere.

Thin sections have less bulk to bury and rearrange aggregates, so movement during placement and early set can amplify segregation. Pay attention to how the aggregate size distribution and the paste behavior interact at small thicknesses. Always verify the manufacturer’s guidance for thin-section limits and any project-specific restrictions.

Visual and Structural Symptoms

Shadowing shows up as dark streaks or patches on the surface of your thin cast. These are areas where aggregates have settled, leaving a layer of mostly paste.

In fresh material, these spots might feel softer than surrounding areas. Once hardened, they can be weaker and more prone to cracking or chipping.

Structural issues can lead to reduced strength and durability in affected zones.

Mechanisms: Segregation, Bleeding, and Particle Bridging

Shadowing happens when aggregates separate from the paste. This segregation is driven by gravity in thin casts.

Paste can also migrate away from these settling particles, a process known as bleeding. This leaves behind a layer rich in coarse aggregates and low on cement.

Particles can form a network or ‘bridge’ at the bottom of the cast, preventing paste from flowing through. This is called particle bridging, and it traps paste above these bridges, causing shadowing.

Back to top ↑

PSD affects how tightly the mix can pack in a thin cross section. A broad distribution helps fill gaps, but too many coarse particles can migrate during vibration. Assess how your PSD supports uniform density along the cast thickness.

Packing density governs shadowing risk, especially near the surface. For thin casts, confirm the proposed PSD and packing approach with product data sheets or supplier recommendations. Do not rely on general guidance alone without project checks.

PSD principles: coarse vs. fine fractions

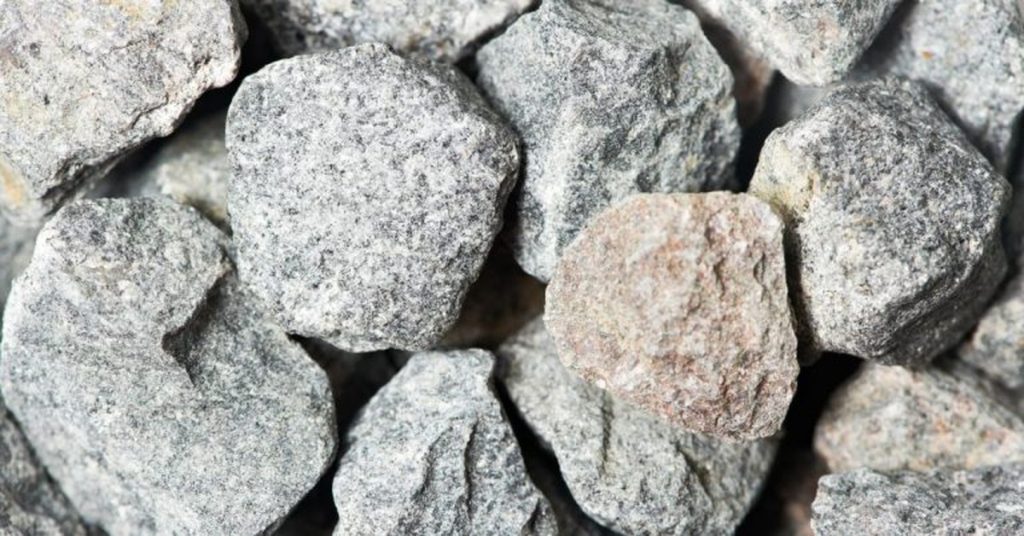

The key to a good particle size distribution (PSD) is balance between coarse and fine aggregate fractions. Both play crucial roles in packing and interlock.

Coarse fractions, typically 10mm or larger, provide the structure of your concrete mix. They’re like the skeleton, supporting the entire mass. Too many coarses can lead to voids, promoting bleeding and segregation – two main causes of shadowing.

Fine fractions, smaller than 5mm, fill those voids created by the coarse aggregates. They help reduce water demand and improve concrete’s workability. But too many fines can cause particle bridging, leading to increased water content and more bleeding.

Balance is key. Too much of either fraction can promote shadowing. Aim for a PSD that maximizes packing density while minimizing voids.

Interpreting sieve/RRSB results for thin-cast mixes

To assess your mix’s suitability for thin sections, look at the sieve or Relative Retained Surface Area (RRSB) data. These tell you about PSD and surface area of aggregates.

For thin casts, you want a PSD that packs well but doesn’t cause excessive bleeding. Look for a curve with a good balance between coarse and fine fractions. Avoid curves with too much fines or coarses, as these can lead to shadowing.

If your results show high fines content (>40%), consider reducing the amount of cement or adding a filler. If there’s too many coarses, you might need to adjust your PSD by blending in more fines.

Remember, every mix is unique. Don’t hesitate to consult your supplier’s gradation curves if you’re unsure. They can provide tailored advice for your specific aggregates.

Using blended aggregates and fillers

Engineered aggregate blends and mineral fillers can significantly improve packing, reducing voids that cause shadowing. Here’s how:

Blending aggregates allows you to create a PSD tailored to your thin cast needs. By combining different sizes, you can maximize packing density while minimizing voids. This reduces bleeding and segregation, preventing shadowing.

Mineral fillers, like fly ash or slag, work by filling micro-voids between aggregate particles. They reduce water demand, improve concrete’s mechanical properties, and help prevent particle bridging. But be careful not to add too much filler, as this can increase the risk of bleeding.

To use these effectively, start with a base mix designed for thin sections. Then adjust your PSD or add fillers based on sieve/RRSB results. Always test your mix before pouring to ensure it meets your needs.

Back to top ↑

Paste volume and flow behavior control how freely particles can rearrange during placement. Rheology influences local compaction and the potential for bleeding. The interaction between paste properties and aggregate behavior is critical in thin casts.

Bleed management is important in thin sections because surface bleed can exaggerate shadowing. Verify slump, flow, and bleed expectations against the chosen mix design and the paste supplier instructions. Use project references to confirm acceptable ranges.

Balancing paste volume and workability

The key to preventing aggregate shadowing lies in striking a balance between having enough paste for cohesion and too much that causes bleeding and segregation.

Too little paste, and your mix won’t stick together. Too much, and it’ll seep out, leaving voids and weak spots.

Shoot for a paste content of around 30-40% by volume, depending on your aggregate type. This should give you enough workability without encouraging excessive bleeding.

Admixtures and rheology modifiers

Admixtures can be your secret weapon in controlling bleed and segregation. They help tune the flow of your concrete without increasing the risk of bleeding.

Plasticizers, for instance, make your mix more fluid at a given water content, reducing the need for excess water that could lead to bleeding.

Viscosity agents and stabilizers can also help. They slow down the rate at which water bleeds out, giving your concrete a better chance to set before it dries out.

Back to top ↑

Vibration is a tool to consolidate without letting coarse particles migrate. Choose a method that matches the workpiece thickness and formwork complexity. Real-time monitoring helps catch early signs of segregation during consolidation.

Follow a practical checklist of dos and don’ts for thin casts, such as avoiding excessive vibration energy near the surface and stopping when redistribution risks occur. Cross-check method suitability with the equipment manual or manufacturer guidance before use.

Choosing a vibration method for thin geometry

When it comes to thin casts, you need a vibration method that’s gentle yet effective. Here are three methods and their suitability:

Surface Vibration: This is the most common method, using a vibrating screed or plate compactor on top of the formwork. It’s great for shallow pours as it doesn’t require access to the underside.

Needle Vibration: This involves inserting vibrators into the concrete through small holes in the forms. It’s powerful but can cause damage if not done carefully, so it’s best suited for thicker sections.

Formwork Vibration: This method vibrates the formwork itself. It’s good for thin casts as it helps consolidate the concrete evenly, but it requires proper formwork design and support.

Monitoring and adjusting vibration in the field

Knowing when to start, stop, or adjust vibration is crucial. Here’s how:

Start Vibration: Begin as soon as concrete is placed and before it starts to set. You’ll see the concrete flow and consolidate.

Stop Vibration: Stop when the concrete stops moving under vibration, or when bleeding stops. Over-vibration can cause segregation.

Adjust Vibration: If you notice air pockets or dry spots, increase vibration intensity briefly. If you see excessive bleeding or rise of coarse particles, decrease it.

Use an iterative approach: start with a baseline, cast test panels, and compare surface uniformity. Document the outcomes to guide adjustments in PSD, paste content, and compaction strategy. Keep detailed notes for traceability.

The trial protocol should include clear acceptance criteria and repeatable procedures. Verify the plan with project requirements or the approved mix design, and adjust the plan based on test results, not assumptions.

Designing a trial matrix

To figure out the best mix for your thin cast, you’ll need to run trials. Here’s how to set up your tests:

First, decide on your aggregate gradation range. For thin casts, you want a well-graded mix with more fines and less coarse aggregates.

Next, vary the paste content. Start low, around 25%, and go up in increments of 2 or 3 percentage points. More paste means better flow but also higher cost.

Lastly, try different admixtures at varying dosages. Superplasticizers can help with flow, while viscosity-modifying agents can control bleed. Keep records of each trial for easy comparison.

Scaling lab results to site conditions

Lab tests give you a great starting point, but real-world casting is different. Here’s how to adapt your trial outcomes:

Temperature: Concrete sets faster in the heat. If it’s hot on-site, reduce water and increase admixtures.

Vibration: Lab vibrators might not mimic site conditions perfectly. Expect to adjust vibration time and intensity during casting.

Casting geometry: Thin sections need more attention to avoid over-vibration and segregation. Be ready to fine-tune your mix based on how it behaves in the forms.

Back to top ↑

Develop a visual checklist for before, during, and after casting to spot early shadowing signs. Time the inspections to critical set points and surface appearance. Record observations with reference photos when possible.

Use practical, observable criteria rather than subjective feel. Confirm inspection timing and thresholds against project specifications or local rules, and adjust as needed based on field experience and documented checks.

Recommend tests that evaluate PSD, bleeding tendency, and rheology in both lab and field settings. Use results to support quality control and to demonstrate compliance with project requirements. Align testing methods with the project specification language and standards.

Document test setups, sample handling, and measurement conditions. If a value or threshold is required, instruct the reader to verify against the label, manufacturer instructions, or local regulations before making decisions.

Key tests to prioritize

When it comes to preventing aggregate shadowing, some tests are more crucial than others. Here’s what you should focus on:

Particle Size Distribution (PSD): This is your first line of defense. A well-graded PSD ensures good particle packing and minimizes voids where water can pool and cause shadowing.

Sieve analysis in the lab or field will give you a quick read on PSD. Aim for a continuous grading curve with no significant gaps between sizes.

Flow/Rheology Checks: These tests help ensure your mix has enough paste to coat all particles and maintain workability during placement.

Use flow tables or slump tests in the lab, and monitor field conditions like segregation and bleeding to keep track of rheological behavior.

Bleed Tests: Excessive bleed can lead to water accumulation at the surface, causing shadowing. Regular bleed tests help you spot this early.

In the lab, use mini-slump or flow table tests with a filter paper underneath. In the field, keep an eye on surface moisture and adjust your mix design as needed.

Acceptance criteria and record keeping

To ensure your thin casts meet project requirements, set clear acceptance criteria based on trial results. Here’s how:

After running trials (as discussed earlier), use the best-performing mix designs as your baseline. Set acceptance criteria for PSD, paste content, slump flow, and bleed that fall within a reasonable tolerance of these values.

Record Keeping: Maintain detailed records of all tests, results, and adjustments made throughout the project. This traceability is crucial for quality control and troubleshooting any issues that arise.

At a minimum, record:

• Date and location of test
• Mix design ID
• Test method (e.g., sieve analysis, flow test)
• Results (e.g., PSD data, slump flow value)
• Any adjustments made to the mix based on results

Keep these records organized and easily accessible for both lab and field teams.

Back to top ↑

Develop a decision tree to diagnose root causes of observed shadowing, focusing on material, placement, and curing interactions. Outline immediate actions you can take in the field and longer-term design fixes. Keep corrective steps practical and actionable.

Record which action resolved the issue and which did not, so future batches can avoid repeating errors. Always verify any recommended changes with the approved mix design, supplier data, or local guidelines before implementing them on site.

Remedies for fresh casts

If you’re seeing aggregate shadowing during placement, act fast. Here’s what to do:

Adjust Vibration: Too much or too little vibration can cause this. Check your vibrator settings and adjust as needed. Remember, less is more with thin casts.

If you’re using internal vibrators, ensure they’re placed correctly and moved around evenly. If external, be gentle and don’t overdo it.

Finishing Technique: How you finish the surface can also affect shadowing. Use a trowel or screed to level the top layer gently. Avoid heavy compaction.

Repair strategies for hardened shadowing

Once concrete has set, you can’t vibrate away shadows. Here’s how to deal with them:

Accept or Patch? If the shadows are minor and don’t affect strength or appearance, you might be able to accept them. But if they’re deep or numerous, consider patching.

To patch, grind out the affected area, clean it thoroughly, and apply a new layer of concrete. Ensure good bond between old and new by using a bonding agent or roughening the surface.

Prevent Future Shadows: Learn from your mistakes. Adjust your mix design, vibration method, or finishing technique for subsequent pours to prevent shadowing. Keep detailed records of what works and what doesn’t.
