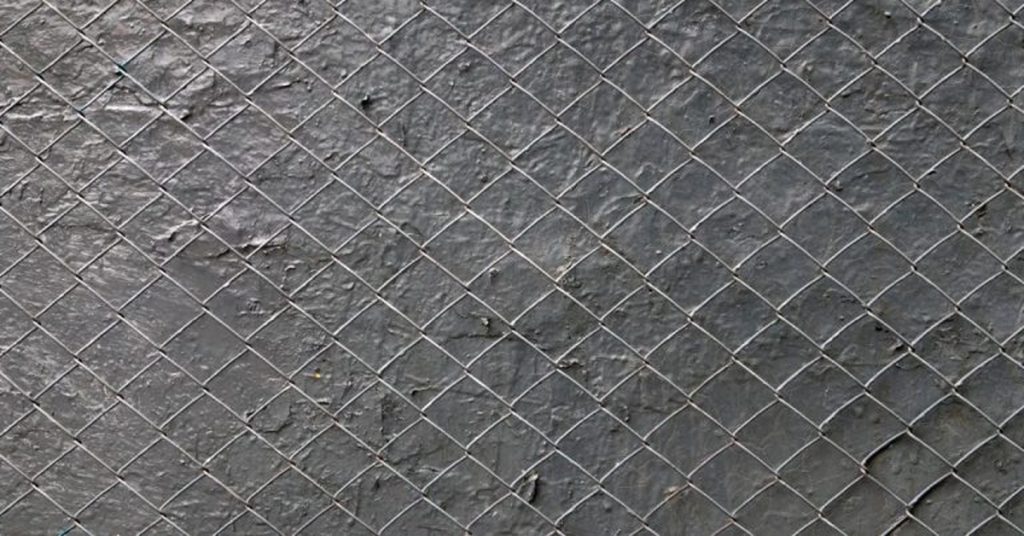

How to Keep Mesh Flat During a Pour: Pinning Methods That Beat ‘Hook and Pull’

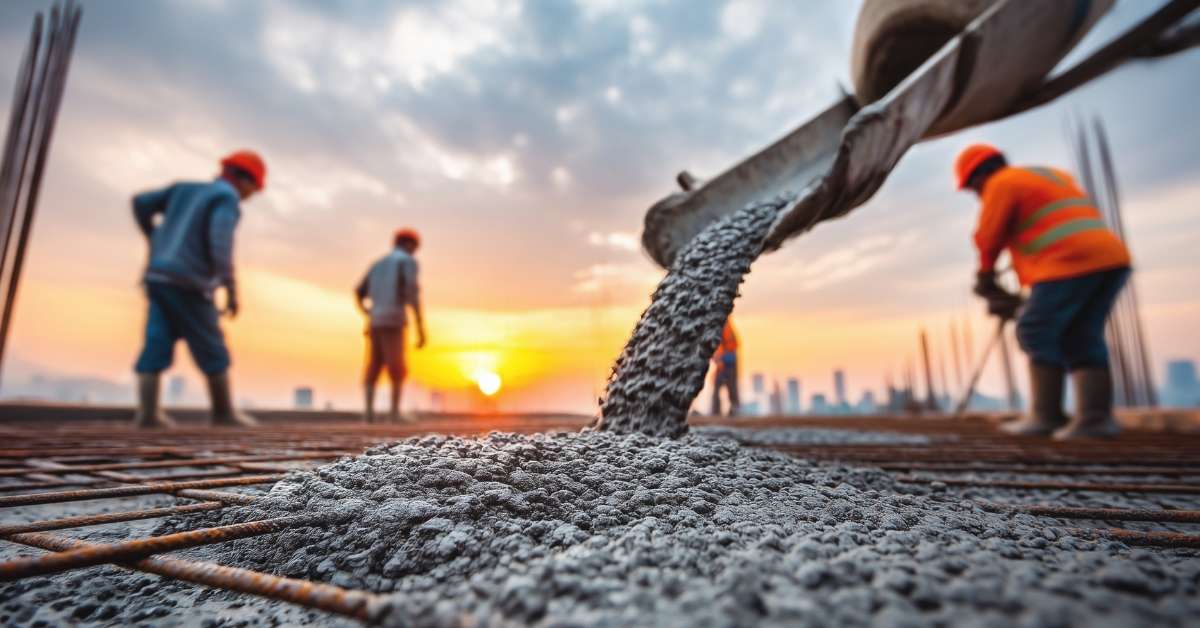

Concrete pours subject mesh to dynamic forces from flow, vibration, and settling. The fabric tends to ride on the surface and move with the liquid before it fully cures. Hook and pull often fails to counter these loads because it relies on a single point of restraint rather than a continuous hold.

Understanding these mechanics helps you anticipate where the mesh will shift and why simple tugs won’t keep it flat. This section sets the stage for choosing pinning methods that resist uplift and maintain even coverage during placement.

Common causes of mesh uplift

Mesh uplift happens when forces push the reinforcement up. Here’s what causes it:

Buoyant concrete flow: Wet concrete wants to rise. If your mesh isn’t anchored well, it’ll float too.

Crew foot traffic: Workers walking on forms can push mesh upwards.

Wind: Strong winds can lift mesh edges if they’re not secured.

Inadequate anchoring: If you don’t use enough anchors or tie wires, your mesh won’t stay put.

Limitations and failure modes of hook-and-pull

The hook-and-pull method has its flaws. Here’s why it often fails:

Reliance on friction: Hooks grip by friction, which isn’t always reliable. Concrete vibrators can break that grip.

Weak engagement points: Hooks engage at single points. If one slips, the whole system can fail.

Deformation under load: Hooks and wires can bend or stretch under pressure, letting mesh rise.

Situations where hook-and-pull may still be acceptable

The hook-and-pull method isn’t always the worst choice. Here are some situations it might work:

Small, low-risk projects: For tiny slabs or walls with minimal load, hooks might hold.

Checking project specs: If your plans don’t call for heavy loads or vibrators, hooks could be fine.

But remember, this method is risky. Always double-check your project needs before deciding.

Back to top ↑

Gather pins, anchors, and fasteners rated for concrete and reinforced pours. Include a mix of sizes if you’re working with different substrate thicknesses. Have a hammer or drill, a level, and basic measuring tools on hand.

Choose fasteners that are compatible with the anchor system you plan to use. Check the product label or data sheet for concrete applications and load guidance. If in doubt, consult the manufacturer instructions or local code requirements before proceeding.

The goal is to secure the anchor to the substrate and distribute forces across a broad area. Proper pinning resists movement during the concrete flow and early set. It should also minimize any differential movement between mesh and concrete.

Translate those goals into installation choices by matching pin type to substrate, spacing to expected loads, and installation timing to pour sequence. Think in terms of continuous restraint rather than a loose catch on one point.

Anchoring versus tensioning: what each achieves

When it comes to keeping mesh flat during a pour, you’ve got two main strategies: anchoring and tensioning. Let’s break down what each does.

Anchoring is like fixing the mesh to the substrate with nails. It secures the mesh to the formwork or base, preventing it from moving around. This is crucial in areas where the mesh might otherwise shift or lift off.

Tensioning, on the other hand, is like pulling the mesh taut before fixing it down. It pre-tensions the mesh, making it resistant to lift forces that occur during pouring and settling. This is particularly useful in situations where you expect significant uplift pressure.

Use anchoring for securing the mesh to its base. Use tensioning for resisting lift forces. Often, you’ll use both together for best results.

Placement patterns and prioritizing high-risk zones

Pinning mesh isn’t about sticking pins in randomly. You want to place them strategically to maximize their effectiveness.

First, consider flow direction. Place more pins where the concrete flow will be strongest or most concentrated. This could be at the bottom of a slope or where multiple pours meet.

Next, focus on edges and transitions. These areas are high-risk because they’re where uplift forces are often greatest. Make sure to pin these zones heavily.

Also, consider areas of expected traffic. Where heavy equipment or foot traffic will pass, place extra pins to reinforce the mesh against anticipated wear and tear.

Corrosion, bond, and long-term durability considerations

Pins aren’t just about keeping mesh flat during the pour. They’ve got a job to do in the long term too. Here’s how to ensure your pins are up to the task.

First off, select corrosion-resistant fasteners. Stainless steel or galvanized pins will last much longer than cheaper alternatives. This is especially important in areas with high moisture or salt exposure.

Next, consider concrete cover and chemical environment. Make sure your pins are well-protected by a sufficient layer of concrete to prevent corrosion from the outside. Also, be aware of any chemicals that might be present which could affect the longevity of your pins.

Lastly, ensure good bond between pin and concrete. This means using the right size and type of pin for your application, and making sure they’re properly embedded in the concrete. A strong bond will help prevent failures down the line.

Back to top ↑

Consider methods that provide distributed restraint, such as through-bolt style anchors or clamped meshes anchored to the substrate. Each method has tradeoffs depending on substrate condition and pour size. Use a quick decision check to pick based on project scale and accessibility.

For tight spaces or granular substrates, a surface-assisted pin or adhesive anchor can offer reliable control. In larger pours, plan for multiple restraint points to maintain mesh alignment throughout the spread. Verify compatibility with your substrate and consult instructions if needed.

Wire ties, staples, and concrete-compatible clips

For a solid hold on your mesh, consider using robust wire ties and concrete clips. These fasteners mechanically bind the mesh to rebar or substrate, providing better resistance against pull-out compared to hooks.

Wire Ties: Galvanized or stainless steel wire ties are durable and affordable. They’re great for securing mesh to rebar grids. Twist them tightly to ensure a secure fit.

Concrete Clips: These plastic or metal clips snap onto the mesh and substrate, providing quick and easy installation. They’re ideal for attaching mesh to formwork or existing structures. Always choose clips designed for concrete use to prevent corrosion.

Mechanical anchors and shot pins for fast, secure hold

When you need a quick, secure attachment, consider mechanical anchors and powder-actuated pins. These methods provide positive attachment to wood, steel, or concrete substrates when used correctly and safely.

Mechanical Anchors: Screw-in or expandable anchors can be installed using a drill. They’re easy to use and provide excellent holding power. Always follow the manufacturer’s instructions for proper installation.

Shot Pins: Powder-actuated tools drive pins into substrates, providing instant securement. They’re ideal for attaching mesh to concrete or steel surfaces. Safety is paramount when using these tools; always wear appropriate personal protective equipment (PPE) and follow safety guidelines.

Rebar clips, V-bars, and welded connections for heavy-duty work

For commercial slabs and structural applications, rebar-based methods or welded attachments can provide the strength you need. However, these methods require specific skills and may have licensing considerations.

Rebar Clips: These clips secure mesh to rebar grids, providing robust support for heavy-duty pours. They’re easy to install but may require specialized tools. Always ensure they’re properly secured and aligned with the rebar grid.

V-Bars: V-bars are welded or bolted onto rebar grids, providing a secure attachment point for mesh. They’re ideal for high-load applications but may require welding skills and equipment. Always follow safety guidelines when welding on-site.

Welded Connections: Welding mesh directly to rebar provides the strongest possible connection. However, this method requires advanced welding skills and appropriate safety measures. Always ensure you’re licensed and certified for any welding work you perform.

Back to top ↑

For small repairs, prepare a clean surface, place the mesh, and install a minimal set of anchors to hold its position. Keep the process simple and avoid over-constraining the mesh. Confirm anchor depth and alignment before mixing and pouring.

For typical residential slabs, map out anchor points along edges and within the interior to maintain flatness during pour. Use consistent spacing and secure each point before the concrete arrives. For larger commercial pours, coordinate a systematic pin layout and staggered installation for continuous restraint.

Small Pours and Patch Work

For confined or localized pours, follow this concise procedure to prepare, pin, and verify mesh.

First, clear the area of any debris. Then, lay out your mesh, ensuring it fits snugly within the pour’s boundaries. Use your chosen pinning method to secure it at close intervals due to the confined space.

Next, check for proper tensioning. Gently pull on the mesh; it should feel taut but not overly tight. If it’s too loose or too tight, adjust your pins.

Finally, verify the mesh is flat and level before pouring. Use a straight edge to check for any high or low spots. Make adjustments as needed.

Residential Slab and Driveway Pours

For larger residential pours, follow this sequence to lay out, secure mesh, and stage your pour for a flat result.

Begin by laying out the mesh. Ensure it follows the slab’s outline and is centered within the forms. Use string lines or form ties to help keep it in place.

Next, use your chosen pinning method to secure the mesh at regular intervals. Focus on high-risk zones like corners and edges where the mesh may lift during the pour.

Before pouring, check for proper tensioning and flatness. Gently pull on the mesh; it should feel taut but not overly tight. Use a straight edge to check for any high or low spots. Make adjustments as needed.

Large or Commercial Pours with Crew Coordination

For high-volume concrete placements, planning, communication, and staged pinning are key to keeping mesh flat.

Plan your pour in advance. Divide the area into smaller sections. Assign a crew member to each section for pinning and tensioning the mesh.

As concrete is placed, ensure each crew member knows when their section is next. This helps maintain a steady pace and prevents congestion, which can lead to mistakes.

Throughout the pour, communicate and coordinate. Keep an eye on neighboring sections. If you see any issues, address them promptly. Once the pour is complete, double-check that all mesh is still secure and flat.

Back to top ↑

Establish a baseline by inspecting mesh height, alignment, and anchor security prior to mixing. During the pour, monitor for movement and adjust clamps or anchors as needed. Record any deviations for post-pour review.

Use a simple, repeatable check routine at regular intervals to catch movement early. If you notice rising mesh, pause, correct the restraints, and recheck the surface plan before continuing. Always rely on manufacturer guidance for any specific tool or anchor tolerances.

Wear proper PPE and follow site safety rules for all pinning activities. Be cautious with powder-actuated tools and ensure operators are trained. Keep a clear work zone to prevent tripping hazards around the pinning setup.

Account for any structural or code constraints that affect pin choices and spacing. Check local requirements and project specifications for approved methods and material limits. When unsure, verify with the authority having jurisdiction or the project engineer.

Personal protective equipment and safe tool use

The right gear keeps you safe. Here’s what to wear and how to use tools safely.

• Hard hat: Protects from falling objects. OSHA requires it on sites with 6 feet or more of drop.
• Safety glasses: Shields eyes from debris. Consider impact-rated for extra protection.
• Steel-toed boots: Guard against heavy drops and compression hazards.
• Gloves: Protect hands from cuts, burns, and vibrations. Choose ones that fit well and don’t restrict movement.
• Ear protection: Reduces noise from tools like powder-actuated fasteners. Disposable foam plugs are cheap and effective.
• Respirator (optional): Rental or buy for dusty environments. Half-face is common, full-face offers eye protection too.

Permits, codes, and structural limits

Before you start, check local building codes. They vary by location.

Design requirements: Follow them to ensure your slab meets load-bearing needs and spans safely.

Confirm pinning methods meet structural intent. If unsure, consult an engineer or licensed contractor.

Consider hiring a pro for complex jobs or when codes are unclear. They know the ins and outs of local regulations.

When to call an engineer or a licensed contractor

DIY is great, but some jobs need pro input. Here are red flags:

Large spans: If your slab needs to span more than 12 feet without support, get an engineer’s advice.

Load-bearing slabs: If the slab supports heavy loads or multiple floors, hire a pro. They’ll ensure it’s structurally sound.

Repeated failures: If you’ve had issues with previous pours—like cracking or settling—consult a licensed contractor. They can diagnose and fix problems.

Back to top ↑

Diagnose lift causes by reviewing anchor adequacy, mesh tension, and pour timing. Implement targeted fixes for recurring issues to prevent future movement. Document what worked and what didn’t for next time.

Repair options may include adding restraints after the fact or re-pinning in high-risk areas once the concrete has set enough to tolerate work. Use the lessons from each job to refine your pin layout and installation sequence for future pours.

Diagnosing common failure modes

After a pour, if you notice mesh lifting or other issues, it’s crucial to diagnose the cause. Here are some common failure modes:

Anchoring Issues: Check if anchors were properly spaced and embedded. Inadequate anchoring can lead to mesh lift.

Mesh Selection: Ensure the mesh used was suitable for your pour. Light-duty mesh may not hold up under heavy loads or large pours.

Traffic and Vibration: Too much traffic before concrete sets can cause lifting. Also, check if there were any nearby vibrations (e.g., heavy machinery) that could have affected the pour.

Pour Technique: Poorly mixed or placed concrete can lead to issues. Review your mix design and placement technique.

Repairing partial lifts and addressing compromised areas

If you find partial lifts or compromised areas, here’s how to address them:

Non-invasive repairs: For small lifts, you can often fix the issue by chipping away loose concrete, cleaning the area, and applying a new layer of concrete. Ensure the new patch is well-anchored.

However, if lifting is extensive or you suspect structural issues, more invasive measures may be needed:

Extensive remediation: In some cases, you might need to remove and replace large sections of the slab. Always consult with a structural engineer before proceeding.

Documenting outcomes and improving future pours

Keeping records of your pours helps refine techniques and inform others. Here’s what to document:

Methods Used: Note the pinning methods, anchoring techniques, and any special considerations used during the pour.

Materials: Record the type of concrete mix, mesh used, and any additives or admixtures.

Results: Document any issues that arose, repairs made, and lessons learned. This helps improve future pours and can be useful for contractors or inspectors.
