Introduction
Epoxy and polyurethane injections are two concrete crack repair options, chosen based on movement and moisture.
Epoxy cures into a stiff bond ideal for solid, non-moving cracks, while polyurethane stays more flexible to absorb tiny shifts.
Always check the product label and local rules before committing to one method.
In terms of practical differences, epoxy provides strong bonding and a rigid seal, while polyurethane offers better creep resistance and moisture handling.
If the crack shows any ongoing movement or is exposed to water, polyurethane is often the safer choice; for stable, dry cracks, epoxy may be preferred.
Follow the manufacturer’s instructions and local codes, and test a small area if you’re unsure.
Key takeaways
- Epoxy provides rigid, high-strength bonds best for structural cracks with little movement.
- Polyurethane remains flexible after cure, sealing and accommodating moderate movement.
- Choose epoxy for non-moving or very small movement, to restore stiffness.
- Polyurethane excels in waterproofing and moisture-prone cracks due to expansion.
- Consider bonding strength vs. movement: epoxy for structural repair, polyurethane for joints.
- Include safety reminder: wear PPE, isolate active moisture, follow manufacturer safety guidelines.
Table of Contents
- Introduction
- Key takeaways
- How Epoxy Injection Works
- How Polyurethane Injection Works
- Head-to-Head Comparison — the Differences That Matter
- When to Choose Epoxy — Scenario-Based Guidance
- When to Choose Polyurethane — Scenario-Based Guidance
- Combining Epoxy and Polyurethane for Complex Repairs
- Planning, Testing, Safety, and Common Mistakes to Avoid
- Long-Term Maintenance to Prevent Future Problems
- Conclusion
- FAQ
How Epoxy Injection Works
Epoxy injection uses a two-part resin system. The resin and hardener mix on site and begin curing to form a chemical bond with the concrete surface. This creates a rigid, high-strength bond that helps restore structural integrity.
Prep matters: clean and dry the surface, assess porosity, and address any movement before applying. Epoxy adheres well to sound concrete but can be limited where cracks keep opening or shift occurs. Cure characteristics vary with temperature and humidity, affecting when the structure regains strength.
Application process and curing considerations
First things first, prep your surface. That means cleaning it real good – no dirt, grease, or contaminants. Check the manufacturer’s instructions for their preferred cleaner. Once clean, let it dry.
Next up, place your ports. These are like little gates for the epoxy to flow through. You want them spaced evenly, about every 12-18 inches apart. Drill holes just big enough for your tubes, and make sure they’re level with the surface.
Now we’re ready for the main event – injecting the epoxy. Follow the manufacturer’s mixing instructions to the tee. You want a consistent mix every time. Start at one end of the crack or void, and work your way along, keeping the port filled as you go.
After injection, it’s time for the waiting game – curing. This is where temperature comes into play. Most epoxies cure best between 70-80°F (21-27°C). Too cold, and they might not set right. Too hot, and they could cure too fast, leading to stress cracks. Check your epoxy’s datasheet for its specific temp range.
One more thing – keep an eye out for contamination. If water or other stuff gets in while curing, it can mess with the epoxy’s strength. So, keep the area clean and dry during cure time.

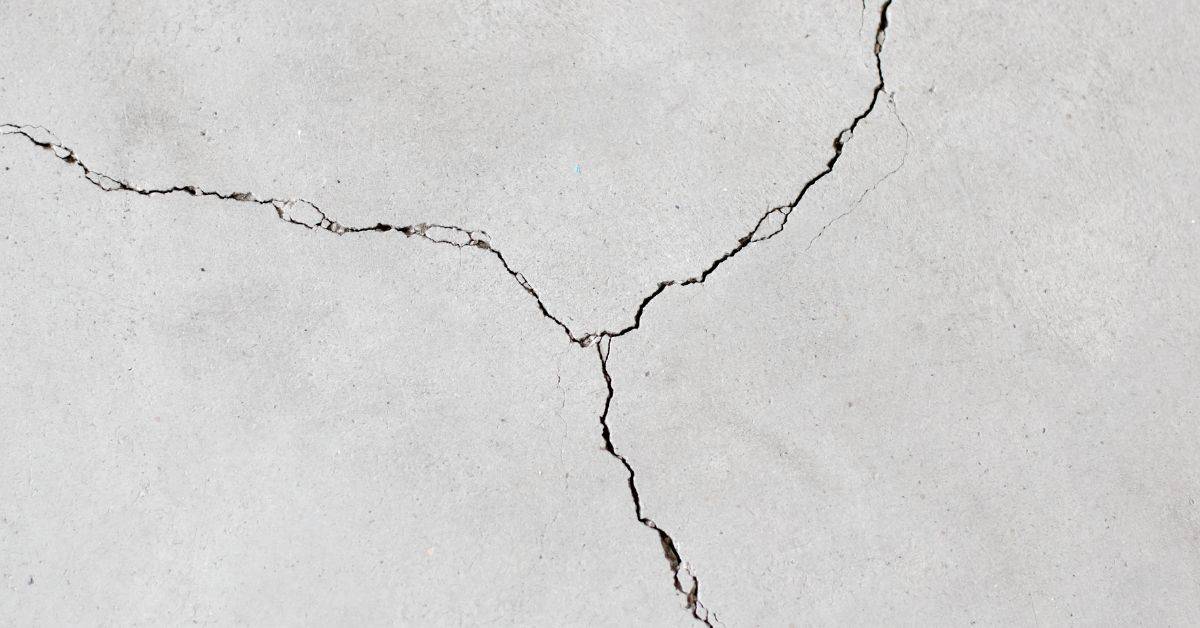

Visual checkpoints and crack suitability
Before you start the epoxy injection process, use this checklist to ensure your cracks are suitable for repair. This will save you time, materials, and potential rework.
- Crack width: Measure cracks with a feeler gauge or a piece of paper. Ideal widths are between 0.1mm to 3mm. Anything wider may require additional reinforcement or alternative repair methods.
- Crack continuity: Check if the crack runs continuously along the surface. Discontinuous cracks can be more challenging to repair and may require additional steps like crack chasing.
- Crack location: Inspect where the crack is located. Cracks at expansion joints or near corners are typically easier to repair than those in random patterns.
- Crack depth: Estimate the depth of the crack using a screwdriver or a small pick. Shallow cracks (less than 1/4 inch) can be repaired with epoxy, but deeper ones may require additional steps like crack chasing and/or underpinning.
- Crack surface: Ensure the crack surface is clean and free of debris. If not, remove any loose material using a wire brush or compressed air.
- Moisture content: Check if the concrete is dry or slightly damp. Epoxy should not be applied to wet surfaces as it can cause bonding issues and reduce the repair’s lifespan. Use a moisture meter if unsure.
- Crack movement: Gently tap the crack with a hammer and listen for any signs of movement. Active cracks (those that move or widen over time) may require additional reinforcement before epoxy injection.
- Crack origin: Determine if the crack is due to settlement, thermal expansion/contraction, or other causes. Understanding the cause can help prevent future cracking.
Quick rule: If in doubt about any of these points, consult a structural engineer or concrete repair specialist before proceeding with epoxy injection.
How Polyurethane Injection Works
Polyurethane is a moisture-reactive foam that expands to fill cracks and create a flexible seal. It sets to form a dynamic, water-blocking barrier rather than a rigid structural bond. This difference in chemistry explains its behavior under moisture and movement.
This material tolerates ongoing movement and damp conditions better than epoxy. It’s well suited for actively leaking or damp cracks that don’t carry the same structural load. Prep and injection steps include drilling, moisture testing, and sealing the area after the foam cures.
Application process and performance in wet conditions
Polyurethane injection works best on active leaks. First, locate the leak and clean the area. Then, drill small holes (about 1/2″ to 3/4″) along the crack or leak path.
Wet or underwater conditions won’t stop polyurethane. It cures even when wet, expanding to fill cracks and gaps. This makes it ideal for basements, foundations, and other damp areas. But remember, water can wash away fresh material, so keep the area dry until cured.
Injection involves using a gun to force the two-part polyurethane into the holes. Start at the lowest point, working up. Check the manufacturer’s instructions for exact pressures and amounts. After injection, monitor the area for any signs of expansion or curing issues.
Visual checkpoints and crack suitability
Before you start injecting polyurethane, use this checklist to ensure the cracks in your structure are suitable for this repair method. This will help prevent costly mistakes and rework.
- Check crack width: Use a crack gauge or a piece of cardboard to measure the width. Polyurethane works best on cracks less than 1/4 inch wide.
- Look for active leaks: Wet the crack with water from a hose and observe if water seeps through immediately. If it does, polyurethane can be used as a temporary fix until a more permanent solution is implemented.
- Identify crack pattern: Check if cracks are random or follow a pattern. Random cracks may indicate settlement issues that need to be addressed before injecting.
- Check for movement: Gently push and pull on the cracked area. If there’s significant movement, polyurethane injection might not be the best solution as it won’t address the underlying cause of the movement.
- Inspect crack depth: Use a screwdriver or a small pry bar to probe the crack. Polyurethane works well on cracks that are less than 1 inch deep.
- Look for hairline cracks: These are too narrow for polyurethane injection and may need other repair methods like epoxy or silicone sealant.
- Check for efflorescence: If there’s a white, powdery substance on the crack, it might be a sign of water intrusion. Polyurethane can help stop this but may not prevent it from recurring if the source of water intrusion isn’t addressed.
- Verify crack stability: Gently tap the cracked area with a hammer. If the crack crumbles or worsens, it might be unstable and need additional support before injecting.
Quick rule: If in doubt about any of these checks, consult a structural engineer to ensure your repair method is appropriate for the specific damage you’re dealing with.
Head-to-Head Comparison — the Differences That Matter
Bonding strength and rigidity set epoxy apart from polyurethane. Epoxy offers a stiff repair that restores structural integrity in suitable cracks, while polyurethane accommodates some movement with a more elastic seal. Use the rigidity factor to guide your choice in load-bearing areas.
Flexibility, waterproofing under pressure, and cure dynamics also differ. Epoxy tends to be slower to accommodate movement but provides solid, long-term bond; polyurethane acts quickly and maintains seal under movement. Consider crack type, moisture, and site conditions to decide.
Bonding strength and structural integrity
Epoxy injection forms a strong bond with concrete, restoring its rigidity and load-bearing capacity. It’s like welding the crack back together.
Use epoxy when you need to reinforce the structure, like in foundations or load-bearing walls.
Polyurethane creates a mechanical seal that fills cracks but doesn’t restore strength as well as epoxy. It’s more about stopping leaks than reinforcing the structure.
Choose polyurethane for non-load bearing areas where stopping water is your main goal.
Flexibility, movement accommodation, and longevity
Epoxy injection sets hard. If the concrete moves after it’s cured, the epoxy can crack again. It’s like putting a rigid band-aid on a wound that might still move.
Use epoxy when you’re sure there won’t be much more movement, like in old cracks from settled foundations.
Polyurethane is elastic. It stretches and contracts with the concrete, accommodating settlement or thermal movement without breaking its seal.
Pick polyurethane for areas that might still move, like new cracks or places subject to temperature changes.
Waterproofing and performance with active leaks
Epoxy injection forms a solid barrier against water. It’s great for preventing water from seeping in, but it won’t expand to fill large gaps or actively stop a leak.
Use epoxy when you want to prevent water from entering through small cracks or hairline fractures.
Polyurethane expands as it cures, filling larger gaps and actively stopping leaks. It’s like foam sealant in a can, but for concrete cracks.
Choose polyurethane for active leaks or large crack openings where you need to stop water infiltration immediately.
When to Choose Epoxy — Scenario-Based Guidance
Use epoxy for structural cracks in dry or near-dry conditions where restoring load-bearing capacity is the goal. It offers high bond strength and rigidity suitable for non-flexing substrates. Avoid epoxy where ongoing movement is evident or moisture is persistent.
Crack characteristics that favor epoxy include hairline to moderate-width fractures in non-flexing areas. Surface prep, proper mix, and environmental limits must be observed to ensure full cure and adhesion. A follow-up plan may be needed if conditions change.
Structural and Load-Bearing Cracks
Epoxy injection is your go-to when you’ve got structural cracks. These are usually wide, often running diagonally or horizontally through walls or foundations. They might show signs of displacement – like bulging or leaning.
Why epoxy? Epoxy restores load-bearing capacity and provides high bond strength. It’s rigid, so it can help stabilize structures under pressure.
But remember, if the crack’s actively moving or leaking, you might need to monitor it first or consult a pro. Epoxy isn’t as forgiving in these conditions.
Dry or Slightly Damp Environments and Prep Needs
Epoxy loves dry conditions. It won’t stick well if the surface is wet or damp. So, before you start, make sure your cracks are clean and dry.
If it’s slightly damp, give it time to dry out naturally or use a heat gun carefully. But remember, epoxy doesn’t like humidity either. Check the temp and humidity – it should be between 50-90°F (10-32°C) with less than 85% humidity.
Moisture compromises bonding. It can prevent epoxy from sticking properly, leading to failed repairs.
Epoxy Limitations and Warning Signs
Epoxy’s not a cure-all. It struggles with actively moving or leaking cracks. If you see water seeping out, or the crack’s widening over time, epoxy might not be enough.
In these cases, consider a combined approach – use polyurethane first to stop the leak, then follow up with epoxy for structural support. Or consult a pro for advice tailored to your specific situation.
Monitor closely. Even if you’ve injected with epoxy, keep an eye on those cracks. If they start moving or leaking again, you might need to re-evaluate your approach.
When to Choose Polyurethane — Scenario-Based Guidance
Polyurethane is preferred for active leaks, moving cracks, and non-structural sealing in moisture-prone environments. Its elastic nature helps maintain a seal as substrates shift. This makes it a better fit where water control and movement tolerance are priorities.
Crack characteristics to guide polyurethane include narrow, moving, or damp cracks. Practical steps include surface prep and a controlled injection sequence that caps and seals after foam sets. Expect faster sealing in moist conditions but plan for different durability than epoxy.
Actively leaking cracks and hydrostatic situations
Polyurethane is your go-to for active leaks. Here’s why:
Moisture triggers polyurethane to expand, creating an effective seal in small leak paths. This makes it perfect for light hydrostatic pressure situations.
Tip: For heavy hydrostatic pressure, consider combining with external waterproofing measures.
Non-structural, moving, or hairline cracks
Polyurethane’s flexibility and elasticity make it ideal for non-structural, moving, or hairline cracks.
It can accommodate repeated compression and expansion without breaking down. This is crucial in areas with ongoing movement.
Remember: Polyurethane isn’t designed to bear heavy loads or structural concerns. For those, consider epoxy or other structural resins.
Polyurethane limitations and maintenance needs
While versatile, polyurethane has its limits:
Reduced Structural Bonding: It doesn’t bond as strongly to substrates as epoxy does. So, it’s not ideal for structural repairs.
Chemical Sensitivities: Some polyurethanes can degrade over time when exposed to certain chemicals. Check compatibility before use.
Maintenance Needs: Periodic monitoring and re-treatment may be necessary in areas with ongoing movement or moisture intrusion.
Combining Epoxy and Polyurethane for Complex Repairs
Hybrid repairs pair epoxy for structural bonding with polyurethane for movement and waterproofing. The sequencing typically starts with epoxy to restore stiffness, followed by polyurethane to accommodate movement and seal. This approach targets both strength and moisture control.
Decision criteria focus on crack type and movement: use epoxy for hairline cracks with little movement, and reserve polyurethane for actively leaking or wider, moving cracks. Practical steps include staged prep, cure times, and post-treatment checks.
Typical sequences and compatibility considerations
When combining epoxy and polyurethane, sequencing is crucial. Epoxy first, then polyurethane.
Why? Epoxy provides structural bond and rigidity. Polyurethane seals and accommodates ongoing movement.
Prep between materials? Clean the surface after epoxy cures. Follow manufacturer guidance for compatibility.
Example case types and cost/benefit trade-offs
Case 1: Structural crack with active leak. Epoxy for structure, polyurethane for waterproofing.
Cost: Higher due to materials and sequencing. Benefit: Long-term structural integrity and waterproofing.
Case 2: Long hairline with movement. Epoxy for initial bond, polyurethane for flexibility.
Cost: Moderate. Benefit: Prevents further cracking and accommodates minor movement.
Planning, Testing, Safety, and Common Mistakes to Avoid
Begin with a clear pre-repair scope, including structural assessment, crack characterization, and moisture status. Include permitting needs and rough cost estimates to set expectations. Document a short maintenance plan for afterward.
Plan moisture and movement testing and establish material decision criteria. Safety measures, proper ventilation, and PPE are essential to protect people and the worksite. Identify common mistakes and how to avoid them during injection and cure.
Moisture and Structural Testing Checklist
Before you start, use this checklist to assess your crack’s moisture status and structural integrity.
- Visible leak behavior: Observe the crack for signs of active leaking or dampness. If it’s actively leaking, consider polyurethane.
- Dye/water tests: Apply a water-based dye or perform a simple water test to trace the leak path and confirm moisture intrusion.
- Humidity readings: Use a relative humidity meter to measure adjacent slabs. Anything above 70% could indicate dampness.
- Crack width measurement: Measure crack widths at multiple points to understand the extent of damage and plan your injection strategy.
- Crack pattern analysis: Identify if cracks are structural (diagonal, wide) or non-structural (hairline, random).
- Movement tracking: Use crack gauges or measured visual checks to track movement over time. If it’s moving, consider polyurethane.
- Structural engineer evaluation: If cracks are wide (over 0.2mm), diagonal, or part of a larger pattern, order an engineer’s assessment to rule out structural issues.
- Permit requirements: Check local codes for any permit needs based on your repair scope and structural findings.
Quick rule: Don’t skip these checks. They’ll help you choose the right injection method and avoid costly mistakes.
Tools, Materials, and Safety Precautions
Gather your tools, understand your materials, and prioritize safety before you start injecting.
- Injection kit: Rent or buy a kit with injection ports, needles, and a pressure gauge. Expect to pay around $100-$200.
- Resin and hardener: Buy from reputable brands. Follow manufacturer instructions for mixing ratios and safety guidelines.
- PPE (Personal Protective Equipment): Wear gloves, safety glasses, and a respirator when handling chemicals. Consult product SDS for specific PPE needs.
- Moisture meter: Rent or buy one to confirm moisture levels before injection. Expect to pay around $50-$150.
- Ventilation: Ensure adequate ventilation, especially when working with solvents. Consider using fans or respirators with cartridges.
- Avoid injecting over: Active corrosion, contaminants, or loose debris. Prep surfaces properly to ensure good adhesion.
- Confined spaces: Be aware of confined space risks, especially when working in basements or crawlspaces. Follow local regulations for safety procedures.
Common Homeowner Mistakes and Post-Repair Monitoring
Avoid these common pitfalls and maintain your repair with regular inspections.
- Choosing epoxy for active leaks: Epoxy doesn’t handle active leaks well. Use polyurethane instead.
- Skipping moisture tests: Moisture can ruin your repair. Always test before injecting.
- Poor surface prep: Contaminants and loose material hinder adhesion. Clean, prime, and prep surfaces properly.
- Insufficient cure time: Allow resins to cure fully (usually 24-72 hours) before exposing them to moisture or heavy loads.
After injection, monitor your repair with a simple inspection schedule:
– Seasonal inspections: Check cracks annually for signs of reopening.
– Post-rainfall checks: Inspect after heavy rains to ensure no new leaks have formed.
– Trigger points: Re-evaluate if you notice new cracks, increased movement, or active leaking.
Long-Term Maintenance to Prevent Future Problems
Outline a preventive maintenance plan tied to movement and moisture. Schedule inspections and monitor crack width changes over time. Look for signs that indicate a new repair may be needed.
Include a practical maintenance checklist and prevention tips, such as drainage improvements and crack isolation details. Regular monitoring helps catch early warning signs before they worsen and guides timely ret-reatment decisions.
Establishing a monitoring routine to catch movement early
Regular visual inspections are key to catching any signs of movement before they become major issues. Aim for monthly checks, especially during seasons with extreme temperatures or heavy rainfall.
Use simple crack gauges or calipers to measure crack widths accurately. Mark the cracks with a pencil and record measurements to track changes over time. Acceptable movement thresholds depend on your structure’s design and materials, but as a general rule, any increase in width should trigger re-evaluation or repair.
Be consistent. Make sure to check the same spots each time for accurate comparisons.
Maintenance of waterproofing and moisture control to prevent recurrence
Proper drainage is your first line of defense against moisture-related problems. Ensure that water flows away from your structure’s foundation, and consider installing or maintaining downspouts and gutters.
Seal surfaces regularly using appropriate sealants for your concrete type. This creates a barrier to prevent moisture penetration. Maintain any existing moisture barriers, like damp-proofing or waterproof membranes.
Reapply waterproof coatings or sealants periodically, following the manufacturer’s instructions. This ensures that protection remains effective over time.
Conclusion
For durable, safe repairs, decide based on movement and moisture: epoxy for stable cracks with little to no moisture and polyurethane for cracks that move or stay wet. Use the right material to keep the structure stiff where it counts and to accommodate movement without trapping water or failing later.
Make your plan in one pass: assess how much the crack moves and how wet it is, map the area to repair, seal and prep the surface, mix and inject in the correct order, ventilate the space and wear PPE, test a small area first, then monitor cures and recheck after a rain event or heavy use. Start small, document what works, and expand only if the test area behaves as expected.
Common mistakes to avoid are over-pressurizing the injection, mixing or curing products at the wrong temperatures, and skipping safety steps or moisture checks. Do not ignore active water or signs of ongoing movement, and never mix products without confirming the correct ratios and cure times. Protect adjacent surfaces, work slowly, and never force a repair that feels unstable.
If the crack is highly active, large, or you’re unsure about the substrate or structural implications, call a professional. When in doubt, prioritize safety and proper testing over speed. With careful planning and cautious execution, you’ll restore strength and keep future damage at bay.
FAQ
What are the key differences in bonding strength and structural integrity between epoxy and polyurethane injections?
Epoxy generally forms a rigid bond and transfers load back into the surrounding concrete. Polyurethane stays more flexible after curing and seals the crack, but it doesn’t carry as much structural load as epoxy. Check the product label or manufacturer instructions for the target use and strength guarantees.
How do flexibility and movement accommodation compare for epoxy vs polyurethane?
Epoxy is stiff and best for cracks with little movement. Polyurethane is more forgiving and can tolerate ongoing crack movement better. If your crack keeps opening, polyurethane is often the safer choice; confirm movement tolerance on the product datasheet.
Which material offers better waterproofing and moisture resistance?
Epoxy seals well but is not a long-term waterproofing solution if movement happens. Polyurethane also seals and remains flexible, which helps when moisture is present and there’s crack movement. Always verify the moisture resistance claims on the label or instructions.
Can epoxy be used on load-bearing applications like walls, and what should I check first?
Epoxy can be used where the crack affects structural elements, but it’s best when movement is minimal. For load-bearing walls with movement or wide cracks, consult the manufacturer guidance and consider a combination approach if needed. Always check the product instructions and local rules before proceeding.
