Eliminating Air Pockets in Vertical Concrete Using Vibration Techniques

Introduction

Vibration consolidates fresh concrete by helping it settle around reinforcement and against the form face while releasing entrapped air. Done correctly, it can reduce surface bugholes and the risk of internal voids. Those are related defects, but a smooth face alone does not prove that hidden honeycombing is absent.

For formed walls, columns, beams, and similar vertical work, an immersed internal vibrator is usually the primary tool. Good results depend on an approved mixture, stable and well-sealed forms, controlled lift placement, an insertion pattern that covers the member, and observing the concrete rather than relying on a fixed number of seconds.

Essential Equipment and Supplies Needed

• Internal concrete vibrator: Select a head that can pass through the available space without contacting reinforcement or forms. Its diameter, capacity, and radius of influence must suit the member, nominal maximum aggregate size, mixture consistency, and congestion. The largest unit that can be safely operated may be preferred, but only when its manufacturer-rated capacity, access, and project requirements support that choice.
• Power, electrical protection, and backup: Use a power source, vibrator, and extension equipment approved for the site conditions, including any wet or damp environment. Use GFCI protection and an assured equipment-grounding program where required by applicable OSHA, local, or site rules. Inspect the head, flexible shaft, housing, switch, cords, plugs, guards, extension equipment, and connections before use. Keep cords and connections out of standing water, away from sharp form edges, and out of walkways. Do not use damaged equipment or electrical equipment that is not approved for the actual work environment. Have a suitable backup vibrator for a pour that cannot pause.
• Placement and finishing tools: Use a mixer or ready-mix delivery, buckets or wheelbarrows as appropriate, and a shovel or rake to place concrete close to its final location. Have a straightedge or screed for exposed horizontal surfaces.
• Formwork and reinforcement supports: Forms must be braced, tied, aligned, and sealed at joints. Spacers must hold reinforcement at its specified position without blocking planned vibrator access.
• Access and lighting: Provide a stable working platform and enough light to see corners, form faces, and changes in the concrete.
• PPE: Wear alkali-resistant gloves, waterproof boots, long sleeves, eye protection, hearing protection, and task-appropriate head and foot protection. Fresh concrete can burn skin; wash it off promptly.

Do not choose a vibrator by a claimed “deep penetration” frequency alone. Head diameter, centrifugal force, operating characteristics, concrete consistency, geometry, and reinforcement all affect results. Where internal access is too restricted, ask the engineer or concrete supplier about a smaller approved head, form vibration, or a specified self-consolidating mixture. ACI guidance on vibrator selection and consolidation emphasizes matching the equipment and concrete consistency to the work.

Before scheduling the pour, obtain the approved placement plan, formwork plan, project specifications, and concrete supplier instructions. Use them to establish lift depth, placement rate, vibrator settings and layout, weather protection, curing, and the procedure for any authorized mix adjustment. Follow the project requirements for concrete temperature, placement, protection, and curing; hot sun, wind, freezing conditions, delayed setting, and rapid evaporation need project-specific controls rather than a universal outdoor temperature range.

Organizing Your Project and Timeline

Make a pour plan before concrete arrives. Confirm the approved mixture, planned lift depth, placing rate, insertion layout, crew roles, access, power, electrical protection, and backup vibrator. Check that forms, braces, ties, working platforms, reinforcement, embeds, and blockouts are secure. Stop and correct leaks, loose bracing, inadequate access, or unsafe electrical conditions before placement begins.

Plan manageable horizontal lifts rather than allowing a deep, uncontrolled mass of concrete to build up. The lift thickness and placement rate must let the crew consolidate each lift before the next one advances too far. Keep the pour continuous where the design requires it, and coordinate deliveries so a delay does not create an unintended cold joint.

Mark or mentally divide a large face into a grid. Set insertion locations so the vibrator’s areas of influence overlap; a commonly cited guide is spacing at about 1.5 times the vibrator’s stated radius of influence, then reducing spacing wherever concrete remains visibly unworked. Use closer insertions at corners, form faces, congested bars, embeds, and construction joints. FHWA consolidation guidance also cautions against using a vibrator to push concrete laterally.

Detailed Procedure for Vibration Application

1. Inspect and stage the work. Follow the vibrator manufacturer’s starting, insertion, operating, and maintenance instructions. Verify that the vibrator, power source, and extension equipment are approved for the site’s wet or damp conditions before use. Confirm GFCI protection and the assured equipment-grounding program where required. Verify that forms are stable and that the operator can safely reach every insertion point.
2. Place concrete close to final position. Deposit concrete evenly in the planned lift. Use placement tools to distribute it; do not expect vibration to carry it across the form. Avoid dumping one large pile into a narrow wall or column.
3. Insert as directed by the manufacturer, nearly vertical where practical. Lower or insert the head into fresh concrete promptly, following the equipment manufacturer’s instructions and keeping the head as nearly vertical as practical. Do not drag or sweep it through the mix, use it as a pry bar, or repeatedly hit reinforcement, ties, embeds, or formwork. If contact occurs, withdraw and reposition.
4. Cover the lift systematically. Work through the planned grid or staggered pattern so adjacent zones overlap. Add insertions at corners, around steel, and along difficult form faces. If the head cannot reach a congested area without striking fixed items, stop and use the approved alternative rather than forcing it through.
5. Knit successive lifts together. When placing the next lift, extend the head into the preceding lift while both are still plastic so the layers knit together. Do not wait until the earlier lift has begun to set.
6. Use visible response to decide when to stop. Duration is per insertion and varies with the mix, head, lift, and congestion. Move on when large rising bubbles have substantially ceased, the concrete has closed around the head, mortar has filled around reinforcement and corners, and a slight sheen appears without bleed-water or grout pooling. These indicators must occur together; sheen alone is not a stopping test and does not prove that every hidden void is gone.
7. Withdraw slowly while running. Lift the head gradually so the path closes behind it. Recheck the form face, corners, and surface of the lift before moving to the next area.
8. Watch for over-vibration and form distress. Stop or reposition if grout or water pools, coarse aggregate settles, paste and aggregate separate, specified entrained air appears to be lost, or the form leaks, bulges, shifts, or shows tie distress. Stop placement and vibration for form distress; repair or rebrace formwork only by a competent person under the project’s formwork plan before resuming.

Vibrate while the concrete is fresh and workable, not after it has started setting. If a stiff mixture or slow crew pace prevents complete consolidation, reduce the placing rate or pause placement long enough to regain control.

Common Challenges and Solutions

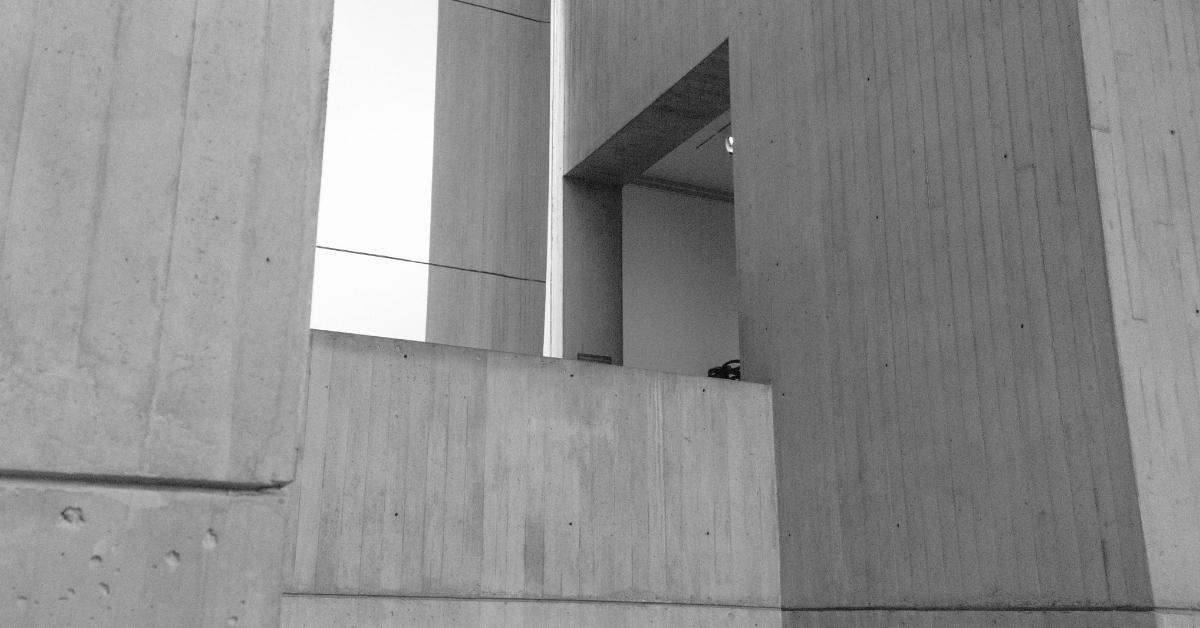

Bugholes remain on the stripped face. Review form cleanliness, release-agent application, leaks, placement method, and insertion coverage. Use release agent uniformly as directed, and avoid excess release agent or contamination on the form face. Surface bugholes can result from several factors; additional vibration at random is not a reliable cure. Improve the next pour’s coverage near the form face and corners without over-vibrating.

Concrete is not moving into a congested area. Do not force an oversized head through steel or use the vibrator to shove concrete sideways. Place more carefully near that location and obtain direction on a smaller approved vibrator, form vibration, aggregate changes, or a different specified mixture.

Grout pools or aggregate settles. This indicates possible over-vibration or a mixture problem. Stop vibrating that area, avoid adding water, and notify the person responsible for the mix and placement. Segregated concrete may need evaluation before work continues.

Forms leak, bulge, or move. Stop placement and vibration. A competent person must shore, retie, brace, or otherwise correct the formwork under the project’s formwork plan before work resumes. Vibration should never be used to test questionable formwork.

The mixture is too stiff or setting too quickly. Do not casually add water, change the water-cementitious ratio, or dose admixtures at the work area. Slump, air content, aggregate, and admixtures are mix-design variables. Authorized adjustments must follow the project requirements and supplier procedure; NRMCA’s guidance on jobsite water and admixture adjustments explains why these changes require control, authorization, remixing, and documentation.

The vibrator fails mid-pour. Use the backup unit only if it is safe, inspected, and suitable. If there is no backup and the next lift cannot be consolidated properly, stop and seek direction promptly rather than covering poorly consolidated concrete with more material.

The Science Behind Vibration Effectiveness

Fresh concrete contains aggregate, cement paste, water, and intentionally entrained air when specified, along with unwanted entrapped air from mixing and placement. Proper vibration temporarily helps the mixture flow into corners and around reinforcement while large entrapped bubbles rise and escape. It can improve contact with forms and reinforcement, but excessive vibration can separate materials and reduce specified air content.

There is no universal setting for frequency, amplitude, vibrator diameter, slump, water-cementitious ratio, or seconds per insertion. Frequency and amplitude work together with head diameter, centrifugal force, mix behavior, reinforcement, and member geometry. Use the equipment’s rated settings and the approved placement plan; do not alter settings beyond the manufacturer’s limits.

Concrete that stays uniform while it fills the form is the goal. The substantial end of large bubble release, closure around the insertion path, and filled corners and reinforcement zones are the primary field indicators. A slight sheen may accompany them, but a thick grout layer, water sheen, aggregate settlement, or continued disturbance are warnings to stop.

Helpful Suggestions and Alternative Methods

Internal vibration uses an immersed head and is generally the main method for formed vertical members. External form vibration attaches equipment to forms and can help where internal access is limited, but the formwork must be designed and secured for that loading. Surface vibration is primarily for shallow, exposed work such as slabs. A vibrating plate is not the usual tool for consolidating a tall formed wall or column.

Light, controlled tapping of a stable form may be used only as a limited supplementary observation technique to help reveal a local face void where the project allows it. It cannot consolidate concrete, cannot replace an internal vibrator, and should be omitted if it could encourage work on an unstable form or improvised striking of formwork.

For difficult placements, consult the concrete supplier or engineer before the pour. An approved water reducer, high-range water reducer, smaller aggregate, or self-consolidating concrete may be more appropriate than informal mix changes. In very hot, cold, dry, or windy conditions, use the specified placement and curing protections; the American Cement Association’s curing overview notes that extreme weather calls for special curing practices.

• Use tight, clean, well-sealed forms and apply release agent uniformly as directed.
• Keep the placement rate within the crew’s ability to place and consolidate every lift.
• Clean concrete from the vibrator head and inspect the equipment after use according to the manufacturer’s instructions.
• Begin curing and protect the concrete according to the project specification and weather conditions after finishing is complete.

Conclusion

To reduce bugholes and fresh-concrete voids in vertical work, use the correct vibrator, place in controlled lifts, cover each lift with overlapping near-vertical insertions, and stop according to what the concrete shows—not a fixed timer. Protect the mixture from segregation, never use vibration to move concrete sideways, and stop immediately for form or electrical hazards.

After stripping, assess defects rather than assuming they are cosmetic. Vibration cannot reliably repair hardened honeycombing. Deep voids, exposed reinforcement, suspected loss of section, form displacement, or defects in a load-bearing member require review by the engineer, building official, or qualified concrete repair professional before patching.

FAQ

How do I know whether the vibrator head is the right size? It must fit and operate safely between reinforcement and within the member while providing enough capacity to consolidate the planned lift. Check the manufacturer’s radius-of-influence and capacity information, the approved mix, aggregate size, and reinforcement congestion. Ask the supplier or engineer when selection is uncertain.

Can I use a vibrator to move concrete across a wall form? No. Place concrete close to its final position with appropriate placing tools. Using the vibrator to move it laterally can leave poorly consolidated areas and increase the risk of segregation.

Can I add water if the concrete seems hard to vibrate? Not without authorization. Water and admixture changes can affect the approved mixture and must follow the project specification and supplier procedure. Contact the supplier or responsible professional for an approved adjustment.

What electrical protection is needed for a concrete vibrator? Before use, verify that the vibrator, power source, and extension equipment are approved for the work environment. Use GFCI protection and an assured equipment-grounding program where required, inspect all electrical components, and keep cords and connections out of standing water.

What should I do if honeycombing appears after the forms are removed? Do not assume it is a surface blemish or try to repair a significant defect with casual patching. Have deep honeycombing, exposed steel, voids in structural work, or suspected section loss inspected and repaired using an approved method.
