Concrete Crack Stitching for DIYers: When Staples Help and When They Don’t

Crack stitching is a masonry repair approach that slows crack movement by creating a transfer path across the gap. Staples act as a low-profile load-transfer element that helps hold the sides together without bulking the surface. This intro explains the concept at a high level and contrasts it with other methods you may have heard of.

Think of staple stitching as a restraint that bridges the crack so movement is shared between the repair and surrounding concrete. It is not a stand-alone fix for every situation, so understanding when it makes sense is key. You should verify the system details in the manufacturer instructions and local guidance if you plan to proceed.

Basic mechanics of stitching

Concrete cracks when tensile forces exceed its strength. Stitching transfers these loads across the crack, preventing further damage.

Imagine a rubber band stretched too far – it snaps. Now, tie another rubber band to both ends and stretch again. It won’t snap because the force is distributed.

Continuous reinforcement or bonding matters here. It’s like tying those rubber bands together tightly. The stronger the connection, the better the load transfer.

Staples versus other stitch systems

Staples are low-profile, easy to install, and cheap. They’re great for quick fixes and preventing further cracking.

But they don’t provide the same strength as other methods. Here’s a quick compare:

Helical bars offer better strength but are harder to install. Grout-inserts can match staples’ ease of use with better strength, given proper installation. Epoxy-only repairs are strong but need perfect surfaces and conditions.

Back to top ↑

Assess the crack’s behavior and the structure it belongs to before grabbing tools. Look for active movement, widening, or changes in alignment that signal professional review may be needed. Location and load exposure also matter for choosing a DIY route.

Visible signs such as complex cracking or previous structural issues are flags to pause and consult with a pro. Use the product data sheet or installer guidelines as your reference to confirm what is within DIY capabilities. When in doubt, prioritize safety and seek expert input.

Identifying crack types and causes

Cracks in concrete can vary greatly. To decide if a crack is DIY-appropriate, first identify its type and cause.

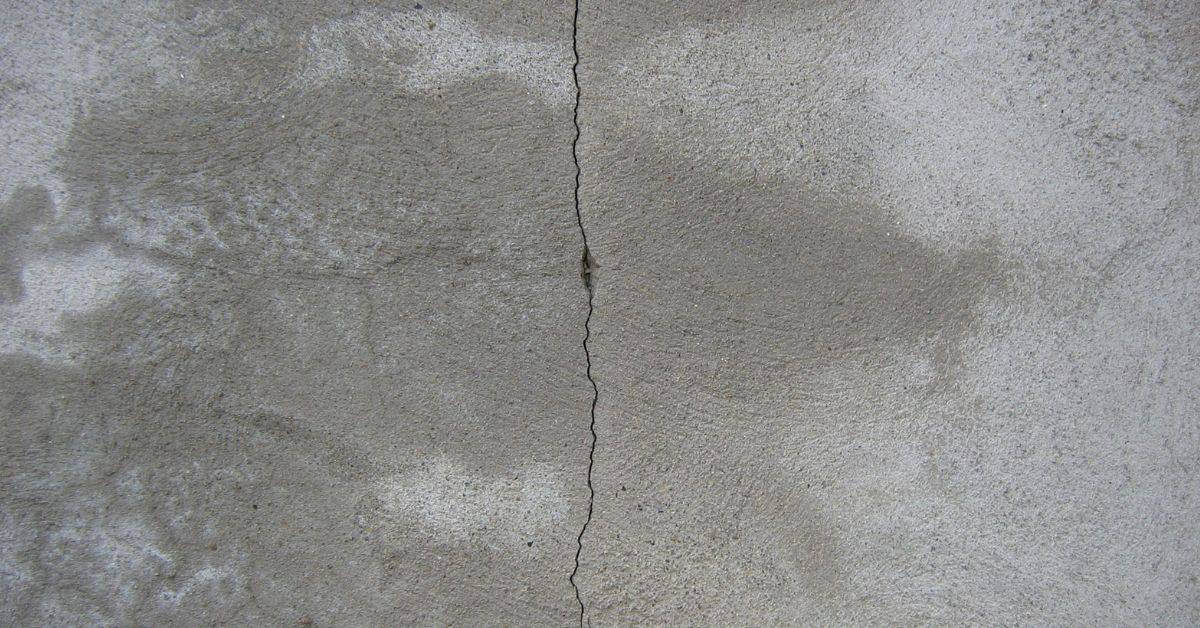

Hairline cracks are thin, usually less than 0.1mm wide. They’re often caused by minor settlement or shrinkage during curing. These are typically the easiest to repair.

Shrinkage cracks happen when concrete loses moisture and shrinks. They’re wider than hairline cracks but still relatively harmless. Properly managing water content during mixing can prevent these.

Load-related cracks occur due to heavy loads or structural movement. They’re usually wider, often with visible signs of stress like diagonal cracking or stepped cracks at joints. These may need professional assessment before repair.

Red flags that require an engineer

Some cracks are clear warning signs that professional help is needed. Ignoring these can lead to further damage or even structural failure.

If you see active movement – like widening or lengthening of the crack over time, or if it’s widening more than 0.2mm per year, get an engineer involved immediately.

Cracks that show signs of separation at joints, especially in block or brick walls, or those accompanied by foundation settlement – like sloping floors or doors not closing properly – also require professional assessment.

If you notice any of these red flags, don’t attempt repairs yourself. Contact a structural engineer right away.

Back to top ↑

Prepare a compact toolkit that covers marking, drilling, inserting staples, and grouting or injecting resin. Include safety gear, a straightedge, and a dust excuse plan to keep the area clean. Quality items matter, so check compatibility with your chosen stitching system.

Keep a list of compatible staples, resins, or grouts as specified by the manufacturer. Read labels to confirm suitable temperature ranges, cure times, and substrate compatibility. If unsure, contact the supplier or consult the instructions before buying.

Start with a clean crack by removing loose material and dust. Use a brush and light vacuum to expose sound edges without widening the crack. Wire mesh or sealant may be applied later depending on the system you choose.

Routing or cutting a narrow stitch slot should follow the method you’re using, and you must control moisture before installation. Protect adjoining surfaces and plan for containment of dust during the work. Always refer to the system’s prep instructions for best results.

Cutting or forming the stitching slot

The first step is to create a slot for your staples. This helps distribute stress evenly and gives the staple something to grip onto.

Common methods include using an angle grinder with a diamond blade, a concrete saw, or even a chisel and hammer for smaller cracks. Follow your chosen system’s instructions for slot width and depth.

Safety first: Wear appropriate PPE, including safety glasses, gloves, and ear protection. Keep the work area clean to prevent slips and trips.

Surface prep, cleaning, and moisture control

A clean, dry surface is crucial for a strong bond between the concrete and your staple system. Here’s how to prepare it:

Start by removing any loose material using a wire brush or chisel. Then, use a vacuum or broom to remove dust.

Moisture control is key. If the crack is damp, let it dry out before proceeding. For active water intrusion, you might need to address the cause (like a leaky pipe) first. Always follow your chosen system’s moisture guidelines.

Back to top ↑

Begin by marking the stitch line and selecting staple locations that align across the crack. Drill guide holes through the surface following the planned path. Install the staples so they bridge the crack without creating new voids.

Next, inject or apply the bonding material according to the product instructions, ensuring full contact with both sides. Finish the surface to match surrounding concrete and cure as directed. If any step is unclear, check the manufacturer’s workflow and local rules before finishing.

Anchoring staples and injecting resin/grout

Once the staples are in place, it’s time to secure them with resin or grout. Follow these steps:

Mixing: Combine the resin and hardener according to the manufacturer’s instructions. Work quickly; these products have a limited working time.

Injection: Using a caulking gun, apply the mixed product into each staple hole. Fill them completely, ensuring no voids remain. Use a small trowel or putty knife to remove excess material from the surface.

Temperature and timing: Resins and grouts have specific temperature ranges for application. Ensure your concrete and environment meet these requirements. Follow the product’s working time guidelines to avoid under- or over-curing.

Finishing and curing

After injecting the resin/grout, it’s crucial to finish and cure the repair properly:

Leveling: Use a trowel or putty knife to level any excess material on the surface. Ensure the repaired area is flush with the surrounding concrete.

Protecting during cure: Keep the repaired area moist and protected from sunlight for the time specified in the product instructions. This usually involves covering it with plastic sheeting or dampening it regularly.

Restoring surface profile: Once cured, use a concrete grinder or sander to restore the original surface profile if needed. This will ensure a smooth finish when painting or applying render.

Back to top ↑

Staples are not a cure-all for every movement scenario. They may be ineffective where there is active structural movement or very large gaps. In such cases, other repairs or professional actions might be required.

Substrate conditions like poor bonding or degraded material can compromise performance. Always verify the crack activity and substrate integrity by following the guidance on the product label and applicable codes. When in doubt, pause and consult a professional.

Typical reasons stitched repairs fail

Staple stitching can be a great DIY fix, but it’s not foolproof. Here are some common reasons why these repairs might fail:

Poor Surface Prep: If the crack surface isn’t clean and dry, the adhesive won’t stick. Refer back to our Preparing the Crack section for a refresher.

Incorrect Adhesive: Using the wrong type or quality of adhesive can lead to failure. Make sure you’re using a high-quality, crack-bridging adhesive designed for your specific application.

Insufficient Embedment: If staples aren’t embedded deep enough into the concrete, they can pop out under stress. Ensure you’ve followed our Step-by-Step Installation Process to achieve proper embedment.

Ongoing Differential Movement: If the crack is due to ongoing structural movement, stitching might not hold. In such cases, consider upgrading to a more robust repair method or consulting an engineer.

Signs you need a stronger or different method

Staple stitching isn’t always the best solution. Here are some signs that you might need to upgrade your repair method:

Very Wide Cracks: If cracks are wider than 1/4 inch (6mm), they may be beyond what staple stitching can handle. Consider using helical bars or plate anchors for these cases.

Active Structural Movement: If the crack is due to ongoing structural movement, like settlement or heaving, stitching might not hold. You may need to underpin the structure or replace the affected section.

Compromised Substrate: If the concrete around the crack is badly damaged or crumbling, it might not provide a solid base for stitching. In such cases, full section replacement might be necessary.

Crack Length: Very long cracks can put excessive stress on staples. If your crack is longer than 3 feet (1 meter), consider upgrading to a more robust repair method.

Back to top ↑

Helical or bar stitching offers a different path to stiffen cracks with a more imposing internal alignments. Epoxy injection can restore continuity where cracks are stable and narrow. Consider grout repair or partial rebuild when the crack pattern or load demands a more robust solution.

Underpinning or more structural interventions may be required for severe cases. Each method has its own criteria, costs, and cure needs, so check the manufacturer instructions and local regulations before selecting one. Discuss options with a qualified contractor if you’re unsure.

Helical bars and grout-insert systems

When cracks are active, structural, or too wide for staples, it’s time to step up your game. Helical bars and grout-insert systems transfer greater loads, making them a better choice.

These systems use long, twisted steel bars inserted into slots cut along the crack. Grout is then forced under pressure into the voids around the bar, creating a strong bond.

Use these when cracks are wider than 3mm or show signs of movement. They’re ideal for structural repairs and can help prevent further cracking.

Remember, you’ll need specialized equipment to cut slots and inject grout under pressure. It’s a bit more involved than stapling but offers superior strength.

Injection and reconstruction options

Sometimes, the best fix is to remove and replace damaged concrete. But when that’s not feasible or you need a waterproof solution, injection methods come in handy.

Epoxy or polyurethane (PU) injections can fill micro-cracks and prevent water ingress. They’re great for stopping leaks but don’t add much structural strength.

Consider injections when waterproofing is your main concern, like in basements or retaining walls. But remember, they won’t fix structural issues on their own.

For larger damaged areas, partial reconstruction might be necessary. Remove the bad concrete, prepare the surface, and pour new concrete into forms. This can restore both structure and appearance but requires more time and effort.

Back to top ↑

Inspect bond lines for uniform contact along the stitch and look for gaps or misalignment. Check the surface for flush finished areas that blend with the surrounding concrete. Note any cracking that persists after the repair and plan a follow-up check.

Verify that the stitching aligns with the crack trajectory and remains true over time. Use a straightedge to confirm surface flatness and ensure the finish looks consistent with the rest of the slab. Reference the system’s QC steps in the instructions for a thorough review.
