Choosing the right concrete crack repair for your situation: movement, width, and water

Crack appearance helps distinguish cosmetic issues from structural concerns. Note width, pattern such as hairline, vertical, diagonal, or stair-step, color, and edge condition to guide judgment. This initial visual assessment sets up deeper analysis.

Location and context matter: interior vs exterior, floor slabs, walls, joints, and proximity to doors or windows. Environmental exposure like freeze–thaw cycles or moisture can influence crack behavior. Track changes over time to separate settled or cured cracks from ongoing movement.

Visual and Tactile Signs to Record

Accurate documentation of cracks aids in determining their cause and severity. Look for the following signs:

Displacement: Check for any movement or deflection around cracks.

Spalling: Note if concrete is flaking, chipping, or breaking off around the crack.

Efflorescence: Observe any white, powdery deposits on the surface near cracks, which may indicate water intrusion.

Staining: Record any discoloration or stains around cracks that could signal moisture issues.

Active vs Dormant and Structural vs Non-Structural

Distinguish between minor cosmetic issues and serious structural problems by considering these symptoms:

• Ongoing movement: Active cracks may widen, rattle, or reappear after repair attempts.
• Structural signs: Large widths (over 0.2 inches), horizontal or stair-step cracks, and cracks through supporting beams could indicate structural issues.

If cracks exhibit active movement and structural signs exist, monitor them frequently and consider immediate action. If unsure about the severity of the problem, consult a professional.

Common Underlying Causes

Understanding the cause of cracks guides appropriate repair strategies. Some typical mechanisms include:

Settlement: Cracks due to soil movement or inadequate compaction may be diagonal, stair-step, or horizontal.

Shrinkage: Drying shrinkage can cause hairline cracks in a random pattern.

Reinforcement corrosion: Corroding steel reinforcement may lead to cracking and spalling. Consult relevant building codes, standards, or manufacturer guidelines for specific causes.

Temperature cycling: Thermal expansion and contraction can result in vertical cracks at regular intervals.

Back to top ↑

Crack repair choices hinge on three factors: whether the crack moves, how wide it is, and whether water is present. Use a stepwise flow: Step 1 assess movement, Step 2 gauge width, Step 3 evaluate water, then Step 4 match to repair families such as non-structural fillers, epoxy/urethane injections, and water-sealing options. A simple yes/no checklist helps you reach a method on site without buying the wrong materials.

Why it matters: getting the factors right avoids ineffective repairs and protects against further damage. Quick checks and cautions guide safety and effectiveness: surface prep, material compatibility with concrete, and freeze–thaw considerations; address water issues before applying repairs if needed. Stake: skipping checks may lead to ineffective repairs or further damage. Pro check: an experienced installer would assess all three factors thoroughly before starting work.

Categorizing Movement and Its Repair Implications

When assessing a concrete crack for repair, the first step is to determine if the crack is moving or not. This will help you choose the right material that can withstand the forces acting on the crack.

No/Low movement: If the crack is not moving or has low movement, it’s typically stable and rigid materials can be used for repair. These include cement-based fillers like concrete caulk or surface sealants.

Ongoing movement: If the crack is actively moving, flexible materials are needed to accommodate the movement without failing. Options include polyurethane or silicone sealants. For structural cracks with ongoing movement, epoxy injections may be necessary.

Crack Width and Depth for Material Selection

The width and depth of concrete cracks significantly influence your choice of repair material. Narrow cracks may only require surface sealing, while wider ones might need injections or patching.

• Hairline cracks (less than 0.2mm): Use surface sealants or small-particle fillers to prevent further moisture intrusion and staining. These materials are designed for narrow cracks and may not be suitable if the crack is wider.
• Small cracks (0.2-1mm): Consider using small-particle fillers, urethanes, or epoxy injections. Always check product datasheets to ensure the chosen material can effectively bond and seal at this width.
• Moderate cracks (1-3mm): For these widths, urethanes, epoxies, or polyurethane foams may be suitable. Check product specifications to ensure they can handle the crack’s size.
• Large cracks (greater than 3mm): In this case, consider using epoxy injections for structural repairs or polyurethane foam for wider non-structural cracks. Always consult product datasheets for exact limits and recommendations.
• Deep cracks: If the crack is deep, it may require routing before applying any repair material to ensure proper penetration and bonding. Consult with a professional if you’re unsure about the depth of the crack.

Water Presence: Dry, Damp, or Actively Leaking

Before starting any repair work, it’s crucial to assess the water conditions around the crack. This will help you determine the initial approach and choose appropriate materials.

Dry conditions: If the area is dry, proceed with your chosen repair method based on movement and width. Ensure the surface is clean and dry before applying any material.

Damp conditions: In damp environments, consider using moisture-reactive materials like crystalline waterproofing additives or apply a waterproof coating before structural bonding. This will help prevent further water intrusion and improve the longevity of your repair.

Actively leaking: If water is actively leaking through the crack, address the water issue first before attempting any repairs. This may involve temporarily stopping the leak with a quick-setting material or contacting a professional for assistance.

Back to top ↑

Link material selection to movement, width, and water exposure, along with substrate type and environment. This ensures compatibility and durable performance. Keep the framework in mind as you compare options.

Four main material families are considered: epoxy for stabilized cracks, polyurethane foams for flexible, watertight seals, cementitious mortars for wider or textured surfaces, and flexible sealants for compressible joints. Each has different adhesion, elasticity, cure time, and depth characteristics that influence suitability.

Epoxy: Structural Bonding

Epoxies are recognized for their high strength bond, making them suitable for static cracks where restoring concrete’s original strength is crucial. They excel in providing a rigid, durable repair that can withstand heavy loads and traffic.

Key considerations: Epoxy is best suited when the crack width is less than 0.5mm and there’s no active movement. Always check the product label or manufacturer instructions for the required mixing ratio and cure time.

Pro tip: Verify substrate dryness and total dissolved solids (TDS) to ensure optimal adhesion. If epoxy fails to adhere or delaminates, re-evaluate surface preparation and substrate conditions.

Polyurethane and Reactive Foams: Waterproofing and Flexible Sealing

Moisture-reactive polyurethanes expand upon contact with water, effectively stopping leaks while remaining flexible to accommodate crack movement. They are suitable for active water intrusion but not for structural bonding.

Key considerations: These foams work best when there’s active water leakage and moving cracks. Check the label or datasheet for expected expansion ratio and cure time.

Pro tip: Ensure active water intrusion is present to trigger foam expansion. If foam does not expand or fails to stop leaks, re-evaluate water exposure and product selection.

Cementitious and Polymer-Modified Mortars, and Sealants

Cementitious and polymer-modified mortars are suitable for larger voids or surface repairs, offering good strength for DIY projects. Flexible elastomeric sealants or joint fillers are ideal for surface movement and joint work.

Key considerations: For crack widths exceeding 0.5mm, larger voids, or textured surfaces, opt for cementitious/polymer-modified mortars. For surface movement, joint work, or cracks less than 0.1mm wide, choose flexible sealants/joint fillers.

Pro tip: Match mortar type to crack width and substrate texture. Ensure sealant compatibility with existing concrete. If repair fails due to incompatibility or inadequate strength, re-evaluate material selection and surface preparation.

Back to top ↑

Start with a clean, sound surface free of loose material, oil, grease, and coatings. Contamination at the bond line can undermine adhesion. Assess the overall condition before proceeding.

Prepare by cleaning, profiling, and controlling moisture. Mechanical cleaning and vacuuming paired with a tactile wipe helps verify cleanliness. A proper roughness profile enhances bonding and should be compatible with the chosen repair product.

Tools and materials checklist

Gather the necessary tools for a smooth repair process. Here’s what you’ll need:

• Wire brush: For mechanical cleaning of the surface. Choose one with stiff bristles for better effectiveness.
• Vacuum: To remove dust and debris after cleaning. A wet-dry vacuum is ideal for concrete surfaces.
• Grinder (with diamond cup): For routing cracks or removing coatings. Rent or borrow if needed.
• Injection ports (Injection): If injecting, use these to create access points into the crack.
• Caulking gun: For applying sealants and mortars. Choose one with an adjustable cartridge holder for better control.
• Backer rod: For filling large gaps before sealing. It helps achieve a smooth, even surface.
• PPE (Personal Protective Equipment): Include safety glasses, gloves, and ear protection when using power tools.

Match the repair method to crack type and width, noting when a method is inappropriate. Epoxy or polyurethane injections suit many movement or structural cases, while surface-fill or mortars may fit small, non-moving cracks. Foam injections address active leaks in some situations.

Provide concise sequences: surface preparation, cleaning and drying, material selection and mixing, injection or packing, curing, and finishing. Include key checks at each stage such as cleanliness, moisture content, and proper curing. This builds reliability into the repair process.

Concrete Crack Repair Process

This section guides you through a systematic approach to effectively repair concrete cracks, ensuring reliable results and minimizing common mistakes.

1. Preparation and Safety: Inspect the area for safety hazards. Gather necessary tools (refer to the Tools Checklist). Wear appropriate personal protective equipment (PPE).
2. Surface Preparation: Clean cracks using a wire brush or needle gun, then dry thoroughly. Ensure substrate saturation is below 4% using a moisture meter.
3. Material Selection and Mixing: Choose compatible materials based on crack type and width (refer to the Material Selection). Follow manufacturer’s instructions for mixing.
4. Main Work: For injections, follow the Injection Procedures. For surface-fill or mortars, apply materials using trowels or squeegees, ensuring three-sided adhesion. For foam injections, use a low-pressure applicator.
5. Curing and Final Checks: Allow material to cure according to manufacturer’s guidelines (typically 24-72 hours). Perform leak/pressure tests and post-cure inspections for bonding and flex by movement.

Injection Procedures

Efficiently repair cracks with minimal material waste using these injection procedures for both rigid (epoxy) and reactive (polyurethane) materials.

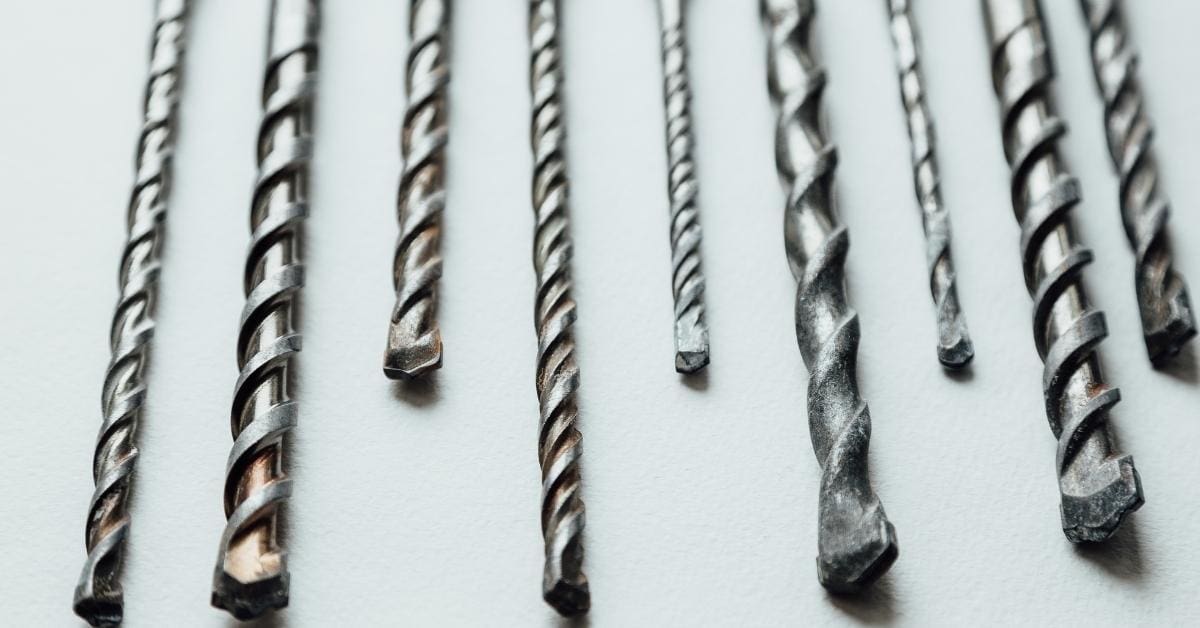

Port Placement: Drill ports along the crack at regular intervals, ensuring even coverage. Seal surface around ports to prevent leakage.

Injection Order: Begin injection from the lowest point, working upwards in a low-to-high sequence to minimize air entrapment and ensure complete filling. Monitor injection pressure to avoid overfilling or underfilling. For actively leaking cracks, use reactive foam injections.

Curing Checks: Allow injected materials to cure according to manufacturer’s guidelines (typically 24-72 hours). Inspect port placement for even coverage and proper spacing. Ensure material has fully cured before subjecting it to heavy loads or exposure to water.

Routing, backer rod, and sealant application

Properly prepare cracks for effective long-term sealing by enlarging and shaping them for sealant retention, choosing appropriate backer rod depth, and tooling the joint to achieve three-sided adhesion.

Routing: Use a router with a suitable bit to enlarge and shape cracks, creating a uniform profile for better sealant retention. Ensure the routed area is clean and dry before proceeding.

Backer Rod Placement: Insert backer rod into the routed crack, ensuring it fills the void completely. The depth of the backer rod should match the width of the chosen sealant for optimal adhesion.

Sealant Application and Tooling: Apply sealant along the routed crack using a caulking gun or sealant applicator. Tool the joint carefully to ensure three-sided adhesion and a smooth finish, following manufacturer’s guidelines for tooling techniques and timing.

Patching and Resurfacing Large Gaps

Reinforce structure and appearance by applying mortar correctly using appropriate mortars or trowelable repair compounds, bonding primers, and proper curing practices.

Material Selection: Choose a mortar or repair compound suitable for the substrate and environment. For unstable cracks, consider epoxy-based mortars for extra strength.

Application: Apply chosen mortar or repair compound using trowels or squeegees, ensuring three-sided adhesion. Use a bonding primer beforehand to enhance adhesion between new material and existing substrate.

Curing Practices: Allow applied material to cure as per manufacturer’s instructions (usually 24-72 hours). Monitor curing time to prevent over-curing or under-curing, which can affect final strength. Ensure suitable environmental conditions for proper curing.

Back to top ↑

Decide DIY suitability based on crack movement, width, and water. Non-structural and stable cracks are often DIY friendly, while active movement or water intrusion may require a professional assessment. Assess the risk of underestimating the issue.

Clarify what a DIY solution can achieve versus professional work. Professionals handle injections, complex waterproofing, and structural repairs. Consider safety, code requirements, and warranty implications when choosing who does the repair.

Simple DIY tasks and required competence

For minor, non-structural cracks in accessible areas with stable movement, a DIY approach can be effective. To proceed safely and successfully, ensure you have basic handyman skills such as mixing and applying sealants, and using simple tools.

Crack width should be less than 1/4 inch, with no active water intrusion or structural concerns. Always consult a professional if unsure about any aspect to avoid improper repairs leading to further damage.

Proper preparation is key. Ensure the area is clean, dry, and free of debris. If the crack is wide enough, consider using a backer rod for better sealant adhesion. Always follow manufacturer instructions for the specific product you’re using.

When to hire a professional and what to expect

Certain situations require professional involvement. If your crack is wider than 1/4 inch, actively leaking, or raises structural concerns, it’s time to call in the experts.

Professionals can assess the damage, plan repairs, and execute them safely and efficiently. They typically provide documentation outlining their findings, proposed solutions, and warranties for their work.

Complex repair scenarios, such as those involving waterproofing systems or structural repairs, should always be handled by licensed contractors with experience in concrete crack repair. Always consult a professional if safety is a concern.

They may use techniques like epoxy or foam injections, which require specialized equipment and training. They will also ensure that all work complies with local building codes and regulations.

Cost considerations and estimating tips

The cost of repair varies based on several factors: the type of material used, the accessibility of the crack, its surface area, and potential traffic or downtime caused by the repair.

To get an accurate estimate, obtain quotes from multiple reputable contractors. Review their proposed materials’ technical data sheets (TDS) to understand what you’re getting for your money. Warranty terms should also be considered.

If DIY costs are comparable after accounting for time and tools, proceed with the repair if competent in doing so. Otherwise, hiring a professional may be more cost-effective in the long run, considering their expertise, equipment, and warranties.

Always avoid choosing the lowest bid without considering material quality, warranties, and reputation. It’s crucial to balance budget with the need for high-quality, durable repairs.

Back to top ↑

Safety gear and site control are essential. Use eye protection, gloves, and appropriate respirators if fumes are present. Control the work area to minimize exposure to dust and chemicals.

Common mistakes include inadequate surface cleaning, choosing the wrong product for the crack, failing to dry the substrate, and improper filling. Troubleshoot by re-cleaning, re-priming, or selecting an alternate method based on observed movement or moisture changes.

Safety protocols and PPE

Prioritize safety when working with concrete crack repairs. Wear appropriate personal protective equipment (PPE) to prevent injuries and chemical exposure.

Eye/face protection: Use safety glasses or goggles to shield your eyes from debris and chemicals. For high-impact tasks like routing, consider using a face shield as well.

Gloves: Wear gloves suitable for the task at hand. Latex or nitrile gloves are typically sufficient for handling repair materials, while heavy-duty work gloves may be needed for cutting or demolition.

Respiratory protection: If working with dust or chemicals, use a respirator or dust mask to protect your lungs. Ensure the respirator is certified to filter the specific hazards present and follow manufacturer instructions for proper use and maintenance.

Troubleshooting and when repairs need rework

Regularly inspect repaired areas for signs of failure or movement. Early detection allows you to address issues promptly, preventing further damage and costly rework.

Inadequate bonding: If the repair material peels or flakes off, it’s a sign of poor adhesion. Re-clean the area, ensure proper priming, and consider using an alternative repair method if necessary.

Ongoing movement or widening cracks: Cracks that continue to widen after initial repair may indicate underlying structural issues or improper material selection. Re-evaluate the cause, re-clean, re-prime, or consider an alternative repair method to address the problem effectively.

Moisture intrusion: Water leaks or signs of moisture around repaired areas suggest that the repair has failed. Perform a moisture check and dye test if necessary to confirm repair integrity. If moisture intrusion persists, rework the repair using compatible materials and proper techniques.

Back to top ↑

Establish a maintenance schedule that fits the site and usage. Regular inspections help catch early signs of trouble. Assign responsibility to the appropriate party to keep momentum going.

Monitor for warning signs such as increased crack width, new cracking patterns, or moisture intrusion. Implement preventive actions like sealing joints and maintaining drainage to direct water away from the slab. Document repairs and update the maintenance plan as needed.

Sealants, coatings, and moisture control to prevent water ingress

Proper sealing and coating can significantly extend the lifespan of concrete repairs by preventing water intrusion. Here’s how to maintain effective moisture control:

Choose appropriate sealants based on your specific needs. For non-structural cracks, silicone is often suitable. For structural repairs, consider polyurethane or epoxy.

Proper Surface Preparation: Always follow manufacturer’s instructions for surface preparation. This may include cleaning, etching, or priming the area to ensure optimal sealant adhesion.

Maintenance Intervals: Inspect sealed areas annually and reapply sealants as needed within the recommended maintenance interval to maintain protection. If sealant shows signs of deterioration, reapply promptly.

If crack width increases significantly after sealing, upgrade your repair method. For instance, switch from rigid fillers to injection systems to accommodate increased movement.
