Introduction
A rebar lap splice overlaps two reinforcing bars so force can transfer through the concrete from one bar to the next. It is not a universal “multiply the bar diameter” DIY rule. The required lap depends on the adopted code, project drawings, bar size and grade, concrete strength and type, coating, bar position, cover, clear spacing, confinement, splice class, and the bar’s structural role. CRSI’s lap-splice guidance likewise notes that lap lengths vary with the reinforcement and concrete conditions and are normally shown on placing drawings, details, lap charts, or general notes.
For a footing with an approved reinforcement detail, your job is to place the specified bars, overlap them for the specified length at the specified location, maintain cover and spacing, support and tie the assembly, then inspect it before concrete placement. If no approved detail gives the lap length and location, do not choose one from a generic rule.
Key takeaways
- A lap splice overlaps two bars; it transfers force through bond and mechanical interlock between the deformed bars and surrounding concrete.
- Lap-splice length, development length, clear spacing, center-to-center spacing, and concrete cover are different dimensions.
- Drawings and placing details control both lap length and location. Do not relocate a lap based on a generic “neutral axis” or “shear zone” rule.
- Measure the overlap along the bar, then verify the specified location, cover, clear spacing, supports, and secure tying before the pour.
- A short, misplaced, bent, welded, or substituted splice needs an approved correction detail before concrete is placed.
Table of Contents
- Introduction
- Key takeaways
- What Is a Rebar Lap Splice?
- Types of Lap Splices
- Code Requirements and Material Specs
- Proper Placement of Lap Splices in Concrete Footings
- Lap Length and Spacing Guidelines
- Bending and Handling Rebar for Laps
- Common Installation Mistakes and How to Avoid Short Laps
- Planning, Safety, and Cost Considerations for DIY Projects
- Conclusion
- FAQ
What Is a Rebar Lap Splice?
A straight lap splice is two parallel bars overlapped for an approved length. It provides continuity when one bar cannot run continuously through the required reinforcement path. An inadequate splice may prevent the bar from developing its required force and can reduce the capacity or reliability of the designed load path.
Definition and purpose
Conventional lap splices rely on bond and mechanical interlock between the deformations on the bar and the surrounding concrete. Cover, bar spacing, concrete strength, coating, and designed transverse reinforcement can affect bond and resistance to splitting. Tying wire holds the bars in position for placement; it does not create a structural splice by itself.
Do not confuse these dimensions
- Lap-splice length: the approved overlap length of two bars, measured along the bars.
- Development length: the length required to anchor one bar in concrete so it can develop its required force. It is an input to many lap-splice provisions, not another name for the lap.
- Clear spacing: the unobstructed distance between adjacent bars.
- Center-to-center spacing: the distance from one bar centerline to the next.
- Concrete cover: the distance from the concrete surface to the outside of reinforcement.
Types of Lap Splices
Straight (parallel) lap
A straight, parallel lap is the usual detail when the drawings call for it and the footing has room for the required overlap, cover, spacing, and concrete placement. Keep the bars aligned and supported as detailed; whether a lap may be noncontact, and how much separation is allowed, is a code-and-detail question rather than a field preference.
Hooks, bends, couplers, and welds are not substitutes
A hooked or bent bar can be an anchorage detail when it is specifically designed and detailed. It is not a shortcut for a straight lap, and two hooked bars should not be improvised as interlocking loops. Do not bend a bar in the field unless the approved bar schedule calls for that exact bend.
Mechanical couplers and welded splices are separate splice systems, not automatic remedies for a short lap. A coupler may require a listed or qualified system and exact installation controls. Welding reinforcing steel requires suitable material, a qualified procedure, qualified personnel, and inspection; ASTM cautions that welding must account for the bar’s chemical composition and applicable welding requirements. See the ASTM A615/A615M reinforcing-bar specification for its welding caution. Obtain a written approved detail before substituting any of these systems.
Code Requirements and Material Specs
Start with the structural drawings, reinforcement schedule, general notes, and placing drawings. They should identify the bar marks, size, grade, lap length, and permitted splice locations. The adopted building code, referenced concrete standard, and local amendments govern if a calculation or interpretation is needed.
Information to collect before checking a lap
- Adopted building code, referenced concrete standard, and local amendments.
- Approved footing drawings, reinforcement schedule, placing drawings, lap chart, and general notes.
- Bar size, grade, ASTM product designation, and coating, if any.
- Specified concrete compressive strength and whether the concrete is normalweight or lightweight.
- Footing dimensions, exposure, specified cover, clear spacing, and center-to-center spacing.
- Bar position, including whether the code classifies it as a top bar; designed transverse reinforcement or confinement; and the percentage of bars spliced at one location.
- Whether the bar is required for tension, compression, or another specifically detailed load path.
Under ACI 318-19, tension development is addressed in Section 25.4.2 and tension lap splices in Section 25.5.2; cover is addressed separately, including Table 20.5.1.3.1. For example, ACI identifies 3 inches of specified cover for concrete cast against and permanently in contact with ground, but that is not a universal footing-cover rule for every exposure or condition. A published ACI explanation of tension lap splices illustrates that the splice length is tied to development length and splice class. Use the provisions adopted for your project, not a partial table reference or a generic multiplier.
Bar grades, sizes, and cover
Larger bars and higher-strength bars can change required development or lap length. They do not automatically require more concrete cover. Use the actual bar designation in the drawings and mill markings; do not assume labels such as “F150” or “F180” are standard reinforcing-bar grades. Cover is determined by the applicable exposure, durability, fire, constructability, and code provisions.
Proper Placement of Lap Splices in Concrete Footings
Place each lap where the drawings show it. Do not move it toward the center, below a presumed neutral axis, or into a supposed “shear zone” based on a rule of thumb. Splice location can be restricted by moment, axial force, development, construction joints, congestion, or seismic detailing.
Set and inspect the reinforcement
- Confirm the bar marks, size, grade, coating, specified lap length, and specified splice location before placing the bars.
- Install approved chairs, supports, or spacers so the cage will maintain the specified elevation and cover. Do not use loose soil, brick, scrap wood, or unapproved debris as supports.
- Place the bars at the specified spacing. Check whether the drawing dimension is clear spacing or center-to-center spacing; they are not interchangeable.
- Mark the required overlap on the bars with a tape measure. Measure the actual lap along the bar, not across the form or between bar ends.
- Align the lapped bars as detailed and tie them sufficiently to resist movement during placement. Avoid crowding that prevents concrete from flowing and consolidating around the bars.
- Before the pour, remeasure the lap, cover, spacing, and elevation. Keep workers from walking the cage out of position, and recheck immediately before concrete placement.
Multiple laps
Stagger, group, or separate splices only as the drawings require. The percentage of bars spliced at one location can affect the required detail; a DIY installer should not create a stagger pattern or a common splice plane without design direction.
Lap Length and Spacing Guidelines
There is no universal lap length for DIY footings. Do not select one by using “40 diameters,” a supplier habit, or another generic factor. The required value must come from the approved detail or from a calculation under the code adopted for the project.
What to verify
Confirm the lap’s exact length and location on the drawings first. If the drawings do not provide them, stop and ask the engineer, designer of record, or other code-qualified professional to determine the detail using the recorded project conditions. Do not rely on product labels or manufacturer instructions to design a structural lap.
Spacing and cover
Use the spacing specified on the drawings. Do not “err on wider spacing”: changing spacing can conflict with minimum reinforcement, maximum-spacing, cover, effective-depth, distribution, or splice requirements. Likewise, do not use generic minimum cover or “lap spacing” numbers. Verify the required clear spacing and cover at the actual lap, where two bars can make the assembly more congested.
Concrete must be able to flow and consolidate around the reinforcement without displacing it. If the specified lap cannot fit while preserving the required cover, spacing, supports, and access for placement, the answer is an approved revised detail—not forcing the bars into place.
Bending and Handling Rebar for Laps
A straight lap normally does not require field bending. Order pre-bent bars when the approved schedule calls for bends, hooks, or offsets. Do not kink, heat, twist, or repeatedly bend a reinforcing bar, and do not use a generic bend-radius table; bend diameter and hook requirements depend on the applicable standard and the exact approved detail.
Tools, materials, and PPE
- Tape measure and marking tool.
- Approved drawings, bar schedule, and lap detail.
- Tie wire and tying pliers.
- Approved chairs, spacers, or supports.
- Gloves, eye protection, and sturdy footwear; use task-appropriate hearing protection when cutting or using power tools.
- Bar caps or other protection for exposed projecting rebar where required by the site safety plan.
Handling mistakes to avoid
- Field-bending a straight bar to make an unapproved splice fit.
- Damaging a coating or using bars that are visibly kinked, badly damaged, wrong-sized, or wrong-grade.
- Using a tie, extra concrete, or extra curing time as a substitute for an adequate lap.
- Leaving the cage unsupported so the bars shift during the pour.
Common Installation Mistakes and How to Avoid Short Laps
Short laps usually result from measuring only the available bar length, confusing spacing with overlap, failing to account for bends or congestion, or allowing the cage to move. Find these errors before concrete placement, when an approved correction is still practical.
Pre-pour splice inspection checklist
- Approved detail: The drawings identify the correct bar marks, lap length, and splice location.
- Actual overlap: Each lap is measured along the bars and meets the specified length.
- Bar identification: Size, grade, coating, and condition match the drawings.
- Location: Laps are where the drawings place them; no field relocation has been made.
- Cover and spacing: Cover and specified clear or center-to-center spacing are maintained at the lap.
- Support and ties: Chairs and ties hold the assembly at the required elevation without relying on the forms or soil.
- Concrete access: The cage is not so congested that concrete cannot be placed and consolidated around it.
- Final check: Reinspect after any worker traffic or concrete-placement activity that could move the bars.
If a lap is short or wrong
Stop before the pour. Record the installed condition and obtain a written correction detail from the engineer, designer, building official, or other authority responsible for the project. Do not simply extend the bar, add another bar, substitute a coupler, weld the bars, add a hook, or bend the bars without approval. Those changes can alter force transfer, cover, development, congestion, and inspection requirements.
Planning and Safety for DIY Projects
Have the approved reinforcement detail in hand before cutting or tying bars. Inspect while the forms are accessible and before concrete arrives. Keep the work area orderly, wear appropriate PPE, secure bars before cutting or tying, and protect workers from exposed projecting rebar. Follow the excavation safety measures required for the site; do not enter an unsafe excavation.
When professional approval is required
- No plans specify the bar size, grade, lap length, or lap location.
- The footing supports a bearing wall, column, pier, concentrated load, retaining wall, seismic system, or another high-load connection.
- The reinforcement is bundled, large, coated, high-strength, welded, hooked, bent, mechanically spliced, or too congested to maintain the specified cover and spacing.
- A lap is short, misplaced, offset, damaged, partly outside the concrete, or otherwise differs from the approved detail.
- The proposed repair involves a coupler, welding, added bars, bends, hooks, or post-installed reinforcement.
Conclusion
A compliant footing lap is not determined by a universal overlap number. Use the approved drawings to verify the exact bar, length, and location; then measure the lap along the bar and check cover, spacing, support, tying, and concrete-placement access. If the installed work does not match the detail, pause for an approved correction before pouring.
FAQ
What exactly is a rebar lap splice and why is it used in footings?
It is an approved overlap of two reinforcing bars that provides continuity where one bar ends and another begins. The surrounding concrete transfers force through bond and mechanical interlock; the required overlap depends on the project detail and governing code.
How far apart should rebar be spaced in a footing to support a lap splice?
Use the specified spacing and confirm whether the drawing calls for clear spacing or center-to-center spacing. Do not increase or decrease spacing without approval, and check that the lap still maintains the required cover and room for concrete consolidation.
What are the common splice types you might use in a DIY footing, and when would you choose them?
Use a straight lap when it is the approved detail. Couplers, welds, hooks, and bent details are not interchangeable alternatives; each needs its own approved design, detailing, and installation requirements.

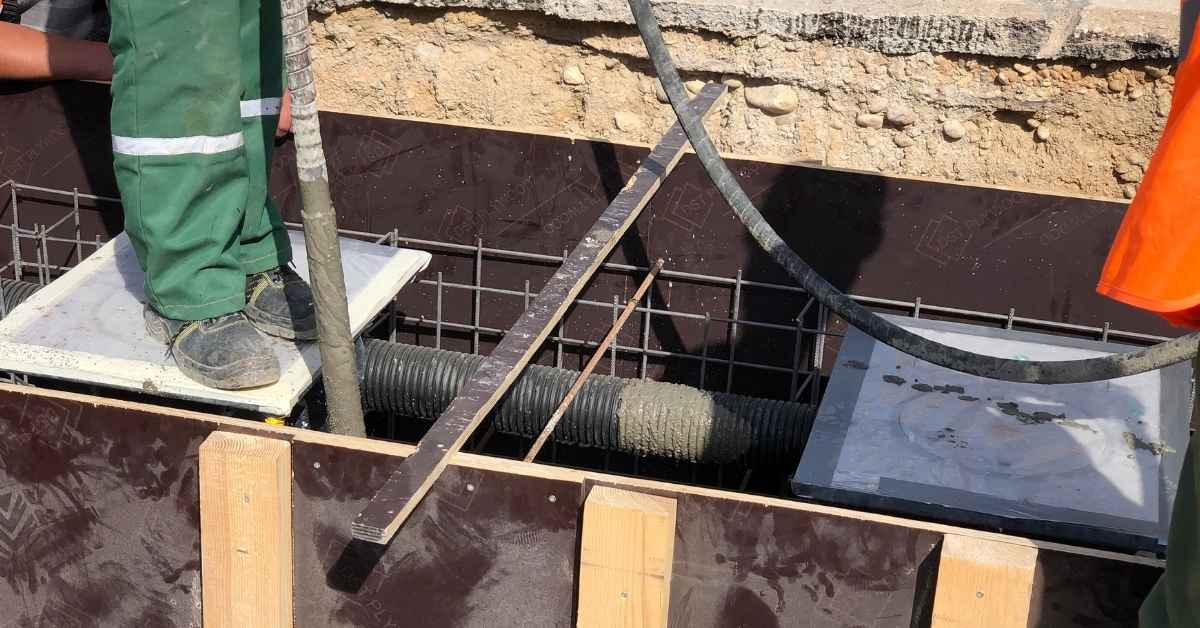

How should you place and pour concrete around lap splices to avoid issues?
Keep the approved lap clean, supported, tied, and at the specified cover and spacing. Place and consolidate concrete without displacing the cage, then recheck reinforcement position if the placement process moves it. Concrete placement or curing does not correct an inadequate splice.
