Overlay vs full replacement: a decision guide based on movement, moisture, and thickness

This section outlines a fast-screen objective: decide overlay vs. full replacement by evaluating movement, moisture condition, and remaining slab thickness. It maps the inspection to treatment flow so you can brief clients quickly. You’ll see a simple path from on-site checks to recommended actions.

Start with a quick inspection, then run the required tests, and follow the probable treatment paths. Look for movement signs, damp indicators, and thickness loss. Use this flow to decide whether to overlay with bonding agents, consider a dye/epoxy overlay, or plan full removal and replacement with substrate remediation.

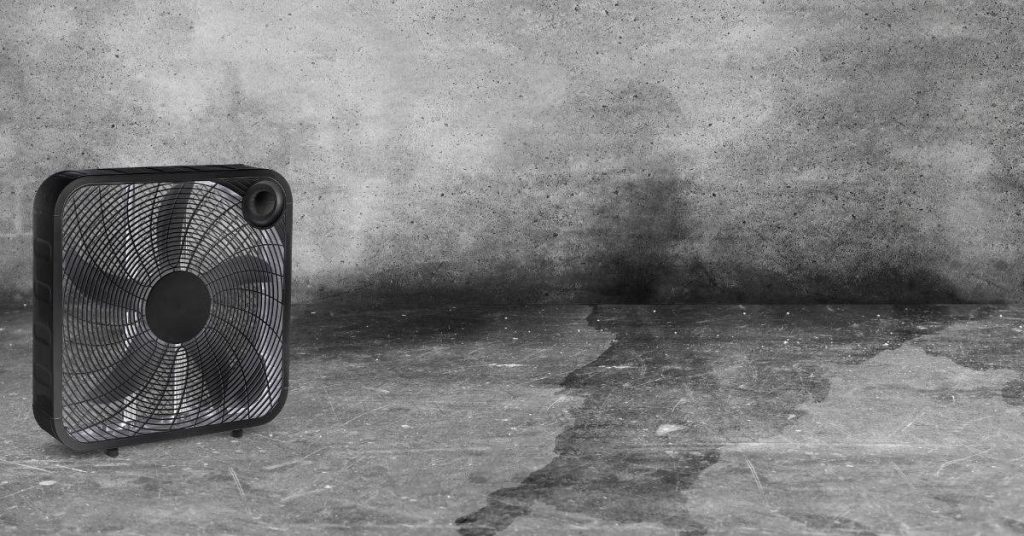

Moisture and contamination triage

Before deciding on an overlay, check for moisture and contamination issues that could undermine bond strength. Here’s how:

First, look for visible signs like efflorescence (white powdery deposits) or damp patches. These indicate potential moisture problems.

Next, use non-destructive tests such as relative humidity probes or moisture meters to quantify moisture content. Aim for < 4% RH in the top inch of slab for overlays.

If you find high moisture levels or suspect contamination (e.g., from de-icing salts), consider formal testing like chloride profiles or lab sampling. High moisture or chlorides can compromise overlay bond and reinforcement.

Thickness and structural integrity triage

Check your concrete slab’s thickness to ensure it meets minimum requirements for overlays (typically 4″-6″). Here’s how:

Use a simple pocket measurement tool to check remaining thickness at multiple points. If you find areas thinner than minimums, consider full replacement.

Also, map out any delamination or scaling issues. These could indicate structural problems requiring full-depth intervention.

If your slab is too thin (< 4″) for overlays, or if you find extensive delamination or other signs of structural compromise, consider partial- or full-depth removal and replacement.

Back to top ↑

We define movement types relevant to overlays: thermal cycles, live-load deflection, settlement, and joint movement. Each type stresses overlays differently and guides the decision toward overlays or full-depth solutions. You’ll learn where overlays tend to work and where they don’t.

Field checks include looking for crack patterns, ghosting under load, and widening joint gaps. Simple observations help separate substrate-driven movement from surface conditions. Use these checks to decide whether a repair can stay as an overlay or if a full-depth plan is needed.

Overlay tolerance vs replacement for thermal and cyclic movement

Overlays can handle some movement, but too much can cause cracking or debonding. Let’s talk about the types of movement that affect overlays.

Thermal cycles make concrete expand and contract. Overlays can tolerate this to a point, but repeated cycles can lead to cracks. Design standards and manufacturers set limits for these movements – around 0.5mm/mm for thermal movement. If you’re seeing more than that, it’s time to consider full-depth replacement.

Live-load deflection happens when traffic puts weight on the slab. Overlays can handle some of this, but high loads or repeated deflections can cause problems. Again, check design standards and manufacturer limits – typically around 1/360th of the span for live load. If you’re seeing more than that, full-depth replacement might be needed.

Joints, transitions, and detailing for movement control

Proper joint detailing is key to successful overlays. Joints let concrete move without cracking the slab. Transition strips help bridge differences in level between the old and new slabs.

Movement joints should be detailed properly – wide enough (usually 20-30mm) and filled with a flexible material like polyurethane or silicone. If your existing joints are too narrow, poorly detailed, or filled with rigid materials, you might need to replace them as part of a full-depth repair.

Transitions should be designed to allow for movement – often using sloped wedges or flexible membranes. If they’re not working, replacement might be needed.

Testing for movement (field tests and monitoring)

Before you decide on a solution, it’s important to quantify the movement. Here are some simple field methods:

Visual patrols: Regularly inspect the slab for new cracks or changes in existing ones. Use a crack gauge to measure any gaps.

Deflection tests: Place a straight edge across the slab and check for deflection under load. A simple way is to use a long level – if it shows more than 1/360th of the span, there’s too much movement.

Crack gauges: These simple tools measure crack width over time. If cracks are opening and closing, that’s reversible movement. If they’re only widening, that’s a sign of trouble.

Back to top ↑

This section focuses on how moisture and chlorides undermine overlays and when waterproofing or full replacement is required. Lab-confirmed data is emphasized for solid decisions. Your diagnosis should start with on-site tests and move toward lab analyses when needed.

Moisture and chlorides drive adhesion issues and corrosion risk. Observing efflorescence or damp patches helps gauge urgency and treatment path. You’ll outline mitigation options and the steps contractors should take to document decisions clearly.

Moisture Testing Methods and Interpretation

Before you decide to overlay, test for moisture. It’s crucial to understand what you’re dealing with.

Use relative humidity probes to measure moisture content in the concrete. Stick them into drilled holes at least 1 inch deep. Readings over 75% RH might indicate a problem.

Surface moisture meters can also help, but they only measure the top layer. For chloride testing, drill cores or use a hammer to break off small samples. Send these to a lab for analysis. High chloride levels (over 0.6% by weight of concrete) can corrode rebar and undermine overlays.

Remember: Moisture and chlorides are sneaky. Just because one part of the slab reads okay doesn’t mean the rest is fine. Always test multiple spots to get a representative picture.

Mitigation Options: Membranes, Drainage, and Repairs

If moisture or chloride levels are high but not extreme, you might be able to salvage the overlay with some mitigation.

First, improve drainage. Ensure water can’t pond on the surface. Then, apply a compatible waterproofing membrane before overlaying. This creates a barrier against further moisture intrusion.

If there’s substrate damage like spalling or cracks, repair these first. But beware: if repairs are extensive, it might be cheaper and safer to just replace the whole slab.

Note: These tactics won’t work if chlorides have already penetrated deep into the concrete or if corrosion is active. In those cases, full-depth removal might be necessary.

When Contamination Requires Full-Depth Removal

Sometimes, moisture and chlorides have done too much damage. In these cases, the best solution is to remove the entire contaminated layer.

Signs that full replacement might be needed include:

• Chloride levels over 1% by weight of concrete
• Extensive saturation or standing water
• Active corrosion (you’ll see rust stains, cracks, or even pop-outs)
• Deep spalling or delamination

Trust me: It’s better to bite the bullet now and do it right than to end up with a failed overlay that needs replacing anyway.

Back to top ↑

Begin by identifying current and remaining slab thickness and how that limits overlay options. This anchors the potential service life you can expect from an overlay. You’ll compare this against typical boundary conditions for performance.

Next, evaluate reinforcement condition, cover, and load-path integrity. Consider when retrofit, dowels, or transfer detailing are needed to maintain structure. Use engineering input when necessary to justify the chosen path.

Overlay thickness rules and substrate preparation

The overlay’s thickness is crucial for its performance. It must be thick enough to protect the substrate but not so thick that it causes other issues. Always check manufacturer specs and local standards.

Rule of thumb: The overlay should be at least 1/4 inch (6 mm) thicker than the wear layer removed, with a minimum thickness of 1/2 inch (13 mm).

Preparing the bonding surface is key. Remove all loose material, contaminants, and laitance. Profile the substrate to provide mechanical interlock.

When full-depth thickness restoration is required

Full-depth restoration might be needed when the slab’s thickness has been severely compromised, or structural integrity is at risk. Here are some situations that warrant it:

– Structural loss: If there’s significant concrete loss exposing reinforcement or compromising load-bearing capacity.

– Minimum cover: When the remaining cover over reinforcement is below minimum standards (typically 2 inches/50 mm for reinforced slabs).

– Severe spalling: If there’s severe spalling through reinforcement, indicating extensive corrosion or other severe damage.

Bond, compatibility, and maximum practical overlay thickness

The bond between the overlay and substrate is critical. Poor bond leads to delamination and failure. Ensure materials are compatible and follow manufacturer guidelines for surface preparation.

Practical limits on overlay thickness depend on various factors. Too thick, and it may crack or delaminate; too thin, and it won’t provide adequate protection or life. As a general rule:

– For non-load-bearing overlays, the maximum practical thickness is around 4 inches (100 mm).

– For load-bearing overlays, consult an engineer. They’ll consider live/dead loads, impact of utilities, and overlay’s structural capacity.

Back to top ↑

We compare overlays versus full replacement across exposure, traffic, and material behavior. This helps judge how each option handles real-world conditions over time. Focus on durability drivers beyond initial performance.

The section highlights how thickness, substrate condition, and surface prep affect long-term results. It encourages life-cycle thinking and practical maintenance planning alongside the upfront choice.

Durability drivers and failure modes

Overlays and full replacements each have their own durability drivers and failure modes. Understanding these can help you make the right choice.

Overlays: Delamination, where the overlay peels off from the substrate, is a common failure mode. This often happens due to poor bonding or moisture intrusion. Surface wear also accelerates with heavy traffic and abrasive conditions.

Full replacements: If not properly addressed, corrosion can recur after replacement. Moisture, deicing chemicals, and freeze-thaw cycles accelerate this process.

Site factors like exposure to harsh chemicals, heavy traffic, and extreme temperatures speed up failures in both cases. Regular inspection and maintenance are key to extending service life.

Monitoring performance over time

Tracking key performance metrics helps validate the expected service life of your concrete surface. Here’s what to monitor:

Visual Condition Ratings: Regularly assess the visual condition using a simple rating scale (e.g., 1-5, with 1 being excellent and 5 being poor).

Non-Destructive Testing: Use methods like ground-penetrating radar or impulse response to assess the internal condition of the concrete without causing damage.

Chloride Monitoring: If your concrete is exposed to deicing salts, monitor chloride content to prevent corrosion. Regular monitoring helps ensure that your concrete surface performs as expected over time.
Back to top ↑

This part explains comparing upfront costs to long-term life-cycle expenses, including downtime and maintenance. It encourages scenario-based thinking rather than relying on unit prices alone. You’ll learn what to model and what to verify.

Owners should see stage-by-stage cost implications and risk factors that influence value. It covers payback, net present value, and sensitivity checks to compare overlay vs full replacement. Use clear criteria to guide the final decision.

Factors that shift cost-effectiveness

Traffic restrictions, environmental exposure, expected service life, and risk tolerance can sway the financial preference between overlay or replacement. Let’s dive into how these factors influence your decision.

Traffic Restrictions: Heavy traffic means more wear and tear on your surface. Overlays can handle some traffic but aren’t as durable as full replacements. If you’ve got heavy traffic, consider full replacement to save long-term maintenance costs.

Environmental Exposure: Harsh weather conditions or corrosive chemicals can degrade surfaces faster. In these cases, a full replacement might be more cost-effective in the long run, even if it’s pricier upfront. Overlays may not last as long under severe exposure.

Expected Service Life: If you’re planning to sell your property soon, an overlay could be enough to tide you over. But if you plan on staying put, a full replacement might give you better value for money with its longer lifespan.

Risk Tolerance: Some folks are risk-averse and prefer the surety of a full replacement. Others are willing to take a chance on an overlay for lower upfront costs. It’s all about what you’re comfortable with.

Simple decision matrix and scenarios

A decision matrix helps you compare overlay vs full replacement based on common scenarios. Here’s a simple one to get you started:

Overlay is cost-effective when: Your slab is structurally sound, moisture levels are under control, and you’re looking at minimal thickness increase (less than 2 inches). It’s also great for quick turnaround projects where downtime is a concern.

Full replacement is justified when: You’ve got structural issues, high moisture levels, or need significant thickness increase. It’s also worth considering if you’re planning to change the use of your space (like going from residential to commercial) and need to meet new load requirements.

To adjust this matrix for local conditions, consider factors like labor costs, material availability, and regional climate. For instance, in areas with freeze-thaw cycles, a full replacement might be more resilient long-term.

Expect guidance on surface prep, timing, curing, bonding procedures, and how to maximize overlay success. This section stresses practical QC steps to minimize rework. You’ll get actionable checks for field work.

Key areas include correct substrate assessment, moisture control, bonding system choices, and jointing details. A solid QC process with documentation helps prevent post-install issues and disputes.

Surface preparation, repair sequencing, and QC tests

The first step to a successful overlay is a clean, sound surface. Here’s how to prep:

Cleaning: Remove all dirt, grease, and loose material using pressure washing or scarification.

Repair sequencing: Patch any cracks or holes with a suitable repair mortar. Let it cure before proceeding. For severe damage, consider hydrodemolition to remove weak concrete.

QC tests: Perform bond tests and pull-off tests to ensure the surface is ready for bonding. Visually inspect the surface for any defects.

Material specs and standards explained

Choosing the right material is crucial for a long-lasting overlay. Here’s what to consider:

• Membrane types: Use rubber or bituminous membranes for waterproofing. Spec: ASTM D6083.
• Polymer-modified overlays: These offer better flexibility and durability. Spec: ASTM C1725, look for high polymer content (min 15%).
• Cementitious overlays: Good for heavy-duty areas. Spec: ASTM C920, ensure it’s compatible with your substrate.
• Avoid: Cheap materials can cause cracking and weak bond. Always check manufacturer data and relevant standards.

Safety, traffic control, and worker protection

Safety first: Ensure all workers are trained and equipped with proper PPE.

Traffic control: Use barriers and signage to redirect traffic away from work zones. Follow local regulations (e.g., MUTCD in the US).

Dust/waste control: Wet down surfaces before grinding or sawing to minimize dust. Dispose of waste responsibly.

Worker protection: Protect workers from traffic exposure with proper signage, barriers, and traffic management plans.

Back to top ↑

Compare environmental footprints and waste handling for overlay versus full replacement, including permitting implications. This keeps sustainability in scope without slowing progress. You’ll see where to focus mitigation efforts.

The section covers safety, dust control, and disposal considerations. It also outlines practical strategies to reduce environmental impact through planning and materials choices. A decision framework helps tie sustainability to project goals.

Waste, emissions, and material sourcing

Choosing the right materials can significantly impact waste generation and emissions. Here’s how:

• Concrete disposal: Overlays reduce concrete disposal by up to 70% compared to full replacement.
• Hazardous waste: Contaminated concrete may require special handling, adding extra costs and time.
• Recycling streams: Both options can recycle materials like steel and wood. Overlays also allow recycling of existing concrete as aggregate.
• Emissions from production: Reducing material use with overlays lowers greenhouse gas emissions from cement production.
• Transportation emissions: Overlays reduce the need for hauling new materials to and from the site, lowering transportation emissions.

Regulatory and permitting implications

Both options have regulatory triggers that can affect your project. Here’s what to expect:

Stormwater permits: Both options may require stormwater permits, but overlays typically generate less runoff.

Disposal permits: Full replacement may need disposal permits for concrete waste, while overlays may not.

Noise and time-of-day restrictions: Check local regulations as they can impact your project schedule and cost.

Public safety and operational disruption

Both options have their impacts on public safety and traffic. Here’s how to minimize disruptions:

Traffic disruption: Overlays cause less disruption as they don’t require full road closure, but proper signage and traffic management are crucial.

Public safety: Both options pose risks like falling debris or tripping hazards. Ensure proper safety measures are in place, such as barriers and warning signs.

Noise control: Use low-noise equipment where possible, especially during nighttime hours to minimize disturbance to neighbors.
