Introduction
Headed bars provide direct pullout resistance in concrete, while hooks rely on bending and anchorage to resist withdrawal. This article compares those approaches in terms of pullout strength, congestion at the bar, and how they affect footing detailing. It keeps the discussion practical for real jobs on site.
For DIY projects, plan for congestion by staggering bars and avoiding tight bends near forms, and verify embedment length and grip with clean, properly prepared bars. If you’re touching precast or seismic considerations, check local rules and manufacturer instructions for acceptable methods and any testing guidance. Use plain, buildable guidelines and confirm with the latest site-specific requirements before you lock in a detailing plan.
Key takeaways
- Assess pullout resistance through embedment length, bar type, and concrete quality.
- Align development length and anchorage with code interfaces while documenting shop drawings.
- Mitigate congestion by planned bar spacing, seating, and staggered hooks to reduce congestion risk.
- Apply strut-and-tie concepts in footing detailing to transfer forces safely.
- Include demonstration project notes for precast connections and high seismic region detailing.
- Safety warning: maintain clear access for inspection; overcrowding reinforcement jeopardizes performance.
Table of Contents
- Introduction
- Key takeaways
- Pullout Resistance: Mechanisms and Influencing Factors
- Development Length, Anchorage Design, and Code Interface
- Congestion and Reinforcement Detailing Impacts
- Footing Detailing and Force Transfer (Strut-and-Tie Considerations)
- Quality Assurance, Shop Drawings, and Inspection Checkpoints
- Conclusion
- FAQ
Pullout Resistance: Mechanisms and Influencing Factors
Pullout resistance in headed bars and hooks comes from several physical mechanisms. Bond between steel and concrete provides adhesion and mechanical grip at the head, while bearing on the head and formwork-induced confinement help transfer stress. Mechanical interlock from bar geometry and head or hook details adds a third line of defense.
Key parameters that control pullout capacity include concrete quality, embedment length, surface deformations, rib geometry, head shape, and the degree of congestion around the bar. The role of confinement and aggregate size affects how bond behaves under tension, shear, and cyclic loading. Project specifics, not a single universal value, determine the required development length according to code formulas and detailing practices.
Bond vs Bearing Behavior
Hooks and headed bars resist pullout differently. Hooks rely more on bond – the grip between steel and concrete. This is due to mechanical interlock from the hook’s geometry and adhesive bonding at the head.
Headed bars, on the other hand, add bearing on the head. The head bears against the concrete and formwork, creating confinement that boosts pullout resistance. This changes failure modes – hooks may slip out if bond fails, while headed bars can crush the head or concrete if bearing capacity is exceeded.
Key takeaway: Understand these differences to choose the right bar for your job and detail it properly.
Key Variables Affecting Pullout
The pullout capacity of bars depends on several factors. Bar diameter and deformation – like ribs or deformations – increase mechanical interlock, boosting pullout resistance.
Concrete compressive strength also plays a role. Stronger concrete provides better bond and confinement. Grout quality matters too; poor grout can weaken the bond between bar and concrete.
Embedment depth is crucial. Deeper embedment means more concrete to resist pullout. Transverse confinement – like ties or stirrups – can also boost resistance by compressing the concrete around the bar.
Proximity to edges or other bars affects pullout too. Bars near edges have less concrete to grip, reducing pullout capacity. Close spacing can cause congestion, weakening confinement and reducing pullout strength.
Practical Checks Before Design
Before you detail your bars, verify code development-length equations. These formulas give the minimum embedment length needed for full pullout resistance. They account for factors like concrete strength and bar size.
Check manufacturer head capacity data too. This ensures your headed bars can bear on the head without crushing the concrete or head itself.
If you’re using atypical materials or large bars, consider lab testing. It’s the only way to know for sure how they’ll behave in your specific situation.
Remember: These checks help ensure your design is safe and durable. Don’t skip them just because it’s ‘only’ a DIY job.
Development Length, Anchorage Design, and Code Interface
This section explains how development length interacts with headed bars and hooks in different locations, such as flexural vs shear-critical zones and in footings versus slabs. Embedding depth, bar diameter, and surrounding concrete influence the effective development length available at the connection.
Engineers must check the design framework in current codes and local amendments, including development lengths, anchorage requirements, and lap splice allowances. Substitution guidance for heads versus hooks depends on detailing changes and testing or documentation to validate the choice. Verification should consider congestion, footing geometry, and overall load paths in the final design drawings.
How design standards treat headed bars and hooks
ACI, AASHTO, and local codes provide clear guidelines on development length and anchorage for both headed bars and hooks. But they handle them differently.
Headed Bars: Codes often accept manufacturer-qualified heads. They’ve been tested to work as designed. You’ll find specific provisions in ACI 318 or local codes.
Hooks: For hooks, codes offer standard development tables and limits. These are based on extensive research and testing. Check ACI 408R for detailed info.
Splices, grouted ducts, and confined anchorage
Anchorage requirements change when bars are spliced or grouted in ducts. Here’s how:
Grouted Ducts: Grout quality, annular space, and confinement affect required lengths. More grout, wider ducts, and better confinement mean shorter lengths.
Splices: Spliced bars inside footings need extra anchorage. Check ACI 318 for splice length requirements based on bar size and concrete strength.
When to require testing or certification
Sometimes, you’ll need manufacturer test data, third-party certifications, or project-specific pullout tests. Here’s when:
Large-Diameter Bars: For bars larger than #8, you might need extra testing to ensure they meet code requirements.
Novel Head Types: If you’re using a new head type, expect to provide test data proving it works as designed.
High Seismic Demand: In high seismic zones, codes may require project-specific pullout tests to ensure your bars can handle the extra stress.
Congestion and Reinforcement Detailing Impacts
Headed bars and hooks change the available clearances at critical nodes, affecting placement around corners, sleeves, and evolving footing geometry. Bottlenecks can form where formwork, embeds, or transverse reinforcement limit vibration and consolidation.
Practical spacing and cover targets should balance performance with ease of placement, considering how protrusions interact with concrete flow. Communicate tolerances to precasters and crews, and document clearances and sequencing to minimize rework and cold joints.
Effects of Heads on Spacing and Placement
Heads on reinforcement bars increase their local footprint. This can cause issues with adjacent bars, formwork, or blockouts.
Bar interference: Heads can get in the way of other bars during placement, making it harder to achieve proper spacing and alignment.
Formwork interference: Heads may hit the formwork, causing damage or misalignment. This can lead to concrete leaks or a poor finish.
To avoid these issues, ensure heads are properly spaced and oriented during detailing. Communicate these details clearly to site crews.
Hooks and Congested Closures
Hooked terminations can help save vertical space, but they can cause tie-up and compaction issues in closures and cap-beam joints.
Tie-up: Multiple hooks can tangle or ‘tie up’ during placement, making it difficult to achieve the required bar positions.
Compaction issues: In congested areas, hooks can prevent proper concrete compaction around them. This can lead to reduced strength and durability.
To mitigate these issues, stagger hook placements where possible. Ensure site crews understand the importance of keeping hooks separated during placement.
Detailing Strategies to Reduce Congestion
Several strategies can help reduce reinforcement congestion:
Stagger heads: Offsetting heads along the length of bars can reduce their cumulative footprint at critical nodes.
Use cages or chairs: Pre-assembling reinforcement with cages or chairs can help maintain proper spacing and alignment during placement.
Specify head orientation: Orienting heads to minimize interference with adjacent bars, formwork, or blockouts can ease placement and consolidation.
Coordinate with precaster tolerances: Work with precasters to ensure their tolerances align with your detailing. This can help avoid congestion issues during erection and pouring.

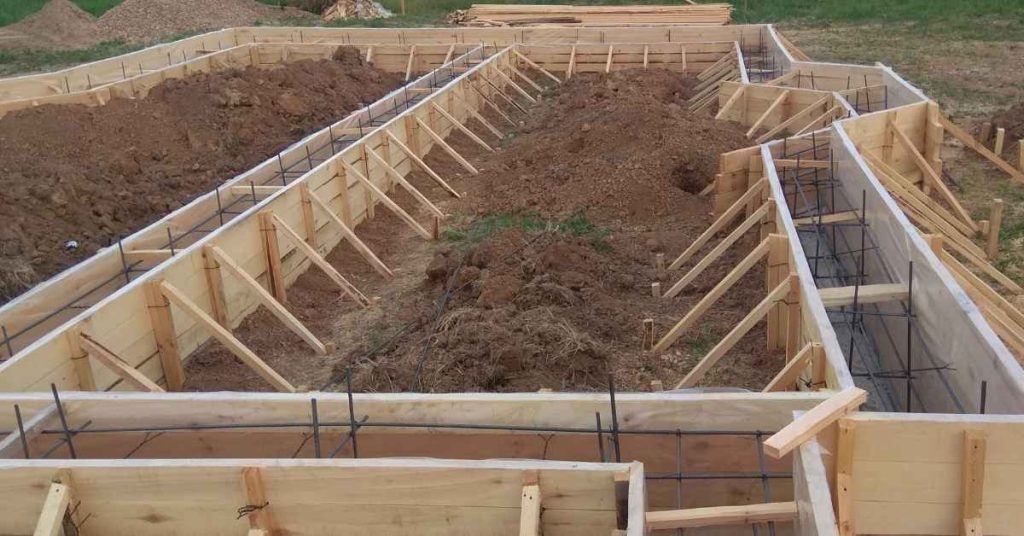

Footing Detailing and Force Transfer (Strut-and-Tie Considerations)
Headed bars and hooks transfer forces into spread footings and drilled-shaft sockets through bearing, shear transfer, and bond with concrete, with potential differences based on detail and layout. The interaction with transverse reinforcement and confinement affects local capacity near anchors.
Use strut-and-tie models to trace critical load paths and verify that the chosen anchorage detail aligns with constructible geometry and concrete strength. Practical checks should reflect actual footing dimensions and recommended modifications to ensure reliable force transfer.
Strut-and-tie modeling for concentrated anchors
A strut-and-tie model helps us understand how forces flow around headed bars or hooks. It’s like tracing the path of a river on a map.
Start by drawing lines (struts) to show where compression forces travel. Then, add ties to represent reinforcement that holds these struts together. The key is to find paths that connect the anchor to surrounding concrete without creating tension elsewhere.
Remember: This isn’t about calculating exact capacities; it’s about understanding how your detail works with the rest of the structure.
Detailing at socket and closure regions
At sockets (where bars enter a footing) and closures (where they bend up), detail matters. Here’s why:
Place heads outside critical sections to avoid stress concentrations. Add transverse reinforcement here too – it helps distribute forces evenly.
Grout pockets or use grout around hooks to fill voids, ensuring good bond and load transfer. This is crucial for both headed bars and hooks.
Protecting capacity-protected zones
Anchors can concentrate stresses. To protect these ‘capacity-protected’ zones:
Keep splices and heads away from expected plastic hinge regions – that’s where concrete might crack under high stress.
Add confinement or extra ties around anchors to spread forces out. This could be spiral reinforcement, stirrups, or even fiber-reinforced concrete.
Quality Assurance, Shop Drawings, and Inspection Checkpoints
A concise QA plan covers submittals for headed bars or hooks, including embedment lengths, head dimensions, seating surfaces, and grout specs. Include mock-ups and on-site checks to verify seating and bearing conditions.
On-site inspections should confirm embedment depth, alignment, head seating flushness, grout consolidation, and cover and spacing tolerances. Documentation of deviations with photos and logs helps ensure compliance with project specs and applicable codes.
Shop drawing and mock-up requirements
Use this checklist to ensure your shop drawings and mock-ups cover all necessary details for headed bars or hooks.
- Head geometry: Include exact dimensions, shape, and orientation of heads on drawings.
- Manufacturer data: Specify bar material, strength, and any relevant certifications.
- Bar orientation: Indicate proper alignment with reinforcement layout and footing dimensions.
- Tolerances: Define acceptable variations in head size, embedment depth, and grout thickness.
- Grout joint mock-ups: Require full-scale terminations at typical footing depths for visual inspection.
- Head seating: Show proper recess or flush seating on drawings and mock-ups.
- Grout specification: Include type, mix proportions, and required slump for grout used in mock-ups.
- Epoxy coating (if used): Specify application method, thickness, and curing time.
- Tendon/reinforcement details: Ensure compatibility with project specs and applicable codes.
Quick rule: Always review shop drawings and inspect mock-ups before proceeding with construction to avoid costly rework.
On-site inspection and testing
Use this checklist during on-site inspections to verify proper installation of headed bars or hooks.
- Embedment depth: Measure embedment using calibrated tools; ensure it matches design drawings.
- Head seating: Check head is flush or properly recessed, with no protrusions or voids.
- Grout placement: Inspect grout fill around heads and ducts; ensure proper consolidation.
- Air voids: Look for any air pockets or incomplete filling in grouted joints.
- Surface tolerances: Check grout surface for excessive irregularities or honeycombing.
- Spacing, cover, and corrosion protection: Verify compliance with code provisions for reinforcement spacing, cover, and corrosion prevention.
- Grout pressure monitoring (if required):Pullout/embedment tests (if required): Conduct non-destructive or destructive testing to verify bond strength.
- Documentation: Keep records of all inspections, test results, and any deviations from acceptance criteria.
Quick rule: Regular on-site inspections help catch issues early, preventing costly repairs and delays.
Typical nonconformities and remedies
Use this checklist to identify and address common issues found during quality assurance inspections.
- Improper head seating: Check heads are flush or properly recessed; rework if necessary, ensuring proper grout fill.
- Misaligned ducts: Verify ducts are straight and aligned with reinforcement layout; realign if needed before grouting.
- Congested stirrup closures: Assess spacing and cover of reinforcement; add confinement or adjust design if necessary to meet code requirements.
- Insufficient embedment: Measure embedment depth; extend bars or add additional embedment material as needed.
- Grout voids or incomplete filling: Inspect grout joints; rework by chipping out and refilling if necessary.
- Excessive grout surface irregularities: Check grout surface; grind or repair as needed to meet acceptance criteria.
- Non-compliance with spacing, cover, or corrosion protection: Adjust reinforcement layout or apply additional corrosion prevention measures as required by codes.
- Failed pullout/embedment tests: Conduct third-party testing or re-evaluate design and installation methods if initial tests fail to meet acceptance criteria.
Quick rule: Address nonconformities promptly to maintain project schedule and avoid costly rework.
Conclusion
Pullout, congestion, and footing details are not cosmetic; they shape safety, durability, and how your structure behaves under load. Keep the focus on solid connections, proper transfer of forces, and clear, documented steps you can trust on site.
Follow this quick check in sequence: verify existing reinforcement layout matches the plan, confirm development length and anchor design meet the code interface requirements, review congestion and detailing to avoid crowded bars, and ensure footing and strut-and-tie concepts are understood and respected. Then review shop drawings and set up a simple inspection routine to catch issues before concrete goes in, testing small areas first and documenting every decision so you can back it up if questions arise.
Avoid these mistakes: over-tightened or damaged bars, guessing development length, and skipping the inspection checkpoints or proper QA. Never push ahead with unclear details or unlabeled drawings. If in doubt, call a professional before you commit to irreversible changes. Stay focused on safety and progress, and you’ll finish clean, strong, and ready for the next stage. Build smart, test small, and keep the momentum going.
FAQ
What should I know about designing fully precast bridge connections in high seismic regions?
Use proven connection details from the precast manufacturer and align them with your site conditions. Check the product label or instructions for seismic-specific notes and always follow local rules. If unsure, ask for a demonstration or design example from the supplier and compare to your project needs.
How can I evaluate seismic ABC technology testing results for this kind of connection?
Look for test reports or summaries from the manufacturer or independent labs. Compare the tested scenarios to your setup and note any gaps. Rely on the label, datasheet, or instructions for what was tested and what isn’t recommended.
What are practical steps for a demonstration project design and construction overview?
Outline a simple, repeatable connection detail that you can build and observe. Document how forces transfer through the bars and hooks, and where congestion might occur. If you see unclear guidance, request a straightforward drawing or note from the fabricator and verify against your site conditions.
What should I consider for accessibility and ease of inspection in high seismic zones?
Choose details that allow clear visibility of bars, hooks, and anchors during inspection. Avoid overly tight congestion where access is blocked. Always confirm with the project specs or manufacturer instructions that accessibility requirements are met for ongoing checks.
