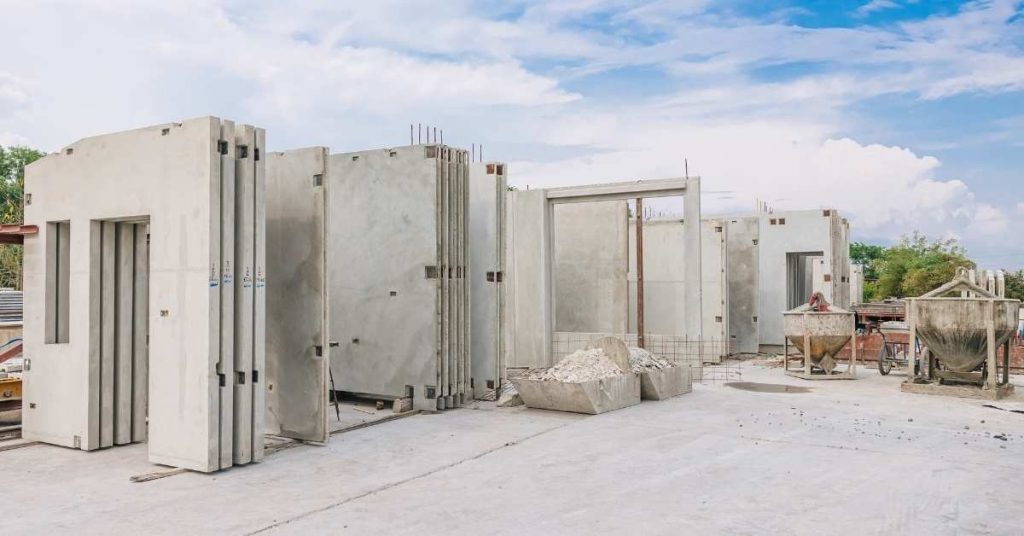

Precast concrete wall panels stored outdoors under cloudy sky

Concrete Patio Control Joint Layout: Spacing and Balanced Panels

Introduction

Control joints are planned weakened planes that encourage a concrete patio to crack on straight, intentional lines rather than at random. Lay them out before the pour: start with a preliminary spacing target, divide the actual patio dimensions into balanced panels, and adjust the grid before a narrow leftover panel becomes permanent.

For a typical lightly loaded residential patio, a useful starting point is joint spacing of about 2½ times the slab thickness in feet—about 10 feet for a 4-inch slab. This is a rule of thumb, not a structural design rule. Slab thickness, shrinkage potential, base conditions, reinforcement, restraints, exposure, and concentrated loads can all change the appropriate layout.

Key Takeaways

  • Plan the whole joint pattern before concrete is placed; do not accept a narrow leftover edge panel.
  • Use preliminary spacing only as a starting point, then recalculate panel sizes in both directions.
  • Keep panels near square where practical; avoid panels longer than about 1.5 times their shorter dimension, plus L- and T-shaped panels.
  • Use contraction/control joints to guide cracking and isolation joints beside buildings and other fixed elements; they serve different jobs.
  • Make tooled or conventional saw-cut joints at least one-quarter of the slab thickness deep, subject to the selected joint system and specification.
  • Have the layout, cutting method, PPE, and curing plan ready before placement so joints are made before random shrinkage cracks form.
Table of Contents

Why Control Joints Matter for Concrete Patios

Concrete shrinks as it hardens and also responds to temperature changes. A contraction joint, often called a control joint, creates a deliberate weakened plane so that cracking is more likely to occur at the joint. It cannot guarantee a crack-free slab, but a complete, timely joint layout gives shrinkage cracking a planned location.

Relieving Tensile Stress in Concrete Patios with Control Joints

Do not use a 24- to 36-inch grid for a normal patio. Start with a feet-based preliminary spacing, then adjust it for the patio geometry. Industry guidance favors panels that are as square as practical, with a maximum aspect ratio of about 1.5:1 and no L- or T-shaped panels. Joint spacing also depends on restraints, base friction, concrete shrinkage, reinforcement, environmental conditions, and the slab design—not slab thickness alone. See the ACI guidance on slab joint layout and panel geometry for those design considerations. Related guidance: Control Joint Spacing: Practical Layout Rules That Reduce Random Cracks.

Visual and Usability Benefits

A balanced pattern makes the joints look intentional. Run joints continuously from edge to edge where the geometry allows, and align important lines with obvious features such as a door threshold, step, or straight patio edge. Avoid stopping a joint in the middle of a field or introducing a jog that creates a thin, hard-to-control panel.

If a random crack appears before jointing, do not assume a later saw cut will erase or relocate it. Stop and assess the crack and the cause. Wide, moving, offset, load-related, or extensive cracking warrants advice from a qualified concrete professional.

Back to top ↑

Determining Control Joint Spacing (Rules and Checklist)

For a lightly loaded residential patio, begin with a preliminary spacing of roughly 2½ times the slab thickness in feet. A 4-inch slab therefore begins around 10 feet, but that number is only a starting point. Recalculate the actual panel dimensions and move the lines as needed for balanced panels. Wheel loads, equipment, poor or variable support, unusual restraint, or a slab that is part of a structural design are reasons to follow the project specification or obtain professional direction rather than rely on a rule of thumb.

Slab Thickness and Joint Spacing Correlation

  • Confirm slab thickness: Measure from the forms before placement; do not estimate from the finished edge.
  • Set a preliminary target: For a typical 4-inch residential patio, begin around 10 feet, then divide the actual dimensions into workable panels.
  • Check panel geometry: Keep the long side no more than about 1.5 times the short side where practical; closer to square is better.
  • Revise before the pour: A slightly smaller, even grid is usually better than a nominal spacing that leaves a very narrow remainder.

Quick rule: Use thickness to start the layout; use panel shape and site conditions to finish it.

Adjust for Loads, Restraints, and Site Conditions

  • Concentrated or wheel loads: Vehicles, hard wheels, equipment, and other concentrated loads may require a designed slab and joint plan. Ordinary foot traffic is not, by itself, a reason to reduce spacing.
  • Fixed elements: Plan isolation material where the patio meets a building, steps, columns, footings, curbs, or similar fixed obstructions that need to move independently.
  • Base and drainage: Use a uniformly prepared, compacted base and direct water away from the slab. Soft spots, standing water, and unstable soil should be corrected before concrete is placed.
  • Reinforcement and utilities: Locate embedded items before marking cuts. Do not arbitrarily cut bars, welded-wire reinforcement, dowels, conduit, or utilities; their continuity at a joint must follow the project design.

Local Code, Standards, and Documentation to Check

  • Project requirements: Verify permit, drainage, frost, thickness, reinforcement, and setback requirements that apply locally.
  • Concrete and curing instructions: Confirm the mix, weather plan, curing method, and the selected saw or tooling system before placing concrete.
  • Layout drawing: Mark dimensions, isolation joints, planned placement breaks, reinforcement, and every control-joint line on a simple plan.

Back to top ↑

Layout Techniques to Avoid Awkward Short Panels

Calculate the remainder before fixing any line. Divide each overall dimension by the preliminary target, round to a practical number of panels, then divide the dimension by that panel count. This produces equal or deliberately balanced panels instead of a full grid plus an awkward strip at one edge.

Quick Layout Method

  1. Draw the patio perimeter to scale and mark buildings, steps, posts, planters, planned placement breaks, and isolation joints.
  2. Choose a preliminary spacing target from slab thickness and project conditions.
  3. Divide each straight dimension by that target, round to a sensible whole number of panels, and recalculate the actual panel size.
  4. Check every resulting panel for near-square proportions. Shift lines together or change the panel count before placement if an edge panel is narrow or a panel is too long and thin.
  5. Continue joint lines through the field where practical. Treat a jog, return, or narrow projection as separate geometry rather than letting it create an L- or T-shaped panel.

Planning from the Long Edge and Main Sightlines

Use the most visible straight edge, a door opening, or the house wall as a reference line. Snap or mark parallel lines from that reference and check diagonal measurements to keep the grid square. Centering equal edge panels can look better than placing one smaller panel at a less visible side, provided the panel geometry still works.

Worked Example: Balance the Grid Instead of Leaving a Strip

For a 17-foot by 23-foot patio with a 4-inch slab, do not force a 10-foot grid and leave a 3-foot remainder. Divide the 17-foot direction into two panels of 8.5 feet and the 23-foot direction into three panels of about 7.67 feet. The six resulting panels are roughly 8.5 by 7.67 feet—near square and far more balanced than a narrow edge strip.

For an irregular patio, establish the main rectangular field first. A narrow return or projection should not create a long thin panel; revise the boundary, separate that area with a planned joint at the transition, or get layout advice before pouring.

Back to top ↑

Joint Types and Proper Installation Timing

Use the right joint for the job. A contraction/control joint is a tooled, formed, or sawed weakened plane within the slab. An isolation joint is compressible separation material beside a building or other fixed element so the patio is not bonded to it. A construction joint is a planned stopping point between placements. Isolation joints are not a generic fix for poor edge support or an unbalanced control-joint layout.

Saw-Cut Vs Tooled Vs Formed Joints

  • Tooled joints: Form the groove while the concrete is workable. Use a straightedge as a guide and rerun the tool as needed before the groove closes.
  • Conventional saw cuts: Cut when the concrete is firm enough that the blade does not ravel the edges, but before shrinkage cracks occur.
  • Early-entry dry-cut saws: These can be used sooner than conventional saws; follow the equipment and blade instructions for the mix and conditions.
  • Formed joints: Suit planned patterns or placement details but must be securely positioned and compatible with the slab design.

Timing Concrete Patio Cuts and Tools for Optimal Results

Timing is a condition check, not a fixed temperature cutoff. Tool joints early enough to form a continuous groove. Early-entry saws are commonly used roughly 1 to 4 hours after finishing, while conventional saws are commonly used roughly 4 to 12 hours after finishing or placement; setting conditions can move either window. If a saw blade ravels the concrete, wait briefly and retest. Do not wait simply for a clock time if random cracks may form first.

Joint Depth and Sealing Considerations

For conventional saw-cut or tooled contraction joints, make the groove at least one-quarter of the slab thickness deep and not less than 1 inch, unless the selected early-entry system and applicable specification state otherwise. That means about 1 inch for a 4-inch slab and about 1½ inches for a 6-inch slab. This is depth, not joint width. The NRMCA guidance on joints in slabs-on-ground also distinguishes contraction joints from isolation joints and explains their placement.

Do not seal every control joint automatically. Where a joint is intended to be sealed, select compatible backer rod and sealant, clean the joint thoroughly, and follow the sealant manufacturer’s requirements for joint condition, dimensions, and curing. Keep isolation material open and compressible beside fixed elements.

Back to top ↑

Stacked precast concrete wall panels outdoors under blue sky

Common Mistakes and How to Avoid Them

Layout and Spacing Errors That Cause Random Cracking

  • Using one fixed spacing for every patio: Recalculate from the actual dimensions and check panel shape.
  • Accepting a narrow remainder: Change the number of panels or distribute the dimension evenly before the pour.
  • Creating L-, T-, or long thin panels: Continue joints logically and treat returns as separate geometry.
  • Cutting too shallow: Use the one-quarter-slab-thickness depth rule for conventional sawed or tooled joints.
  • Sawing too early or too late: Test for raveling, but prioritize cutting before uncontrolled shrinkage cracks form.
  • Cutting through embedded items: Stop if the layout conflicts with reinforcement, dowels, conduit, or utilities and obtain direction.

Sub-Base, Compaction, and Drainage Failures

Before placing concrete, remove soft spots, correct standing water, compact the subgrade and base uniformly, and verify the planned slope drains away from the house and other structures. Jointing helps manage shrinkage cracking; it does not correct poor support, frost movement, or drainage problems beneath the slab.

Ignoring Isolation at Fixed Elements

Install appropriate compressible isolation material where the patio meets a fixed wall, step, column, footing, curb, or similar obstruction that requires independent movement. Do this before pouring. Do not bond the patio directly to those elements unless the project design specifically calls for it.

Back to top ↑

Tools, Materials, and a Preparation Checklist

Have all layout and jointing equipment on site before the truck arrives or mixing begins. Joint timing can be short, and a missing saw, blade, straightedge, or curing material can turn a sound layout into a late cut. Related guidance: Concrete Joint Failures Explained: What Goes Wrong When Control Joints Are Missing, Too Shallow, or Cut Too Late.

Materials Specs and Durability Considerations

  • Isolation material suited to the planned fixed-element joints.
  • Concrete curing materials or a curing plan appropriate to the mix and weather.
  • Backer rod and compatible sealant only where the joint is intended to be sealed.
  • A suitable saw blade or hand groover for the chosen joint method.

Layout and Cutting Tools (Traditional and Innovative)

  • Tape measure, chalk line, straightedge, framing square, stakes/string, and durable marker.
  • Hand groover and straightedge, and/or an early-entry or conventional concrete saw with the correct blade.
  • Eye protection, hearing protection, gloves, protective footwear, and saw-appropriate dust control or respiratory protection.
  • Water supply or dust-control equipment where required by the saw and site conditions.

Visual Checkpoints Before Finishing

  • Complete plan: Every intended control joint, isolation joint, and placement break is marked before concrete placement.
  • Balanced panels: No unusually narrow edge panel or overly elongated panel remains.
  • Alignment: Chalk lines are straight, square to the reference edge where intended, and coordinated with thresholds or visible edges.
  • Depth target: Groovers or saw settings can achieve at least one-quarter slab thickness for the selected method.
  • Embedded items: Reinforcement, dowels, conduit, and utilities have been identified and coordinated.
  • Site readiness: Forms are secure, base is uniform and drained, tools are ready, and the curing plan is in place.

Back to top ↑

Safety, Cost Implications, and Long-Term Maintenance

Concrete cutting creates noise, dust, flying debris, and kickback risk. Use the saw exactly as its manufacturer directs, keep bystanders clear, wear eye and hearing protection, and use the required wet-cutting or dust-control method. Inspect the blade and equipment before use; do not make a cut while standing on an unstable surface or reaching across the saw path.

The least expensive correction for an awkward panel is moving a chalk line before placement. After the slab hardens, changing the joint layout may leave a visible scar and will not reliably repair a random crack. Keep traffic and heavy loads off the slab for the specified curing period, remove saw debris without washing slurry into drains, and inspect joints after curing.

Maintenance Tips and Inspection Schedule

  • Keep joints clear of soil and debris that can trap water or support weed growth.
  • Inspect after freeze-thaw seasons or unusual settlement for wide cracks, vertical offset, spalling, or deteriorated sealant.
  • Renew sealant only where it is part of the joint design and the joint is clean and dry enough for the product.
  • Seek professional evaluation for significant cracking, movement, vertical displacement, or drainage-related settlement.

Back to top ↑

Environmental and Site-Specific Factors to Consider

Weather changes setting time and therefore changes when joints can be tooled or sawed. Wind, low humidity, heat, and sun can speed surface drying; cool conditions can slow setting. Confirm the concrete supplier’s and curing-product instructions, monitor the slab’s actual condition, and have the crew ready to joint it at the needed time.

Freeze-thaw exposure, poor drainage, expansive or unstable soil, major tree-root influence, retaining walls, structural connections, and vehicle loads are not simple layout problems. They may require changes to the base, slab design, drainage, or reinforcement. Pause for professional guidance when those conditions apply.

Back to top ↑

Conclusion

A good patio joint layout is decided before concrete placement: identify isolation joints at fixed elements, choose a preliminary spacing target, calculate equal panel dimensions, and revise the grid until narrow remnants and elongated panels are gone. Then make continuous, adequately deep joints at the right stage of set and cure the slab as specified.

If the patio is large, unusually shaped, carries vehicle or concentrated loads, connects to structural work, or conflicts with reinforcement, utilities, drainage, or unstable soil, stop and get project-specific direction. For a straightforward residential patio, a measured layout and timely jointing give you the best chance of keeping shrinkage cracks where you planned them.

Back to top ↑

FAQ

How far apart should control joints be on a 4-inch patio?

For a typical lightly loaded residential patio, begin around 10 feet as a preliminary target, then adjust the grid to make balanced panels. Do not treat that as a universal rule: panel aspect ratio, restraints, base conditions, reinforcement, shrinkage potential, climate, and concentrated loads also matter.

How deep should patio control joints be?

For conventional saw-cut or tooled contraction joints, use at least one-quarter of the slab thickness and not less than 1 inch unless the selected early-entry system and project specification provide different requirements. A 4-inch slab therefore needs about a 1-inch joint depth. Related guidance: How to Saw-Cut Control Joints in Fresh Concrete Without Chipping.

Do I need isolation joints along the house?

Usually, yes: use compressible isolation material where the patio meets the house or another fixed element that must move independently. An isolation joint is different from a contraction/control joint in the patio field.

What if the saw cut causes raveling?

The concrete is likely too green for that saw and blade. Wait briefly and retest, but do not delay until random cracks begin. If cracks form before jointing, a later cut will not reliably repair or relocate them.
