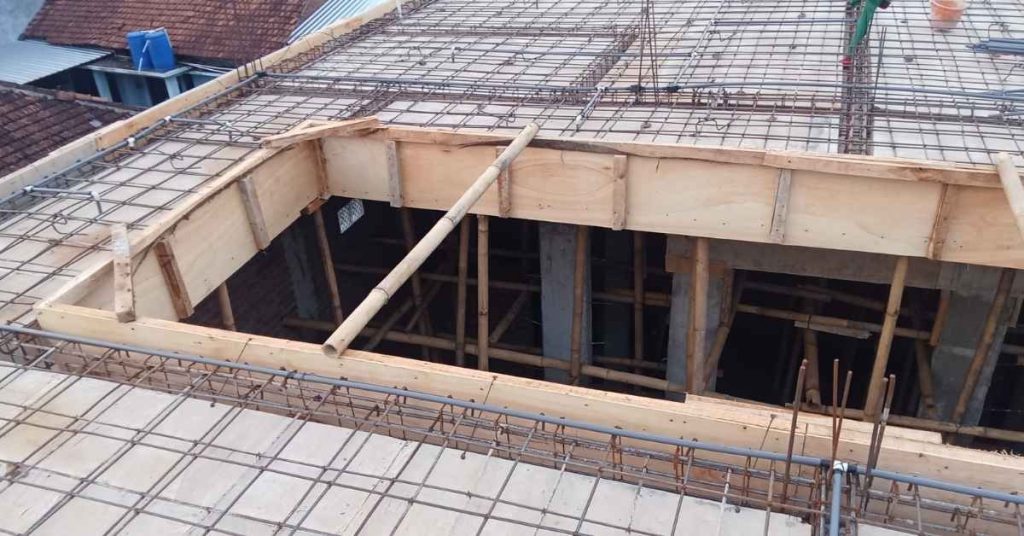

Wooden formwork and steel rebar grid on concrete slab

Concrete Slab-on-Grade for a Small Shed: Vapor Barriers, Thickened Edges, and Bolt Layout

/ Concrete / By

Introduction

A slab-on-grade is a concrete floor poured directly on prepared ground with no raised foundation. For a small shed, you’ll want to plan for a vapor barrier, thickened edges, and a simple bolt layout to anchor posts. As you work, verify local rules and follow manufacturer instructions for materials.

Starting prep means grading, compacting, and setting a solid edge form so the pour stays level. Install a vapor barrier correctly, then build thickened edges where the structure will sit and where anchors go. Check the labels on the barrier and fasteners and confirm spacing and depth with the latest guidance from your local building authority.

Key takeaways

  • Plan slab thickness, layout, and vapor barrier position before trenching and forms.
  • Inspect permits and local code requirements to avoid rework during inspections.
  • Use impermeable vapor barrier over compacted subbase, sealed at joints and edges.
  • Create evenly thickened edge forms to support future posts and loads.
  • Layout anchor bolts with precise spacing using templates, not freehand placement.
  • Wear PPE and keep clear of curing concrete to prevent burns; follow setup times.
Table of Contents

Project Overview and Planning Considerations

The slab-on-grade for a small shed serves multiple roles: it supports the structure, helps manage moisture, and supports long-term durability. Understanding how you plan to use the shed shapes the performance you need from the slab. Relate shed use to expected loads, equipment, and environmental exposure when sizing and detailing the slab.

Key planning inputs drive design choices and cost: shed size and weight, anticipated loads, local climate and frost considerations, and site constraints like slope, drainage, and utilities. Decide early on concrete thickness, thickened edge needs, vapor barrier placement, insulation strategy, and reinforcement layout. Don’t skip permitting, codes, and inspection steps; know what permits are needed and what inspections will check. Plan site preparation, subgrade work, and a rough budget that reflects materials and labor. Review these factors with your local authority or a qualified pro as you refine the plan.

Measurements, layout and space planning

The first step is to determine the slab’s footprint. Measure your shed’s dimensions accurately – length, width, and height. Consider overhangs for eaves or porches if needed.

Mark out corners using stakes and strings. Make sure they’re square by measuring diagonals; adjust until both are equal. This ensures a level, square slab.

Plan door placement carefully. Ensure there’s enough clearance for doors to open fully without obstruction. Consider future access needs too.

Drainage, slope and site drainage planning

Water is your enemy here. Slab-on-grade slabs need to be dry to prevent cracking and heaving. Start by grading the site around the slab. It should slope away from the slab at least 1 inch per foot.

Check gutters too. Make sure they’re directing water away from the slab area. If not, adjust or extend them.

Consider any nearby structures that might direct water towards your slab. You may need to install additional drainage features like French drains.

Load considerations and future use

Slab thickness depends on expected loads. For a small shed, 4-6 inches is usually sufficient for storage and light equipment. But if you plan to park vehicles or store heavy machinery, you might need thicker slabs.

Reinforcement layout also depends on loads. Heavier loads require more reinforcement. Consult local codes or an engineer to be sure.

Think about future use too. If you might add heavier equipment later, design the slab with that in mind now. It’s cheaper and easier than reinforcing an existing slab.

Back to top ↑

Permits, Inspections, and Code Considerations

Start with the permitting framework to understand when a shed slab requires a permit and what scope is involved. Typical steps include pre-application discussions, plan review, and issuance, along with any fees and licensing requirements. Check whether electrical or plumbing work tied to the shed triggers additional approvals.

Inspections follow a sequence that you should anticipate and schedule with the building department. Common checkpoints cover formwork, vapor barriers, reinforcement, and edge details, plus the finished pour and anchorage. Keep documentation ready, such as site plans and layout details, and be prepared to involve a structural professional if the project exceeds simple scope. Local code variations mean you should verify requirements for vapor barriers, curing, and any variances with the authority having jurisdiction before proceeding.

What to check with your local authority

Before you start any work, contact your local building department. They’ll provide a checklist of documents and site information inspectors require.

  • Site plan: Show setbacks, property lines, and shed location.
  • Slab-to-grade detail: Include thickness, reinforcement, and vapor barrier details.
  • Rebar layout: Sketch rebar size, spacing, and placement.
  • Vapor barrier type: Specify the material and its R-value.
  • Drainage provisions: Show how water will be directed away from the slab.
  • Anchor bolt layout: Indicate size, spacing, and embedment depth.
  • Soil report (if required): Some areas need a geotechnical engineer’s report.
  • Electrical and plumbing plans (if applicable): If you’re adding utilities to the shed.

Quick rule: Contact your local permitting office early. They can save you time and money by pointing out potential issues upfront.

Inspection milestones to expect

Throughout the project, schedule inspections with your building department. Here are the key points:

  • Excavation/Subgrade: Schedule before you pour the base. Inspectors check for proper compaction and leveling.
  • Formwork and Vapor Barrier: Inspect after installing forms and vapor barrier to ensure they’re intact and correctly placed.
  • Reinforcement and Thickened Edges: Schedule before pouring concrete. Inspectors check rebar placement, size, and proper embedment in thickened edges.
  • Pre-Pour/After-Pour: Inspect the slab after it’s poured to ensure it meets specifications and there are no visible defects.

Quick rule: Schedule inspections early. Last-minute calls can delay your project.

Code references and when to hire a pro

Knowing when to consult an engineer or contractor can save you time and money. Here are some indicators:

  • Complex Soils: If your site has expansive soils, rock, or other complex soil conditions, consider hiring a geotechnical engineer.
  • Steep Slope: If your shed is on a steep slope, you may need an engineer to design the slab and footings.
  • Large Sheds: For sheds over 200 sq. ft., consider hiring an architect or engineer for the design.
  • Thickened Edges or Vented Slabs: If your plans include these features, you may need stamped drawings from a licensed engineer.
  • Fire/energy codes: If your shed will have electrical or heating equipment, consult the local fire and energy codes.

Quick rule: When in doubt, consult the building department. They can guide you to the right resources.

Back to top ↑

Tools and Materials Checklist

List essential tools by category to stay organized: measuring and marking tools, compacting and finishing equipment, and safety gear. For a small shed, consider practical manual options if power tools are limited. Plan for a simple, reliable setup you can manage on your own site.

Compile a materials inventory with clear specifications and quantities you can source locally. Include concrete mix type and slump guidance, vapor barrier thickness, reinforcement options, edge forms, fasteners, curing products, and sealants. Check compatibility of vapor barriers with concrete and review any moisture or frost considerations on the label or data sheet.

Materials and specs explained

Before you start mixing concrete or laying blocks, use this checklist to ensure your materials are up to scratch. This will save you time, money, and prevent costly mistakes.

  • Concrete strength class: Check the bag label for the strength class (e.g., C20/25). Ensure it matches your project’s requirements. Too low, and your structure won’t be strong enough; too high, you’re wasting money.
  • Reinforcement type: Verify if you need wire mesh or rebar. Mesh is cheaper but less robust. Rebar is stronger but more expensive. Check local building codes to ensure compliance.
  • Rebar size: If using rebar, check the diameter (e.g., 10mm, 20mm). Larger sizes are stronger but harder to work with. Ensure it matches your design’s requirements.
  • Vapor barrier type: Check if you need a damp-proof membrane or a cavity drain system. The former is cheaper but less effective; the latter is more expensive but better at preventing moisture ingress.
  • Anchor bolts size and spacing: Ensure anchor bolts are the correct diameter (e.g., M10, M12) and spaced correctly (e.g., 450mm centers). Too small or too far apart, your structure won’t be secure.
  • Concrete admixtures: If using additives (e.g., accelerators, retarders), check they’re compatible with your concrete mix. Using the wrong ones can cause problems like rapid setting or weak concrete.
  • Cement type: Ensure you’re using the right type of cement (e.g., OPC, PPC) for your project. Using the wrong one can affect the strength and durability of your concrete.
  • Water-cement ratio: Check the recommended water-cement ratio (e.g., 0.5). Too much water makes weak concrete; too little makes it hard to mix and place.

Quick rule: Always check your materials against your project’s design specs and local building codes. Skipping this can lead to expensive rework or even structural failures.

Recommended tools, templates and jigs

Before you start mixing concrete, use this checklist to ensure you have the right tools and fixtures. This will save you time, reduce waste, and prevent costly mistakes.

  • Concrete forms: Check they’re sturdy enough to hold wet concrete without bowing or leaking. Ensure they’re square and level before filling.
  • Screed: A straight, flat 2×4 is fine for small jobs. For larger pours, use a magnesium screed with adjustable handles for better control.
  • Trowels: Have a range of sizes (6″, 10″, and 12″ are common) to finish different areas of your slab.
  • Vibrator or alternative: Ensure it’s in good working order. If using an alternative like striking off, check the surface for trapped air pockets after finishing.
  • Bolt-setting templates: Check they match your anchor bolt layout and spacing. Use them to mark out bolt positions on the formwork.
  • Alignment jigs: For complex pours, use jigs to ensure forms are properly aligned before filling. Check they’re secure and won’t move during pouring.
  • Tape measure: Ensure it’s accurate and in good condition. Use it to double-check formwork dimensions and bolt spacing.
  • Level: A 4′ or 6′ level is essential for checking formwork alignment, screeding, and finishing. Check it works before starting.

Quick rule: Always check your tools and templates before you start. Skipping this can lead to misaligned forms, incorrect bolt spacing, or a poorly finished slab that needs expensive rework.

Sustainable and low-impact options

Use this checklist when you’re ready to order materials. It helps you make greener choices without compromising quality.

  • Recycled Aggregates: Ask for recycled aggregates in your concrete mix. They reduce demand for virgin materials and lower embodied CO2.
  • Low-CO2 Cement Blends: Specify low-CO2 cement blends like CEM II or CEM III. Check the supplier’s sustainability report to confirm.
  • Fly Ash or Slag: Include fly ash or slag in your mix design. These by-products reduce the need for virgin cement and improve durability.
  • Permeability Considerations: Choose a concrete mix with appropriate permeability to minimize water usage and reduce efflorescence.
  • Local Materials: Prefer locally sourced materials to cut down on transportation emissions. Check the supplier’s address or ask about their sourcing policy.
  • Concrete Coverage: Calculate exact concrete volumes needed to avoid overordering and waste. Refer back to your materials and specs explained section for help.
  • Formwork
