Introduction
Applying a concrete overlay to an old broom finish is a time-sensitive project that requires careful planning. Understanding the timeline and duration of each step is crucial for successful results.
In this guide, we’ll break down the process into manageable steps, focusing on how long each task takes, so you can plan your project effectively.
For the full guide, see Concrete Overlay Over Old Broom Finish: How to Lock Down Loose Sand and Prevent Delamination.
Step-by-Step Timeline: How Long Each Task Takes
The total duration of applying a concrete overlay over an old broom finish depends on various factors such as the size of the area, weather conditions, and the specific products used. However, we’ve outlined a general timeline to give you an idea of how long each step takes:
- Surface Preparation (2-4 days): Cleaning, testing, scraping loose sand, and applying bonding primers.
- Overlay Mixing and Application (1-3 days): Preparing the overlay mix and applying it in small sections.
- Curing and Protection (7-28 days): Allowing the overlay to cure properly and protecting it from contamination or damage.
Keep in mind that these timeframes are approximate and can vary depending on your specific project. Always follow manufacturer instructions for the best results.
Key takeaways
The surface preparation stage is critical as it sets the foundation for a successful overlay application. Properly locking down loose sand during this phase will significantly impact the overall timeline by preventing delamination issues that could lead to rework.
- Assess old broom finish, test for dusting, and plan scraping or profiling steps.
- Use a stiff brush, vacuum, and damp mop to remove loose sand before overlay.
- Choose bonding primers compatible with broom texture and overlay cement; follow label.
- Tack-free bonding slurry or primer may be required; apply evenly in coats.
- Mix overlay with appropriate additives per manufacturer directions; avoid trapping air.
- Wear eye protection and masks; protect curing and prevent contamination.
Table of Contents
- Introduction
- Key takeaways
- Project Goals and When an Overlay Is Appropriate
- Tools and Materials Checklist
- Assessing the Old Broom Finish Surface
- Surface Preparation to Lock Down Loose Sand
- Bonding Systems and Primers for Broom Finish
- Choosing the Right Overlay Mix and Additives
- Application Methods to Prevent Delamination
- Curing, Protection, and Early-Life Care
- Conclusion
- FAQ
Project Goals and When an Overlay Is Appropriate
This project aims to stabilize loose sand in a broom-finished slab and establish a durable, bonded overlay that resists wear and traffic without tearing away from the substrate.
Decide whether an overlay is the right fix by weighing surface condition, structural soundness, and expected service life against the alternative of patching or replacement; check product data sheets and local rules to confirm the overlay system is intended for your situation.
Suitability checklist
Before you start, ensure your old broom finish concrete is suitable for an overlay. Use this checklist to evaluate the surface.
- Surface soundness: Tap the slab with a hammer. If it sounds hollow or feels spongy, it’s unsound and needs repair before overlaying.
- Loose material: Check for loose sand or aggregate. A simple kick test can reveal these areas. Ignoring this may lead to delamination later on.

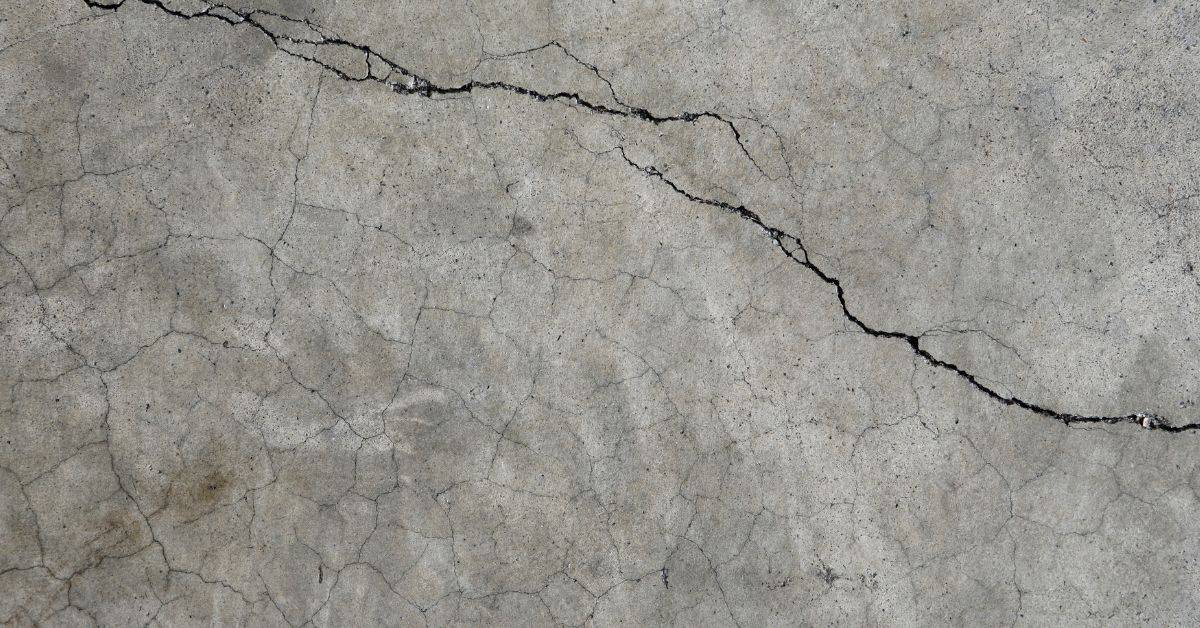

- Structural cracks: Inspect for deep, wide cracks. If present, they need repair before overlaying to prevent them from reappearing.
- Contamination: Ensure the surface is free of oil, grease, or other contaminants. These can prevent proper bonding with the overlay.
- Moisture content: Check for excessive moisture. High moisture can cause delamination and weaken the bond between the old concrete and the new overlay.
- Cracking pattern: Look at the crack patterns. Random cracks are okay, but a grid or map-crack pattern indicates serious issues that need addressing before overlaying.
- Slab thickness: Ensure the slab is thick enough to support the additional weight of the overlay. A minimum of 4 inches (10 cm) is recommended.
- Overlay size: Consider the size of the overlay. Larger overlays may require additional reinforcement to prevent cracking.
Quick rule: If more than 25% of the surface shows signs of severe damage or contamination, it’s better to remove and replace rather than attempt an overlay.
When to remove and replace instead of overlay
An overlay might not be the best solution for every concrete surface. Here are signs that indicate you should consider removing and replacing the slab:
Deep structural failure: If the concrete has deep, wide cracks or severe spalling, it’s a sign of serious structural damage. Overlaying won’t fix this and could lead to further issues.
Severe alkali/salt damage: Alkali-silica reaction (ASR) and salt damage can cause significant deterioration of the concrete. Overlaying won’t solve these problems at their source, so removal and replacement are usually necessary.
Widespread delamination: If large areas of the slab have already delaminated, it’s a sign that the concrete is beyond repair. Attempting an overlay in this case would be a waste of time and money.
Tools and Materials Checklist
Gather inspection tools, surface-prep equipment, bond-testing supplies, mixing and placement tools, finishing gear, curing/protection materials, and PPE before you start the job.
Confirm compatibility and application requirements for primers, bonding agents, overlay mixes, and additives by reading labels or the manufacturer instructions for each product you plan to use.
Visual checkpoints and equipment choices
Before you start, use this checklist to ensure your old broom finish concrete is suitable for an overlay. This helps prevent delamination.
- Surface condition: Check for cracks, spalls, or other damage. Skipping this can lead to overlay failure.
- Broom finish: Ensure it’s well-defined and consistent. A weak broom pattern may not hold the overlay.
- Moisture content: Test for excessive moisture. High moisture can cause delamination.
- Concrete age: Ensure it’s at least 28 days old. Newer concrete may still cure, causing the overlay to lift.
- Grinding equipment: Choose a grinder with diamond or silicon carbide segments for profiling.
- Shot blasting equipment: Select a shot blaster that can achieve the required substrate profile.
- Pressure washer: Use one with at least 3000 PSI and a surface cleaner attachment.
- Vacuum: Have a wet/dry vacuum ready for cleanup.
Quick rule: Always test before you treat. A thorough visual check ensures your overlay has the best chance of success.
Material specs and standards explained
Before mixing or applying, understand these key material specifications to ensure a successful overlay.
- Bond strength: Check the manufacturer’s recommended bond strength for your substrate. Insufficient bond strength can cause delamination.
- Recommended substrate profile: Ensure your surface preparation matches the required profile. Incorrect profiling can lead to poor bonding.
- Pot life: Know how long you have to apply the overlay once mixed. Exceeding pot life can result in poor curing and weak bond.
- Cure times: Plan for appropriate curing conditions (moisture, temperature). Inadequate curing can weaken the overlay.
- Industry standards: Consult ASTM C926 and C1059 for guidelines on concrete overlays.
- Manufacturer’s data sheet: Always follow the manufacturer’s recommendations for their specific product.
Quick rule: Know your materials. Understanding key specs ensures you’re using the right overlay for your job.
Assessing the Old Broom Finish Surface
Follow a step-by-step inspection: probe the surface to find loose sand and weak layers, look for laitance or contamination, and note any cracking or spalling that might indicate deeper problems.
Verify moisture condition and adhesion potential with appropriate tests and consult product data sheets or manufacturer guidance to determine whether the existing surface can accept the chosen overlay system.
Simple onsite tests to detect loose sand and adhesion risk
Before you start your concrete overlay project, it’s crucial to identify any weak spots or loose sand on the old broom finish surface. Here are some simple yet effective on-site tests to help you do that:
Sounding Test: Gently tap the surface with a hammer. A dull thud indicates a solid surface, while a hollow sound suggests loose material.
Tape or Pull Check: Stick a piece of duct tape onto the surface, then pull it off quickly. If sand comes off with it, you’ve found a weak area.
Tactile Inspection: Run your hands over the surface. Powdery or non-cohesive areas indicate loose sand that needs attention.
Measuring contamination and moisture
Contamination and trapped moisture can ruin your overlay project. Here’s how to identify and measure these issues:
Visual Inspection: Look for signs of oil, grease, or salts on the surface. These contaminants can prevent adhesion.
Moisture Check: If you suspect moisture problems, perform a simple moisture test using a calcium chloride-based kit. Follow the manufacturer’s instructions. A dark color change indicates high moisture content.
Lab Tests: For more accurate results, consider sending samples to a lab for testing. This is especially important if your overlay product requires specific moisture readings before application.
Surface Preparation to Lock Down Loose Sand
Prepare in stages: remove loose material and contaminants, preserve sound concrete, and create a consistent mechanical key that the overlay can grab onto without leaving unsupported, friable material beneath it.
Choose prep methods that match the surface condition—try less aggressive methods first and escalate as needed—and check manufacturer instructions or datasheets to ensure the chosen approach won’t void the bond warranty.
Mechanical preparation options and tradeoffs
To lock down loose sand, you’ll need to roughen the surface. Here’s a look at your mechanical prep options:
Grinding: Effective on loose sand but can be slow. Creates a consistent profile with minimal substrate loss.
Shot Blasting: Quick and aggressive. Removes loose material well but generates lots of dust and can remove too much concrete if not controlled.
Scarifying: Good for removing high spots and loose material. Can create a consistent profile but may leave some loose sand behind.
Hand Tools: Useful for small areas or tight spaces. Inefficient for large surfaces but allows for precise control.
Cleaning and neutralizing contaminants
Before applying the overlay, you must clean the surface to remove any contaminants that could hinder adhesion:
Use detergents for general cleaning. For oil or grease stains, apply a degreaser. Then, pressure wash to rinse.
Be careful with aggressive acids or cleaners—they can leave residues that affect bond strength. Always test on a small area first.
Rinse thoroughly and allow the surface to dry completely before proceeding. A damp surface can cause delamination.
Bonding Systems and Primers for Broom Finish
Primers and bonding agents bridge the textured, dusty broom
