Concrete Downspout Solutions: Surface Channels vs Buried Pipe (and Freeze Risks)

Surface channels and buried pipe are two common ways to move roof water away from your home. Surface channels sit above ground, while buried pipes hide below grade. Each setup fits different spaces and goals.

Think about capacity, aesthetics, maintenance, and how winter affects them. Use-cases like patios and low-profile looks favor surface channels; lawns and colder climates often lean toward buried pipe. This quick map helps you decide which path to test first.

What is a surface channel?

A surface channel is an above-grade or near-surface solution for managing water runoff. It’s essentially a trench filled with gravel or rock, often lined with a perforated pipe to collect and direct water.

Surface channels come in various forms:

• Channel drains: these are preformed units that fit into a shallow trench, usually used along the edges of patios, driveways, or entryways.
• Trench drains: these are wider and deeper than channel drains, often used in larger areas like parking lots or beside retaining walls.
• Shallow swales: these are gently sloped channels that follow the natural grade of the land, typically used to collect and direct water from large areas like rooftops or courtyards.

What is a buried pipe system?

A buried pipe system is an underground solution for moving water away from foundations and out of sight. It consists of solid pipes that connect the downspout to an outlet, often with emitters or pop-up outlets at the end.

The main components are:

• Solid pipes: these convey water underground from the downspout to the outlet. They can be made of various materials like PVC, HDPE, or concrete.
• Emitters: these are small devices at the end of the pipe that release water slowly into the surrounding soil to prevent erosion and promote absorption.
• Pop-up outlets: these are adjustable outlets that pop up above ground when water flows through them, allowing you to direct water away from foundations or other sensitive areas.

Buried downspouts can pull water away from foundations and hide plumbing out of sight. Surface channels are more exposed but easier to access and adjust. Both have places in different yards and climates.

Consider visibility, installation disruption, and long-term upkeep. Buried systems require trenching and continuous protection from freezing; surface channels need grading and regular cleaning but stay accessible. Use this side-by-side view to judge what fits your site and routine best.

Benefits of buried pipe systems

Buried downspouts offer several advantages when it comes to protecting your home’s foundation. By directing water away from the base of your house, they help prevent soil saturation and reduce the risk of freeze-thaw damage.

Hidden appearance is another benefit. Once installed, you won’t see them, allowing for a cleaner, more aesthetically pleasing landscape. They can also be integrated with larger subsurface drainage systems for better overall water management.

Lastly, buried pipes reduce trip hazards around your property, making them safer for everyone.

Drawbacks and risks of buried pipe systems

The primary drawback is the need for excavation. This can be disruptive to your landscaping, may require permits depending on your location, and adds significant labor costs.

Potential clogging is another risk. Roots, debris, or other obstructions can block buried pipes, leading to backups and potential foundation damage. Repairs can also be difficult as they often involve digging up the pipe.

Buried pipes may also conflict with underground utilities, requiring careful planning and potentially additional costs. If installed too shallow, they’re vulnerable to freezing and thawing cycles, which can cause cracks or breaks over time.

Benefits and drawbacks of surface channels

Surface channels offer easier inspection and repair. If a clog or damage occurs, you can quickly access the channel to address the issue without needing to dig.

Higher visible footprint is a drawback. They may not be as aesthetically pleasing as buried pipes, but they can be integrated with landscape grading for a more natural look.

In winter, surface channels can ice over, potentially creating slip hazards. However, this risk can be mitigated with proper maintenance and de-icing measures. Surface channels are particularly suitable for high-flow locations like driveways or areas where water collects quickly.

Back to top ↑

Pipe materials vary in durability and performance in cold weather, and channel materials differ in weight and flex. Compare options like PVC, HDPE, or concrete pipes with HDPE, concrete, or aluminum channels for your climate. Weight, bonding, and compatibility matter for long-term performance.

Look at grates, end caps, cleanouts, and seals as part of the system. Check load ratings and debris resistance to prevent bottlenecks. Document IDs and warranties as part of your plan so future work stays consistent.

Pipe choices for buried systems

The pipe you choose for your buried system is crucial. Here are some common options:

Smooth-wall rigid pipes (PVC, ABS): These are durable and long-lasting. They have strong joint integrity but can be susceptible to clogging if not properly supported.

Flexible corrugated pipes (HDPE, metal): These can handle some ground movement and are less likely to clog due to their shape. However, they may not last as long under heavy loads or in freeze-thaw conditions.

Always check local frost and load requirements before selecting your pipe. A 4-inch diameter pipe is usually sufficient for most residential applications.

Surface channel and trench drain materials

The material you choose for your surface channels or trench drains can greatly affect their appearance, durability, and maintenance needs.

• Polymer (HDPE, PP): Lightweight, flexible, and UV-resistant. Look for high-density polyethylene (HDPE) with a UV stabilizer. Avoid low-quality polymers that can become brittle over time.
• Concrete: Durable and heavy-duty. Choose rebar-reinforced concrete for added strength. Be aware of cracking issues in freeze-thaw areas.
• Steel: Strong and long-lasting. Opt for galvanized or stainless steel to prevent corrosion. Regular maintenance is needed to keep it looking good.
• Grate types: Select a grate with the right load class rating for your needs (pedestrian, vehicle, or heavy equipment). Consider cast iron grates for durability and plastic grates for affordability.
• Maintenance access: Ensure your chosen system allows for easy cleaning and maintenance. Some systems may require more frequent cleaning than others.

Useful accessories and filtration

Accessories can help reduce sediment ingress, simplify maintenance, and improve the overall performance of your drainage system.

Catch basins: These collect debris before it reaches your pipe. They should be accessible for regular cleaning. Consider using a removable basket strainer to catch large debris.

Downspout filters and leaf guards: These prevent leaves, twigs, and other debris from clogging your pipes. Choose a filter with a large enough mesh size to allow water flow but small enough to capture debris.

Pop-up emitters: These allow you to control where water is discharged. They can be useful in areas where flooding or erosion is a concern. Ensure they are compatible with your pipe system and choose one with a good seal to prevent leaks.

Fabric/stone envelopes: These wrap around pipes, helping to stabilize them and reduce sediment ingress. They can also help prevent pipe damage from ground movement.

Back to top ↑

Start with a pre-installation plan that covers utilities, grading, and applicable stormwater rules. This helps you avoid surprises during work. Clear the path for approvals before you dig.

Address site constraints and approvals early, including property lines and easements. Identify which permits apply and what inspections are typical. A simple planning sheet keeps decisions visible and field tasks coordinated.

How to Survey Your Site and Map Routes

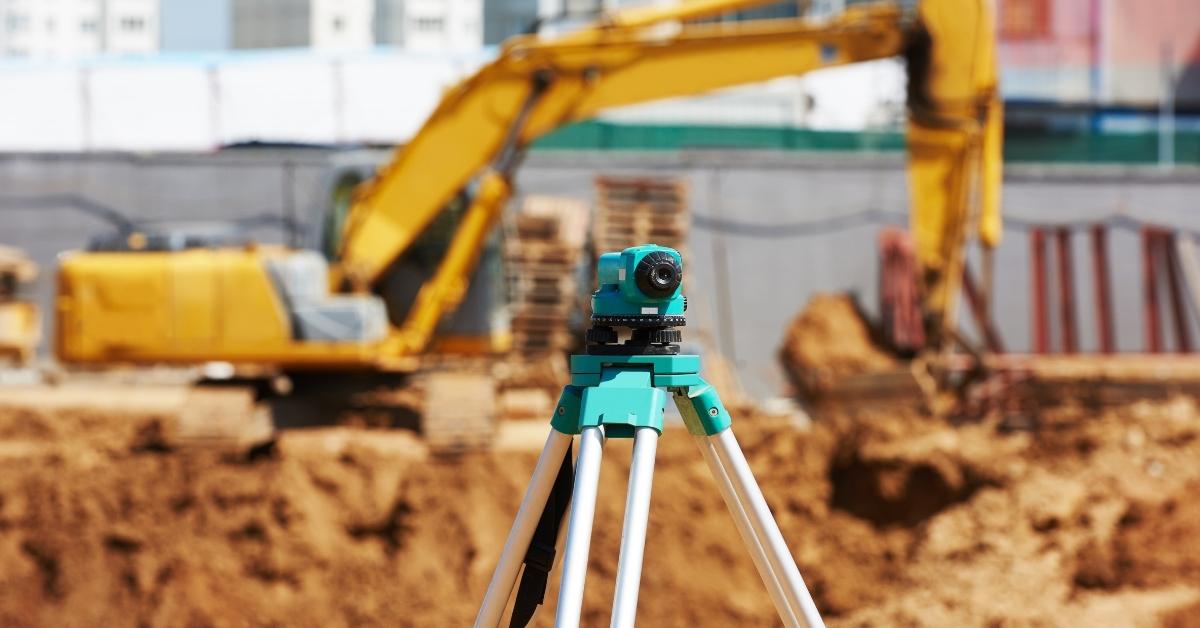

Before you start, walk your property to assess the slope. Identify low points where water naturally collects.

Locate all utilities. Call 811 before digging. They’ll mark underground lines for free. Avoid these areas when planning your routes.

Plan outlet locations carefully. Ensure they don’t flood adjacent properties. Consider using a topographic map or surveyor’s report if your site is complex.

Permits, Codes, and Stormwater Rules

Check local building codes and municipal stormwater regulations. Some areas require permits or engineered plans for downspout systems.

Review HOA covenants. They may have rules about what you can install and where.

Contact your local permitting office if you’re unsure. They can guide you through the process and tell you exactly what’s required.

When to Engage a Pro (Engineer or Landscaper)

Steep sites, concentrated flows, complex grading changes – these can be tricky. Consider hiring an engineer for a professional design.

Municipal discharge constraints might also require pro help. Some areas have strict rules about where and how water can leave your property.

Landscapers can also assist, especially if you’re planning to incorporate channels into your landscaping design. They can ensure everything integrates seamlessly.

Back to top ↑

Outline the project scope with codes, permits, and burial depth in mind. Plan the trench route to minimize root interference and align inlet and outlet points. Establish a straightforward maintenance zone from start to finish.

Move through trenching, bedding, laying the pipe, and making clean, watertight joints. Finish with proper backfill, compaction, and an accessible outlet. Include checkpoints for inspection and freeze considerations so you don’t miss a cause of backups.

Trenching, Slope, and Bedding Best Practices

Proper trenching, consistent slope, and stable bedding are crucial for a successful buried downspout installation.

Trench width should be 6-12 inches wider than pipe diameter to accommodate bedding material. Maintain consistent slope away from foundation (typically 1/4 inch per foot) to ensure proper drainage.

Bedding provides a stable base for the pipe. Use clean gravel or sand, ensuring it’s level and well-compacted before laying the pipe. Always call before you dig to avoid utility lines.

Connections, Fittings, and Outlet Construction

Proper connections, fittings, and outlet protection are vital for a functional buried downspout system.

Use appropriate joints (solvent weld or mechanical) based on pipe material. Install downspout adapters at inlets to connect to existing downspouts. Use catch basins or pop-up emitters at discharge points to control water flow and prevent erosion.

Protect outlets from erosion by using splash blocks or other erosion-control measures. Ensure all connections are watertight to prevent leaks.

Differentiate between surface channels and trench drains and note where each is appropriate. Above-grade paths and shallow trenches behave differently in winter, so pick the strategy that matches site needs. Your choice impacts slope, base prep, and maintenance access.

Focus on grate anchoring, concrete versus modular channels, and winter readiness. Test fit and seal joints, then plan for cleaning and seasonal checks to keep flows clear after freezes. A few quick tests prevent big blockages later.

Installing a trench/channel drain in concrete or pavers

Recessing channels into hardscapes like concrete or pavers gives a clean, seamless look. Here’s how:

Step 1: Plan your channel route, ensuring it slopes adequately towards the outlet.

Step 2: Cut out the trench using a wet saw for concrete or a diamond blade for pavers. Ensure the trench is deep enough to accommodate the channel and allow for proper bedding material.

Step 3: Prepare the base with a layer of compacted gravel, then lay down a bed of sand or flowable fill. Insert the channel, ensuring it’s level and properly aligned.

Step 4: Seal joints to prevent water from undermining the hardscape. Use a flexible sealant compatible with your surface material.

Shallow channels and landscaping transitions

Integrating shallow channels into your landscape requires careful planning to minimize trip hazards and direct water flow safely:

Step 1: Plan your channel route, avoiding areas with heavy foot traffic or frequent lawn mowing.

Step 2: Excavate the trench, ensuring it’s shallow enough not to disrupt root systems but deep enough for proper drainage. Use a narrow trencher to minimize disturbance.

Step 3: Prepare the base and lay down the channel as described in the previous section. Ensure the grate is secure and level with the surrounding surface to prevent tripping.

Step 4: Backfill around the channel, compacting the soil gently to avoid settling. Plant around the channel, ensuring roots won’t interfere with drainage over time.

Winter-proofing surface channels

Maintaining proper water flow and preventing ice buildup in winter is crucial for your channel’s longevity:

Step 1: Ensure your channel has a continuous slope towards the outlet to prevent ponding. Remove any debris that could block the flow path.

Step 2: Insulate the channel if it runs through unheated areas, or use heat tracing cables to keep water flowing. This is especially important for concrete channels, which can crack due to freeze-thaw cycles.

Step 3: Regularly check your channel during winter. If ice forms, use hot water (not boiling) and a non-abrasive tool to clear it gently. Never use salt or other corrosive substances, as they can damage the channel and grate.

Back to top ↑

Cold climates bring risks like pipe freeze and soil heave, plus ice on exposed channels. These modes influence whether to bury or surface-route water and which materials to pick. The goal is resilient flow through winter and spring thaws.

Evaluate how design choices alter risk, including insulation, slope, and access for maintenance. Plan checks for typical cold-season events and select components that handle freeze cycles. Include practical steps to verify readiness before severe weather arrives.

Design strategies to reduce freeze risk

In cold climates, design your downspout system with freeze-thaw cycles in mind. The key is to keep water moving and minimize exposure to freezing temperatures.

Route water below frost exposure: Where practical, run your pipes deep enough to avoid the freeze line. Check local codes for average frost depths.

Maximize continuous flow: Design your system to maintain a steady flow of water from your roof to the outlet. This reduces the chance of standing water freezing in place.

Avoid shallow vulnerable runs: Steep slopes and shallow trenches can leave pipes exposed to extreme temperatures, increasing freeze risk.

Material and insulation approaches

Choosing the right materials and providing adequate insulation are crucial for preventing freeze-related issues.

• Smooth-wall pipes: Select smooth interior pipes to minimize constrictions that could trap water and freeze. PVC or HDPE are good choices.
• Insulate critical junctions: Wrap pipe joints, fittings, and outlets with heat tape or foam insulation to protect them from freezing temperatures.
• Frost-resistant outlets: Use pop-up emitters or other frost-resistant outlet details to minimize surface icing. These allow water to drain away quickly, reducing the chance of freeze-ups.
• Avoid thin-walled pipes: Thin walls can crack under freezing conditions, leading to leaks and system failure.
• Protect joints from movement: Use flexible couplings or other joint protection methods to prevent cracking due to soil heave during freeze-thaw cycles.

Operation and seasonal maintenance to prevent freeze problems

Regular maintenance and seasonal preparations can help prevent freeze-related issues with your downspout system.

Before freeze cycles: Ensure gutters are clear of debris. Flush lines in late fall to remove any remaining water. Remove outlet obstructions that could trap standing water.

During winter: Keep an eye on your outlets. If ice buildup occurs, use a snowblower or other tool to safely clear it away. Never use hot water as it can cause pipes to crack.

After freeze events: Inspect your system for any signs of damage. Clear any blockages and test flow to ensure water is draining properly.

Back to top ↑

Develop a maintenance plan that covers both buried and surface systems with seasonal tasks and regular inspections. Keep a simple calendar so nothing gets forgotten. This helps you catch problems early before they impact foundations or surfaces.

Identify common failure modes like clogs, joint separations, or frost movement, and follow a practical troubleshooting flow. Use cleaning, resealing, and slope corrections as preventive steps. When in doubt about a persistent issue, know when to call a professional to avoid bigger damage.

Troubleshooting Common Issues

Regular inspections help catch problems early, but here’s how to identify and fix common downspout issues when they arise.

Clogs: Slow drainage or standing water indicates a clog. Start by clearing grates and catch basins. If that doesn’t work, use a plumber’s snake or hydro jet for buried lines.

Silted pipes: Reduced flow could mean sediment buildup in buried lines. Flush the line with a garden hose to clear it out.

Sinkage and outlet erosion: Check around outlets for signs of settling or erosion. If found, correct slope or alignment to maintain proper flow. If persistent, call a professional to assess foundation stability.
