Anchoring into Old Concrete: When the Surface Lies and How to Test Strength

Visual clues like a hard crust, surface laitance, dusting, or patched textures can hide real weakness beneath. A surface that looks intact may mask delamination, differential settlement, or low core strength under patches. Relying on appearance alone is unreliable for judging anchor compatibility.

Common failure modes missed by visuals include strength loss below patches, voids or honeycombing, debonded layers, and moisture-related weakness that can reduce holding power. Practical checks that don’t require cores include hammer tests for hollow sounds, scratch indicators for laitance, and quick moisture or pull-off tests to gauge relative strength. Context from history and construction methods helps interpret findings and guide the next steps for embedment and surface prep.

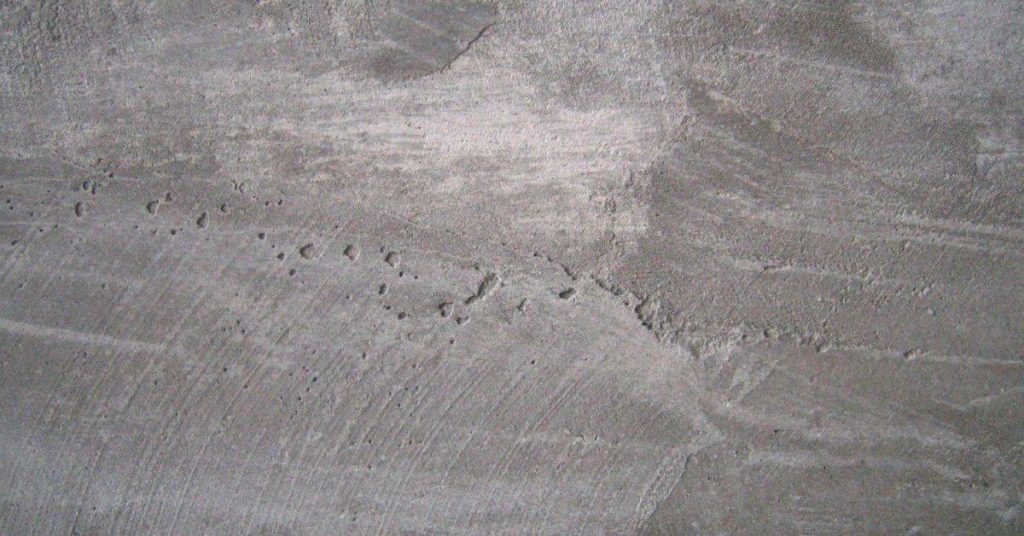

Common deceptive surface conditions

Old concrete can fool you with its looks. It might seem solid, but it could be hiding problems.

Powdery laitance is a fine layer on top that washes off easily. It’s weak and won’t hold an anchor well.

Surface scaling happens when bits of concrete flake off. This means the surface is unstable and anchors might not grip properly.

Paint or oil films can make concrete look solid, but they stop anchors from bonding. Thin hard skins can hide soft, weak concrete beneath.

Risks of anchoring into a deceptive surface

Anchors in deceptive surfaces can fail. Here’s what might happen:

Pull-out: The anchor just pops out, like pulling a nail from wood.

Breakout: A chunk of concrete comes with the anchor when it’s pulled or pushed.

Cracking: Anchors can cause cracks to spread through your concrete if it’s weak.

Progressive collapse: One failing anchor can lead to others going too, like dominoes. This is a big safety issue.

Back to top ↑

Establish criteria to distinguish minor surface damage from actual structural movement. Patches may be acceptable in some cases, while others require removal and re-pouring. Use observable conditions and test results to decide when a patch is enough or when full replacement is safer.

Assess the extent and depth of deterioration by looking at crack behavior, hollow sounds, rust staining, and any visible settlement. Consider load demands and intended use to determine whether a repair suffices or if a larger remediation is needed. Practical planning should weigh cost, downtime, moisture, material compatibility, and the expected long-term performance of any chosen approach.

Signs that replacement is required

If you’re seeing pervasive movement across your entire slab, it’s a red flag. This could mean the concrete has lost its structural integrity.

Deep interconnected cracks are another sign of serious trouble. These can indicate that the reinforcement inside is no longer supported properly.

Contamination throughout the cross-section, like widespread rust staining or delaminating layers, suggests that the entire slab needs to be replaced.

When repair or localized anchoring is acceptable

If damage is contained to a small area, you might get away with surface repairs. This could include isolated cracks or minor spalling.

Non-critical load cases are also candidates for repair. If the slab isn’t bearing heavy loads or critical structures, patching up may be sufficient.

Localized anchoring can sometimes be done if the surrounding concrete is sound and the anchor depth is minimal.

Back to top ↑

Start by defining load requirements and anchor types to scope the project. Identify whether static, dynamic, or safety factors will drive the design. Gather the basics to estimate what the job will entail before committing to a approach.

Verify codes, standards, and permit needs and know when to involve an engineer or building official. Conduct a site assessment of surface and sublayers, and plan for engineering design considerations and material choices. Draft a budget and timeline that itemizes drivers like labor, testing, permits, and equipment, so you can coordinate with other trades.

When to call a structural engineer or testing lab

You’re not always on your own when anchoring into old concrete. Here’s when to seek professional help:

Life-safety anchors. If you’re securing something that could cause harm if it falls, like a heavy shelf or safety railing, don’t guess. Call an engineer.

Uncertain test results. If your own tests show varying or questionable results, get a second opinion from a lab.

High design loads. When the load is high – think heavy machinery or significant weight – it’s wise to have an engineer check your calculations and designs.

Budgeting and cost trade-offs

Anchoring into old concrete can add up. Here are the main cost drivers:

Testing. Expect to pay for core sampling, petrographic analysis, and strength tests. These ensure your anchors have a solid foundation.

Materials. Specialty anchors, grout, or epoxy can hike costs. But they’re often necessary for a secure hold.

Removal vs. repair. Sometimes it’s cheaper to replace the concrete entirely. Other times, repairing and anchoring is better. Weigh your options.

Labor. Hiring pros can save you time and stress. But DIY can cut costs. Plan for both.

Contingencies. Always set aside extra cash for unexpected issues. Old concrete can hide surprises.

Back to top ↑

Create a field-ready tools list that covers drills, core bits, pull-test gear, grinders, rust removal, PPE, and cleanup supplies. Include a plan for dust containment and site ventilation. Have a clear sense of what you’ll need on hand for a smooth day of work.

Outline materials such as epoxies, rapid-set mortars, patch and grout products, fasteners, corrosion inhibitors, and compatible surface treatments. Note relevant standards and certification marks to verify before purchase. Prepare for surface prep, moisture checks, and compatibility with the old substrate, then document acceptance criteria for records.

Material selection guidance

Choosing the right materials is crucial for a strong, long-lasting anchor. Here’s how to decide:

• Cementitious mortars: Use when loads are light and substrate is sound. Look for ASTM C881/C881M standards. Avoid on vertical surfaces or heavy loads.
• Epoxy anchors: Ideal for high loads, chemical exposure, or vertical surfaces. Check ASTM D7234/D7234M specs. Not suitable for wet environments without proper primers.
• Mechanical anchors (expansion bolts): Great for heavy loads and where substrate is sound. Follow ASTM C918/C918M guidelines. Can cause cracking in weak concrete.
• Corrosion inhibitors: Must be used with steel anchors to prevent rusting, especially in damp conditions.
• Protective coatings: Apply after installation to shield fasteners from elements and extend lifespan.

Tip: Always check material certifications (like UL, ISO) before purchasing. Wrong materials can lead to cracking, staining, or weak bonds.

Back to top ↑

Assess the substrate for cracks, delamination, laitance, spalling, and moisture intrusion. Decide if the concrete is sound enough to anchor into or if repair is required first. Use quick checks to guide the next steps while keeping safety in mind.

Clean and degrease with stiff brushes, pressure washing, and appropriate cleaners to remove coatings and contaminants. Mechanical preparation with grinders or scarifiers should expose a roughened profile and any exposed cement paste. Test for inhibitors and moisture and address them before bonding if needed.

Cleaning and decontamination methods

Before you start anchoring, you need to clean the concrete surface. This is crucial for a strong bond.

Start with a stiff brush to remove loose dirt and debris. Then, use a pressure washer to blast away any remaining grime. Be careful not to damage the surface.

For oil or grease stains, use a suitable degreaser. Apply it, let it sit for a few minutes, then scrub and rinse. For tree sap, you might need to use a scraper and a solvent-based cleaner.

Remember: The surface needs to be clean and free of any contaminants that could hinder adhesion.

Profile creation and bonding priming

The concrete’s surface profile is key for a good bond. You want it rough, not smooth.

Use a wire brush, grinder, or scarifier to create this profile. The goal is to expose the Portland cement and create mechanical keys – little nooks and crannies that your anchor can grip onto.

Once you’ve created the right profile, it’s time for priming. This helps with adhesion and seals the surface. Use a bonding primer or agent if you’re applying an adhesive. If you’re using a cement-based repair material, you might need to apply a scratch coat first.

Tip: Always follow the manufacturer’s instructions when it comes to primers and bonding agents.

Wetting and moisture control

Moisture is a tricky thing when it comes to anchoring into concrete. Too much, too little – both can cause problems.

Ideally, the substrate should be slightly damp before you apply your cementitious repair or adhesive. This helps with adhesion and prevents the material from sucking moisture out of the concrete, which could lead to cracking.

To check for excessive dryness, perform a simple test: Sprinkle some water on the surface. If it’s too dry, the water will bead up and not be absorbed. If this happens, dampen the surface with a spray bottle or misting nozzle before you start working.

Beware: Too much moisture can also cause problems. Make sure to check for signs of saturation and address any moisture intrusion issues before proceeding.

Back to top ↑

Map a testing hierarchy from quick field checks to non-destructive tests and formal destructive tests. Use each method to reveal bond quality, surface condition, moisture state, and compressive strength as it relates to anchoring decisions. Plan test locations to be representative of the installation area.

Follow practical field protocols for surface prep, location numbering, result recording, and safety. Interpret results to inform pass/fail criteria for common anchor types and project risk. Be aware of limitations and when to bring in a structural engineer for questionable readings.

Quick field checks and sounding

Before investing in expensive tests, perform these simple, low-cost checks to locate weak zones and delamination.

Hammer-sounding: Tap the surface with a hammer. Listen for dull or hollow sounds indicating delamination.

Probe testing: Insert a thin rod into drilled holes (1/4″ diameter) to feel for weak, crumbly material.

Visually inspect: Look for cracks, spalling, or other signs of deterioration. Mark suspect areas for further testing.

Non-destructive and semi-destructive tests

These methods provide more data than quick field checks but are less invasive than destructive tests. They’re useful for assessing concrete quality and identifying weak zones.

Rebound (Schmidt) hammer: Measures surface hardness, giving an indication of compressive strength. Results may vary on aged or heterogeneous concrete.

Ultrasonic/surface-wave methods: Measure pulse velocity to estimate concrete quality. Less reliable on old, damaged, or variable concrete.

These tests help identify weak zones but don’t provide absolute strength values. Use results alongside visual checks and other test data for anchoring decisions.

Destructive tests and lab options

These tests provide more accurate strength data but are invasive, requiring concrete removal. Consult an engineer for interpretation.

Core sampling: Drill out cylindrical samples (1″ to 2″ diameter) for compressive strength testing or petrographic analysis in the lab. Expect some surface damage.

Pull-out/push-in load tests: Measure anchor pullout resistance, giving an indication of concrete’s bond strength and quality. Useful for assessing local conditions but results may vary.

Send samples to a lab for compressive testing or petrographic analysis if required. Consult an engineer for interpretation, especially when results are questionable or project risk is high.

Back to top ↑

Understand mechanical anchoring, adhesive anchoring, and hybrid approaches, with practical pros and cons for each. Consider substrate condition, surface prep needs, and expected loads when evaluating options. Use this as a guide to pick the most reliable method for the job at hand.

Decide based on substrate condition (cracks, hollows, flaky surfaces) and load type. Choose mechanical sleeves, studs, epoxy anchors, or hybrid systems accordingly. Include essential steps for surface prep, cure times, and verification testing to confirm strength.

Mechanical methods (dowels, through-bolts, sleeves)

Mechanical anchors rely on the strength of old concrete to transfer loads. They’re simple and quick but need proper installation.

Dowels, through-bolts, and sleeves are common mechanical anchors. They work best in sound, stable concrete with no cracks or flaking within 2 inches of the anchor.

Key to success: proper edge distance (at least 1.5 times the anchor diameter) and embedment length (usually 6-8 times the anchor’s diameter).

Chemical anchors and adhesive systems

Chemical anchors use resins or epoxies to bond with concrete. They’re great for light-duty loads and compromised substrates.

Resin/epoxy anchors need clean, dry holes (blow out dust and moisture) and good substrate quality. Contaminants like oil or grease can prevent bonding.

For marginal substrates, consider using expansion bolts with chemical anchors for added security.

Combining methods and backup measures

When old concrete is marginal but replacement isn’t feasible, consider combining methods or adding backup measures.

Use larger embedment lengths, add additional anchors, or use bonded dowels. Bonded dowels combine mechanical and adhesive anchoring for extra strength.

Always test anchor strength with pull-out tests before loading. If tests indicate inadequate strength, consider reinforcing or replacing the substrate.

Back to top ↑

Begin with a clear site assessment of old concrete condition, moisture, and history to identify delamination risks before drilling. Verify compatibility and plan for remediation if needed. Use a step-by-step approach to keep the work organized.

Prepare holes by selecting the correct drill, diameter, and depth, then clean thoroughly using vacuum, air, and damp wipe as needed. Choose anchors or adhesives per manufacturer instructions and check positioning before cure starts. Conclude with post-installation checks, pull or torque tests, and documentation for handover.
