Anchor bolts in concrete that landed wrong: drill-and-epoxy fixes and layout prevention

Mislocated anchors can change how a system carries loads, risking reduced capacity and unintended eccentric loading. Incorrect placement may also trigger cracking or spalling around the bore as the concrete responds to concentrated stress. Understanding the structural consequences helps guide proper layout and verification before pours.

Standards and manufacturer guidelines shape where anchors go, how far they sit from edges, and how deeply they embed. Edge distance, spacing, and layout must align with codes such as ACI 318, IBC, and the specific requirements of the anchor type in use. Safety and operational risks rise when installation deviates from the plan, including compromised fall protection, unstable equipment, and greater exposure during service or dynamic loading.

Common failure modes and consequences

Misplaced anchor bolts can lead to several structural and safety issues. The most common is reduced pull-out resistance, increasing the risk of equipment failure or detachment under load.

Incorrect placement may also cause crack propagation in the concrete, leading to potential damage and reduced structural capacity. This can compromise the integrity of the entire structure, posing safety risks and operational inefficiencies.

Misaligned anchor bolts can result in equipment instability, affecting its performance and potentially causing accidents during installation, maintenance, or dynamic loading.

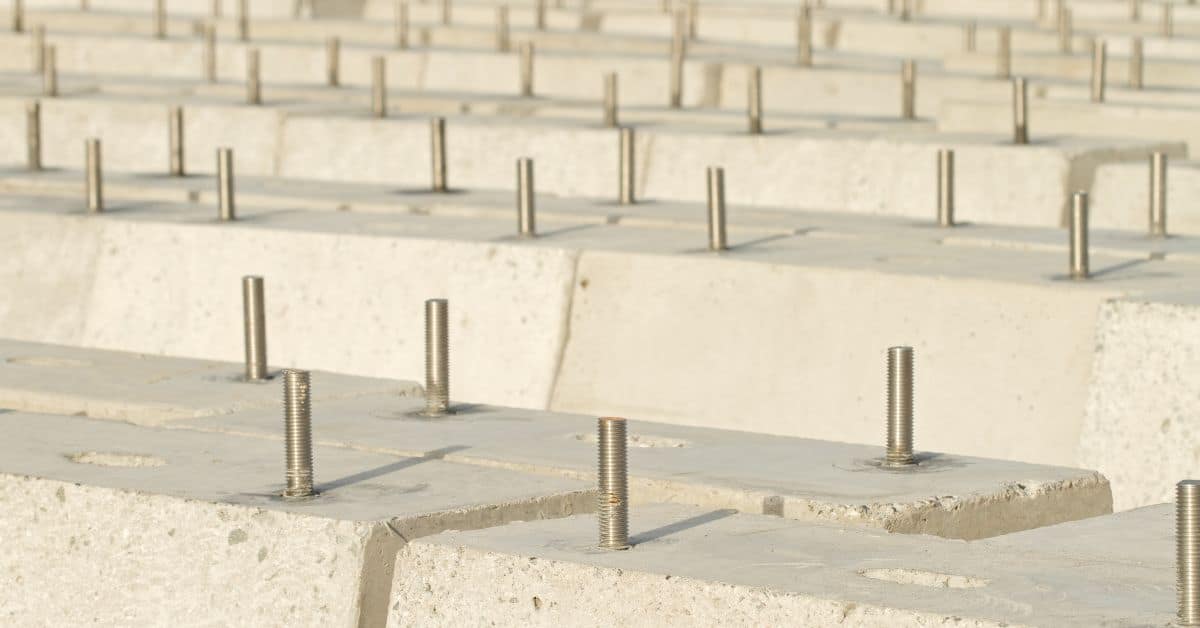

Define the exact anchor layout plan using project specs, including bolt spacing, edge distances, and layout symmetry to prevent rework. Establish a consistent footprint that aligns with equipment and anticipated loads. A precise plan helps avoid last‑minute adjustments under field conditions.

Templates or stencils support uniform hole spacing and alignment, and they should be approved by the relevant codes or manufacturer guidance before work begins. Dry‑fit checks matter: lay out anchors on the surface to confirm clearances from rebar and conduits and verify alignment with the equipment footprint. Pre‑drill verification includes substrate type, anchor size per load requirements, and drill bit and depth compatibility with the epoxy or grout system.

Define clear criteria for misplacement, including offset from layout, mounting height, skew angle, and misalignment with projected loads. Use chalk or laser layouts, calipers, and reference pins to measure accurately and decide if a repair is feasible. Documentation of measurements helps determine the next steps with confidence.

Assess the impact on structural function and safety by checking the bond, thread engagement, and base plate load path for signs of loosening or cracking. Classify severity as minor, moderate, or severe to guide actions such as re‑tapping, epoxy repair, or full re‑drilling and layout. When repair is considered, outline the methods that are appropriate for the situation and what to verify after work is complete.

Measuring misalignment and checking tolerances

Begin by visually inspecting the anchor bolts for any obvious offsets from the layout. Check if they are at the correct mounting height, not skewed or misaligned with projected loads.

Using appropriate tools like chalk/laser layout, calipers, or reference pins, measure the dimensions of the misplacement accurately. Compare these measurements against design or manufacturer’s specified tolerances to assess if repair is feasible.

If measured dimensions exceed specified tolerances, consult an engineer to evaluate the impact on structural function and safety. Re-measure and re-verify using appropriate tools if initial results are questionable.

Deciding repair vs. full replacement

Assess the severity of the misplacement using a simple scale: minor, moderate, or severe. This will guide actionable outcomes such as re-tapping or re-drilling, epoxy-repair, or full replacement.

Evaluate the anchor-to-concrete bond, bolt thread engagement, base plate load path, and look for signs of loosening, cracks, or overt damage. If the misplacement is minor with an intact concrete mass and accessible drill path, a drill-and-epoxy repair may be appropriate.

However, if the misplacement is moderate to severe or compromises structural function, consult an engineer for full replacement and re-layout of the anchor bolts. Document all measurements, anchor type, epoxy system, rework plan, safety notes, and revised layout drawing to prevent recurrence.

Back to top ↑

Define the exact repair path by deciding whether removing the mis‑set anchor is necessary and outlining the sequence from hole rework to installing a new bonded anchor. Always reference manufacturer requirements and applicable codes for embedment and loading. Plan the steps so every action follows a clear, approved path.

Hole rework and layout verification should confirm the correct hole size, depth, and position per the new anchor spec, using layout tools to ensure alignment with drawings. Emphasize hole cleaning, dust removal, moisture checks, and substrate condition that can affect bond strength, then describe how to mix and apply epoxy, fill the bore, and seat the anchor to the specified depth with proper curing before loading.

Tools and Materials Checklist

The following tools and materials are necessary for a successful drill-and-epoxy repair. Ensure all items are compatible, in good condition, and ready for use.

• Drill: A variable-speed drill with appropriate bits (masonry or carbide-tipped) to remove old anchors and drill new holes.
• Brush/Compressed Air: For cleaning dust from the hole. A wire brush can be used for stubborn debris, but avoid damaging the substrate.
• Epoxy Adhesive: Choose a high-strength, two-part epoxy specifically designed for bonding anchors in concrete. Check the manufacturer’s recommendations for mixing ratios and pot life.
• Mixing/Nozzle Kits: These ensure proper mixing of the epoxy components and easy application into the hole.
• Injection Tooling: A caulking gun or similar tool to apply the adhesive into the hole. Ensure it’s in good working condition to avoid leaks or improper application.
• Torque Wrench: To apply the correct torque when seating the anchor, as per manufacturer’s instructions. Rent or borrow if necessary.
• Anchors: New anchors that match the original specifications or are approved alternatives by the manufacturer.
• Safety Gear: Gloves, goggles, and any other personal protective equipment (PPE) required for the task at hand. Ensure they’re in good condition before starting work.

Establish a cleaning hierarchy that prioritizes removing laitance, oil, rust, and moisture to create a dry, contaminant-free bore for bonding. Define success criteria for each debris category and tailor procedures accordingly. This foundation controls bond performance and long‑term reliability.

Equipment and methods vary by debris type, using vacuums and air for dust, brushes and detergents for laitance, solvents for oils, and rust removal tools for tough residue. Clear each bore hole with a multi‑step approach, swabbing the bottom to verify cleanliness and dryness before proceeding to adhesive application and anchor installation.

Cleaning methods: brush, blow, and vacuum

Effective cleaning is crucial for a strong bond between the anchor and substrate. The sequence involves using stiff-bristle brushes, compressed air (blow), and vacuuming to remove different types of debris.

Stiff-bristle brushes are ideal for removing laitance – a cement-rich layer that can form on concrete surfaces. They help agitate and loosen the laitance for easy removal.

Compressed air (blow) is effective in dislodging loose dust from the hole. It’s important to use a suitable nozzle to direct the airflow effectively.

Vacuuming is the final step in this sequence, used to remove all types of debris – dust, laitance, and any remaining particles. A shop vacuum with a suitable attachment is recommended for this purpose.

Re-drilling, chasing, and hole condition assessment

Proper preparation of the hole is vital to prevent anchor failure and ensure longevity. Before installing an anchor, assess the hole’s condition and decide whether to re-drill, chase, or repair it based on your findings.

Measure the hole depth to ensure it meets design requirements. Inspect the hole walls for dust, laitance, cracks, and other defects that could compromise the bond between the anchor and concrete.

If the hole is clean and undamaged, proceed with anchor installation. If it contains debris or minor damage, chase the hole using a suitable tool to remove these defects. Chasing involves enlarging the existing hole to create a clean, smooth surface for the anchor.

In case of significant damage or contamination, consider re-drilling the hole or repairing the spalled concrete before proceeding with anchor installation. If initial decisions were incorrect, reassess and take appropriate corrective actions.

Back to top ↑

Define common adhesive anchor types and where each excels, without prescribing a single solution: epoxy, polyurea, hybrid, and vinyl ester each have strengths for load direction, vibration, and exposure. Match the adhesive to substrate conditions such as laitance, moisture, and surface preparation requirements. Reference product literature for specifics rather than relying on general statements.

Follow substrate compatibility guidance, temperature considerations, and cure schedules from the manufacturer. Ensure proper hole preparation, correct adhesive ratio and dispensing, and plan for post‑installation testing or non‑destructive verification as part of quality control. Document cure verification and inspection results to support future inspections.

Temperature, working time, and cure considerations

Ambient and substrate temperatures significantly impact adhesive anchor performance. High temperatures can accelerate curing, potentially reducing working time, while low temperatures can slow down or inhibit the curing process.

Before installation, check the adhesive’s technical data sheet for minimum/maximum ambient and substrate temperatures. If conditions fall outside these limits, delay installation until temperatures are within range.

Hotspots or cold joints should be monitored during installation to ensure consistent cure times. Follow manufacturer recommendations for extending or accelerating cure time if necessary.

Post-installation testing and verification

Routine visual checks are essential after installing adhesive anchors to ensure they are properly set. However, additional tests may be required depending on project specifications or engineer recommendations.

If routine visual checks fail or the project requires it, perform pull-tests, shear tests, torque tests, or non-destructive verification methods to confirm anchor strength and integrity under load.

Address any identified issues promptly to prevent potential failures. Always follow project-specific testing requirements and consult an engineer if unsure about testing procedures.

Back to top ↑

Outline PPE, respiratory protection, and safe handling practices for epoxies and drilling dust. Specify eye protection, gloves, footwear, hearing protection, and respirators appropriate to the task, with fit-testing or medical clearance as required by your site procedures. Emphasize proactive safety planning and emergency readiness.

Control dust, ventilation, and site hygiene with local exhaust, enclosures, and clear housekeeping. Manage chemicals with proper storage, labeling, and spill response, and ensure correct tool guards, torque settings, and equipment maintenance. Document permits, briefings, barricades, and procedures to support consistent safety practices on site.

Concrete Condition and Fall/Edge Protection

Before starting any drilling work on concrete, assess the slab’s integrity, especially near edges. Check for cracks or delamination that could compromise structural integrity.

Protect personnel using guardrails, barriers, or other protective measures. If necessary, shore or brace the area to prevent falls and maintain safety.

If you find cracks or delamination, re-evaluate your repair plan. Consider implementing temporary support systems before proceeding with drilling.

Chemical Safety and Disposal

Safety when handling adhesives and cleaning agents is paramount for worker health and environmental protection. Always follow storage, handling, and disposal guidelines provided by the manufacturer.

Use personal protective equipment (PPE) as recommended on the product label or Material Safety Data Sheet (MSDS).

In case of a chemical spill, contain it immediately. Neutralize if possible, following local regulations for disposal. Report any incidents and investigate their causes to prevent future occurrences.

Back to top ↑

Identify top failure modes such as improper layout, off‑angle drilling, insufficient cleaning, and mismatched adhesive or anchor type. Recognize how these issues compromise performance and safety. Use this awareness to prevent errors before drilling begins.

Prevention for layout mistakes includes templates, strict edge distances, and cross‑checking with load requirements. For drilling and hole quality, use the correct bit, maintain perpendicular alignment, and limit wobble with a guide. Ensure debris removal and surface prep are thorough, and verify cure times and environmental conditions before applying loads.
