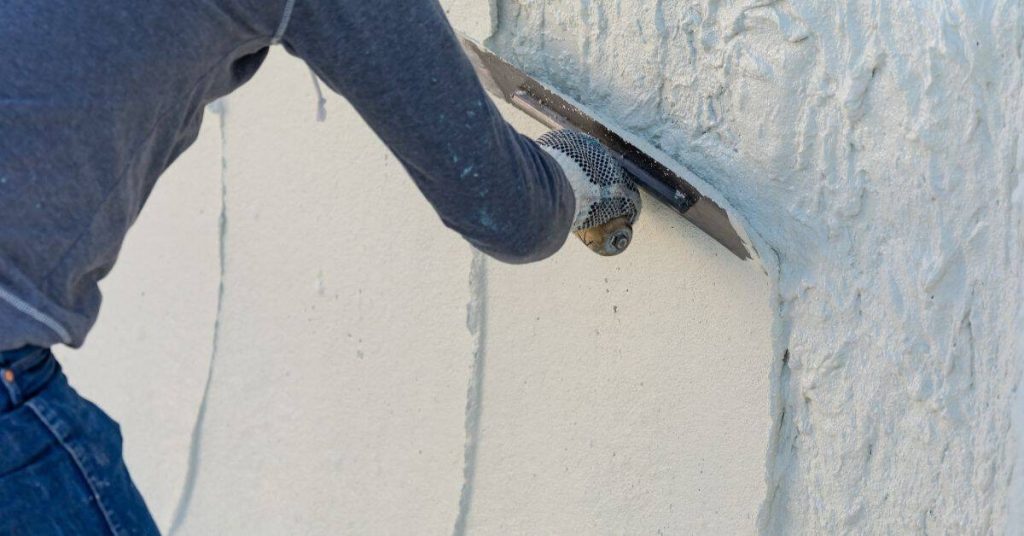

Stucco + Exterior Foam Additions: Transition Details That Keep Drainage Paths Open

A watertight, ventilated enclosure is the goal, with drainage paths kept open through transitions. The balance between thermal performance and moisture control is essential for durability.

Key interfaces like flashing, kickouts, sealants, control joints, and the sequencing of foam, weather barrier, and stucco must be coordinated to avoid bridging or gaps. Failures here can lead to moisture intrusion, rot, and mold risk, especially where the drying potential is compromised.

Performance objectives

The main goals at the transition between stucco and exterior foam are twofold: maintain continuous drainage paths and minimize thermal bridging.

First, drainage paths must remain open. This means water should flow freely from top to bottom, exiting through weep holes or other designed outlets. Any interruption can lead to moisture buildup and potential damage.

Secondly, thermal bridging should be minimized. Thermal bridging occurs when an insulating material is interrupted, allowing heat to transfer more easily. This can lead to increased energy loss and condensation risks.

Think of the drainage plane as a continuous, gravity-driven path for water to move down and away from the wall. Uninterrupted vertical and horizontal channels behind stucco and exterior foam are the target.

Ventilation behind cladding helps carry out bulk moisture, but avoid foam encroachment that could block drainage. Plan the layout around transitions and specify flashing, weep openings, and drainage mats to maintain clear paths.

Gravity, capillary break, and ventilation

Water needs to move down and out. That’s where gravity comes in. Slope your foam and stucco surfaces slightly (1/4″ per 8′ footing) towards the bottom.

Capillary breaks stop water from wicking up. Use materials like housewrap or felt paper behind your foam and stucco to create a break.

Ventilation is key. Keep air gaps between cladding and wall, and use vented cavities to let moisture escape. Don’t let foam encroach on these spaces.

Continuous drainage paths at transitions

Transitions are where water likes to hide. Keep your drainage plane continuous here.

Critical lines include window sills, base of walls, and shelf angles. Flashing should be installed here to direct water out.

Use weep openings at these points too. They let water escape while keeping bugs and critters out. Make sure they’re not blocked by foam or other materials.

Back to top ↑

Define flashing strategies at transitions between foam and stucco, directing water away from the foam and wall assembly. Place metal, flexible, or vinyl flashing where it best protects joints and openings.

Weep screed or termination profiles for foam-based exteriors should permit proper moisture drainage and allow for movement. Drip edges and splash zones protect foam edges and integrate with window/door heads while avoiding capillary rise.

Flashing best practices

Install flashing at transitions between foam and stucco to collect and divert water away from the wall assembly. Flashing should lap onto the drainage plane to ensure proper water management.

Metal flashing is ideal for horizontal transitions, like roof-to-wall intersections. It should be installed with the lower edge lapping up under the shingles or roofing material and secured with fasteners every 6-8 inches.

Flexible or vinyl flashing works well for vertical transitions, such as window or door openings. Apply it in a ‘Z’ or ‘L’ shape, with the legs lapping onto both the foam and stucco surfaces. Seal all fasteners and edges with a compatible sealant.

Weep screed and termination profiles

Weep screeds or drainage termination profiles at the wall base and around openings allow moisture to escape while supporting the stucco cladding. Choose a profile that matches your wall thickness and local code requirements.

Thin weep screeds, typically 1/4″ to 3/8″, are suitable for thin-coat stucco systems. They should have evenly spaced perforations, usually 1″ to 2″ apart, to facilitate drainage.

Thick termination profiles, often 1/2″ or more, are used with thicker, traditional three-coat stucco systems. They too require even perforation patterns for effective moisture management. Ensure the profile is compatible with your foam insulation system and follows manufacturer guidelines.

Control joints and transitions to other materials

Material choices significantly impact the performance of control joints and transitions. Proper spacing, placement, and material selection are crucial for maintaining open drainage paths.

• Stucco-to-brick or stone: Use a backer rod and compatible sealant to fill the joint. Ensure the joint is deep enough (at least 1/4″ wider than the wall thickness) to accommodate movement.
• Stucco-to-wood: Apply a flashing membrane over the wood surface before installing the weep screed or termination profile. Use a compatible sealant at all joints and edges.
• Stucco-to-EIFS: Ensure both materials are compatible and follow manufacturer guidelines for transitions. Use a control joint with a backer rod and sealant to maintain flexibility and prevent cracking.
• Stucco-to-vinyl siding: Install a flashing membrane at the transition, lapping onto both surfaces. Seal all joints and edges with a compatible sealant.
• Incorrect transitions: Avoid using incompatible materials or failing to install proper control joints. This can lead to cracking, staining, weak bonds, and ultimately, moisture intrusion into the wall assembly.

Back to top ↑

Inspect all substrates for moisture intrusion, rot, and delamination, and verify levels are true for a stable foam backing. Surface soundness is critical for a reliable installation.

Plan continuous air/moisture barriers and detail taping, overlaps, and penetrations to prevent leaks while preserving drainage paths. Prepare foam-backed additions with compatible drainage mats or furring as needed and verify substrate compatibility with adhesives and fasteners.

Sheathing and air/moisture barrier prep

First, inspect your sheathing for any signs of rot or gaps. Check for moisture intrusion, delamination, nail pops, and ensure levels are true.

Repair any defects you find. This could mean replacing damaged sheathing or fixing framing issues.

Next, apply an air/moisture barrier. Use compatible products and ensure it’s continuous across all planes – walls, openings, corners. Tape joints properly to prevent leaks and maintain drainage paths.

Integrate the barrier with flashings around windows and doors. This ensures a seamless transition and prevents water from getting trapped behind your foam addition.

Attachment strategies for exterior foam

You’ve got two main options here: mechanical fasteners or adhesive bonding. Both have their pros and cons, so choose what works best for your project.

Mechanical fasteners provide secure attachment but can bridge the drainage cavity if not installed correctly. Use approved fasteners that match your substrate type and meet load requirements. Test them to ensure they don’t block weep openings.

Adhesive bonding creates a strong bond but may not be suitable for all substrates. Ensure the adhesive is compatible with your foam board or composite panels and provides adequate adhesion without compromising drainage pathways.

Whichever method you choose, ensure it doesn’t block or bridge the drainage cavity behind your foam addition. This could trap moisture and lead to serious issues down the line.

Creating a drainage gap or batten layer

The key here is providing a clear path for ventilation and drainage behind your stucco or finish. You can do this in a couple of ways.

One method is using drainage mats. These provide a space between the foam addition and the substrate, allowing water to drain and air to circulate.

Another option is installing strapping or battens. These create a similar gap but may require additional fasteners that could potentially bridge the drainage cavity. Be mindful of this when installing.

Regardless of your chosen method, ensure it maintains an uninterrupted drainage path behind your foam addition. This helps prevent moisture buildup and keeps your walls healthy for years to come.

Back to top ↑

Create a compatibility check that lists foam types, stucco basecoat systems, reinforcing mesh, and fasteners, flagging known chemical and physical interactions. This helps protect drainage paths and long-term performance.

Review sealants, backer rods, and joint details for compatibility with foam and stucco coatings, and ensure expansion/contraction allowances are addressed. Verify code and manufacturer specs and consult product data sheets and local requirements.

Foam types and their considerations

When it comes to foam insulation for your exterior additions, you’ve got options. But each type has its own quirks.

Expanded Polystyrene (EPS) is rigid and lightweight. It’s a good insulator but can absorb moisture, which might lead to mold or reduced R-value over time. Make sure it’s compatible with your stucco system and local codes.

Extruded Polystyrene (XPS) is denser and more rigid than EPS. It resists moisture better but may not be as breathable. Check if it’s approved for use in your area and with your chosen stucco system.

Polyisocyanurate (Polyiso) has high R-value per inch and good dimensional stability. But it can degrade under prolonged heat exposure, so keep that in mind if you’re in a hot climate. Always confirm acceptable use with your local authorities and insurance provider.

Stucco systems: traditional, EIFS, and drainable EIFS

Different stucco systems manage water in different ways. Here’s what you need to know:

Traditional Stucco has a wire mesh reinforcement embedded in a cement-based coating. It breathes well but can crack if not properly reinforced or detailed. Ensure your transitions allow for movement and maintain drainage.

Exterior Insulation and Finish Systems (EIFS) have foam insulation board attached directly to the substrate, then covered with a basecoat and finish coat. They need careful detailing to prevent water entrapment and ensure proper drainage.

Drainable EIFS has built-in drainage channels behind the finish coat. While they’re designed to handle moisture better, they still require proper transition details to maintain continuous drainage paths.

Sealants, tapes, and backer materials

Choosing the right sealants, tapes, and backer materials is crucial for a durable, long-lasting finish. Here’s what to look for:

• Sealants: Use compatible, high-quality, flexible sealants that stick well to both foam and stucco. Avoid solvent-based sealants that can degrade foam.
• Pressure-Sensitive Flashing Tapes: These are great for sealing joints and transitions. Look for tapes with good adhesion to both substrates and long-term durability.
• Backer Materials: For expansion joints, use backer rods made of materials like polyethylene or foam that won’t degrade over time. Ensure they’re compatible with your sealant.
• Expansion/Contraction Allowances: Plan for movement by including expansion joints every 10-15 feet and at transitions. This helps prevent cracking due to thermal expansion and contraction.
• Avoid Incompatible Materials: Steer clear of materials that can stain, weaken bonds, or degrade over time. The wrong material can lead to cracks, gaps, and moisture problems.

Back to top ↑

Start with diagnosis, permits, and pre-work checks to confirm local requirements and drainage-path integrity. Reference manufacturer guides for each step to stay compliant.

Outline flashing, drainage details, foam installation, basecoat/mesh, and finish stucco in a logical sequence that preserves drainage. Plan inspections at key points to verify bond, coverage, and moisture barriers.

Outline worker safety protocols for trenching, scaffolding, foam cutting, and exterior work. Prioritize safe access and edge protection during installation.

Check fire safety and combustibility concerns when foam is used near cladding, and verify compatibility with local fire and drainage requirements. Document permits, inspections, and code compliance with local authorities and manufacturers.

Jobsite safety and handling foam/stucco materials

Choosing the right materials is key to a successful project. Here are some safety precautions to consider when working with foam and stucco.

• Personal Protective Equipment (PPE): Use approved hard hats, safety glasses, gloves, and work boots to protect yourself from injuries.
• Dust Control: Wear a respirator or dust mask when cutting or sanding foam. Keep the worksite clean to prevent slips and falls.
• Adhesives and Sealants: Use high-quality, fire-rated adhesives and sealants suitable for exterior use. Check their ratings and follow manufacturer guidelines for application.
• Fasteners: Use appropriate fasteners like screws or nails with the right length and gauge to secure foam and stucco. Avoid overdriving or underdriving them to prevent damage.
• Handling Materials: Be careful when moving foam boards and stucco mix to avoid damage or injury. Use proper lifting techniques and equipment.

Discuss upfront vs lifecycle costs and how material choices affect long-term maintenance. Keep the focus on practical durability rather than one-time price.

Highlight common mistakes that raise costs, such as blocking drainage or improper flashing, and outline maintenance tasks like inspections, moisture checks, and resealing. Encourage getting multiple bids and comparing lifecycle estimates and warranties.

Lifecycle cost drivers

The upfront cost of your stucco and exterior foam addition is just the beginning. Long-term costs depend on durability, maintenance frequency, repair complexity, and warranty coverage.

Durability: Higher-quality materials last longer, reducing long-term repairs. Spend more upfront for better products.

Maintenance frequency: Some systems need annual cleaning or resealing; others can go years without maintenance. Plan for these costs over time.

Repair complexity: Simple repairs are cheaper than complex ones. Consider this when choosing materials and designs.
