Introduction
Concrete block reinforcement is the practice of adding steel bars, grout, and bond beams to strengthen block walls. This article covers where rebar goes, how grout fills the cores, and why bond beams matter in a DIY project.
Stay practical and safety-minded: check local rules and follow manufacturer guidance when placing rebar and mixing grout. Plan with your wall layout in mind, verify clearances, and avoid guessing—measure and confirm with the label directions before you pour or set.
Key takeaways
- Verify rebar sizes and spacings match local codes and manufacturer guidance.
- Place grout with proper consolidation while avoiding overpacking and segregation.
- Use bond beams at designed locations to tie CMU wythes together.
- Plan joint placements to accommodate door and window openings without weakening.
- Inspect rebar laps, clearances, and grout flow for consistent fill.
- Maintain clean work surfaces, store materials properly, and wear PPE at all times.
Table of Contents
- Introduction
- Key takeaways
- Reinforcement Fundamentals for CMU Construction
- Rebar Selection and Material Specs Explained
- Proper Rebar Placement and Clearances Inside CMU Units
- Grout Types, Flowability, and Consolidation Best Practices
- Bond Beam Logic and Design Considerations
- Layout Examples for Common Wall Scenarios
- Tools, Materials Checklist, and Visual Checkpoints
- Inspection, Testing, Common Mistakes, and Troubleshooting
- Conclusion
- FAQ
Reinforcement Fundamentals for CMU Construction
Reinforcement in block walls serves to resist cracking and span loads that walls alone can’t carry. It helps keep masonry from bowing, settling, or splitting under pressure. Grout and bond beams complete the system by transferring forces and tying the wall together.
Understand when reinforcement is needed by considering structure, height, and anticipated loads. Always cross-check against project specs and local rules, and verify with the engineer or designer if you’re unsure about requirements.
Why Reinforcement Matters
Reinforcement is the backbone of strong concrete block walls. It controls cracking, resists loads, and improves ductility.
Plain masonry can crack easily under stress. Reinforcement holds it together, preventing wide cracks that could let in water or compromise structure.
It resists three types of loads: bending (when walls are pushed sideways), shear (when walls are pushed diagonally), and axial (when walls are pushed top to bottom).
Ductility, the ability to deform without breaking, is also improved with reinforcement. This means your wall can flex a bit before snapping.
Types of Reinforcement Systems
There are several types of reinforcement systems used in concrete block construction, each serving a specific purpose:
Vertical bars in cells run through the hollow cores of blocks. They’re great for resisting bending and shear forces.
Continuous bond-beam reinforcement is placed horizontally at every course. It ties walls together, preventing lateral movement, and helps distribute loads evenly.
Dowels are used to connect two walls at right angles. They transfer loads between the walls and prevent separation.
Wall ties are small, thin strips of metal or plastic that hold courses together vertically. They’re crucial for preventing vertical cracking and movement.
Rebar Selection and Material Specs Explained
Rebar material options mainly differ by corrosion resistance and strength. The designations on the bar indicate its composition and grade, so learn to read the markings on the tieds and splices. Corrosion considerations come into play in exposure conditions and climate.
Always check governing codes and the project specifications for required grades. Do not rely on memory; confirm with the label, manufacturer data sheet, or the engineer before purchasing or placing bars.
Choosing bar size and grade
The size of your rebar depends on the load it’ll bear. Bigger loads need bigger bars.
In residential CMU work, #4 (1/2″ dia.) is common for walls, #5 (5/8″ dia.) for columns. Check your structural drawings or local code to be sure.
Spacing and clearances matter too. Bars should be close enough to share the load but far apart enough not to clash during pouring. Typical spacing? 12″-16″ centers for #4, 8″-12″ for #5.
Corrosion protection and specialty bars
Rebar can rust. That’s bad. So, we protect it. Epoxy-coated rebar is cheap but not as durable as stainless or galvanized.
Use epoxy-coated in dry, indoor areas. Stainless or galvanized in moist, outdoor, or salt-exposed zones.
Specialty bars like fiber-reinforced polymer (FRP) exist too. They’re light, strong, and corrosion-resistant but pricier.
Proper Rebar Placement and Clearances Inside CMU Units

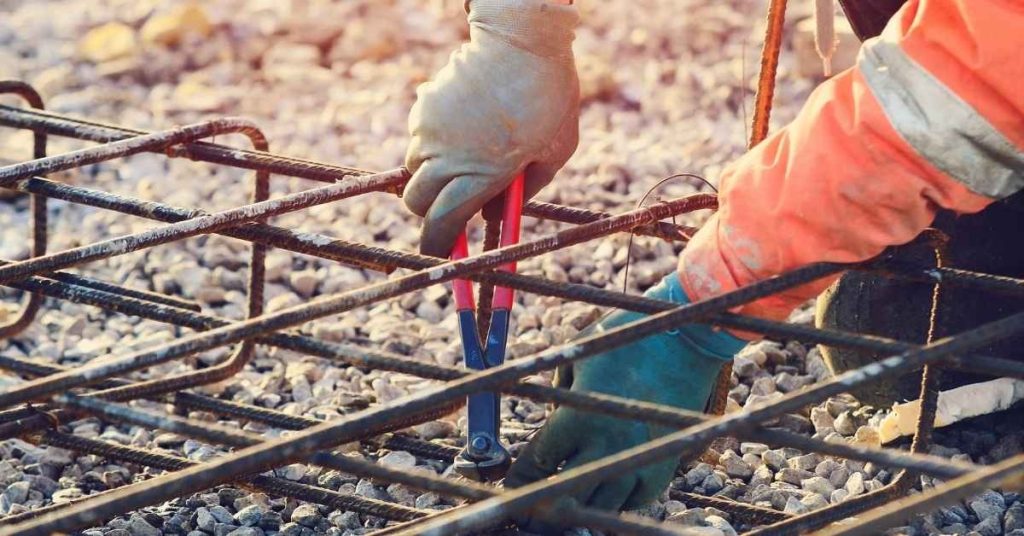

Place vertical bars through cores where specified, and run horizontal bars through mortar joints or inside cells as directed. Maintain required clear cover to faces and joints so concrete can grip and protect the steel. Use chairs or blocks to hold bars in the correct position during grout and pour operations.
Verify clearance requirements per code or engineer, and confirm that spacers and supports are compatible with the block size you are using. If in doubt, pause and check the project documents or consult the structural plans.
Vertical Bar Placement and Alignment
Center your vertical bars, also known as ‘studs’, within the block’s cell. This ensures even distribution of strength.
Keep them plumb – straight up and down. Use a level or laser to check. Any lean can weaken the wall.
At corners and openings, you might need offsets. For instance, at a corner, place one bar from each side into the corner cell, offsetting them to meet in the middle.
Horizontal Bars, Shelf Angles, and Ties
Horizontal bars, or ‘lintels’, sit on top of blocks. They reinforce bond beams and lintels over openings.
Shelf angles support these horizontal bars. Place them on top of the block course before laying the bar.
Wall ties or connectors link vertical and horizontal reinforcement together. They pass through the wall, tying both sides to each other and to the rebar.
Grout Types, Flowability, and Consolidation Best Practices
Grout for CMU comes in several forms, with flowability and non-shrink characteristics influencing placement. Identify what type the project requires and how it should be consolidated to avoid voids. Labeling and verification against requirements keeps you aligned with the plan.
Check the minimum compressive strength and aggregate size specified for the project, and ensure the mix schedule matches those specs. If you’re unsure, rely on the project data sheet or ask the supplier for confirmation.
Mixing and testing grout consistency
Grout needs the right mix for strength and bond. Aim for a flowable, pourable consistency – not too thick or thin.
Overwatered grout is weak, under-mixed grout has lumps. Both compromise your wall’s integrity.
Check consistency by dipping a trowel into the mix. It should flow off smoothly, like honey. If it’s too thick or thin, adjust water and mixing time accordingly.
Consolidation and avoiding voids
Grout needs proper consolidation to fill cells completely. Avoiding voids is crucial for strength and durability.
- Vibration: Use a poker vibrator to shake out air pockets as you pour.
- Rodding: For deep cells, use a rod to push grout down and break up any trapped air.
- Tremie pipe: For large voids or deep lifts, use a tremie pipe to place grout at the bottom and let it rise, displacing air.
- Honeycombing: If you see honeycomb-like voids in set grout, it means your mix was too thick or you didn’t consolidate properly. Break out and redo those cells.
- Segregation: If grout is separating into layers (coarse aggregate settling out), it’s too wet. Adjust your mix and remix thoroughly to prevent this.
Regularly inspect your work for these issues. Address any problems promptly to maintain a strong, solid wall.
Bond Beam Logic and Design Considerations
Bond beams provide continuity and load distribution at key levels, tying walls together and helping resist flexural movement. They are typically positioned at strategic elevations like tops of walls or around openings. The design should align with the structural plans for the building.
Coordinate with the structural drawings to ensure bond beams follow the intended locations and dimensions. When in doubt, consult the engineer or review the construction documents before proceeding.
Bond Beam Configurations and Reinforcement Patterns
Bond beams are crucial for distributing loads and providing continuity to your CMU walls. Here’s how to configure them:
Closed-Top Bond Beams: These use U-shaped blocks with a solid cap on top, providing better strength and grout flow.
Preformed Bond Beams: These are factory-made units that fit together like puzzle pieces. They’re quick to install but can be pricier.
Reinforcement patterns matter too:
– Ladder Configurations: Two horizontal bars with verticals connecting them allow grout flow and better load distribution.
– Single-Bar Configurations: A single horizontal bar with verticals is simpler but reduces grout flow and capacity.
Continuity, Splices, and Connections
Ensuring continuity in your bond beams is key for strength. Here’s how:
– Lap Splices: Overlapping rebar ends by a certain length (specified by the engineer) provides continuity.
– Mechanical Couplers: These devices connect rebar ends, but they’re more expensive and may not be as strong as lap splices.
– Dowels: Steel rods placed in drilled holes provide connection between blocks. Always follow engineer’s specs for splice lengths and connector types.
Layout Examples for Common Wall Scenarios
Practical reinforcement layouts vary by bearing, shear, or parapet conditions. Use project drawings as your guide and adapt only where the plans allow. Don’t copy samples verbatim without validating with the actual site conditions.
Note the variables that change layout, such as wall height, openings, and load paths. If you spot a discrepancy, pause and verify with the drawings or the supervising designer before continuing.
Single-story bearing walls
For short, single-story bearing walls, focus on reinforcing the base and openings.
Vertical bars: Space them at 16″ to 24″ centers. This supports the wall’s weight and prevents cracking.
Bond beam: Place it at the bottom, directly above the foundation. Use #4 or #5 rebar, spaced at 12″ to 16″ centers. This ties the wall to the foundation and distributes loads evenly.
Lintels: Reinforce openings with lintels made of #3 or #4 rebar, spaced at 12″ to 16″ on center. Ensure they’re properly supported and aligned.
Freestanding, retaining, and parapet walls
These walls need extra reinforcement due to their unique conditions.
Cantilevered or retaining walls: Add vertical bars at the face of the wall for stability. Use #4 rebar at 12″ centers. Also, include a kicker bar at the base to resist lateral forces.
Parapets: Reinforce these exposed walls with horizontal bars at the top and bottom courses. Use #3 or #4 rebar at 8″ to 10″ centers. This prevents blowout from wind loads.
Exposed walls: For walls without a bond beam, add horizontal bars every other course. Use #3 rebar at 24″ centers. This helps prevent cracking due to shrinkage and temperature changes.
Tools, Materials Checklist, and Visual Checkpoints
Translate the job into a DIY-friendly checklist of essential tools and materials. Include items for alignment, placement, and grouting, plus extras for on-site repairs. Visual checkpoints help you spot misalignment, voids, or misplaced bars early.
Keep a running stock of critical supplies and double-check that each item matches the project specs. When in doubt, refer to the manufacturer instructions or the project data sheet for guidance.
Required tools and mixing/placement aids
Before you start your concrete project, use this checklist to ensure you have all the necessary tools. This will help prevent delays and rework on site.
- Rebar cutters/benders: To cut and bend reinforcement bars. Rental is usually sufficient for DIY projects.
- Grout pump (optional): For placing concrete in hard-to-reach areas. Consider renting if your project requires it.
- Concrete vibrator: To remove air pockets and ensure a dense, strong slab. Rental is typically the best option for DIYers.
- Concrete forms (wood or metal): To contain the concrete while it sets. Ensure they are in good condition and properly secured.
- Concrete chairs: To support rebar and create voids for proper reinforcement. Check that they are the correct size for your rebar diameter.
- Tape measure: To ensure accurate dimensions and placement of forms, rebar, and other elements.
- Level: To check that forms are plumb and level before pouring. This prevents costly mistakes in the finished product.
- Shovel and wheelbarrow (or concrete mixer with pump): For mixing and transporting small batches of concrete. Check local rental options for larger projects.
Quick rule: Always check your tools before starting work. Damaged or missing items can lead to rework, delays, and additional costs.
Visual checkpoints before closing cells
Before you close those concrete cells with grout, make sure they’re ready. Here’s a quick checklist to ensure everything is in order.
- Bar position: Check that reinforcement bars are correctly placed and centered within the cells. They should be at least 1″ away from the cell faces to allow for proper grout coverage.
- Clearances: Ensure there’s no obstructions or debris in the cells that could prevent proper grout flow. Clearances around bars should be free of any blockage.
- Clean cells: Verify that all cells are clean and free from dirt, dust, or other contaminants. Use a wire brush if necessary to remove any debris.
- Bond beam continuity: Inspect the bond beams above each cell to ensure they’re continuous and properly aligned. Check for any voids or gaps that could compromise structural integrity.
- Cell dimensions: Re-check cell dimensions to ensure they match your plans. Incorrect sizes can lead to grout over- or under-fill, causing rework.
- Grout mix: Before you start, check that your grout mixture is correct (typically 3:1 sand-to-cement ratio). A wrong mix can result in weak, crumbly grout.
- Water content: Ensure the water content in your grout mix is appropriate. Too much or too little water can lead to weak, cracked, or improperly cured grout.
- Temperature and humidity: Check that conditions are suitable for grouting (typically between 50°F – 90°F with relative humidity above 40%). Extreme temperatures or low humidity can cause curing issues.
Quick rule: Always double-check your work before closing cells. It’s much cheaper to fix issues now than after grout has been poured and cured.
Inspection, Testing, Common Mistakes, and Troubleshooting
Establish inspection steps for each stage, looking for cracking, misalignment, and improper grout consolidation. Simple field tests can help you confirm the work is progressing as planned. Do not proceed if you detect obvious defects that compromise strength.
Document issues and follow a clear path to address them, including stopping work and consulting a structural engineer when required. Always rely on the project requirements and professional guidance to resolve problems.
Common installation errors and how to fix them
Use this checklist during each stage of your concrete block reinforcement process to catch and correct common mistakes.
- Insufficient cover: Check that rebar is properly covered by at least 2 inches of concrete. Inadequate cover can lead to corrosion and structural issues.
- Dirty cells: Ensure cells are clean before grouting. Dirt or debris can prevent proper bonding and create voids.
- Improper grout consistency: Test grout for correct slump (flowability). Too thick or thin grout can cause poor bond and weak walls.
- Poor consolidation: Use a vibrator to remove air pockets. Inadequate consolidation results in weak, porous concrete.
- Incorrect rebar size: Double-check rebar sizes match your approved plans. Wrong sizes can compromise structural integrity.
- Missing splices or connections: Ensure all required splices and connections are made as per design. Omissions can weaken walls.
- Improper alignment: Check that rebar is aligned vertically and horizontally. Misaligned rebar reduces wall strength.
- No expansion joints: Include expansion joints every 20-30 feet to accommodate concrete shrinkage and movement.
Quick rule: Regularly inspect your work throughout the process, not just at the end. Catching mistakes early saves time and money.
Documentation and interacting with inspectors
Proper documentation helps speed up inspections and approvals. Use this checklist to stay organized.
- Mix tickets: Keep records of all concrete mixes used, including batch numbers, dates, and slump tests.
- Reinforcement schedules: Have approved reinforcement plans on-site for easy reference during inspections.
- Inspection photos: Take before-and-after photos of each stage (e.g., rebar placement, grouting) to document your work.
- Grout test results: Record and keep records of grout slump tests for each batch.
- Consolidation methods: Note the consolidation method used (vibrator, poker, etc.) and any issues encountered.
- Wall sections: Sketch or photograph wall sections to help inspectors understand your work.
- Building codes: Ensure all work complies with local building codes and standards.
- Contact information: Have your engineer’s contact details ready for any questions that may arise during the inspection process.
Quick rule: Be proactive in providing information. Inspectors appreciate well-organized, easy-to-access documentation.
Conclusion
Building solid CMU walls comes down to disciplined reinforcement, proper placement, and careful grout work. Do it right and you get safety, durability, and a clean look that lasts.
Before you mix or lay a single bag, confirm the plan: verify rebar size and spacing, check clearances inside the cavities, confirm grout type and its flow and consolidation requirements, review bond beam dimensions and transfer details, and walk through the layout for your wall scenario. Then execute in order: prep tools and materials, place and tie bars, fill from bottom to top with proper vibration, and finish with inspections and visual checkpoints as you go. Keep the pace deliberate, stay within the plan, and test a small area if you’re unsure about grout flow or consolidation before scaling up.
Common mistakes to avoid are using undersized or misplaced bar, skipping proper grout consolidation or vibration, and rushing joint work without PPE or a safe setup. Safety rules are simple: wear eye and hand protection, keep the area clear of trips and spills, and never force grout or rebar into a cavity. If you’re unsure about spacing, load requirements, or bond beam design, stop and verify with the plan or a pro before moving forward.
If the wall carries significant load, has unusual geometry, or you’re unsure about critical clearances, call in a professional. When in doubt, slow down, double-check measurements, and proceed only after you’re confident. Stay steady, keep it clean, and you’ll end with a wall that’s strong, true, and built to last.
FAQ
How do I check rebar placement in CMU walls during a DIY build?
Double‑check that the rebar runs through the cores where the plan calls for it and that it has the required clearances from the faces of the units. If you’re unsure, refer to the product label, manufacturer instructions, or local rules for placement guidance. Don’t guess—verify with the documentation you have on hand.
What grout prep issues affect bond beam strength?
Use the grout specified on the label and mix it per the instructions. Make sure there are no large air pockets by properly consolidating, but don’t overwork it to the point of segregation. If you’re unsure about a grout mix, check the bag label or manufacturer instructions.
How should I protect rebar in bond beams from corrosion?
Keep the rebar covered with enough grout or mortar to meet the label’s cover requirements. If you’re in doubt about exposure or environment, consult the manufacturer instructions or local rules for acceptable protection. When in doubt, choose the safer option and err on the side of more cover.
What are common grout consolidation mistakes and how can I fix them?
Common mistakes are leaving voids and under‑vibrating, which weakens the bond. Use a proper consolidation method per instructions, and recheck areas that feel hollow after the grout sets. If in doubt, review the grout product label or manufacturer guidance for best practices.
